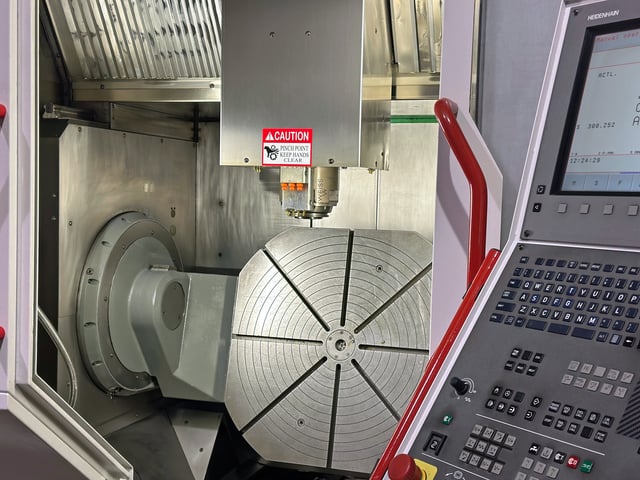

Hermle #C40U-dynamic, vertical machining center, 33.5" X, 27.6" Y, 19.7" Z, 28000 RPM, 1160 psi thru spindle coolant, 38 tool, 5-Axis, Chip Conv., rigid tap, Heidenhain Control, 2004

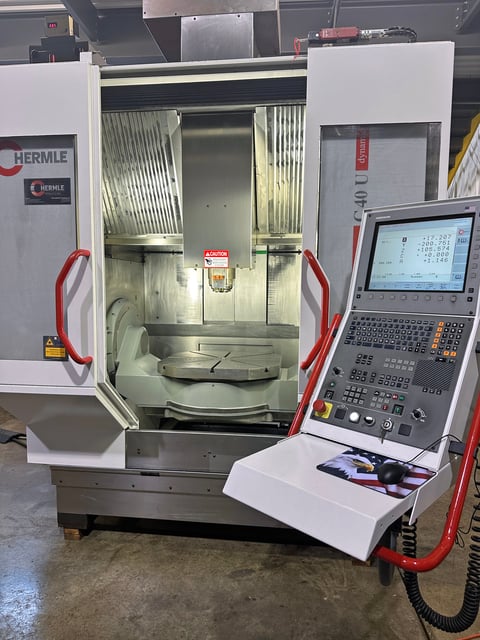

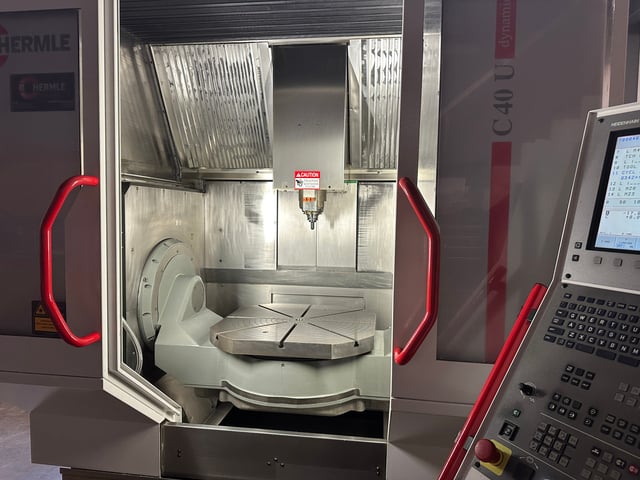

Used 2004 HERMLE C40U dynamic Full 5-Axis Simultaneous Gantry Style VMC:
May be inspected in our Wisconsin showroom under power by appointment

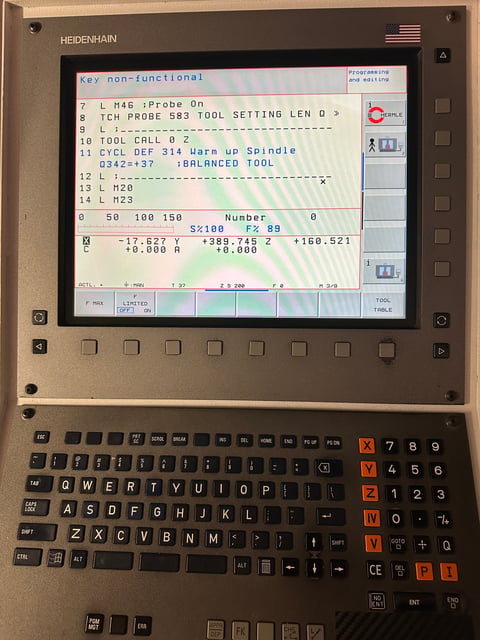

HEIDENHAIN iTNC 530 CNC Control with hand-held electronic handwheel

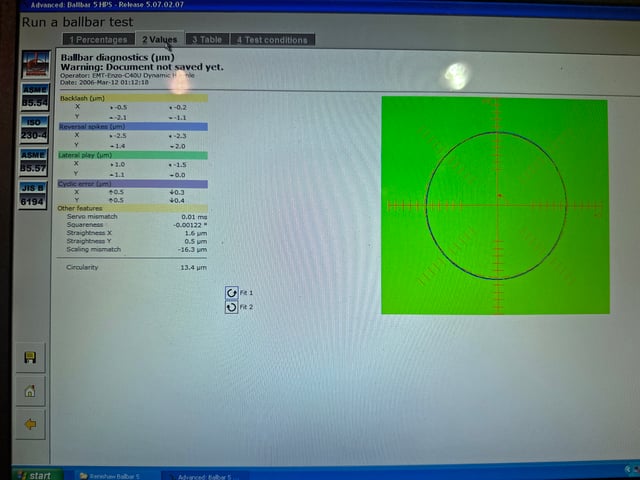

TECHNICAL DATA:
X-Axis................................................. 33.5" (850 mm)
Y-Axis................................................. 27.6" (700 mm)
Z-Axis................................................. 19.7" (500 mm)
Spindle speed range...................................... 20-28,000 rpm
Machine equipped with external spindle chiller
Spindle taper.................................................. HSK-A63
Spindle output........................................... 30.8 HP (23 kW)
Spindle torque....................................... 58.3 lb/ft (79 Nm)
Spindle made by WEISS Spindeltechnologie-Germany
Tool Changer (Pick-up)................................... 38 tool pockets
Chip-to-chip time (dynamic) about 4.5 seconds
Maximum tool length.11.8 (300 mm)
Maximum tool diameter3.54 (90 mm) diameter
Maximum tool diameter with empty adjacent pockets4.92 (125 mm) diameter
Maximum magazine loading with 38 units335 lb (152 kg)

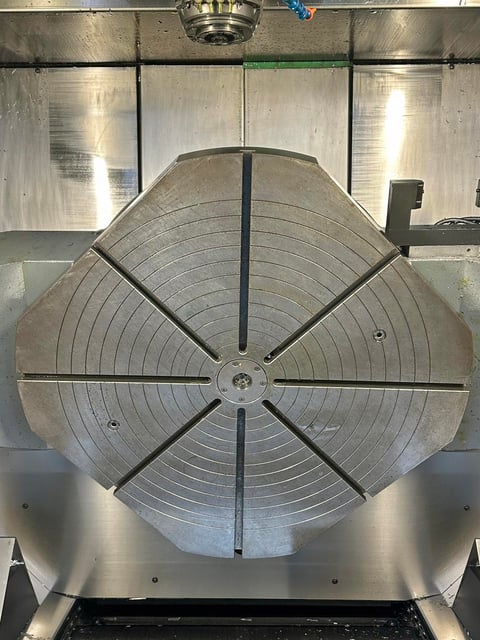

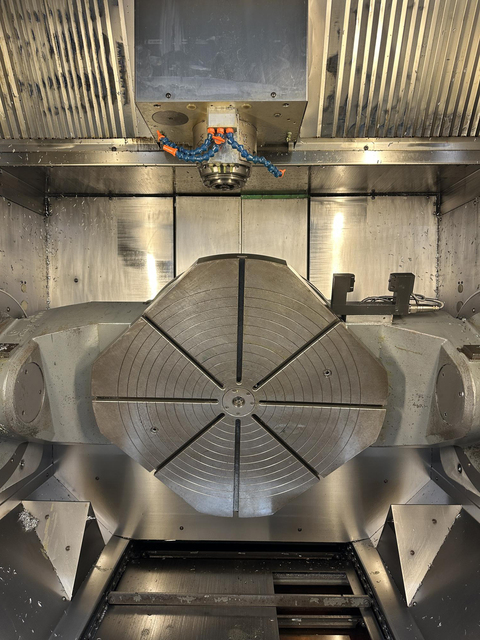

NC rotary swivelling table (Dynamic) clamping surface..31.5" (800 mm) diameter
Table swiveling range.+25 degrees/-100 degrees
Speed A-axis (swivel axis).25 rpm (full 5th Axis)
Speed C-axis (rotary axis).65 rpm (full 4th Axis)
Table load maximum..3,087 lb (1,400 kg)
Starlike T-grooves8/14H7
-Tandem drive at the A-axis for strong torque movement
-Direct drive (torque motor) at the C-axis
Holding torque A-axis (dynamic)..2,766 lb/ft (3,750 Nm)
Clamping torque C-axis.2,213 lb/ft (3,000 Nm)
DYNAMIC FEED DRIVE
Linear feed force.1,349 lb/ft (6,000 N)
Rapid traverses (dynamic)...2,362 ipm (60 m/min)
Acceleration (dynamic)33 foot/sec-2 (10 m/sec-2)
EQUIPPED WITH:
Mineral casting machine base for thermal stability and vibration dampening
Approximate machine weight 23,149 lb (10,500 kg)
A axis dynamic (tandem drive)
C axis direct drive (torque motor)
HEIDENHAIN linear glass scales direct measuring in X/Y/Z Axes resolution 0.1 u
HEIDENHAIN rotary encoders direct measuring in 4th & 5th Axes resolution 0.1 u
High Pressure Coolant tank unit 264 gallon capacity (1,000 l)
1,160 PSI (80 bar) CTS (Coolant Thru The Spindle)
5 gallon/minute (20 l/min) maximum flow rate

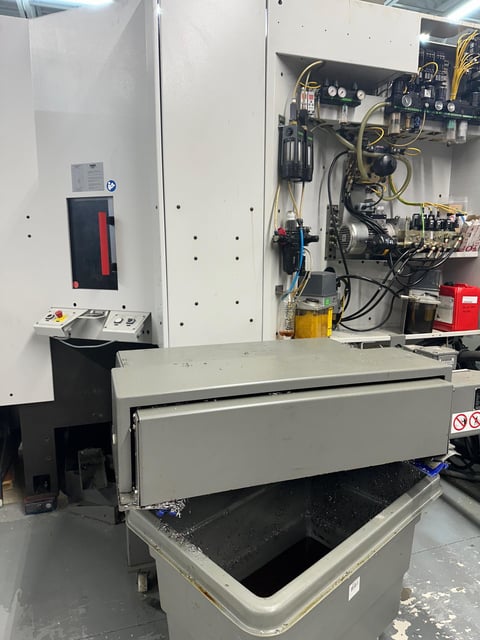

Chip conveyor, ejection height 43.3 (1,100 mm)
Machine light
Fully enclosed cabin enclosure
Spindle air blast
Orientation spindle stop M19
Helical interpolation
Rigid tapping
RS 232 port and Ethernet port
BLUM laser tool measuring of tool length, diameter, and broken tool detection

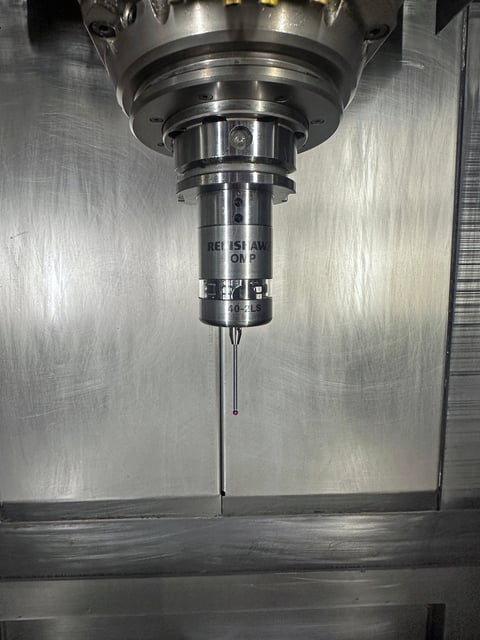

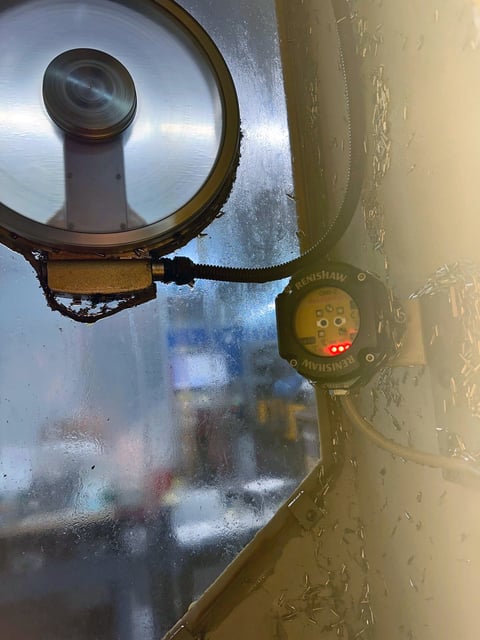

Infrared parts measuring touch probe
Oil mist extractor
Air conditioner for electrical cabinet
Leveling Shoes
Spray pistol
Linear scale air protection
Books, manuals and technical documentation on hand for the machine
CONNECTION REQUIREMENTS:
Power input: 400V/60 Hz
Fuse: 60 A
Power required: 41 KVA
Air required: 87 PSI (6 bar)
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point (Wisconsin).
Price quoted includes professional de-installation and shipping preparation by Seller.
Price quoted includes the cost of loading onto truck supplied by Buyer.
