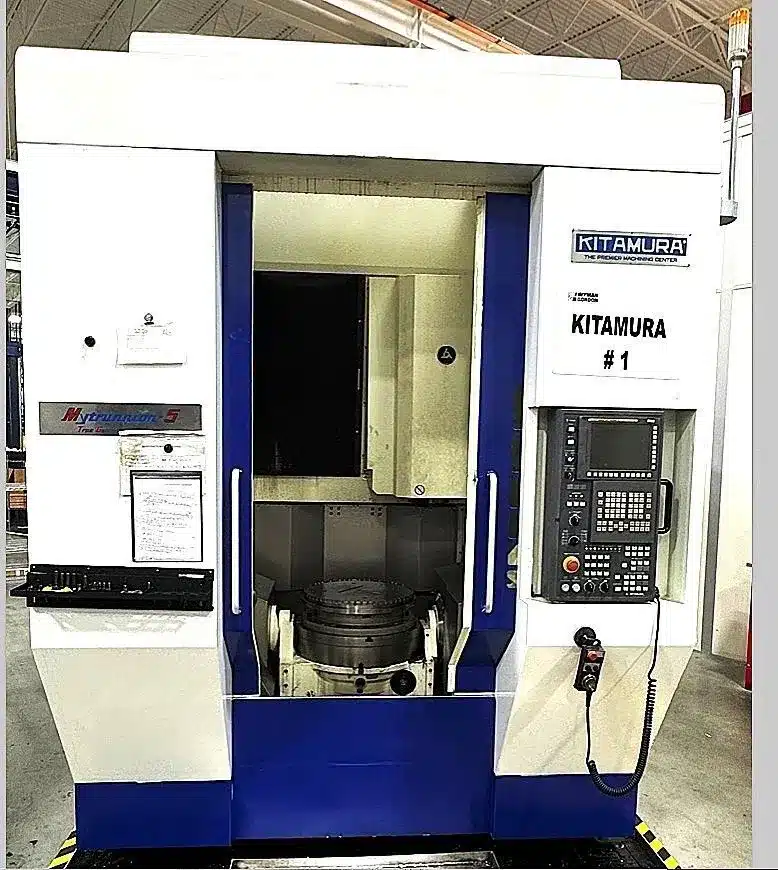

Kitamura #MyTrunnion-5, 5-Axis CNC vertical machining center, Fanuc 16iMB, 32.3" X, 29.3" Y, 19.6" Z, 20000 RPM, 50 automatic tool changer, 2017

KITAMURA MY-TRUNNION 5 5-Axis Mill

Main Specifications
Table Length 24.8 ”
Table Width 19.7 ”
CNC 5-Axis Mach Center
MyTrunnion 5
FANUC 16i-MB
Spindle speed range 20 ~ 20,000 rpm
Spindle motor power 20 hp
ATC 50 Tool
Max longitudinal cutting feed (X-Axis) 1,968 “/min
Max transversal cutting feed (Y-Axis) 1,968 “/min
Max vertical ram cutting feed (Z-Axis) 984 “/min
X-Axis travel 32.3 ”
Y-Axis travel 29.3 ”
Z-Axis travel (Ram Stroke) 19.6 ”
Machine Weight 38,000 lbs
Special Features Specifications:
A Axis: 150° ( Table Tilt )
C Axis: 360° ( Table Rotate )
Max Weight on Table: 880 lbs
T-Slot : 0.7″ X 3 Slots
Table to Spindle Nose: 3.9″ – 23.6″
Rapid A : 2000 Degree Per Minute
Rapid C : 6000 Degree Per Minute
Cutting Feedrate: 984 Inch Per Minute
Max Tool Size: 5.91″ X 11.8″
Max Tool Weight: 22 lbs.
Tool Change Time: 1.7 Second

Equipped with:
Fanuc Series 30i Model B CNC Control
Simultaneous 5 Axis Cutting
20,000 RPM High Precision Spindle
Coolant through Spindle
Glass Scales on the Axis’s
PCMCIA Card Slot
128 MB Memory
Spindle Chiller
Spindle Orientation
Helical Interpolation
Rigid Tapping
Absolute Incremental Programming
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank
Chip Conveyor
Work light
