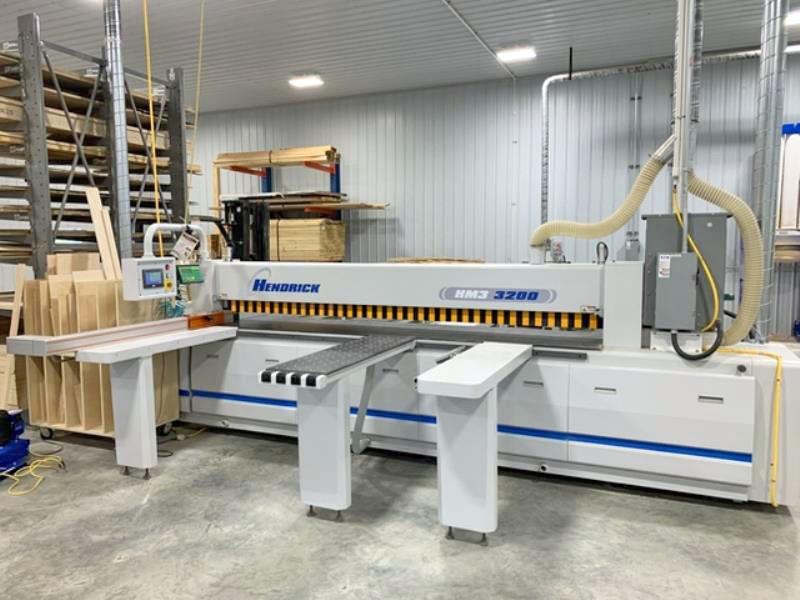

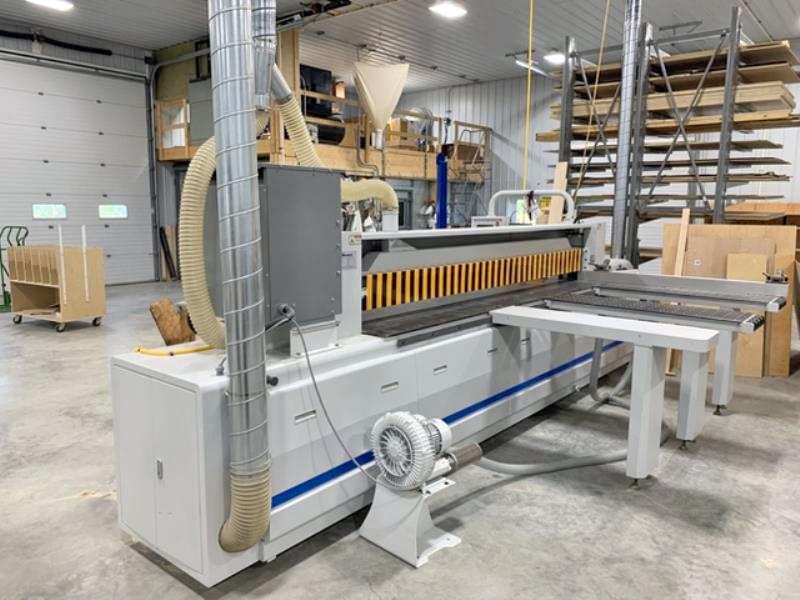

Hendrick #HM3-3200, Front Load Panel/Beam Saw, 126" L x 3" D Cut capacity, 14" diameter x 3" bore Main & 7" diameter x 1.2" Scoring Blade Size, 15 HP, 4500 RPM, 2022
Estimated monthly payment valid upon approved credit.
Description

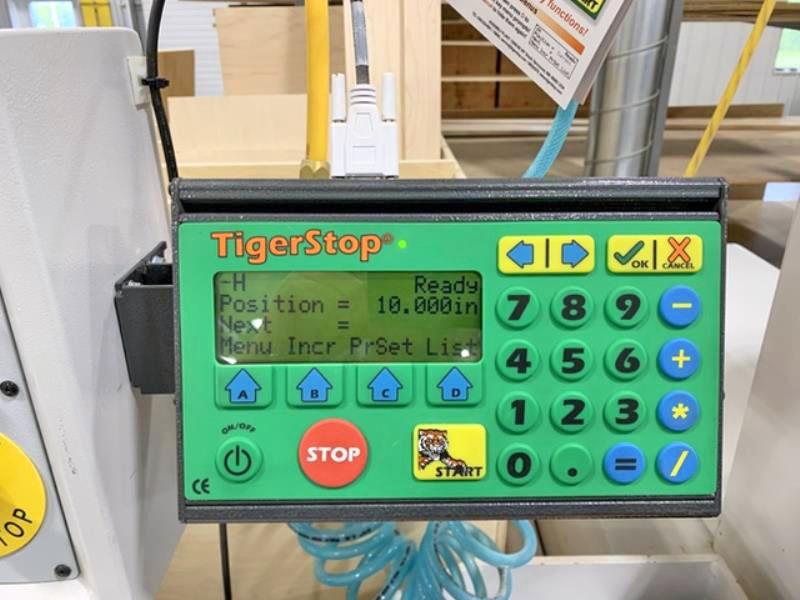

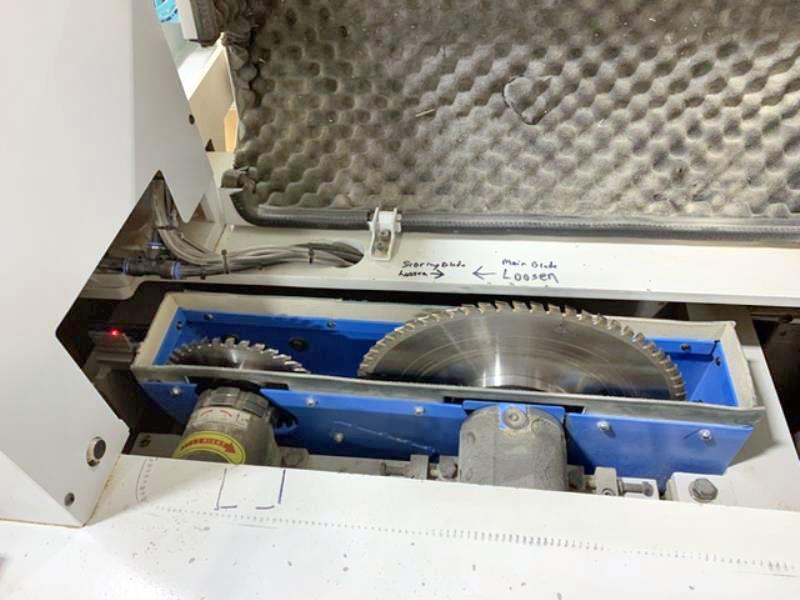

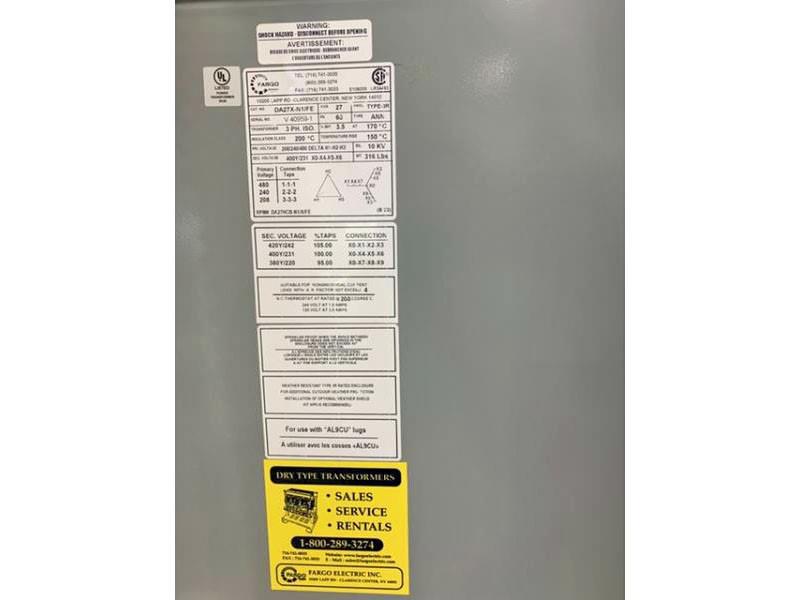

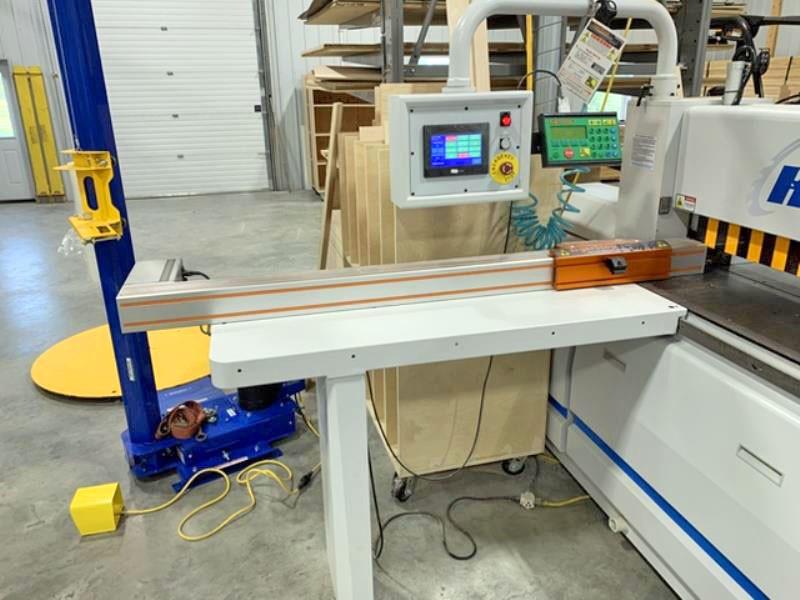

HENDRICK HM3 3200 FRONT LOAD, PANEL/BEAM SAW -- Specifications:Configured for cutting solid or stacked wood sheets. Length of cut: 126";; Depth of Cut: 3";; Main Saw Motor: 15 HP. Main saw blade size: 14"; Diameter x 75mm Bore; Scoring saw blade size: 7"; Diameter x 30mm Bore. Main spindle speed: 4500 RPM; Scoring spindle speed: 6700 RPM. -- Carriage feed motor: 1.5 kW AC Servo linear rack & pinion gear system. Max Feed Rate: 2,800 “/min.; Max cutting speed: 1,800 “/min. -- Includes: Material support air table. -- Options Include: Upgraded transformer, and a TigerStop fence as pictured.
The HM3 Horizontal Panel Saw is a powerful machine ideal for businesses looking for an alternative to expensive sliding table saws. Experience the difference of an automatic, safer, and more powerful machine. Making cuts and adjusting cutting speeds is effortlessly done with the push of a button. Efficiently load and ...more
