For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!

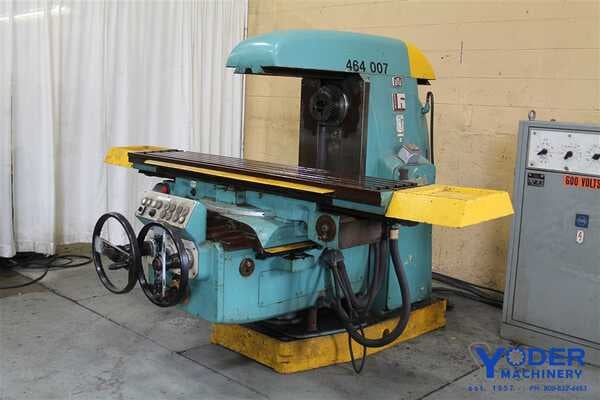

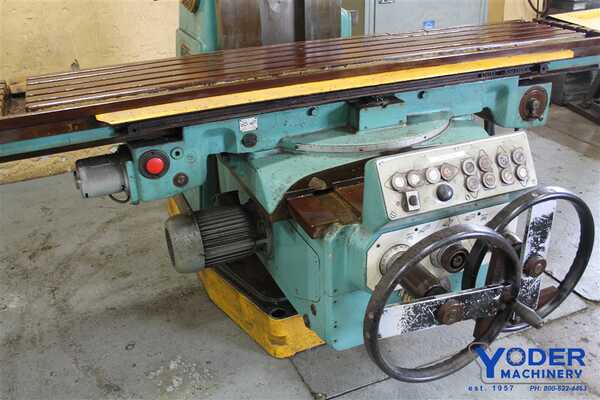

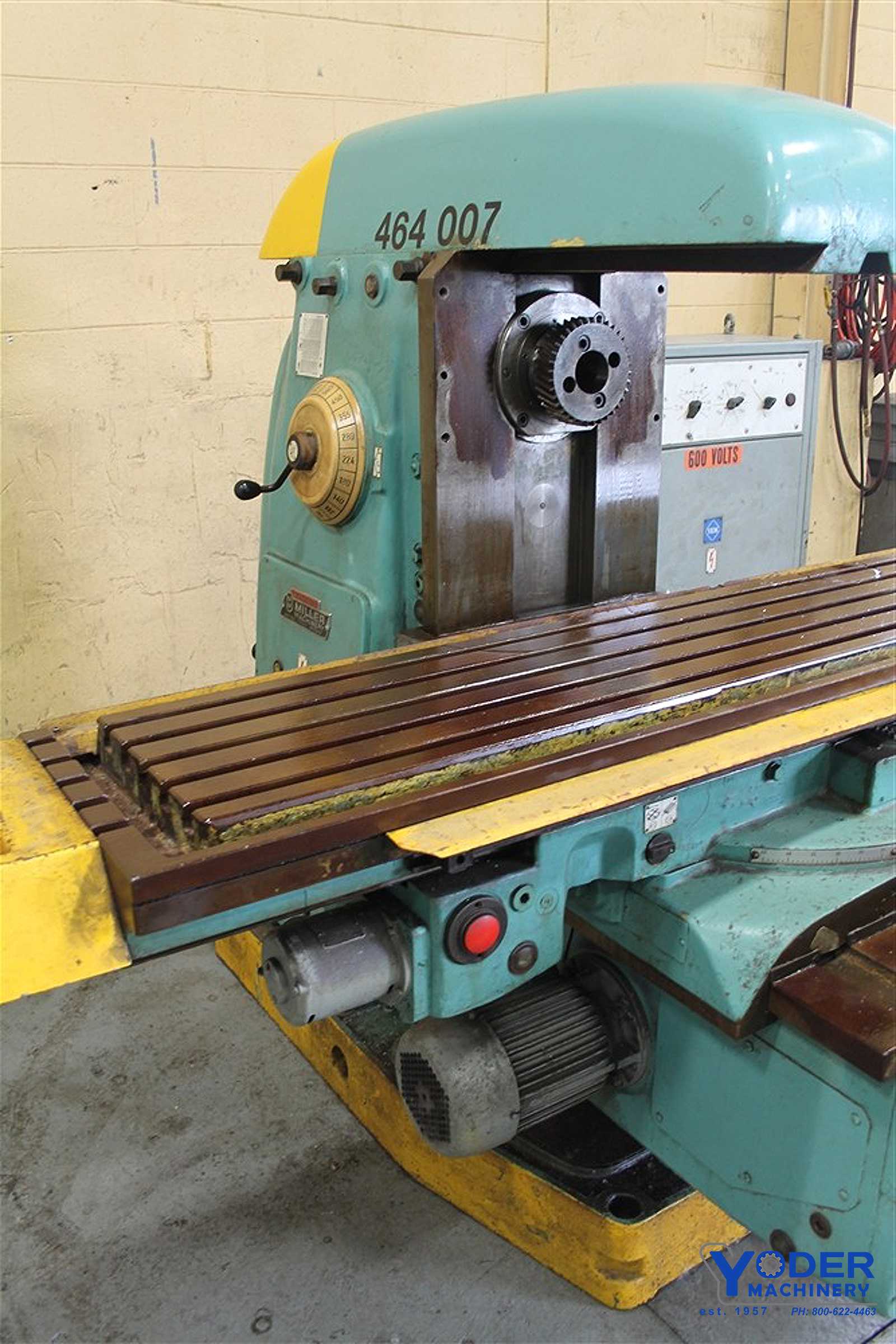

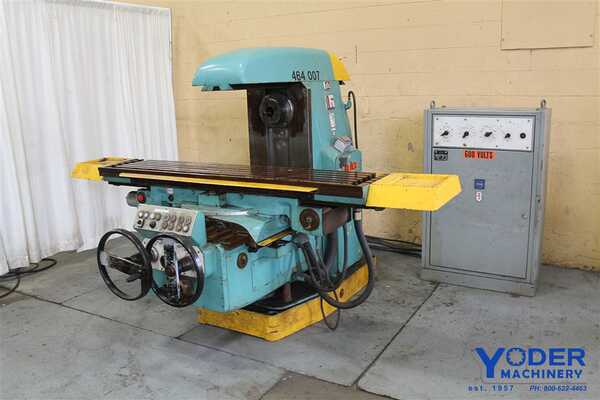

Description

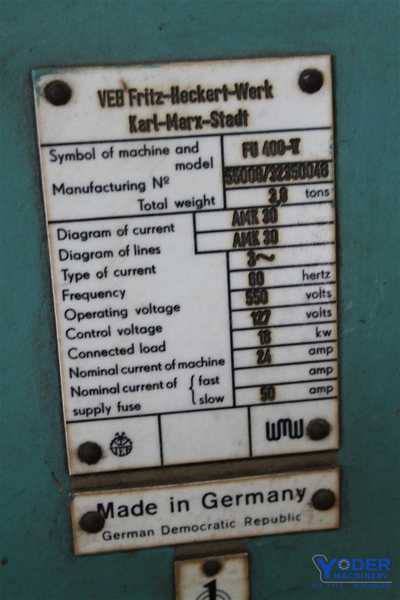

SERIAL ........................... 550008/32350048
MODEL ............................ FU400II
AREA OF TABLE .................... 71" X 16"
SPINDLE SPEEDS ................... (18) 28 TO 1400 RPM
LONGITUDINAL & CROSS FEEDS ....... (18) 5/8 TO 32 IPM (16 TO 800 MMPM)
VERTICAL FEEDS ................... (18) 3/16 TO 10-1/2 IPM (5 TO 250 MMPM)
LONGITUDINAL TRAVEL .............. 51" (1300MM)
CROSS TRAVEL ..................... 14" (355 MM)
VERTICAL TABLE TRAVEL ............ 15-3/4" (400 MM)
CENTER LINE OF SPINDLE TO TABLE .. 0" MINIMUM, 16" MAXIMUM
RAPID TRAVERSE ................... YES
TABLE SWIVELS LEFT & RIGHT ....... 45 DEGREES
TAPER IN SPINDLE ................. #50 NS
COOLANT .......................... YES
FEED MOTOR ....................... 3 HORSEPOWER
MOTOR ............................ 25 HORSEPOWER
MODEL ............................ FU400II
AREA OF TABLE .................... 71" X 16"
SPINDLE SPEEDS ................... (18) 28 TO 1400 RPM
LONGITUDINAL & CROSS FEEDS ....... (18) 5/8 TO 32 IPM (16 TO 800 MMPM)
VERTICAL FEEDS ................... (18) 3/16 TO 10-1/2 IPM (5 TO 250 MMPM)
LONGITUDINAL TRAVEL .............. 51" (1300MM)
CROSS TRAVEL ..................... 14" (355 MM)
VERTICAL TABLE TRAVEL ............ 15-3/4" (400 MM)
CENTER LINE OF SPINDLE TO TABLE .. 0" MINIMUM, 16" MAXIMUM
RAPID TRAVERSE ................... YES
TABLE SWIVELS LEFT & RIGHT ....... 45 DEGREES
TAPER IN SPINDLE ................. #50 NS
COOLANT .......................... YES
FEED MOTOR ....................... 3 HORSEPOWER
MOTOR ............................ 25 HORSEPOWER
Get Your Price from Yoder Machinery Sales!
