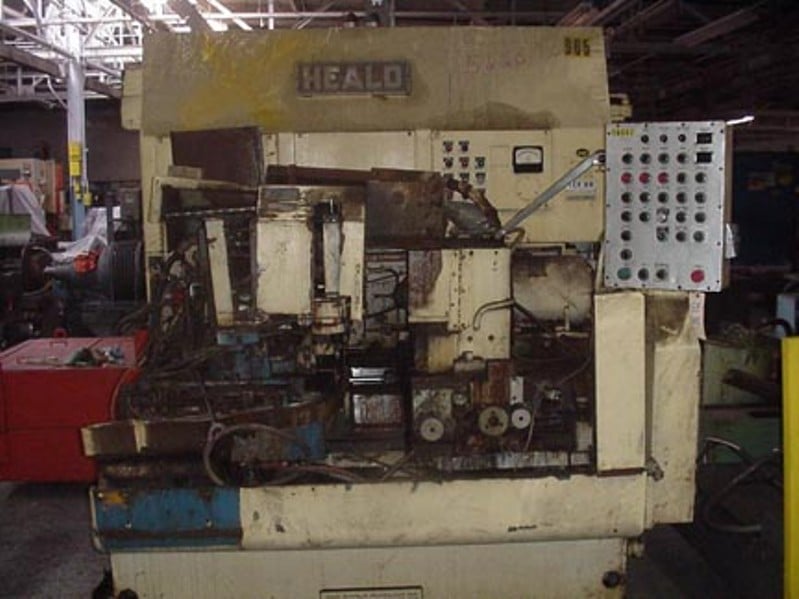

Heald #1CF-80, internal grinder, centerless, Roll Type, Above center, 4.5" outside dimension x 2.5" L work capacity, 8" table travel, 495 SFPM, 7.5 HP, 3600 RPM, 1968

1CF-80 Heald Internal Grinder, Above Center - Centerless Grinder, Single Point Diamond Dresser, Auto Load & Unload, Red Head Spindle, Swivel, As Is.
1CF-80 HEALD CENTERLESS ROLL TYPE ABOVE CENTER I.D. GRINDER
S/N 42304 Year: 1968
STANDARD CATALOG SPECIFICATIONS
CAPACITIES
Maximum outside diameter of work................... 4 1/2
Minimum outside diameter of work................... 1
Maximum length of work............................. 2 1/2
Minimum length of work............................. 1/2
Maximum swivel of work............................. 5
Center of wheel spindle from floor.................42 1/2
SPEEDS FEEDS
Table travel
(Total including run-out)..........................8 max.
Wheel wear compensation
(.0001Increments).................................0004 on dia.
Work speed sat O.D................................. 495 SFPM
High force(adjustable)............................30 - 300 lbs.
DRIVE POWER REQUIREMENTS
Work head motor............................... 1/2 HP @ 155 RPM
Wheel head motor for belt drive............... 7 1/2 HP @ 3600 RPM
Hydraulic pump motor..........................2 HP @ 1800 RPM
Coolant pump motors(2)....................... 3/4 HP 1/2 HP
Backing plate motor........................... 1/6 HP @ 1800 RPM
GENERAL DATA
Overall height.....................................95 1/2
Length and width of base on floor.................. 68 x 49
Floor space (without coolant tank)................. 91 x 86
Floor space (with coolant tank).................... 109 x 86
Net weight of machine(approximate)................ 10,800 lbs.
Gross weight crated(approximate).................. 11,800 lbs.
Gross weight boxed(approximate)................... 12,800 lbs.
EQUIPMENT FEATURES
Red Head grinding spindle, aframe style.
Single point diamond dresser.
Auto load – Unload.
All rolls.
Manual and auto cycle.
Hydrostatic slide.
Oscillator.
Specifications are deemed accurate, however, subject to verification or prior sale.
