For Sale by Machinery Central
Surplus Record Dealer Since 2020
Location: Cincinnati, OH
Contact Denis Frankenberger
Phone Number: 502...> Show Phone Number 502-219-7311
Let the seller know you found their listing on Surplus Record!
$9,950 USD
Description
Spec Sheet:

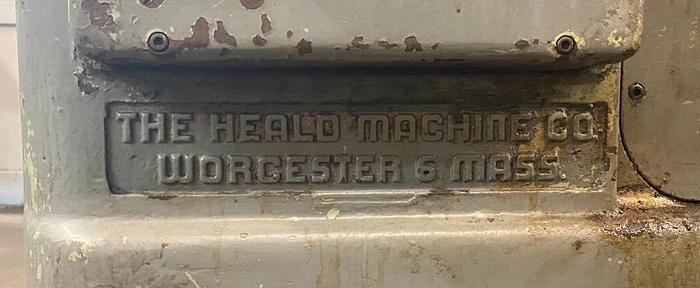

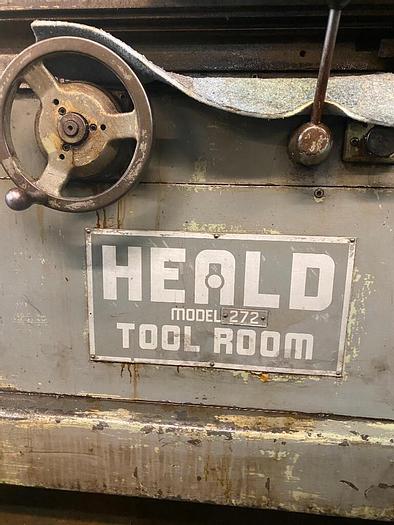

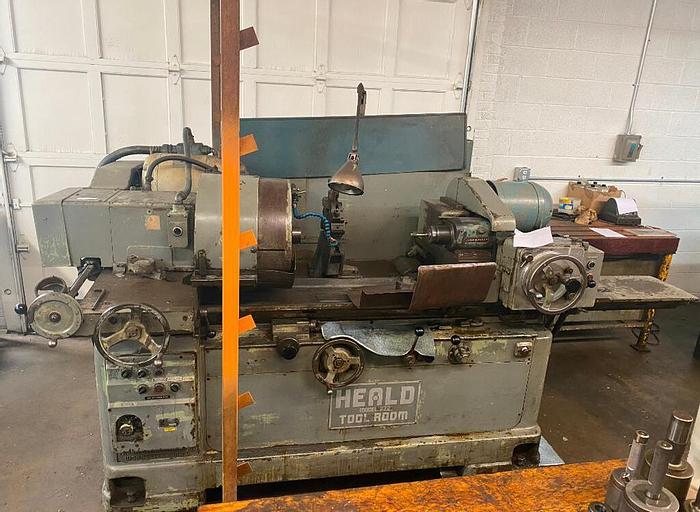

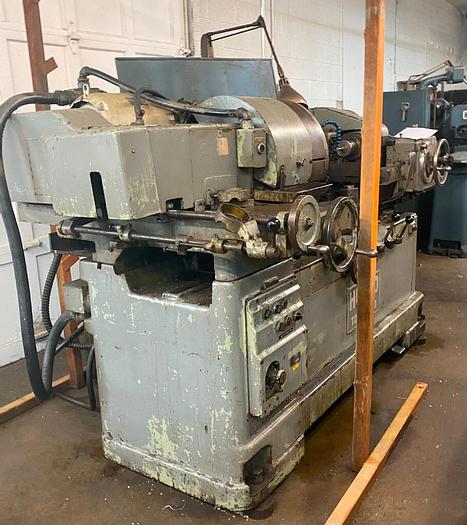

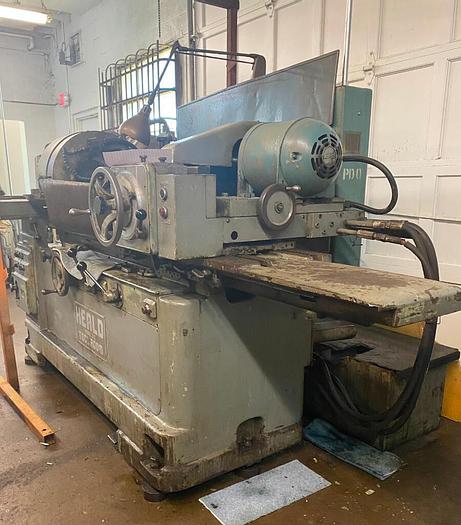

#272 HEALD "TOOLROOM" INTERNAL GRINDER
Serial No. 34298, Model 272, Series "TOOLROOM"
EQUIPPED WITH:
Heald "Red Head" Grinding Spindle
Swing Down Wheel Dresser
12" 4-Jaw Chuck w/Jaws
Variable Speed Hydraulic Workhead Motor
Chuck Guard - Wheel Guard

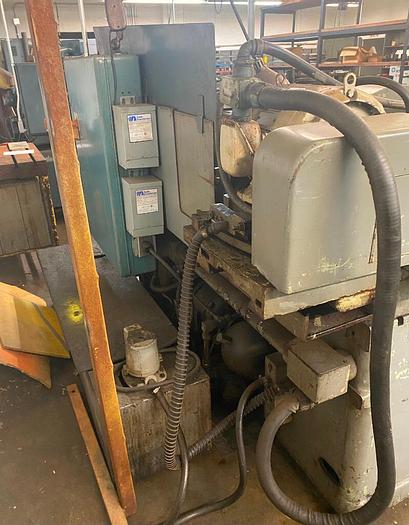

Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 26"
Swing Inside Coolant Splash Guards 20"
Hole Diameter, Maximum 21.75"
Bore Length Ground, Maximum 14"
Table Longitudinal Travel 30.25
Workhead Spindle Flange, Diameter 9.625"
Grinding Angle, Maximum Included 60-DEGREES
Workhead Spindle Speeds, Range 133 to 400 RPM
Grinding Table Speeds, Infinite 0 to 15 FPM
Power Rapid Table Traverse 35 FPM
Wheelhead Spindle Motor, Horsepower 5 HP
Hydraulic Motor, Horsepower 1.5 HP
Floor Space Required, W x D 7'3" x 10'3"
Weight, Approximately 8700 LBS
F.O.B. OUR WAREHOUSE in Cincinnati, Ohio
#272 HEALD "TOOLROOM" INTERNAL GRINDER
Serial No. 34298, Model 272, Series "TOOLROOM"
EQUIPPED WITH:
Heald "Red Head" Grinding Spindle
Swing Down Wheel Dresser
12" 4-Jaw Chuck w/Jaws
Variable Speed Hydraulic Workhead Motor
Chuck Guard - Wheel Guard
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 26"
Swing Inside Coolant Splash Guards 20"
Hole Diameter, Maximum 21.75"
Bore Length Ground, Maximum 14"
Table Longitudinal Travel 30.25
Workhead Spindle Flange, Diameter 9.625"
Grinding Angle, Maximum Included 60-DEGREES
Workhead Spindle Speeds, Range 133 to 400 RPM
Grinding Table Speeds, Infinite 0 to 15 FPM
Power Rapid Table Traverse 35 FPM
Wheelhead Spindle Motor, Horsepower 5 HP
Hydraulic Motor, Horsepower 1.5 HP
Floor Space Required, W x D 7'3" x 10'3"
Weight, Approximately 8700 LBS
F.O.B. OUR WAREHOUSE in Cincinnati, Ohio
Inquire Further with Machinery Central!
