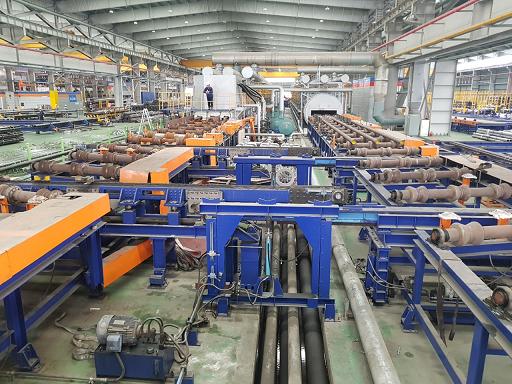

Hanjung quench & temper line, roller hearth, charging table, hardening furnace, conveyor

Furnace Type : Roller Hearth Continuous
Effetive Size
Hardening Furnace : 2380(mm) x 57800(mm)
Tempering Furnace : 2380(mm) x 61200(mm)
Capacity
Maximum : 30 Ton/Hr
Normal : 25 Ton/Hr
3" - 12" Diameter Pipe
Roller Conveyor for 3 pipes

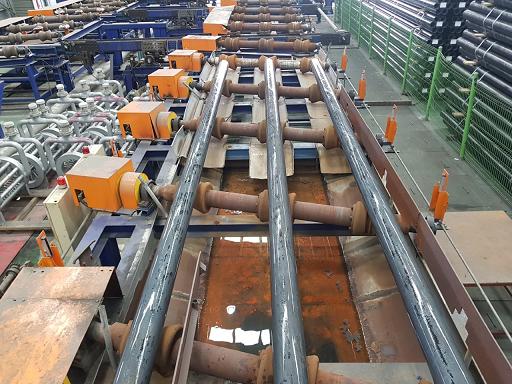

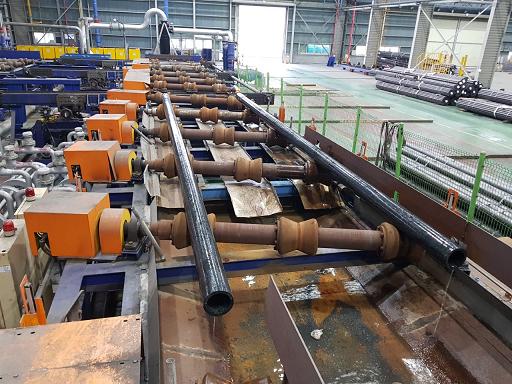

Skewed Conveyor shafts for Pipe Rotation throughout process
Heat Treatment : Quenching & Tempering
: Normalizing
Component of the Facility :

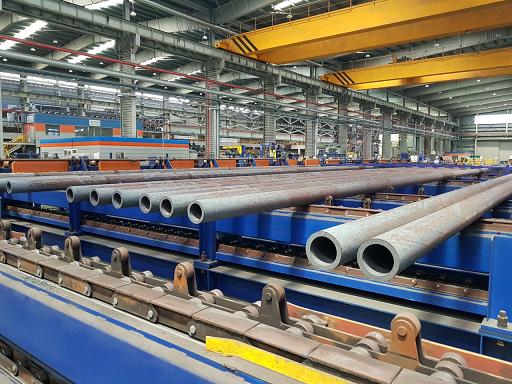

Charging Table

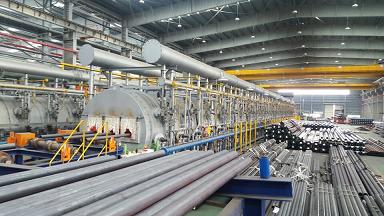

Hardening Furnace
Quenching
Transfer Conveyor
Tempering Furnace
Exit Conveyor
Stock Conveyor
Water Cooling System
Control System

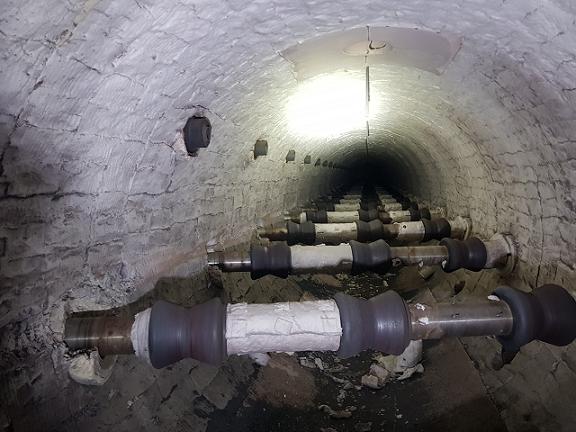

Hardening Furnace:
Use Temperature : 860 C - 1000 C
Hearth Roller Material : SCH 22

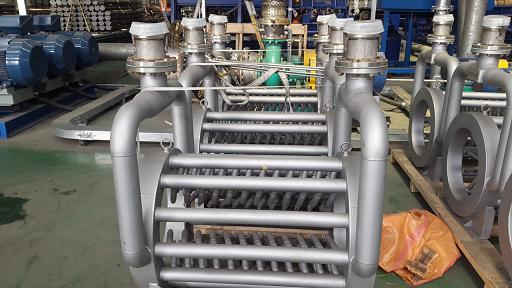

Burner : WS REQUMAT M250(6),M200(96)

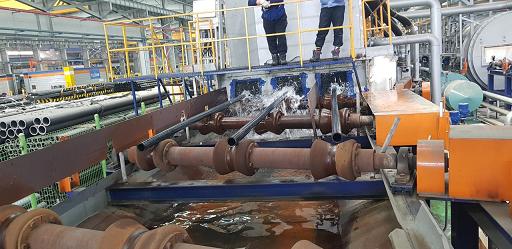

Water Quenching
Type : Water Ring Jet Nozzle
Accessory : Water Filtering System
Cooling Tower System
Tempering Furnace
Use Temperature : 650C - 800C
Hearth Roller Material : SCH 13
Burner : WS REQUMAT M250(4),M200(68)
