For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

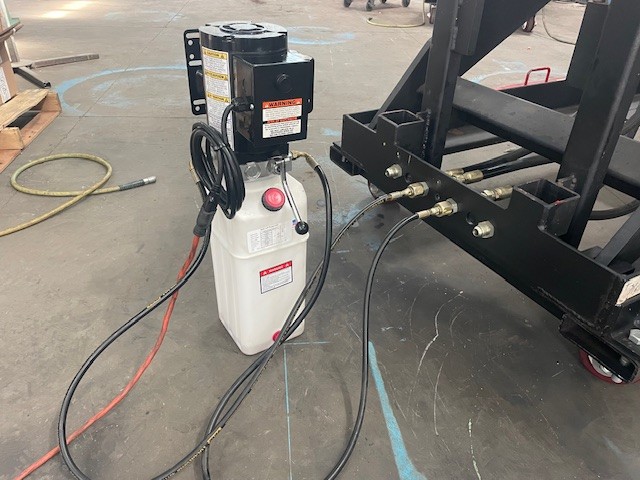

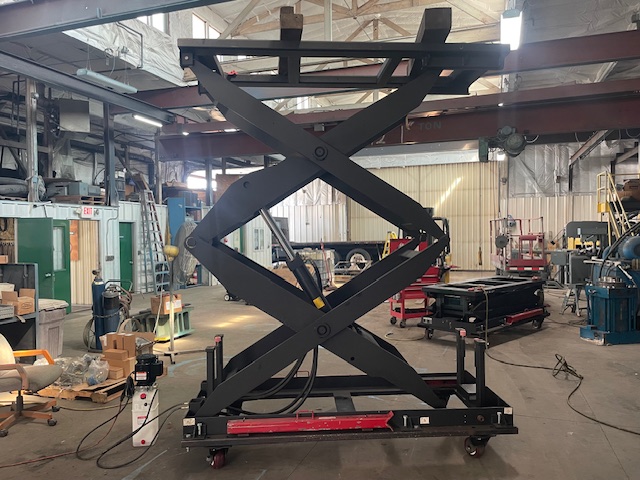

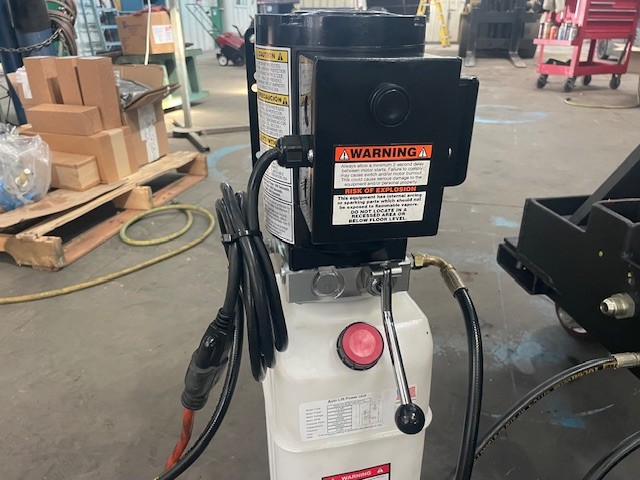

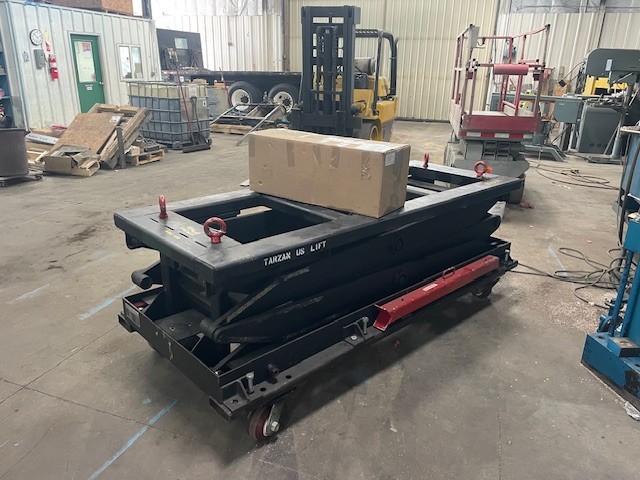

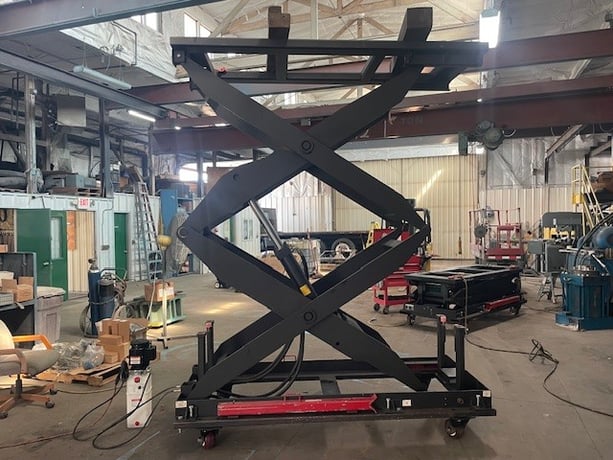

4000 pound hydraulic scissor lift/lift table. 800 pound side load rating. 2000 pound end load rating. Lift range up to approx. 120". height in lowered position is 33.5". Top frame is approx 96" x 36". Heavy duty 6" casters. Two Parker cylinders (4" bore; 2.5" rod diameter; 26" max stroke; rated to 3000 PSI; double-acting (currently set up as single-acting--gravity return). Approx 1.5 HP hydraulic unit (115 volt; single phase); 2 gallon tank. Push button to raise; lever to lower. Approx speeds of 30 IPM up and 80 IPM down. 2 manual safety posts. Overall dimensions when lowered: 96" x 43" x 34" tall. Approx 3,500 pounds. (NOTE: larger power unit could increase speeds and increase height to approx 136"). Two in stock.
