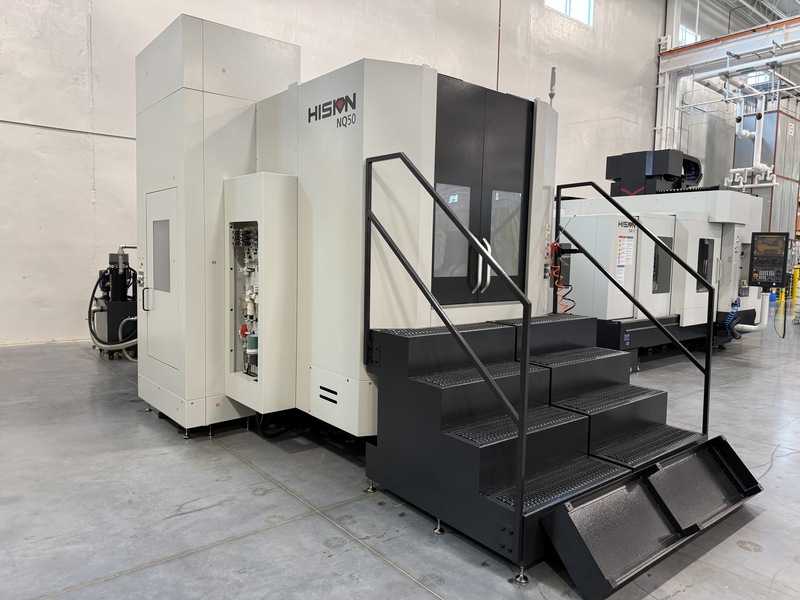

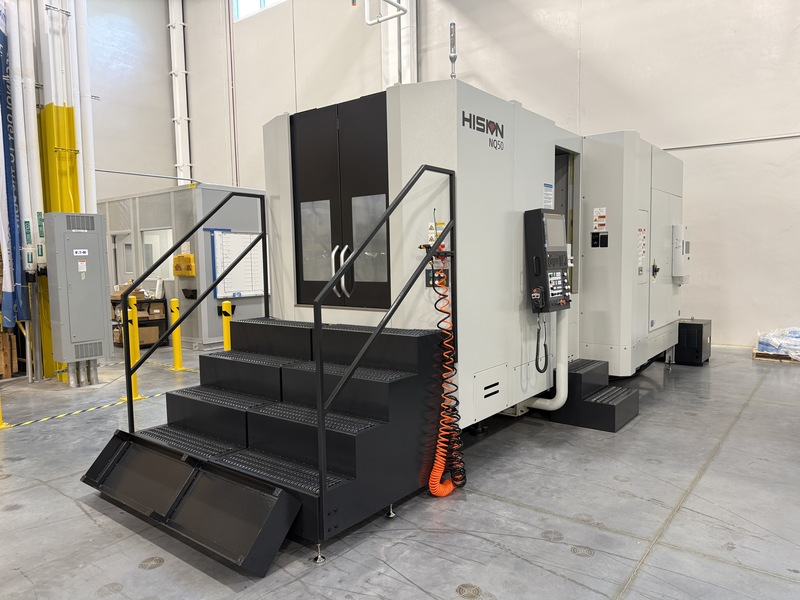

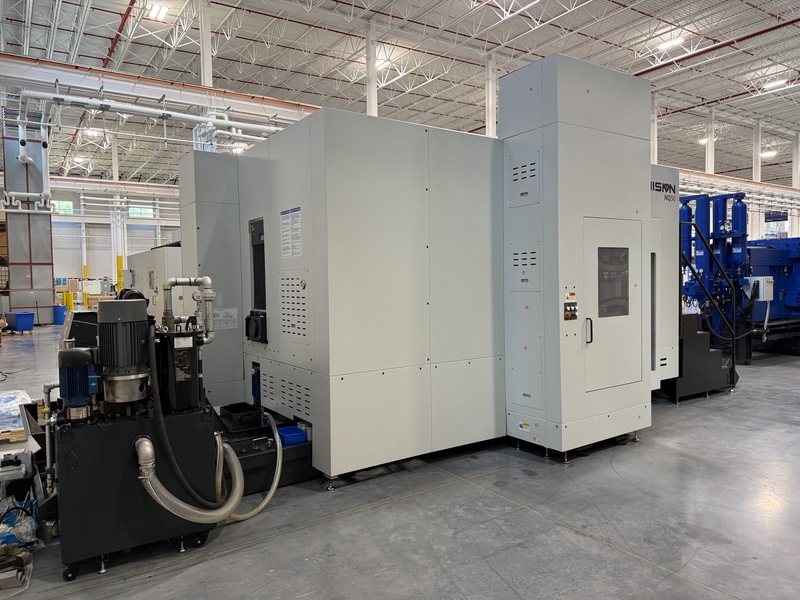

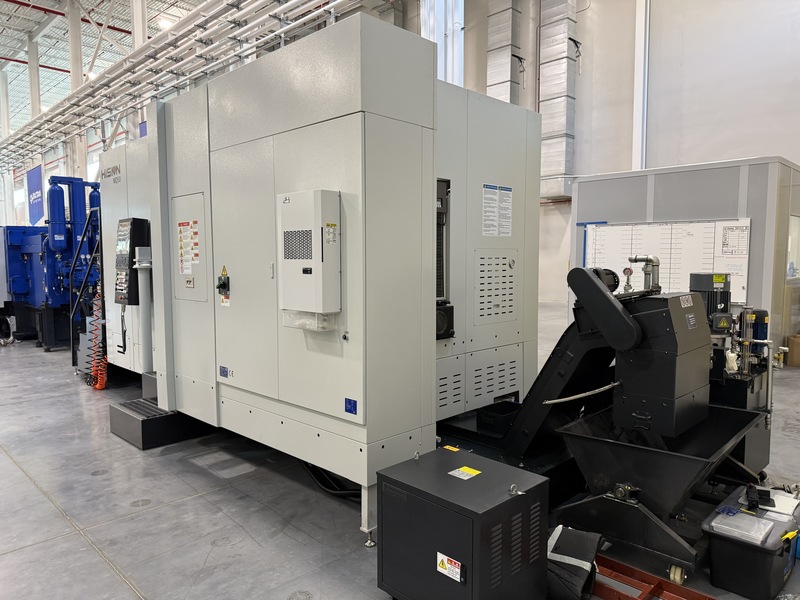

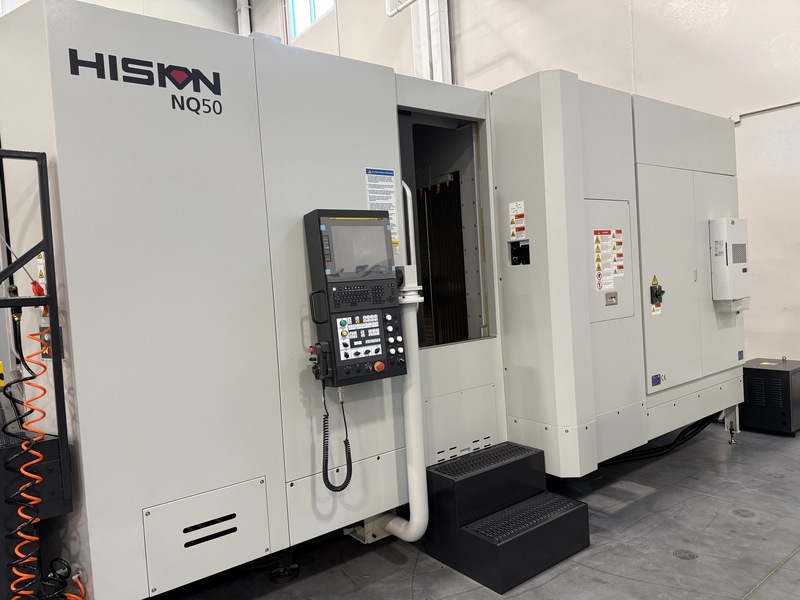

Haitian, Precision #MQ50, CNC horizontal machining center, Fanuc 31i-B Plus, 28.7" X, 28.7" Y, 31.5" Z, 12000 RPM, 60 automatic tool changer, new, 2025

Description

The Haitian Precision NQ50 Horizontal Machining Center is a robust and efficient solution for complex metalworking tasks. With X, Y, and Z travel capacities of 28.7 inches, 28.7 inches, and 31.5 inches respectively, it offers a substantial working area for diverse applications. The machine features a rotary table with a pallet indexing precision of 0.001 and can manage a table load of up to 1,102 lbs, suitable for sizable components up to a diameter of 31.50 inches and a height of 39.37 inches. Equipped with a built-in spindle drive, the NQ50 operates at a maximum spindle speed of 12,000 rpm, with a CAT40 BIG PLUS spindle taper to ensure stable and accurate machining. It delivers power with a spindle motor output of 50 HP and a torque range of 184.4 ft-lbs to 70.4 ft-lbs, which is ideal for high-performance cutting operations. The machine's tool magazine can accommodate 60 tools, and features a rapid tool change time of 1.5 seconds, enhancing productivity in high-demand environments. The NQ50 is integrated with a FANUC 31i MODEL-B PLUS control system, providing advanced functionality and reliability for precision machining tasks. With its powerful capabilities and user-friendly control, the Haitian Precision NQ50 is designed to meet the rigorous demands of modern manufacturing processes while ensuring precision and efficiency. This model is new and ready to enhance your production operations with its state-of-the-art features and robust performance metrics.

Specifications

X Travel In: 28.7
Y Travel In: 28.7
Z Travel In: 31.5
Spindle Center To Table Surface In: 3.1 - 31.9
Spindle Nose To Table Surface In: 2.8 - 34.3
Table Size In: 19.7 x 19.7
Table Load Lbs: 1102
Max Work Piece Size O X H In: 31.50" × 39.37"

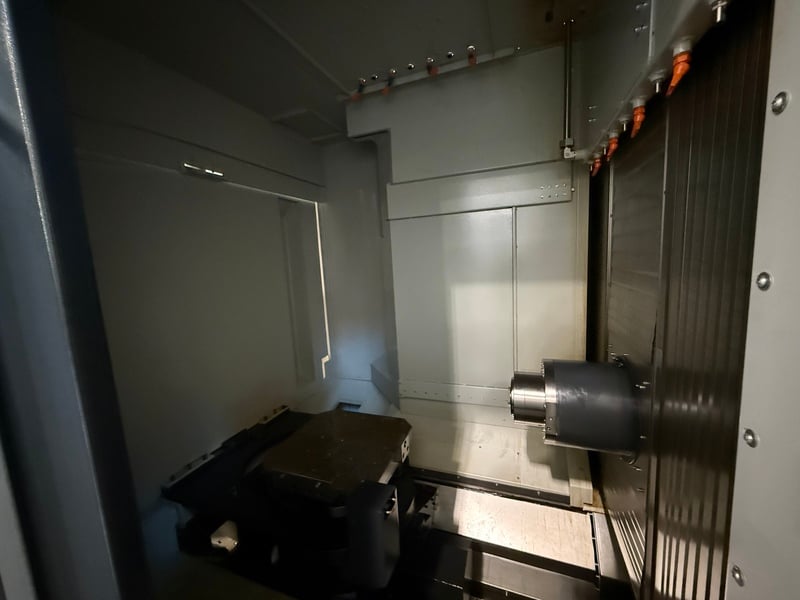

Pallet Indexing: .001 (NC rotary Table)

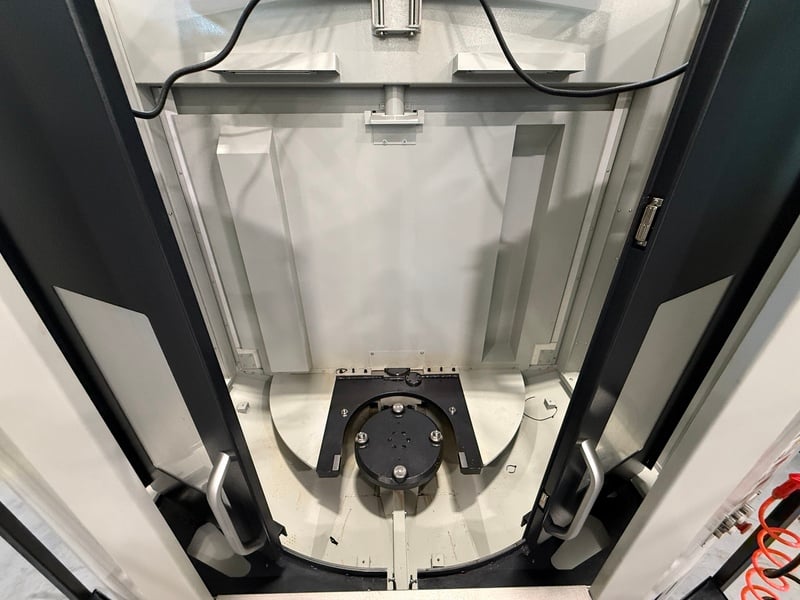

Pallet Change Type: APC Rotary
Pallet Exchange Time: 9 Sec.
Pallet Quantity: 2 (Bolt Hole)
Drive Type: Built-in Spindle
Spindle Taper: CAT40 - BIG PLUS
Max Spindle Speed Rpm: 12000
Spindle Power Hp: 50 / 25
Spindle Torque Ft Lbs: 184.4 / 70.4
Pull Stud: 45 ANSI (CAT 40)
Rapid Traverse X Y Z Ipm: 2362 / 2362 / 2362
Cutting Feed Rate X Y Z Ipm: 2362 / 2362 / 2362
Tool Magazine Capacity: 60
Atc Magazine Type: Vertical Double Servo
Tool Change Time T T: 1.5 sec
Max Tool Dia Full Adjacent Vacant In: 3.1 / 6.3
Max Tool Length In: 19.7
Max Tool Weight Lbs: 26.5
Machine Weight Lbs: 36376.27

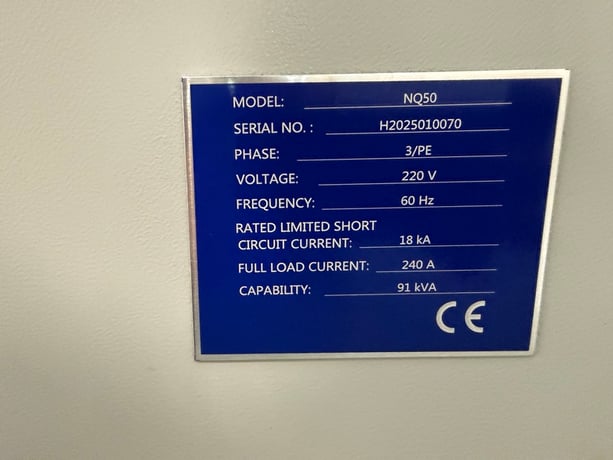

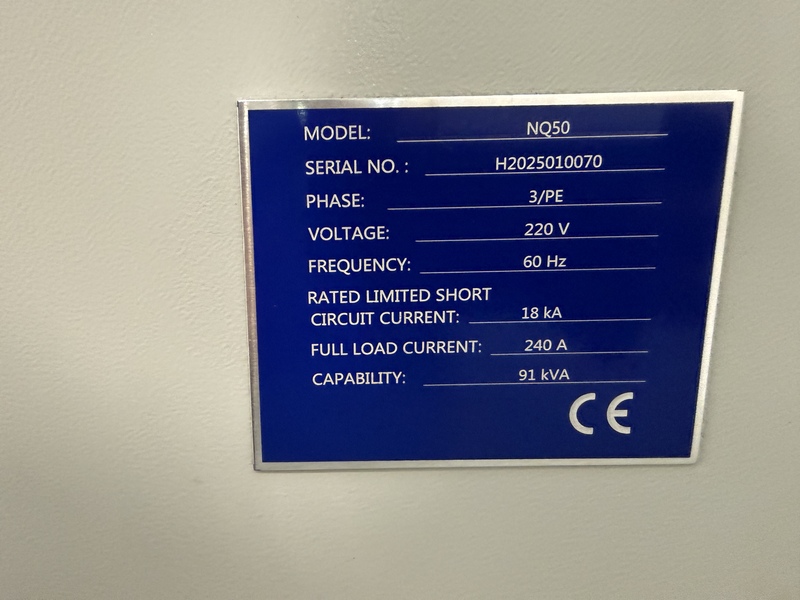

Power Capacity A: 240

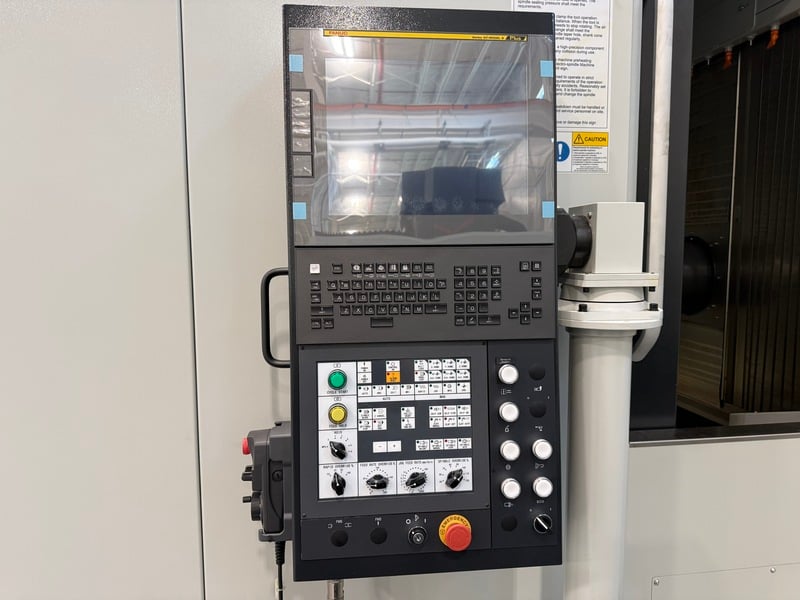

Control: FANUC 31i MODEL-B PLUS 15"
