Description

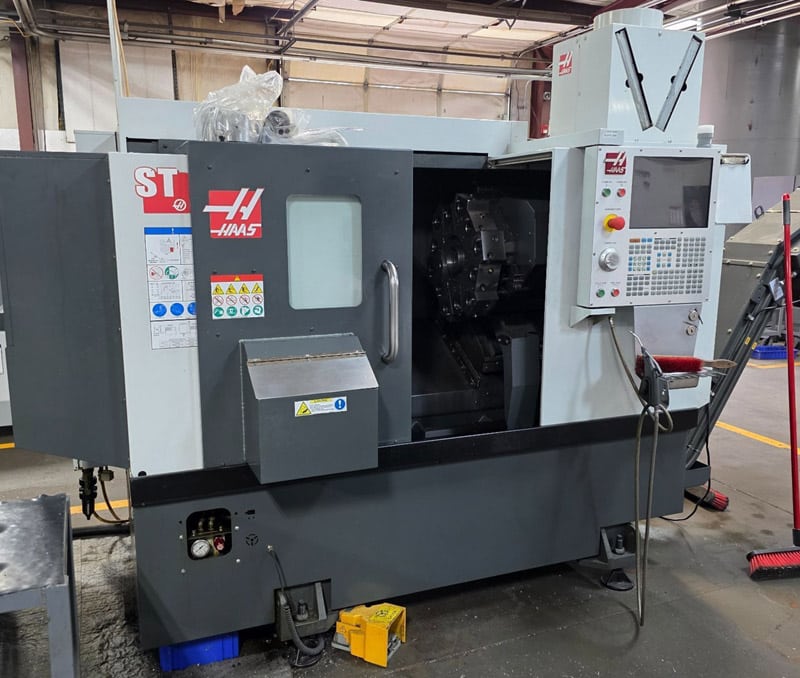

2021 HAAS ST10 with LIVE TOOLING CNC Lathe with Milling
SPECIFICATIONS:
Maximum Swing 25.25″
Maximum Swing Over Cross Slide 16.25″
Maximum Machining Diameter 14″
Maximum Machining Length 14″
X-Axis Travel 7.88″
Z-Axis Travel 16″
Spindle Nose / Bore / Bar Capacity A2-5″ / 2.31″ / 1.75″
Spindle Speeds 6,000 RPM
Spindle Motor 15 HP
Number of Turret Positions 12 Bolt on Style Turret
Spindle Torque 75 ft/lbs.
Rapid Traverse Rates 1,200 IPM
Machine Dimensions LxWxH 92″x55″x69″
Machine Weight 6,420 lbs
EQUIPPED WITH:
Haas NextGen CNC Control
Haas Barfeed
chip Conveyor
LIVE MILLING C-AXIS
parts catcher
tool presetter
Chuck Size 6.5″ / 1.75″ Thru hole
list price new $119,500
Get Your Price from Premier Equipment Inc!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!

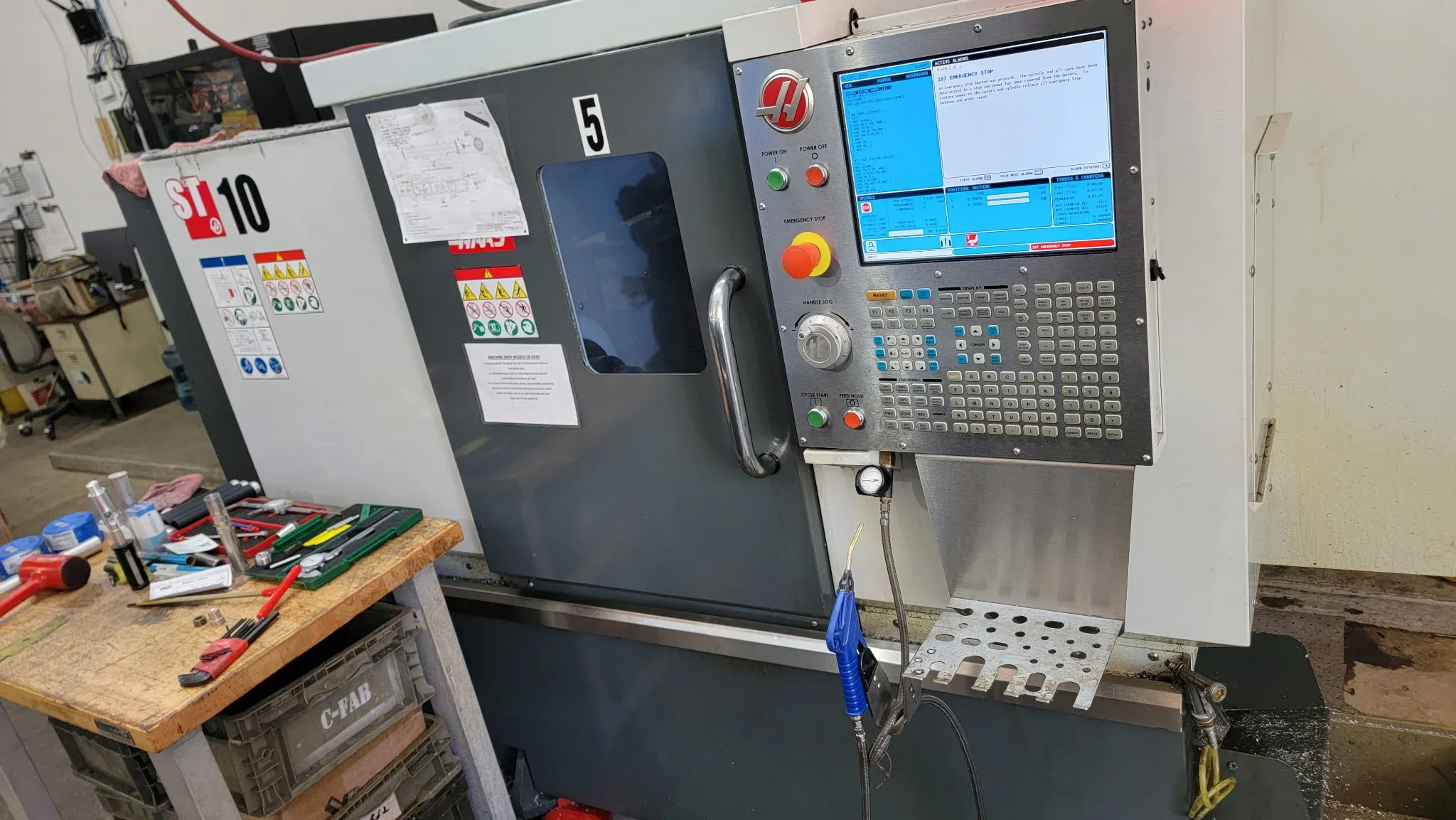

Haas #ST-10, 2-Axis CNC Lathe, 25.2" swing, 16.5" machining length, 14" turning diameter, 1.7" bar, 15 HP, 6000 RPM, collet chuck, Haas control, 2016, (2 available)
