Manufacturer: Haas
Model: DS-30Y
Year: 2022
Swing: 31.7
Chuck: 10
Bar Capacity: 3.0
Centers: 30.0
Stock # 46477
Click to zoom in
For Sale by Premier Equipment Inc
Surplus Record Dealer Since 2023
Location: Altamonte Springs, FL
Contact Tom Kohm
Phone Number: 407...> Show Phone Number 407-759-4569
Let the seller know you found their listing on Surplus Record!
Description
Haas DS30Y Multi Axis Lathe
Max Cutting Diameter: 16″
Max Cutting Length: 23″
Distance Between Centers: 30″
Swing Over Bed: 31.75″
X-Axis Travel: 12.5″
Y-Axis Travel: ±2.0″
Z-Axis Travel: 23″
Main Spindle Motor: 30 HP
Main Spindle Speed: 4500 RPM
Spindle Nose: A2-6
Spindle Bore: 3.0″
Chuck Size: 10″
Secondary Spindle Motor: 20 HP
Secondary Spindle Speed: 4000 RPM
Secondary Spindle Nose: A2-5
Bar Capacity: 3″
Turret: 12 Stations
Feed Cutting Hours: 1,324
Equipped With:
Haas CNC Control
Y Axis
1 GB Memory

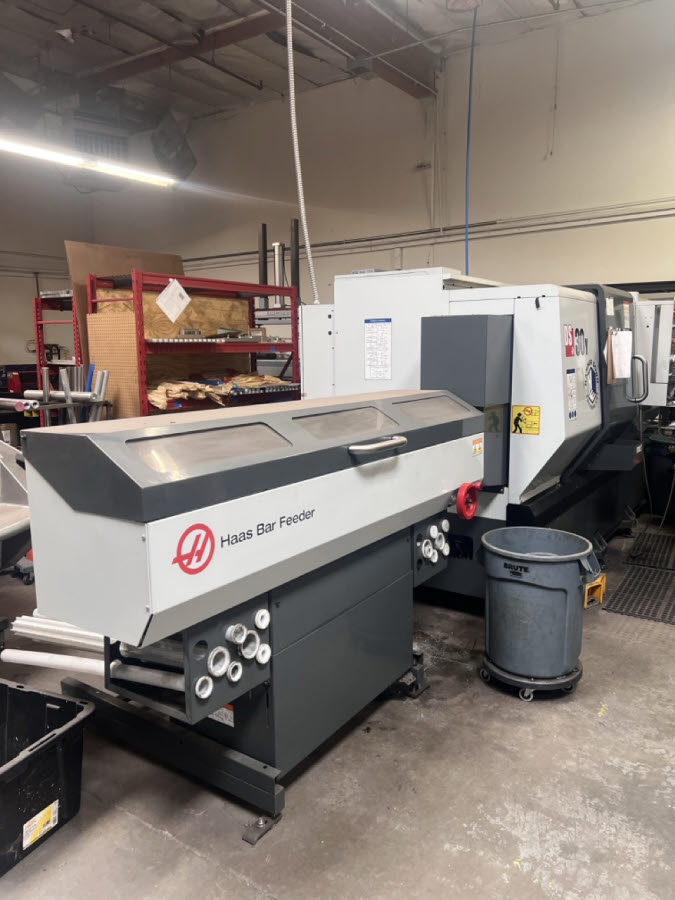

Haas Servo Bar Feeder
Macros
Automatic Tool Presetter
Chip Conveyor
Parts Catcher System
Early Power Failure Detection Module
Ethernet Interface
Haas Connect
