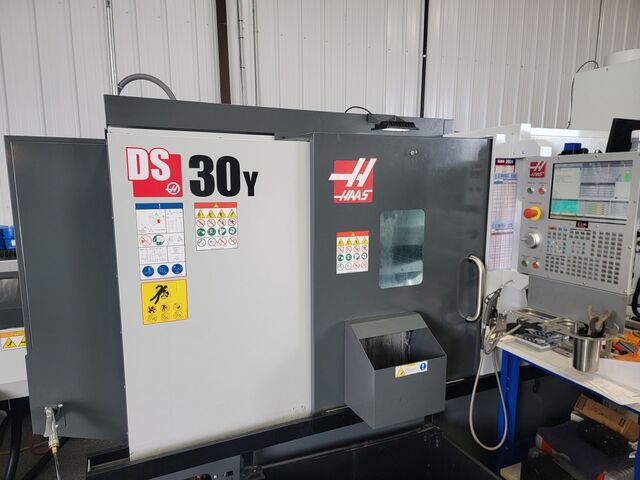

Haas #DS-30Y, CNC lathe, 23" machining length, 18" turning diameter, 10" chuck, 3" bar, 30 HP, 4,500 RPM, sub spindle, live tooling, 2023

HAAS DS-30Y CNC Lathe, 2023, used. Specs: Swing 31.75, Machining Length 584.2, Chuck Size 8.3, Bar Capacity 2.0, Power 30, Max RPM 4000, Turning Dia 18. Equipped with Live Tooling and Sub Spindle.
Swing Diameter:
Over Front Apron: 31.8 in (806 mm)
Over Cross Slide: 20.8 in (527 mm)
Over Second Spindle: 21.8 in (552 mm)
Capacities:
Chuck Size: 10.0 in (254 mm)
Max Cutting Diameter (varies with turret): 18.0 in (457 mm)
Max Cutting Length (varies with workholding): 23.0 in (584 mm)
Bar Capacity: 3.00 in (76 mm)
Travels:
X Axis: 12.5 in (318 mm)
Z Axis: 23.0 in (584 mm)
Feedrates:
Rapids on X: 472 ipm (12.0 m/min)
Rapids on Y: 472 ipm (12.0 m/min)
Rapids on Z: 945 ipm (24.0 m/min)
Axis Motors:
Max Thrust X: 4100 lbf (18238 N)
Max Thrust Y: 2300 lbf (10231 N)
Max Thrust Z: 5100 lbf (22686 N)
Spindle:
Spindle Nose: A2-6
Drive System: Direct Speed, Belt Drive
Max Rating: 30.0 hp (22.4 kW)
Max Speed: 4500 rpm
Max Torque: 275 ft-lbf @ 600 rpm (373 Nm @ 600 rpm)
Spindle Bore : 3.50 in (88.9 mm)
Main Spindle C Axis:
Max Rating: 5.0 hp (3.7 kW)
Positioning () 0.01
Brake Clamp Force: 1000 lbf (4448 N)
Brake Diameter: 14.4 in (366 mm)
Control Type: Interpolated Motion and
Positioning

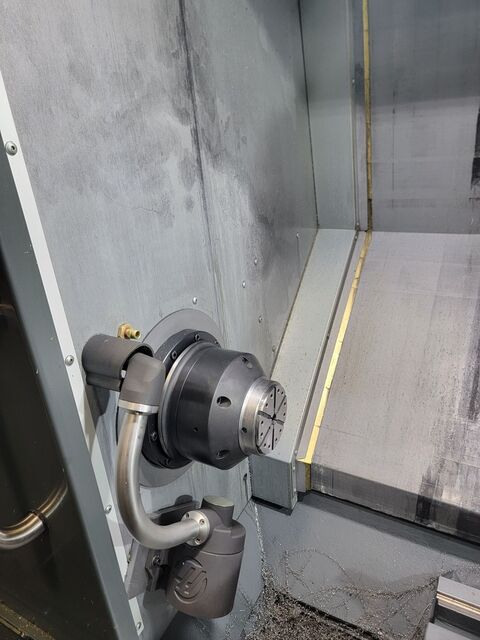

Secondary Spindle:
Chuck Size: 8.3 in (210 mm)
Spindle Nose A2-5
Drive System: Direct Speed, Belt Drive
Max Rating: 20.0 hp (14.9 kW)
Max Speed: 4800 rpm
Max Torque: 110 ft-lbf @ 700 rpm (149 Nm @ 700 rpm)
Spindle Bore : 2.00 in (50.8 mm)
Bar Capacity: 2.00 in (51 mm)
Secondary Spindle Positioning:
Brake Clamp Force: 500 lbf (2224 N)
Brake Diameter: 7.0 in (178 mm)
Control Type: Positioning Only

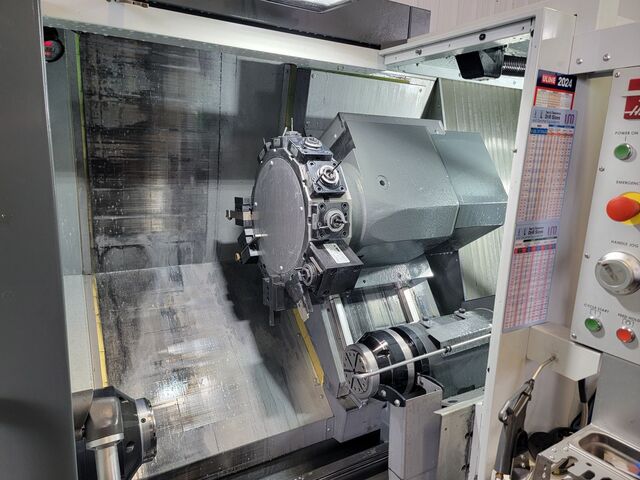

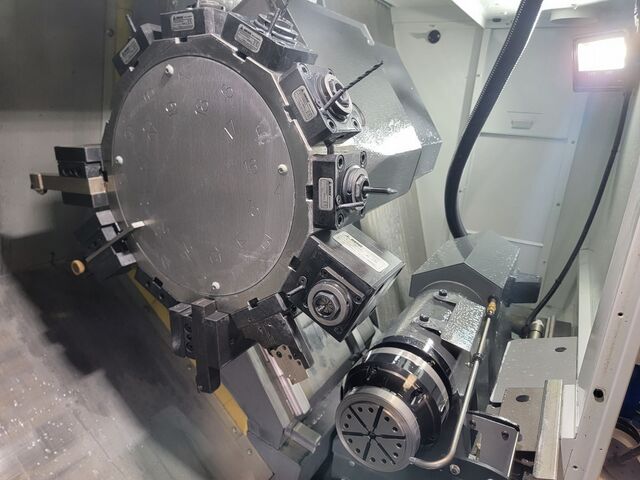

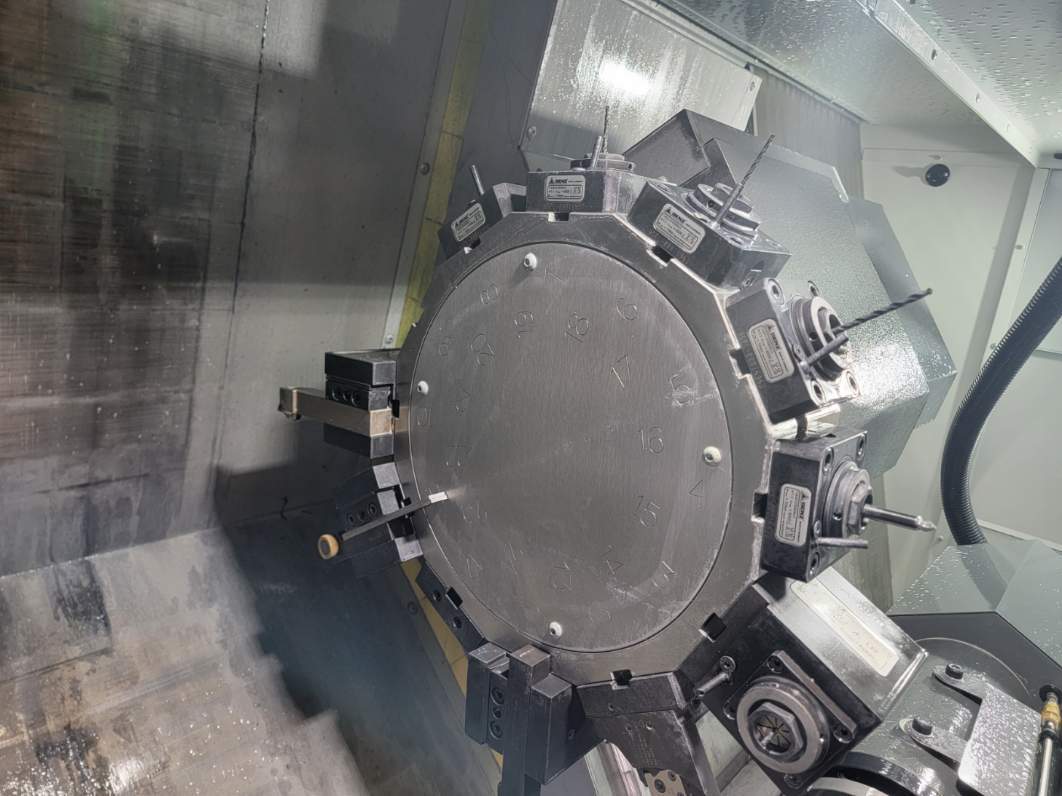

Turret:
Number of Tools: 12 Stations
OD vs ID Tools: Any Combination (will vary with turret)
Boring Bar Rear Clearance (from back of turret): 4.00 in (102.0 mm)
Live Tooling:
Max Speed: 6000 rpm
Drive Ratio: 1:1
Tooling: BMT65
General:
Coolant Capacity: 55 gal (208 L)
Air Requirements:
Air Required: 4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose: 3/8 in
Coupler (Air): 3/8 in
Air Pressure Min: 80 psi (5.5 bar)
Electrical Specification:
Spindle Speed: 4500 rpm
Drive System: Direct Speed, Belt Drive
Spindle Power: 30.0 hp (22.4 kW)
Input AC Voltage (3 Phase) - Low: 220 VAC
Full Load Amps (3 Phase) - Low: 70 A
Input AC Voltage (3 Phase) - High: 440 VAC
Full Load Amps (3 Phase) - High: 35 A
Dimensions - Shipping:
Domestic Pallet: 171 in x 90 in x 92 in (435 cm x 229 cm x 234 cm)
Export Pallet: 171 in x 90 in x 92 in (435 cm x 229 cm x 234 cm)
Weight: 16000 lb (7258.0 kg)

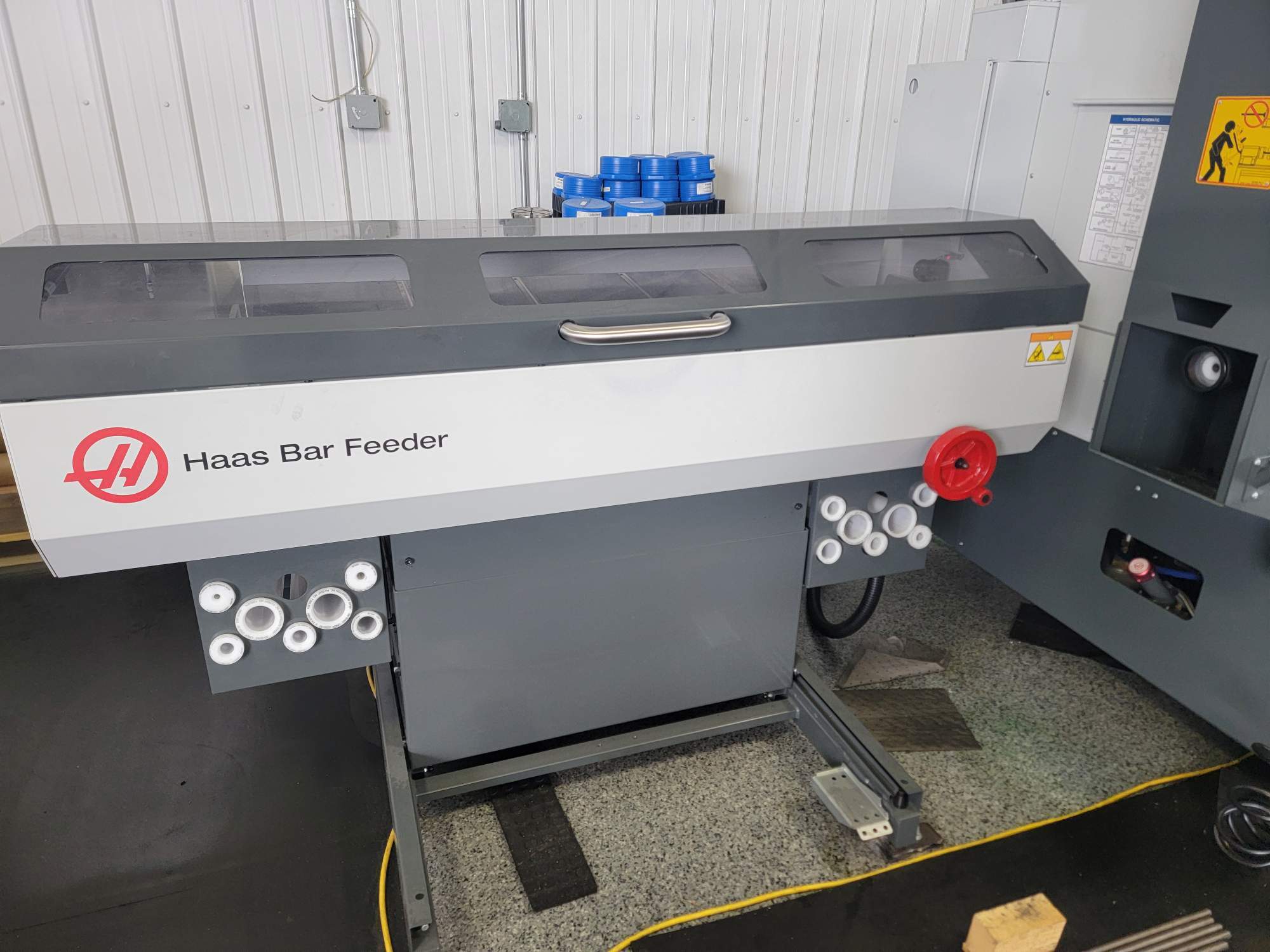

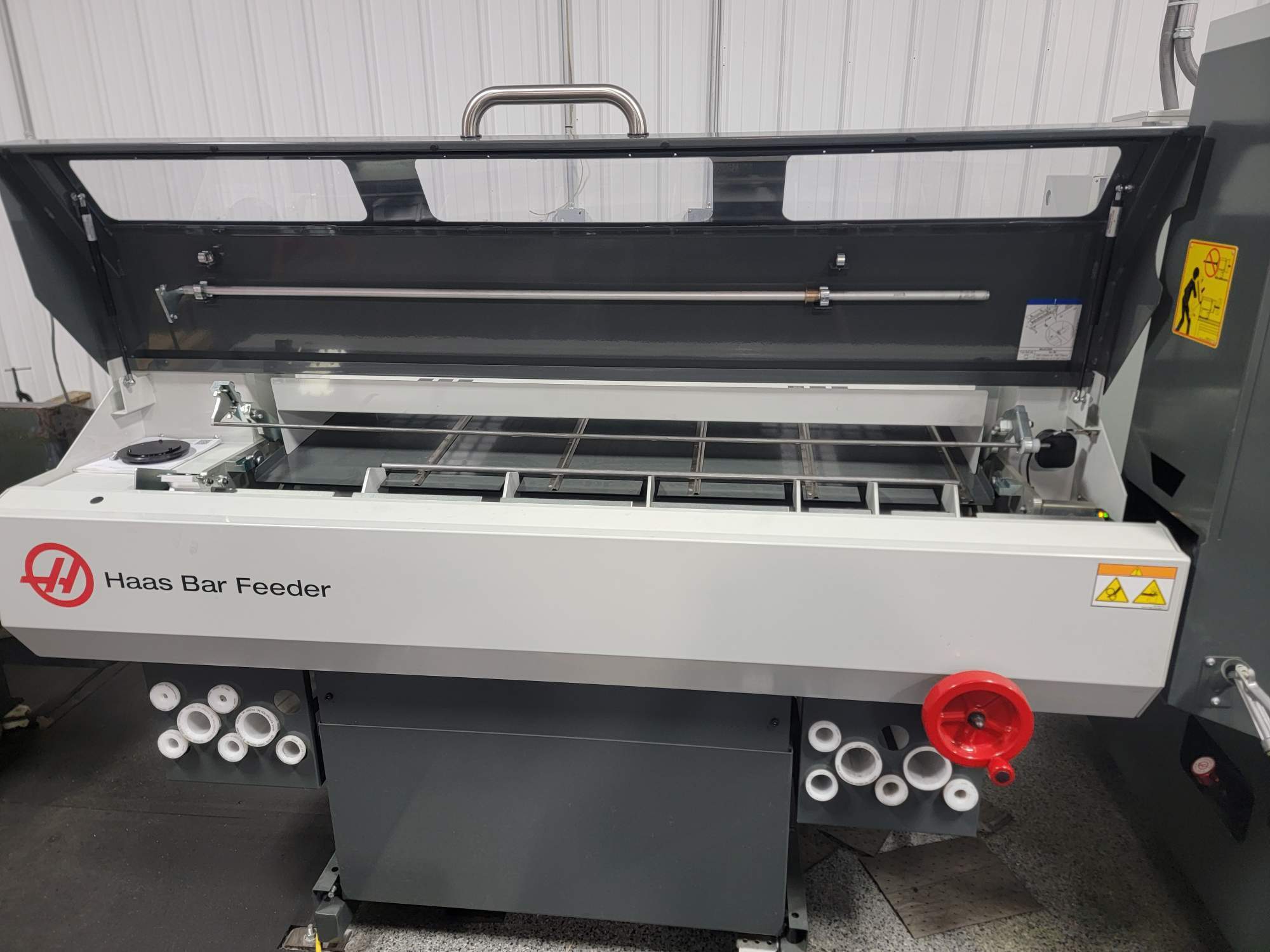

Bar Capacities:
Bar Diameter Range: 0.375" to 3.125" (9.5 mm to 79.4 mm)
Bar Length Capacity: 48" (1219 mm)
Recommended Max Bar Length in Spindle *: 48" (1219 mm)
Minimum Bar Length: 10" (254 mm)

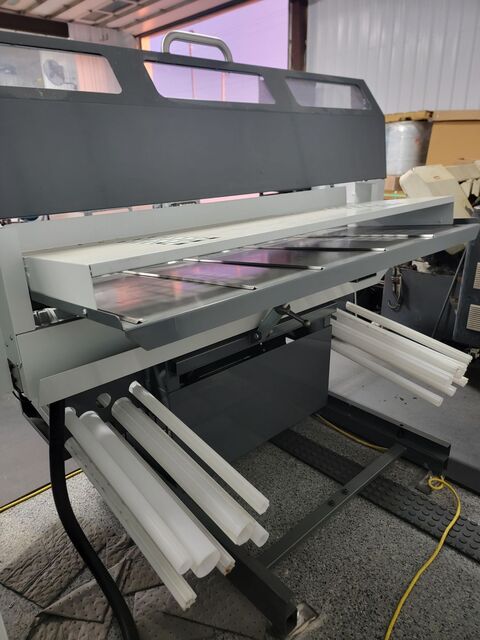

Charging Tray:
Max Number of Bars to Load: Up to a 30" (762 mm) width when staged in charging tray; any combination of bar diameters
Max Weight of Total Bars: 650 lb 295 kg
Max Bar weight Capacity:
Lift Arm Max Weight Limit: 80 lb (36 kg)
Pushrod:
Maximum Thrust Push Limit: 100 lb (445 N)
Accuracy:
Positioning Without Deadstop **: 0.01" (0.25 mm)
General:
Interface: Directly to the Haas Control only
Power Requirements: Connects directly to the Haas Electrical Cabinet
Machine Weight: 900 lb (408 kg)
