For Sale by Ex-Factory
Surplus Record Dealer Since 2022
Location: Charlotte, NC
Contact Sales Dept.
Phone Number: 704...> Show Phone Number 704-285-2223
Let the seller know you found their listing on Surplus Record!
$4,250 USD
Description

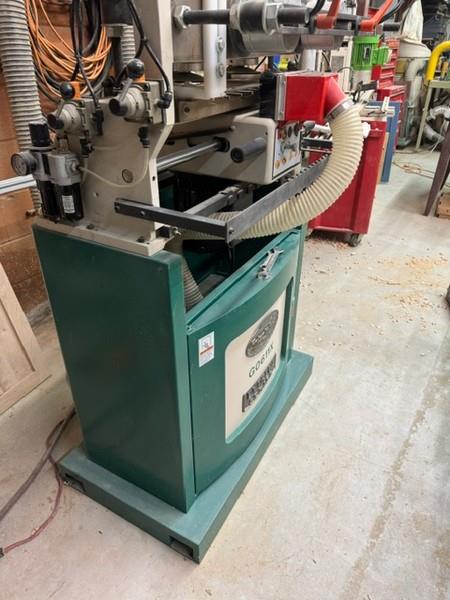

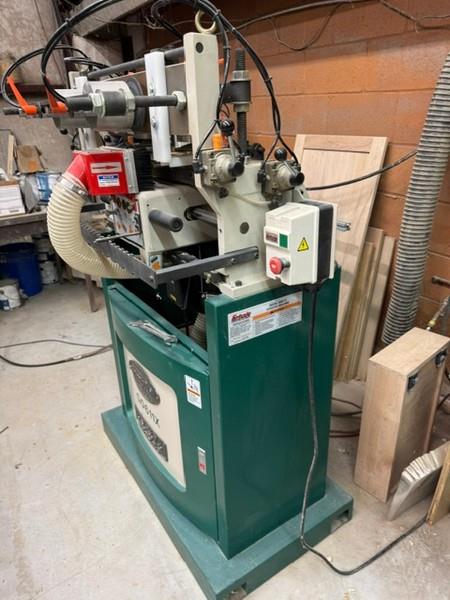

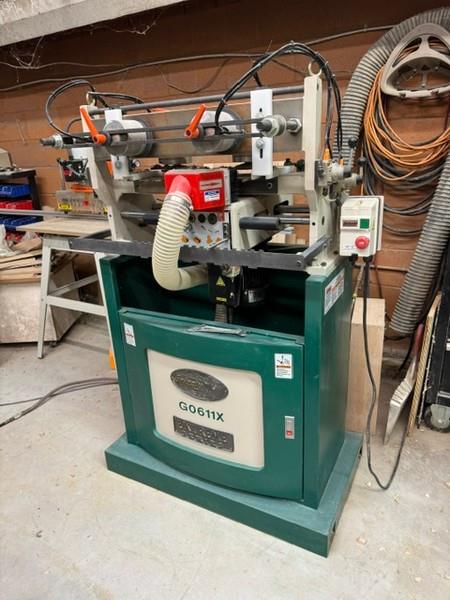

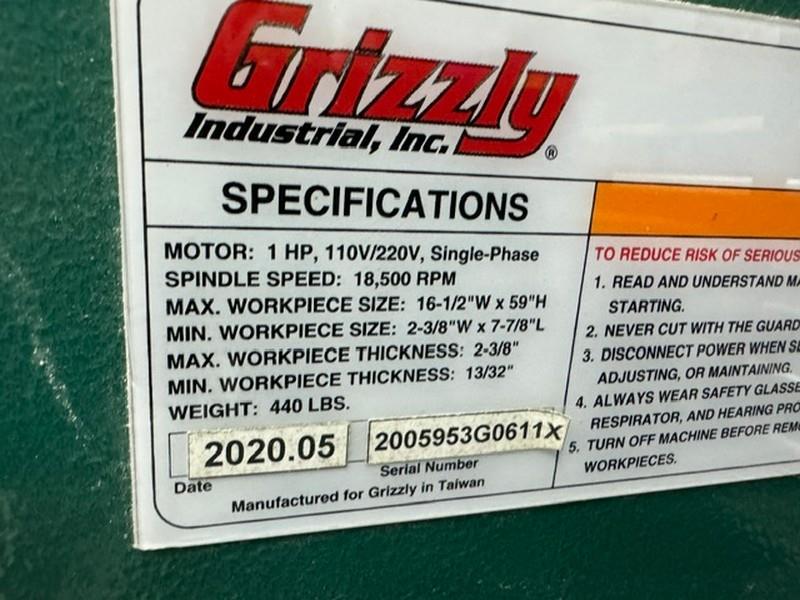

GRIZZLY G0611X EXTREME DOVETAIL MACHINE: -- Specifications:Max. workpiece size 16.5" (419 mm) wide x 59" (1,498 mm) high. Min. workpiece size 2.375" (60 mm) wide x 7.875" (200 mm) long. Max. workpiece thickness 2.375" (60.3 mm); Min. workpiece thickness 0.40" (10.3 mm). -- 1 HP (.75 kW), 18,500 RPM Motor: Machine is set up for 1" spacing but can be adjusted. -- Features: -- Precision-milled cast iron table frame, and cast aluminum carriage. -- Hardened chromed steel slide ways, with ball-bearing linear guides. -- Four-way dovetail template, and micro-adjustable spindle head. -- Produce a 4-sided drawer in under 2 minutes.
Inquire Further with Ex-Factory!
