Gleason #Tag-400, CNC generating style gear grinder, 400mm capacity, w/filtration, s/n 1021, 1995

Description

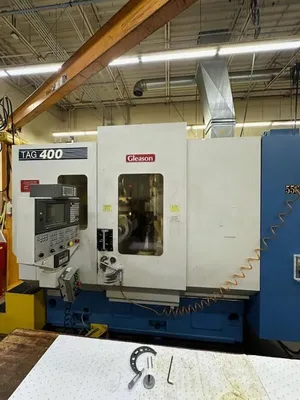

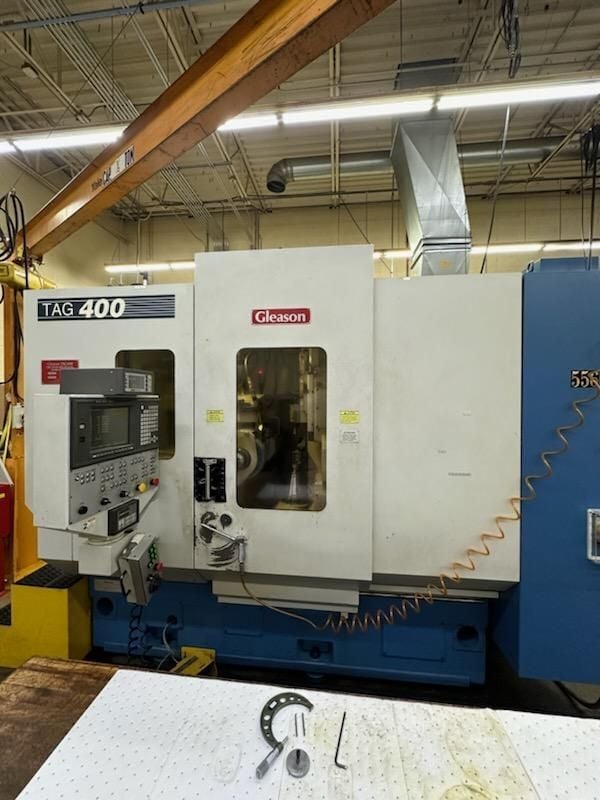

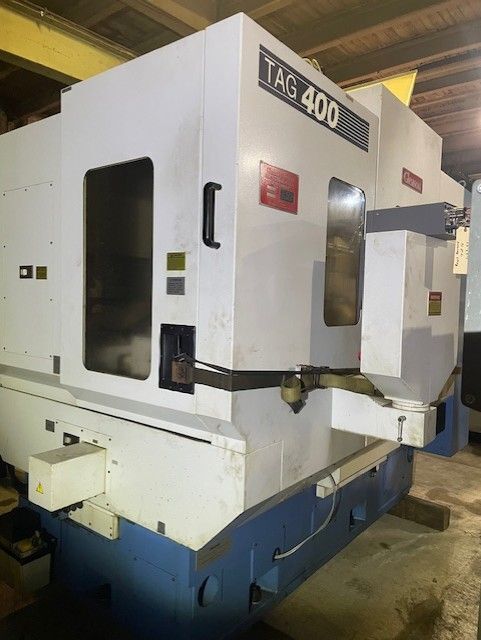

Gleason Model TAG 400 CNC Generating style Gear grinder, 400 MM diameter capacity , 4 DP, CNC Dressing , w/ GE Fanuc 15-M controls , filtration unit , inspect under power in customers shop in Excellent Mechanical condition. delivered 1998, now has been moved to warehouse!
Specifications
Gleason CNC Gear Grinding Machine Generating style
Model TAG 400

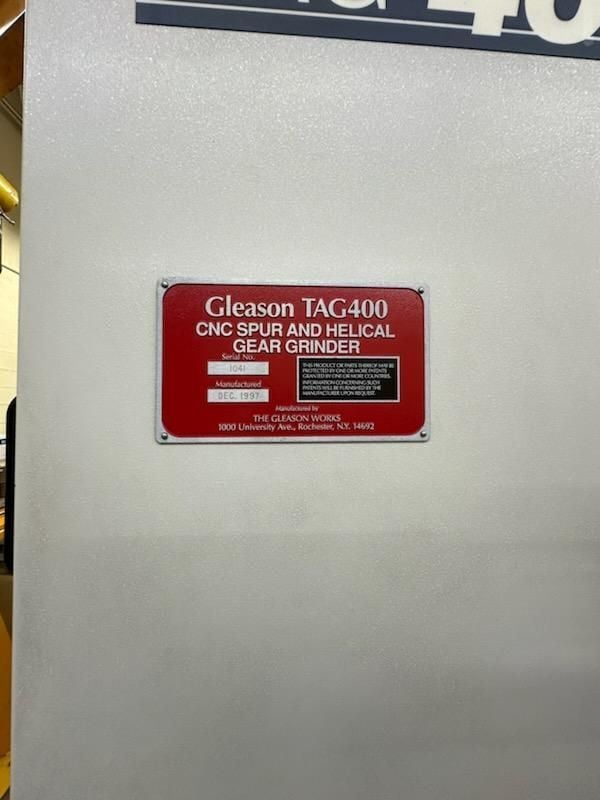

s/n 1041
New 1997 delivered 1998
This Gleason model Tag 400 utilizes the Generating style grinding
feature. the Machine dresses the wheel automatically during cycles.
this machine can be used for small or large run production jobs and
parts can be viewed with high quality charts to reference.
contact us today to inspect in cleveland ohio warehouse !!
machine specifications are as follows:
Max Diameter Gear 15.7"
Max pitch 3.0 DP
- 15.75" Max Tip Diameter
- .400" Min Root Diameter
- 8.00" Max Face Width
- 50.0-3.0 Diametral Pitch Range
- 0.5-8.0 Modular Range
- 6-600 Number of Teeth
- 8"-31.5" Distance Between Centers
- +/- 45 Degrees Max
- 14.5-30 Degree Pressure Angle
- Lead Relieving
- Lead Crowning
- Special Relieving
- Special Crowning
- Conical Taper Gear
- Concave Crowning
- 150 Lb. Max Workpiece Weight
- 19,550 Lbs Weight of Machine
Machine is equipped with the following
GE-Fanuc 15 M control
Pendant controller
Full enclosure
CNC Dressing unit

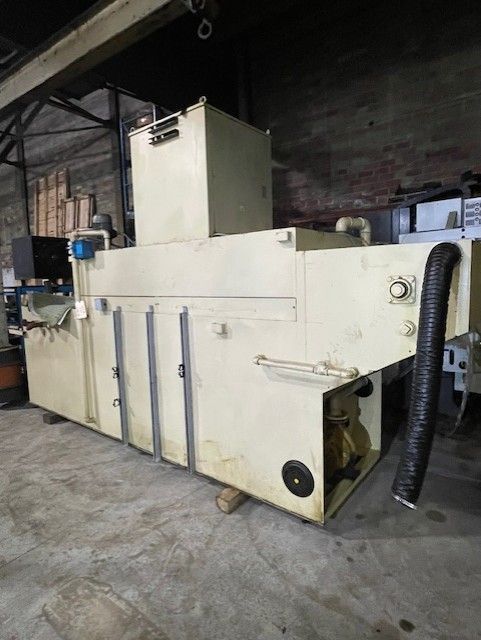

filtration unit (TBD)
full tooling assortment & extra grinding wheels
chiller and mist collection
books and manuals

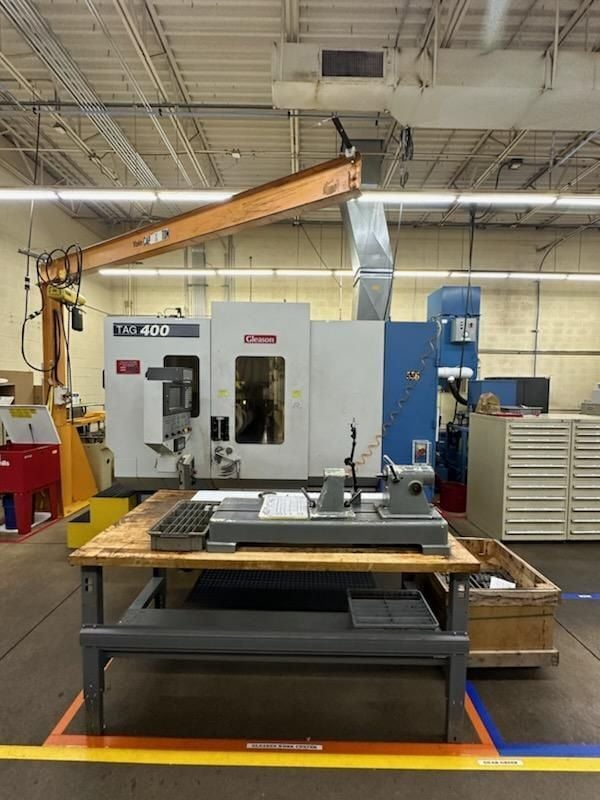

Machine can be inspected with proper notice in Cleveland
warehouse .
the machine has been removed from power so it can not be
seen operational , however we have charts for the machines
parts prior to removal . contact us today to visit and inspect
accordingly. contact rich Piselli @ rich@pisellient.com to
receive a formal quote and Pricing. visit www.piselliEnt.com
to see our other machines we are offering
thank you
Richard Piselli
