For Sale by Piselli Enterprises
Surplus Record Dealer Since 1998
Location: Statesville, NC
Contact Rich Piselli
Phone Number: 704...> Show Phone Number 704-609-0766
Let the seller know you found their listing on Surplus Record!
Description
Description
Gleason model Phoenix 125GH 6-Axis CNC vertical Gear Hobber, W/ Optional 8" Diameter software parameters (TBD) , Fanuc cnc controls, delivered new 10/1995, Excellent condition available option INQUIRE BELOW!!!
Specifications

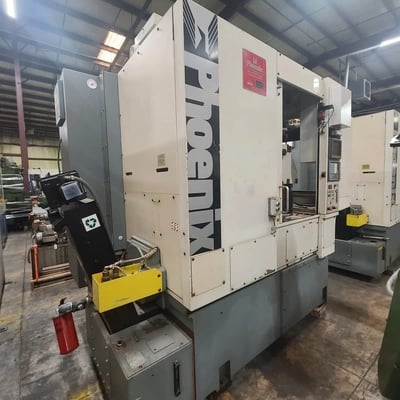

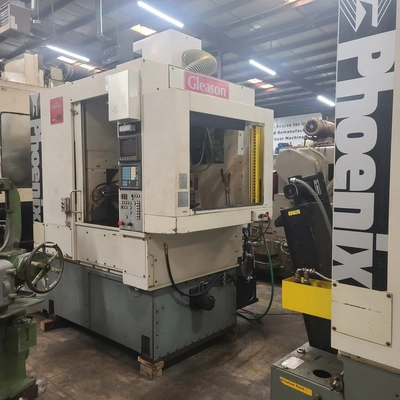

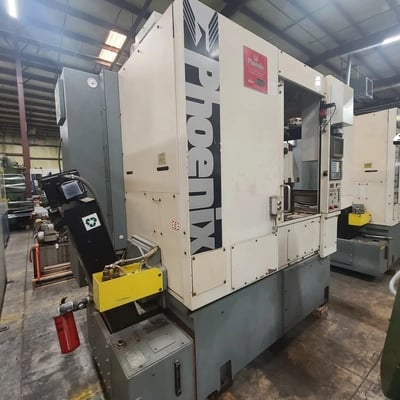

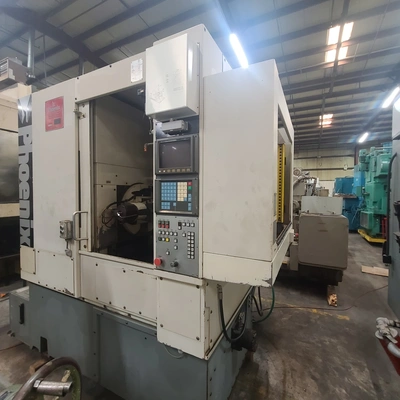

Gleason Phoenix Vertical 6-Axis CNC Gear hobber
Model 125GH / 200 (Extended option available)
s/n 912615
delivered 10/1995
This Gleason Model 125GH machine parameters can be extended to
accomodate 8" diameter parts . the machine parameters and software
can be upgraded and installed by Gleason corp. The machine also
has the optional 20 HP heavy duty spindle motor.
machine specifications are as follows:
Max workpiece diameter 5" / 125 mm standard
Max workpiece diameter 8" / 207 mm optional*
Min workpiece Diameter .25" / 6.4 mm
Max Pitch / Module 8 NDP/ 3.2 Module
Max Axial slide travel 11.81"/ 300 mm

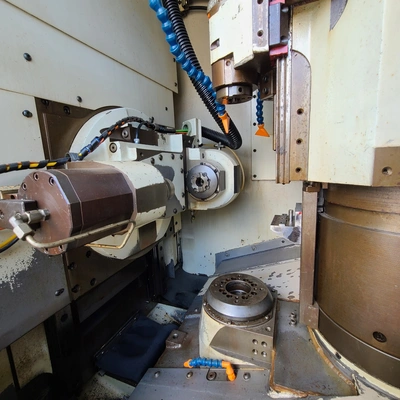

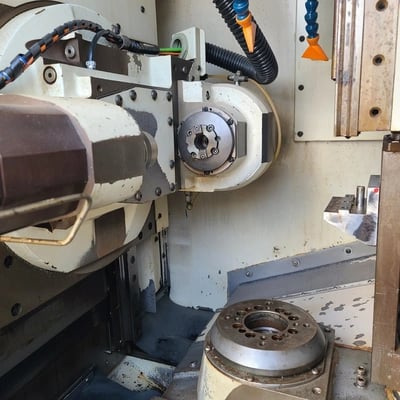

Max Hob Head Swivel -180 -+ 40 degrees
Max diameter Hob 4.53" / 115 mm
Max Hob length 8.46" / 215 mm
Max hob Shifting length 7.87" / 200 mm
Max work head speed 1500 rpm
Max work head speed (optional) 3500 rpm
Hob Head drive rating 20 HP *
Machine weight 15,000 lbs
floor space 106" x 65" x 122" high
Machine is equipped with the following:

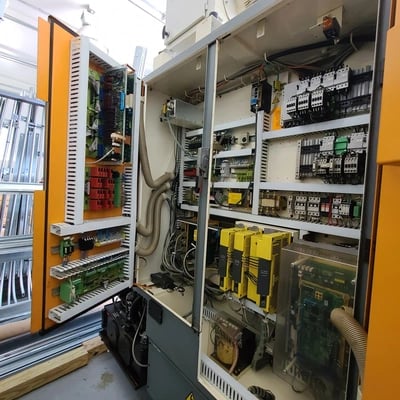

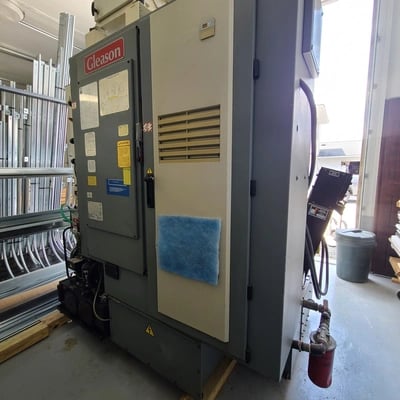

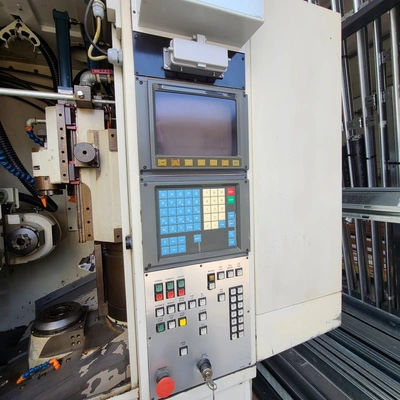

GE Fanuc 15-M cnc controls
Extended software parameters bty gleason

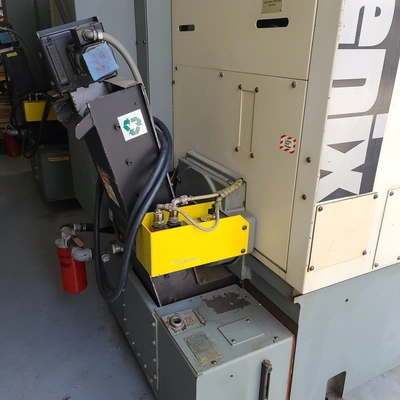

Chip conveyor
Mist collection
books and manuals
Note: gleason can supply additional software to extend diameter cutting
Parameters to 200 mm. Inquire here if required
Machine can be inspected in our warehouse under power with proper
notice. Contact us today as this machine were upfit by gleason w/ new
software several years back and is in good running condition.
Visit WWW.PiselliEnt.com to view more photos of this machine offering or
others we have in stock!! Email Rich Piselli at Rich@pisellient.com for
more information.
thank you
Richard Piselli
(704) 609-0766
Gleason model Phoenix 125GH 6-Axis CNC vertical Gear Hobber, W/ Optional 8" Diameter software parameters (TBD) , Fanuc cnc controls, delivered new 10/1995, Excellent condition available option INQUIRE BELOW!!!
Specifications
Gleason Phoenix Vertical 6-Axis CNC Gear hobber
Model 125GH / 200 (Extended option available)
s/n 912615
delivered 10/1995
This Gleason Model 125GH machine parameters can be extended to
accomodate 8" diameter parts . the machine parameters and software
can be upgraded and installed by Gleason corp. The machine also
has the optional 20 HP heavy duty spindle motor.
machine specifications are as follows:
Max workpiece diameter 5" / 125 mm standard
Max workpiece diameter 8" / 207 mm optional*
Min workpiece Diameter .25" / 6.4 mm
Max Pitch / Module 8 NDP/ 3.2 Module
Max Axial slide travel 11.81"/ 300 mm
Max Hob Head Swivel -180 -+ 40 degrees
Max diameter Hob 4.53" / 115 mm
Max Hob length 8.46" / 215 mm
Max hob Shifting length 7.87" / 200 mm
Max work head speed 1500 rpm
Max work head speed (optional) 3500 rpm
Hob Head drive rating 20 HP *
Machine weight 15,000 lbs
floor space 106" x 65" x 122" high
Machine is equipped with the following:
GE Fanuc 15-M cnc controls
Extended software parameters bty gleason
Chip conveyor
Mist collection
books and manuals
Note: gleason can supply additional software to extend diameter cutting
Parameters to 200 mm. Inquire here if required
Machine can be inspected in our warehouse under power with proper
notice. Contact us today as this machine were upfit by gleason w/ new
software several years back and is in good running condition.
Visit WWW.PiselliEnt.com to view more photos of this machine offering or
others we have in stock!! Email Rich Piselli at Rich@pisellient.com for
more information.
thank you
Richard Piselli
(704) 609-0766
