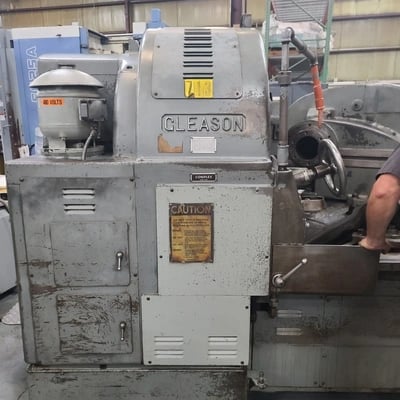

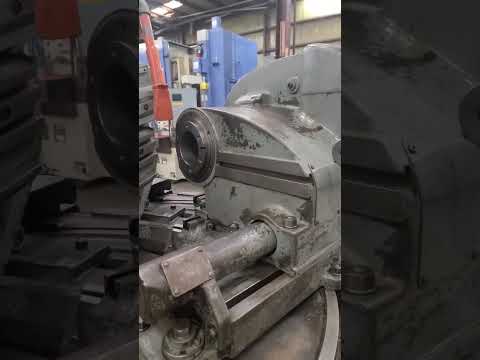

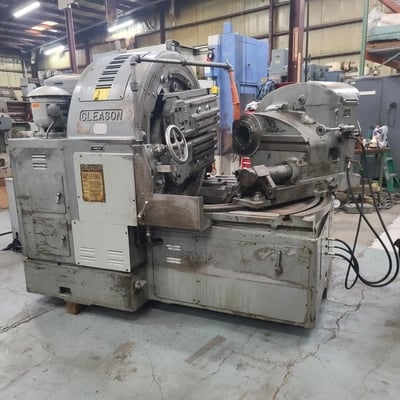

Gleason #24A, straight bevel coniflex gear cutter for 35" pitch diameter gears, excellent condition

Description
Gleason Model 24A straight Bevel Coniflex gear cutter for 35" diameter gears , gone through Excellent Condition s/n 26936
Specifications

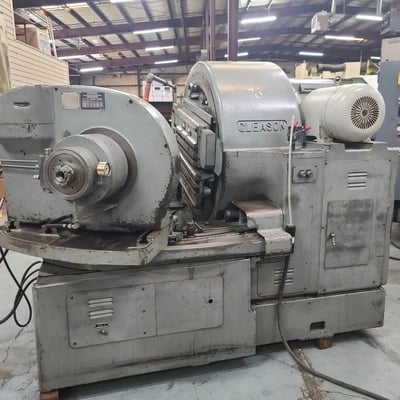

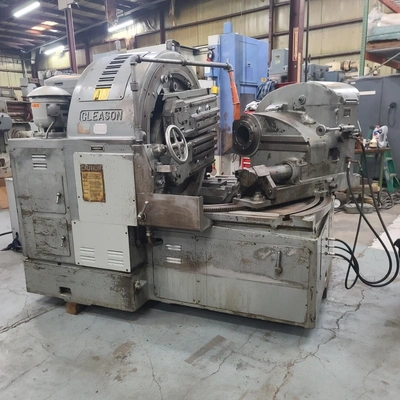

Gleason straight bevel Coniflex gear generator
model 24A
s/n 26936
this machine is excellent for producing large diameter straight bevel
gears . machine is equipped with Coniflex allowing it to cut up to 35"
Diameter gears , 1-1/2 DP .large assortment of gears and tooling
EQUIPMENT / FEATURES:
universal feed cam, double-track, for roughing
and/or finishing work

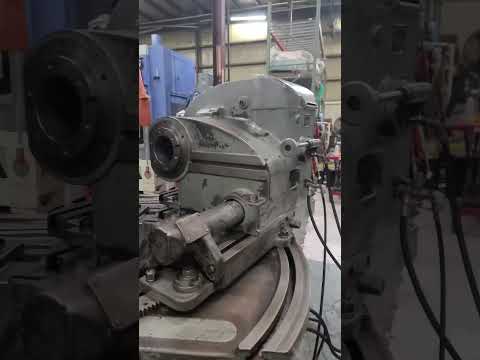

hydraulic chucking attachment (lw/draw-bar & nut)
self contained hydraulic system
full complement of electrics (motors/controls)
set of tool setting gauges w/proof block
cutter length gauge
stock dividing gauge (TBD)
roughing yoke & bushing
one (1) set of standard tool holders (TBD)
one (1) set of finishing tool-holders (TBD)
one (1) set of Tanruf single-blade tool-holders (TBD)
one (1) set of Tanruf double-blade tool-holders (TBD)
one (1) set of tool-holder extension blocks (TBD)

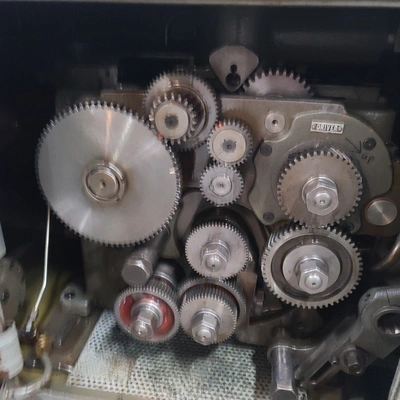

tool & gear cabinet w/good assortment of change gears (TBD)
for index, roll, ratio of roll, feed and speed
GLEASON auto-stop
guards/covers
misc. wrenches, spanners, operator's tools
operator's manual, parts list, wiring & hydraulic diagrams
PRINCIPAL SPECIFICATIONS:
Longest cone distance (1 3/4" stroke) 18" /(457mm)
Shortest cone distance 0"
Maximum pitch diameter:
10 to 1 ratio 35.5" /(901mm)
2 to 1 ratio 31.75" /(805mm)
1 to 1 ratio 25" /(635mm)
Maximum pitch angle (shafts at 90 degrees) 84.18 degrees
Minimum pitch angle 5.42 degrees
Extreme ratio 10 to 1
Maximum pitch 1.25 DP /(20.4 module)
Maximum face length 6" /(152mm)
Index range: 10 to 100 inclusive and most numbers up to 200
Work spindle bore:
diameter (large end of taper) 6" /(152mm)
taper per foot .75" /(18mm)
depth of taper 6" /(152mm)
diameter of thru bore 5 /(127mm)
Spindle nose to machine center 5-24 /(127-660mm)
Speed and Feeds:
Cutter speeds (strokes per minute) 22 to 170
Feeds (seconds per tooth) (22 feeds) 23 to 645
Floor space required 74" x 105" /(1880x2660mm)
Machine net weight 24,400 lbs /(11,295 kGs)
machine has been delivered to our warehouse in Statesville NC.
We can confirm actual tooling selling with machine. above is only
a guide of what came with machines originally from factory or
possibly purchased or offered by OEM. please confirm when purchasing
