Gleason #2, Spiral Bevel (Hypoid ) Gear Generator, 16 Diametral Pitch, 5-200 No. of Teeth, 4.25" capacity, 0.43" width Face, 1.1"-3.5" Cutter diameter, 1" Max Offset

Description

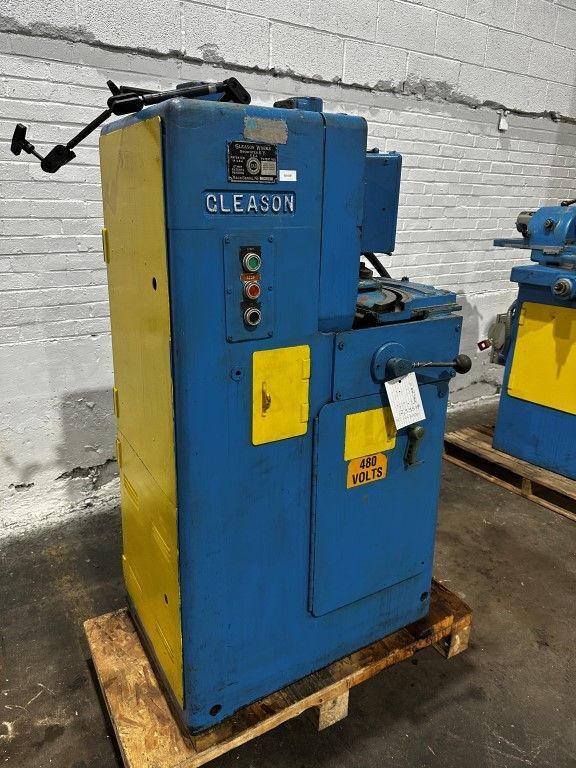

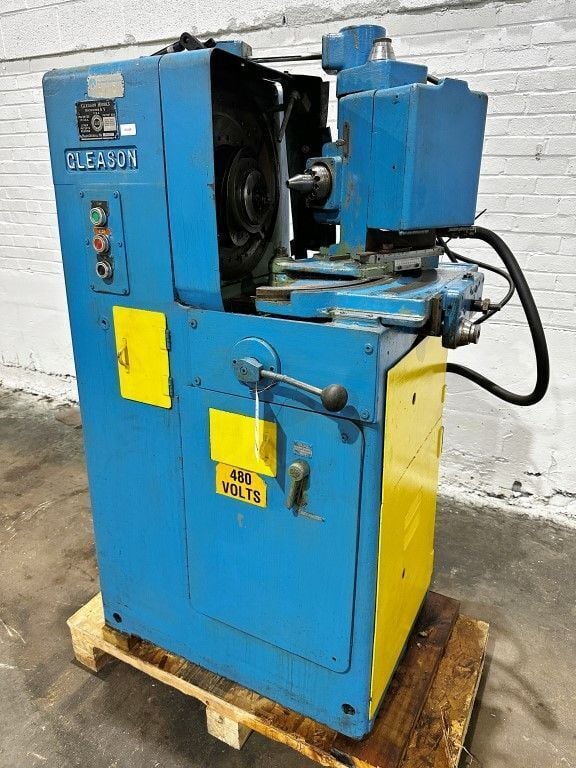

Gleason Model #2 spiral bevel Gear Generator, 4.25" diameter cap, good running condition , video available , s/n 24108
Specifications

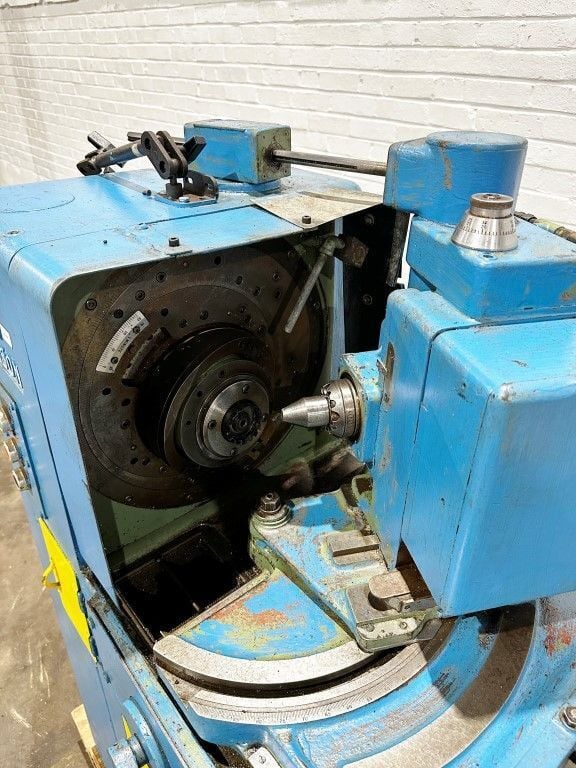

Gleason spiral Bevel (Hypoid) gear generating machine
model 2
s/n 24108
good running condition
these Gear generating machines are used in the manufacture of cutting
small spiral bevel Gears utilizing the Generating method.
These machines manufacture high precision spiral bevel gears for the
Power Hand tool business, lawn and garden, and assemblies & Gear boxes
requiring right angle high torque gear sets!

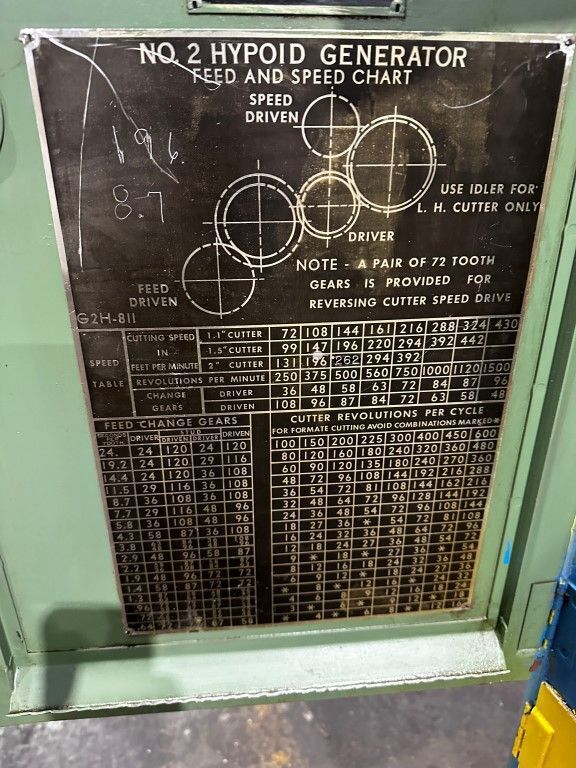

machine specifications:
Diametral pitch (coarsest) 16 DP 1.6 Mod
Diametral pitch (finest) Limited only by smallest practical cutter point width
Cone Distance 0 2 5/16 0 59mm

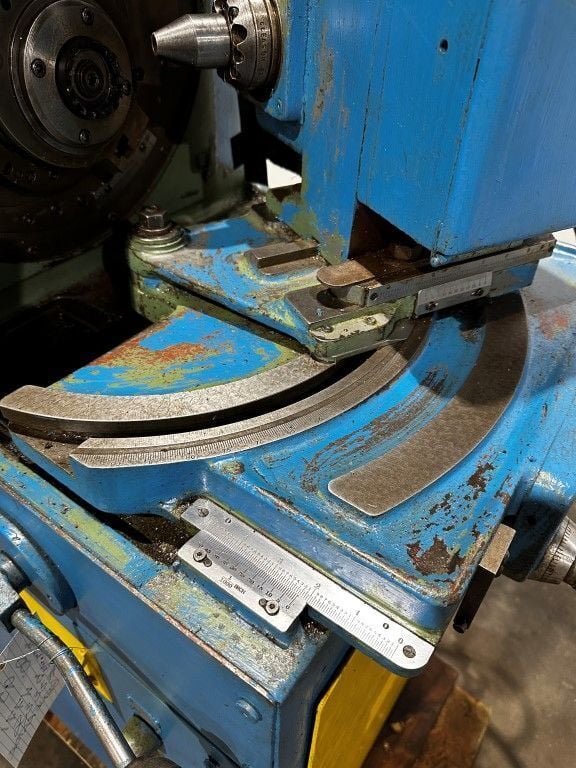

Workhead angle -12 deg. To 90 deg
Extreme ratio Any practical ratio
Minimum ratio for non-generated spiral bevel gears 2.5 to 1
Minimum ratio for non-generated hypoid gears 3.5 to 1
Maximum gear pitch diameter (shafts at 90 degree)
Face width ( maximum) 7/14 11mm
Number of teeth 5-200, except prime

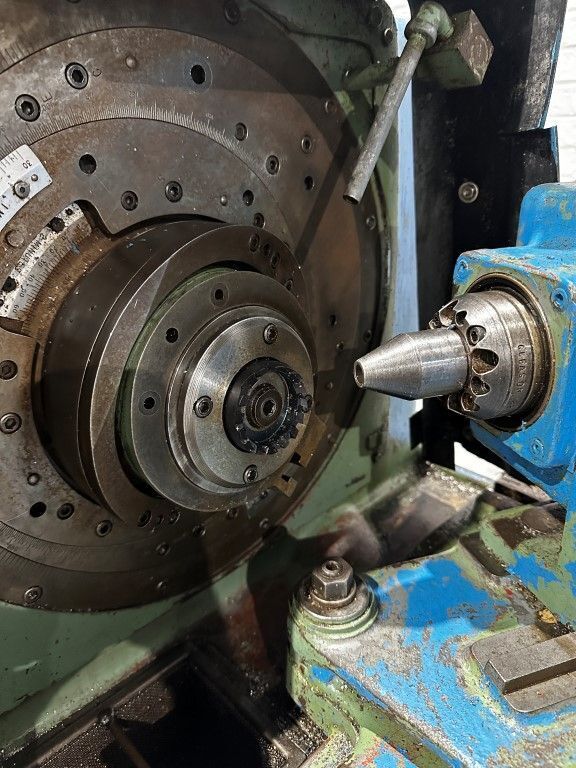

WORK SPINDLE
Diameter of taper bore,large end 1 17/32
Taper /ft
Depth of taper 3
Diameter of hole through spindle
CUTTER DIAMETER 1.1, 1.5, 2, 2.75 3.5 28mm, 38mm, 51mm,
70mm, 89mm

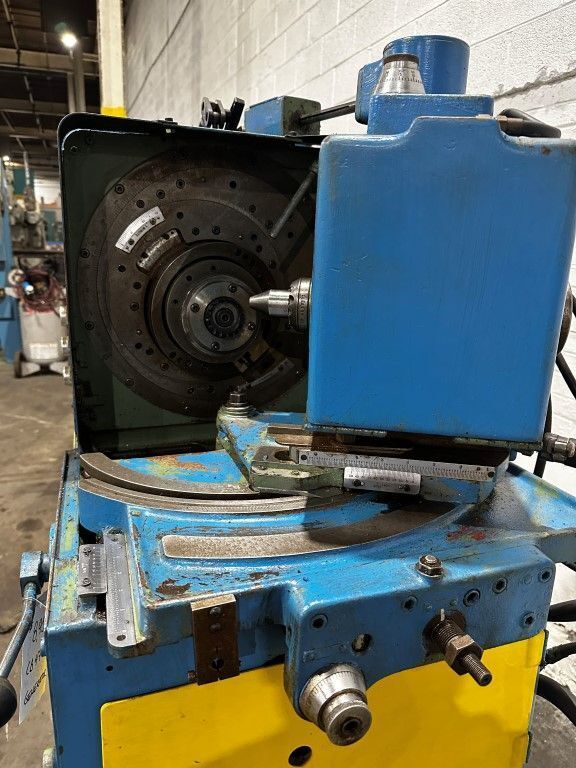

WORK HEAD SETTINGS
Maximum offset above centre 1 29mm
Maximum offset below centre 1 29mm
Max distance from machine centre to nose of spindle 5.0 127mm
Min distance from machine centre to nose of spindle 1 32m

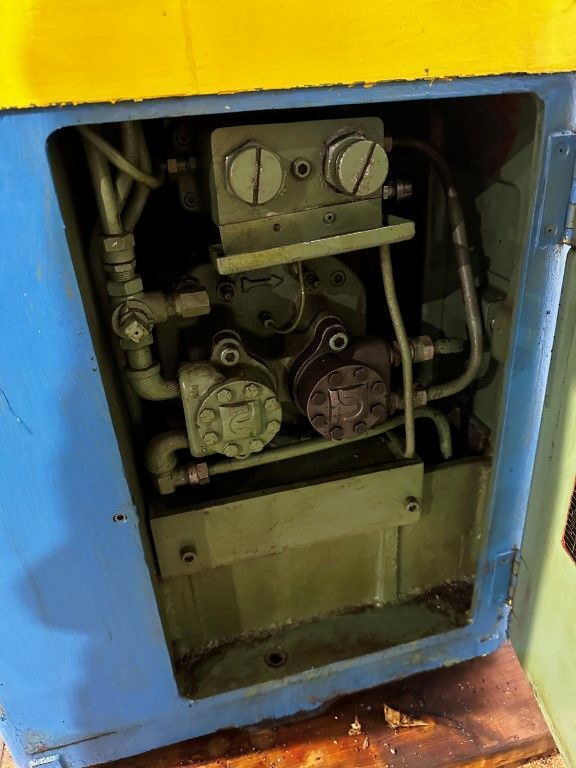

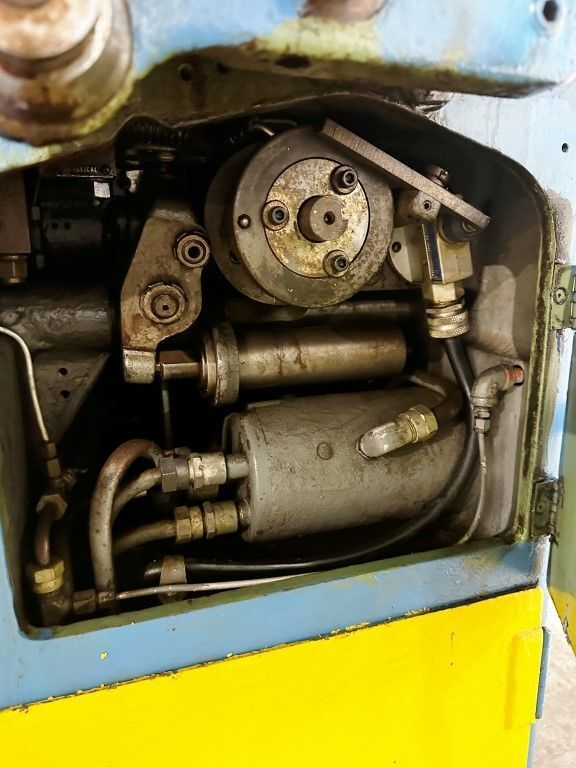

Machines are equipped with the following:
1-set-up of change gears for one part
1-cam
1-set of manuals

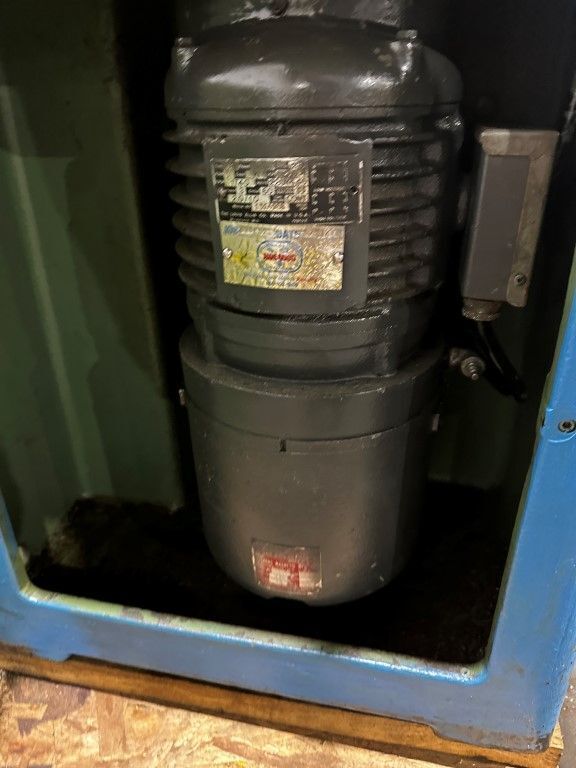

Electrical Diagrams
Misc tooling
This machine can be inspected under power in stateville NC facility
in good running condition. call for video of machine running under
power. visit our website at www.pisellient.com to request a formal
quote or contact Rich Piselli at Rich@pisellient.com
thank you
rich Piselli
