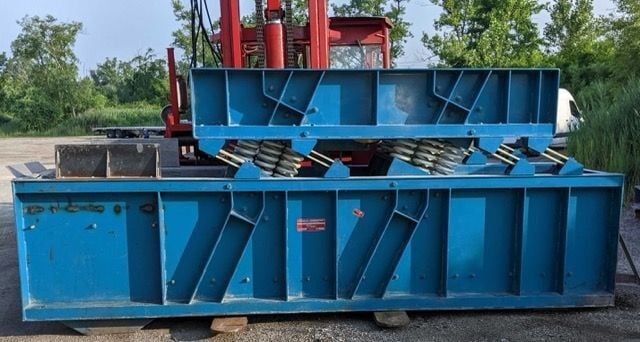

GK vibrating feeder conveyor

Heavy-duty two-mass vibrating shakeout conveyor designed for foundry, recycling, and bulk material handling applications. Utilizing GK's proven Two-Mass vibratory technology, the unit efficiently conveys, cools, separates, and conditions material while maintaining low energy consumption and minimal maintenance requirements.
48" Wide Effective Area
Function: Separation
Components: Electric Motors, Isolation Springs, Reactor Springs, Steel Construction, Liners
Construction Material: Abrasion Resistant Steel, Mild Steel, Rubber, Stainless Steel, Aluminum
Power Requirements: Up to 30 HP (22 kW)
Width: 3 to 9 ft (1,000mm to 2,500mm)
Length: Designed per application
Weight: Up to 40 tons
Capacity: Up to 300 tons per hour
Screen Opening: Sized for your application
Analysis: Fatigue, FEA, Stress
Finish: Bead Blasted, Epoxy, Galvanized, Painted
Production Volume: Built to Order
Benefits: Efficient, Low Maintenance, Reliable, Rugged, Safge Operation, Large Processing Rates
Secondary Services: Customer Support
The unique GK Two-Mass design automatically
compensates for varying load conditions, assuring
non-dampening shakeout performance.
• Driven with proprietary sealed vibration shaker motors,
GK’s Two-Mass Shakeouts eliminate the need for
V-belts, pivoted motor bases, couplings, and large and
expensive bearings.
• The drive for our shakeout feeders is mounted on a
separate exciter mass, completely isolated from the
high-intensity impact action of the shakeout deck.
• Our vibration shaker units feature low horsepower,
adjustable amplitude control, and exceptionally quiet
operation.
- 15HP/480V
