Giddings & Lewis and Lewis Digital I/O Board 502-03064-00 m00507

Product Specifications

• Manufacturer: Giddings & Lewis
• MPN / Model: 502-03064-00
• Product Type: Digital I/O Board
• Assembly Number: 501-03855-00
• Date Code: 83 RB (first characters cut off in photo)
• Channels: 2 sections, 16 channels each (0-15), with fuse positions FU1-0 to FU1-15 and LED positions per channel
• Terminals: Screw terminal blocks, numbered 1-32 per section
• Connectors: INPUT and OUTPUT header connectors on each section
• Condition: Surplus - Untested

Product Description

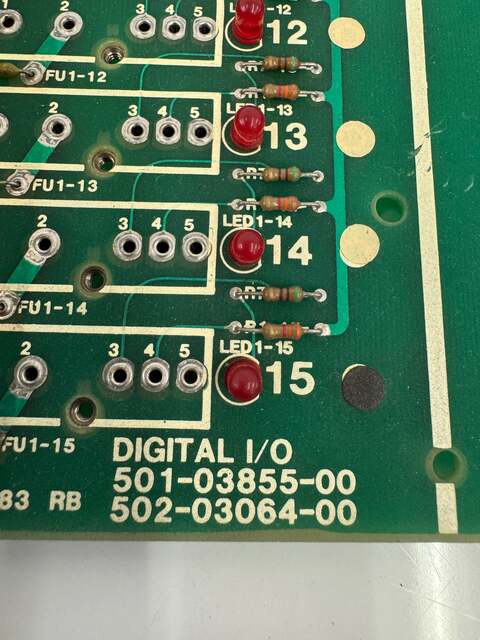

This is a Giddings & Lewis 502-03064-00 digital I/O board. The board silkscreen reads Digital I/O, 501-03855-00, 502-03064-00, and a date code ending in 83 RB. The first characters of the date code are cut off in the photo. The photos show a closeup of the lower part of one section, with fuse positions FU1-12 through FU1-15 and red LEDs LED1-12 through LED1-15, and the solder side of the full board. No serial number or voltage rating is shown in the photos.

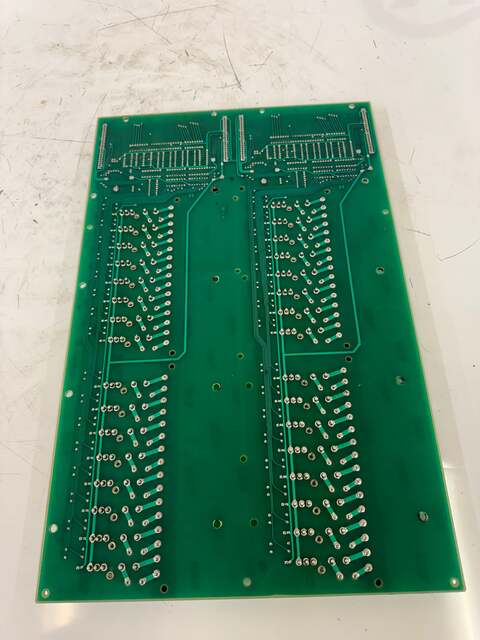

The board is green with white silkscreen. Each channel has a fuse position, five numbered solder holes, a red LED, and resistors beside it. The solder side shows two mirrored sections with soldered connections and mounting holes. The photos do not show the front of the full board.

Sold as surplus, untested. This unit has not been powered on or tested by MRO Exchange, and the fuses, LEDs, ICs, and connectors have not been verified.
