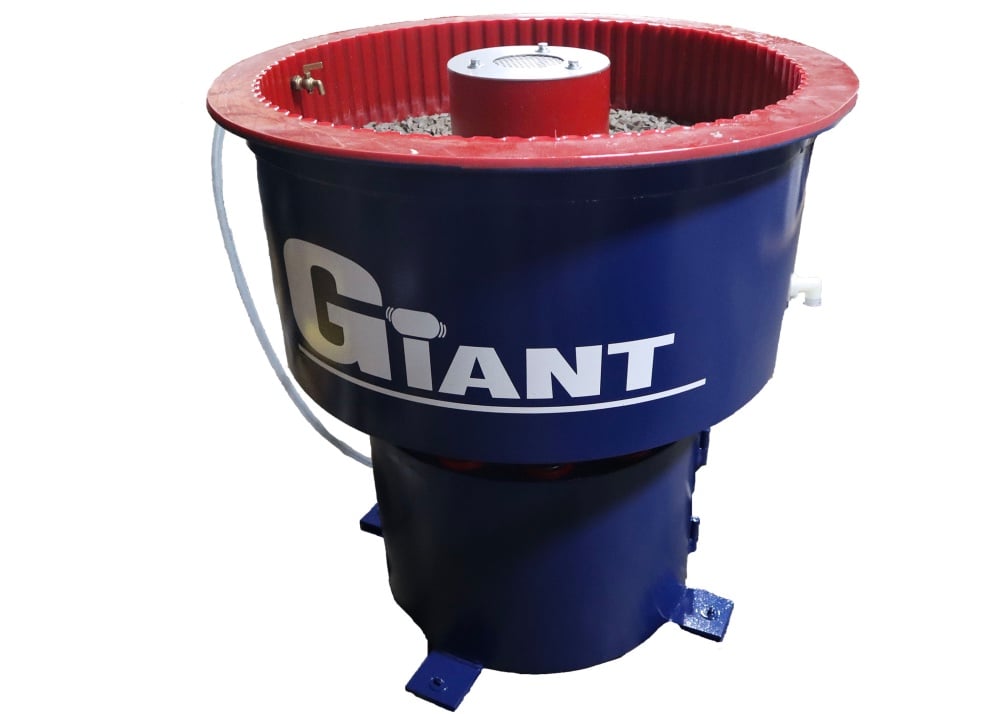

3.5 cu.ft. Giant #GBB-4, batch bowl vibratory deburring & finishing machine

Giant Finishing Model GBB-4 Batch Bowl Vibratory Deburring and Finishing Machine

SPECIFICATIONS:

Cubic Feet Process Capacity 3.5

Channel Width (after lining) 10 ¾”

Channel Depth 9”

Horsepower Motor 1 1/2

Polyurethane Lining Thickness 3/4"

Shipping Weight 1050 lbs.

Floor Space 12 Sq. Ft

Maximum Load Capacity 820 lbs.

Bowl Diameter 37"

Overall Height 40”

Overall Depth 42”

STANDARD COMPONENTS:

• HEAVY DUTY BOWL AND BASE is of all welded steel construction reinforced by gusset plates. The bowl is stress relieved then shot-peened for maximum durability and lined with

• PRECISION DRIVE SYSTEM consisting of heavy duty spherical roller bearings mounted to the vertical drive shaft.

• DROP - ON WEIGHT SEGMENTS (adjustable amplitude)

• HIGH EFFICIENCY MOTOR

• TUNED COIL SPRING TUB SUSPENSION

• ADJUSTABLE AMPLITUDE FLYWHEEL LEAD ANGLE for fast finishing action adjustments.

• COMPOUND INLET PIPING

• REMOVABLE CAST URETHANE DRAIN PLUG

• ELECTRONIC VARIABLE SPEED DRIVE WITH DIGITAL TACHOMETER: An AC inverter coupled directly to the motor controls the vibration frequency. Push buttons for increase or decrease of the vibration frequency are in the main panel. A digital tachometer provides a read-out of machine RPM.
