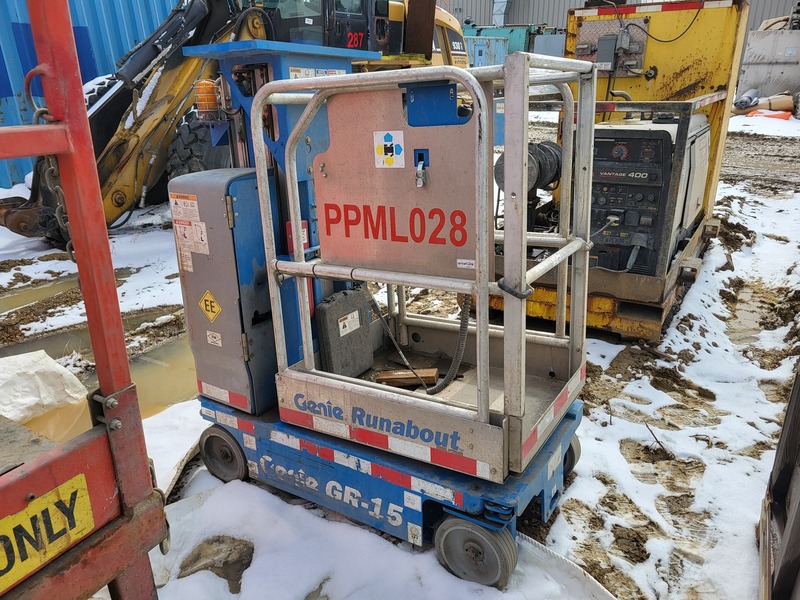

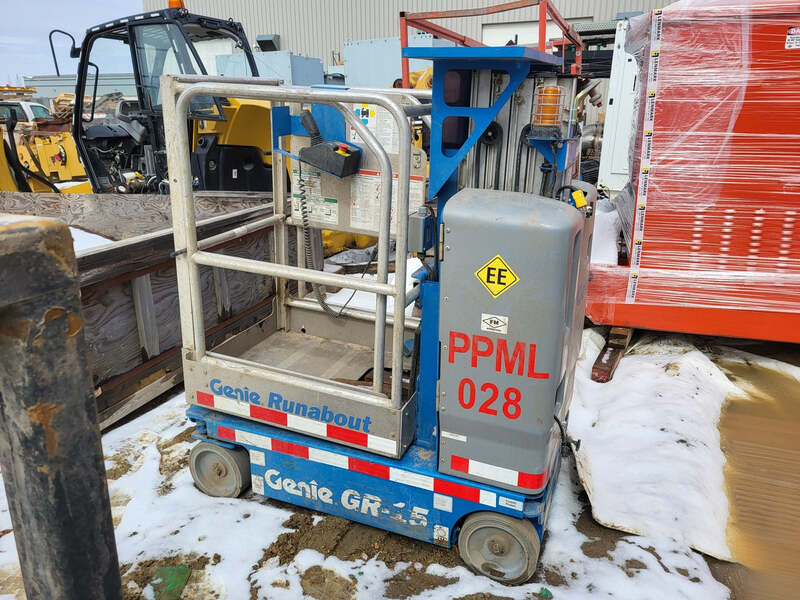

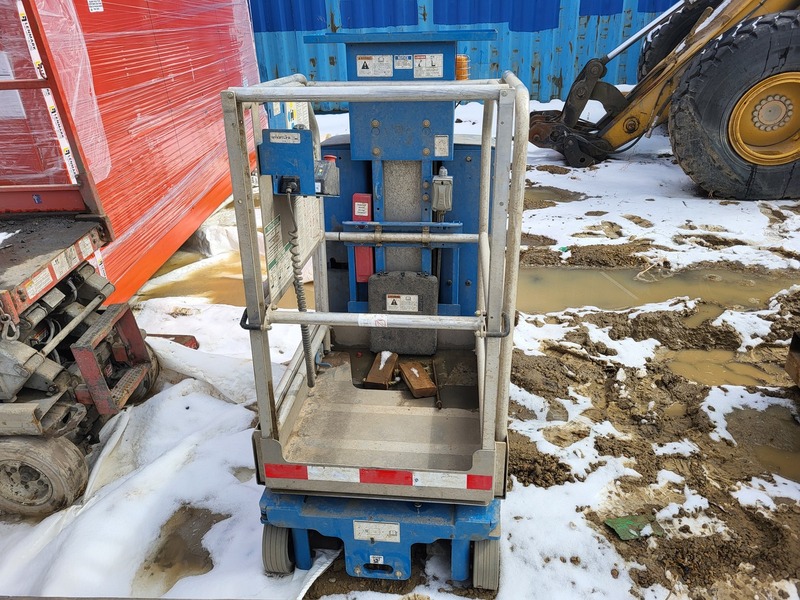

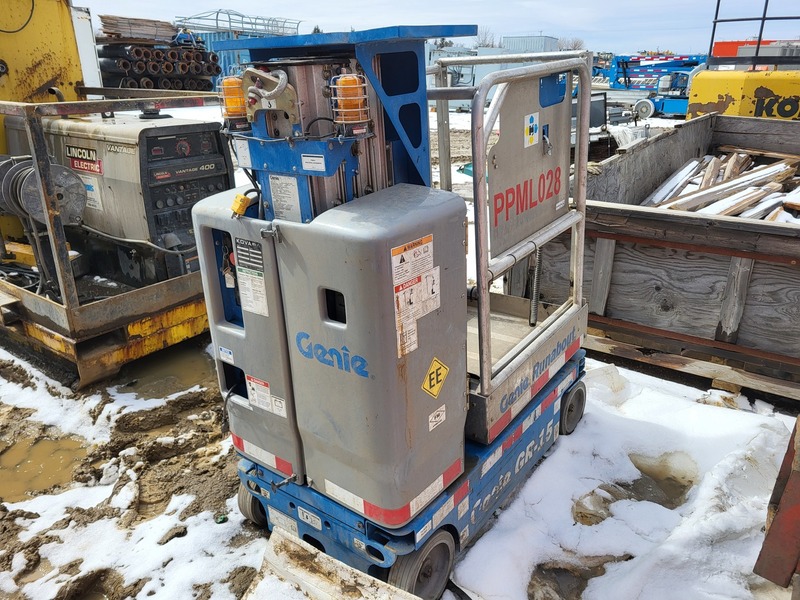

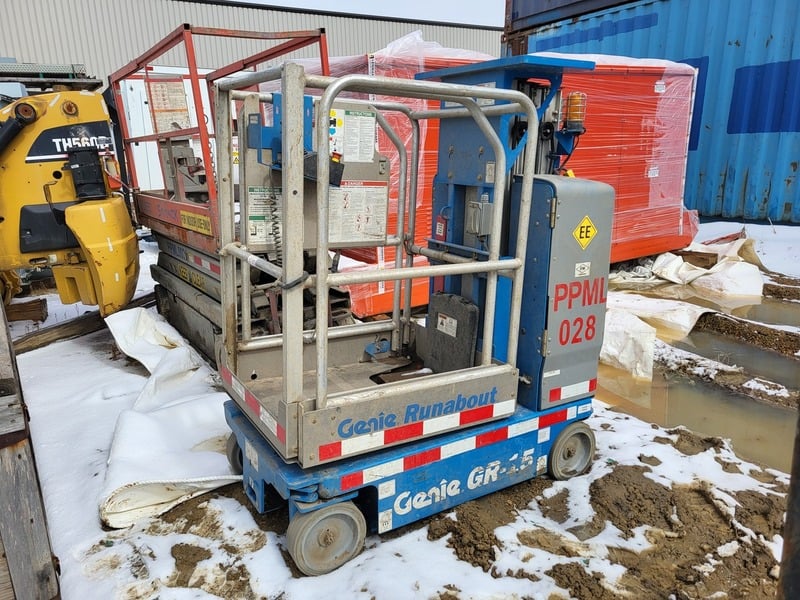

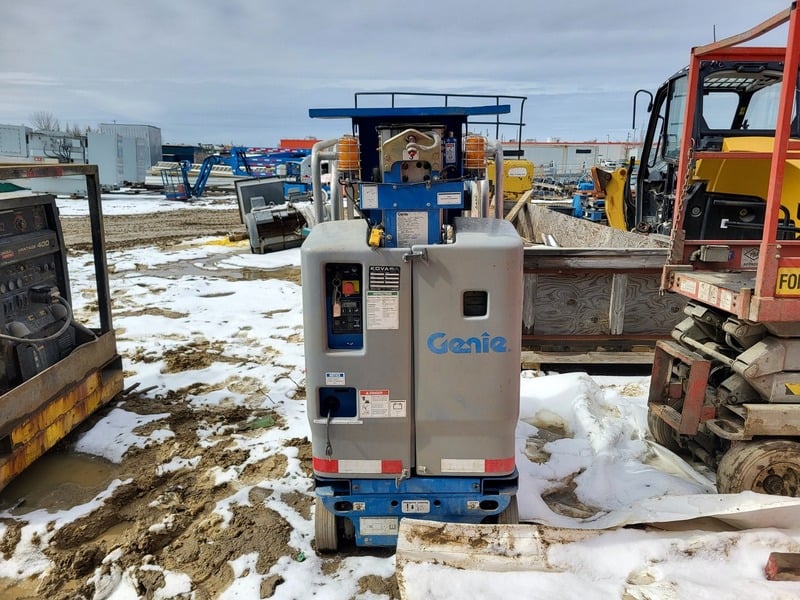

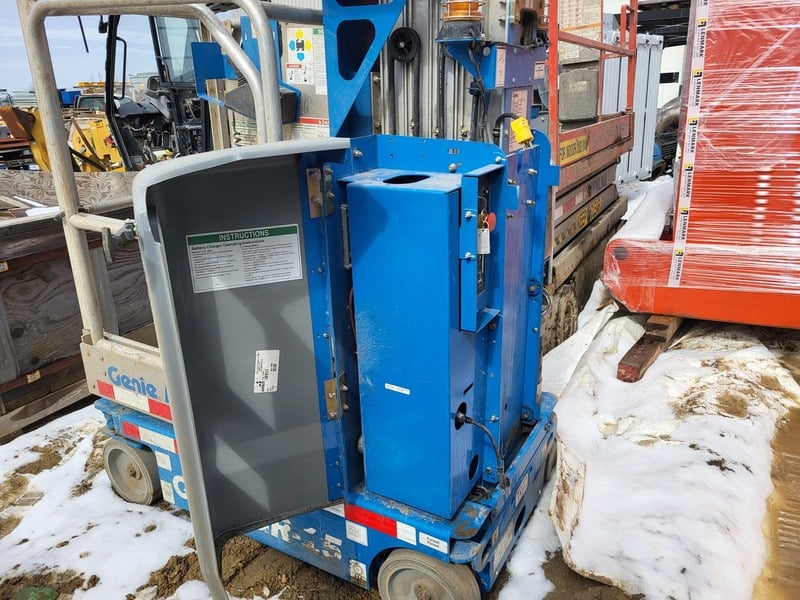

Genie #GR-15, Vertical Mast Lift, 2015

$7,810 USD

Request Formal Quote

SKU: 154173
Model: GR-15
Year: 2015
Condition: Used

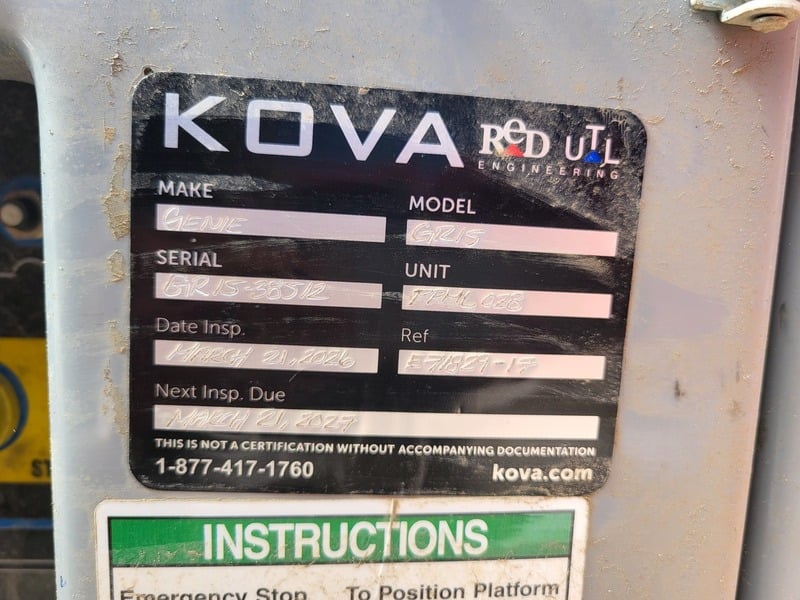

S/N: GR15-38512
General Specifications:
Max. Lift Height: 20' 8"
Max. Lift Capacity: 500 lb
Tires: Cushion
Fuel Type: Electric
Dimensions: 66.00 (H) x 32.00 (W) x 54.00 (L) inches
Additional Description:
Working height max. - indoor: 20 ft 8 in // 6.47m
Working height max. - outdoor: 17 ft 1 in // 5.40m
Platform height max.- indoor: 14 ft 8 in // 4.47m
Platform height max. - outdoor: 11 ft 1 in // 3.40m
Platform dimensions (length x width) - Standard retracted: 35 x 29.5 in // 0.89 x 0.75m
Platform dimensions (length x width) - Standard extended: 55 x 29.5 in // 1.4 x 0.75m
Height - stowed: 5 ft 10 in // 1.78m
Length- stowed: 4 ft 5 in // 1.35m
Width: 2 ft 5.5 in // 0.75m
Ground clearance (center): 2.5 in 6 cm

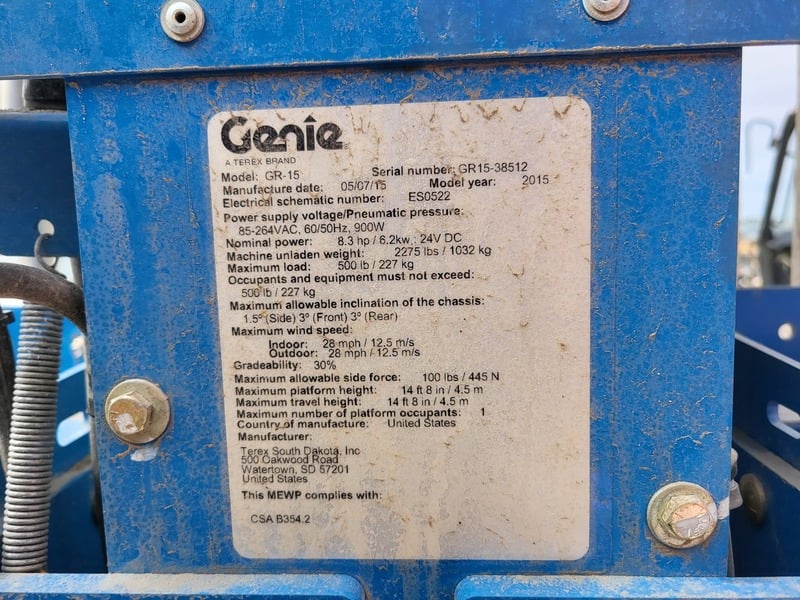

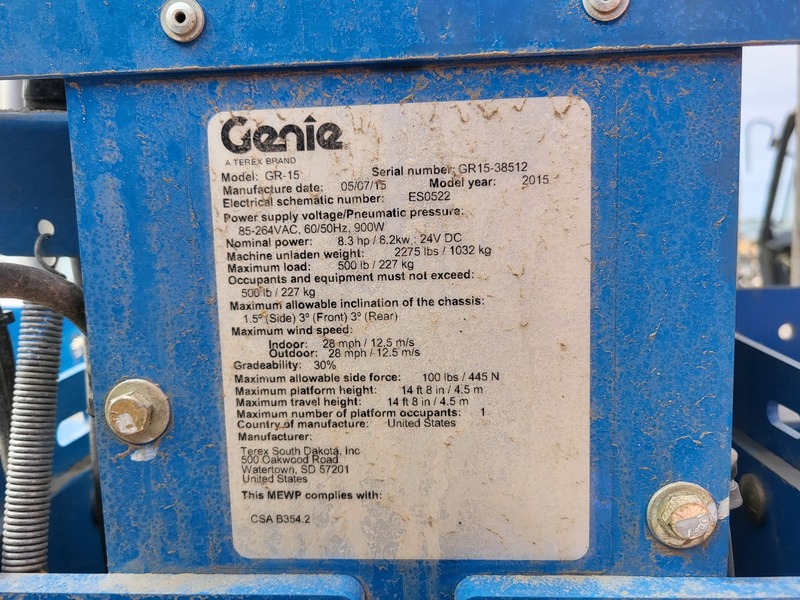

Power supply voltage / Pneumatic pressure: 85-264 VAC, 60/50 Hz, 900W
Nominal power: 8.3 hp // 6.2 kW, 24V DC
Machine unladen weight: 2275 lbs // 1032 kg
Maximum load: 500 lb // 227 kg
Maximum allowable inclination of the chassis: 1.5 (Side), 3 (Front), 3 (Rear)
Maximum wind speed (Indoor): 28 mph // 12.5 m/s
Maximum wind speed (Outdoor): 28 mph // 12.5 m/s
Gradeability: 30%
Maximum allowable side force: 100 lbs // 445 N
Maximum number of platform occupants: 1
