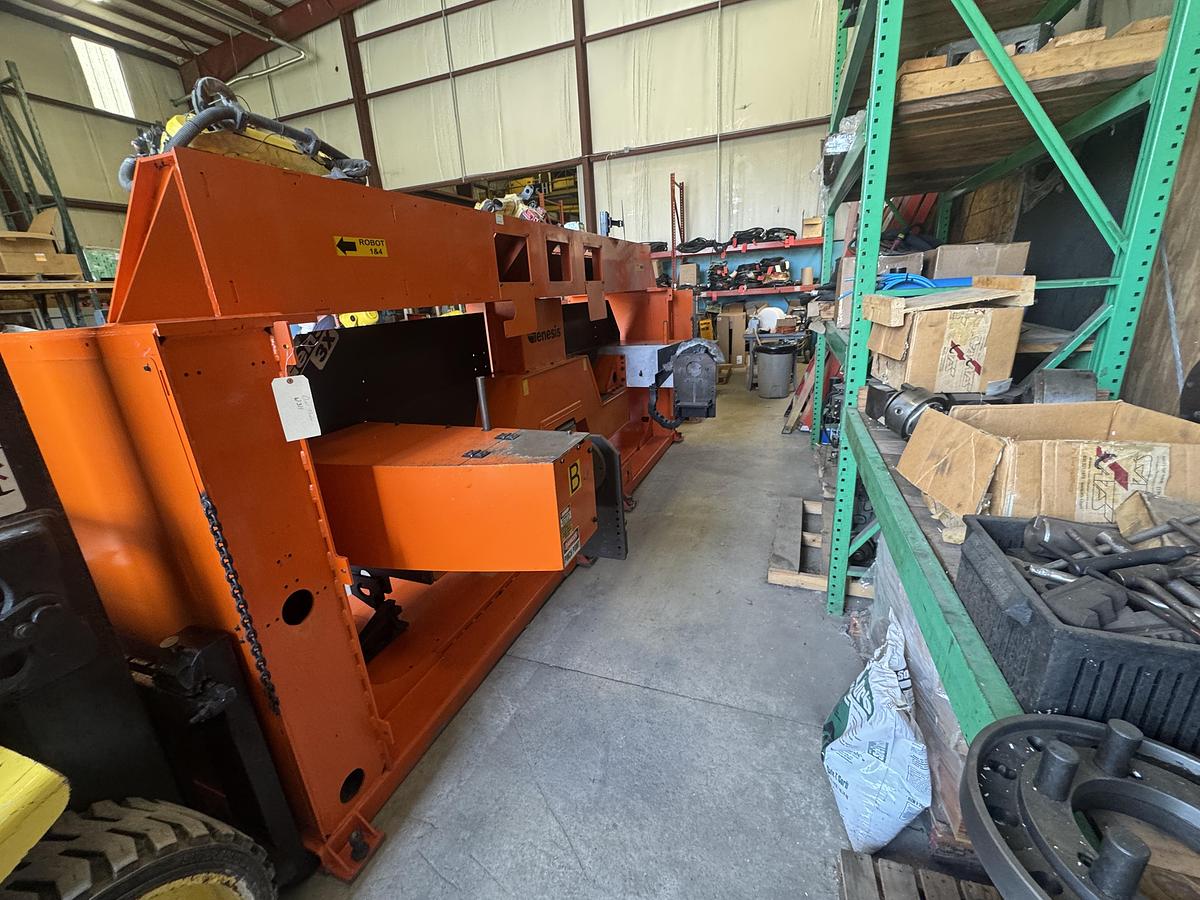

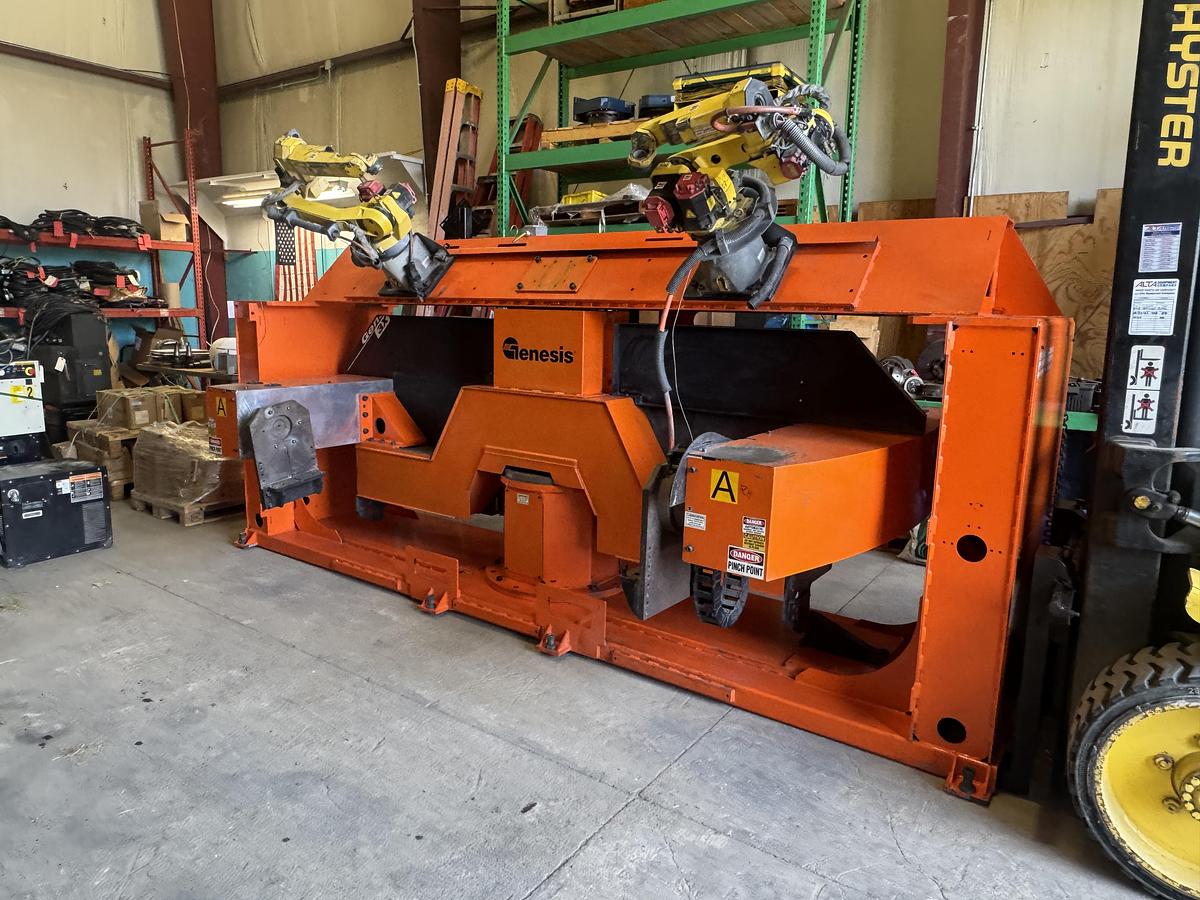

Genesis #System-3x, dual trumion mig welding cell with 2 Arc Mate 100iC R-30iB robots, 2012

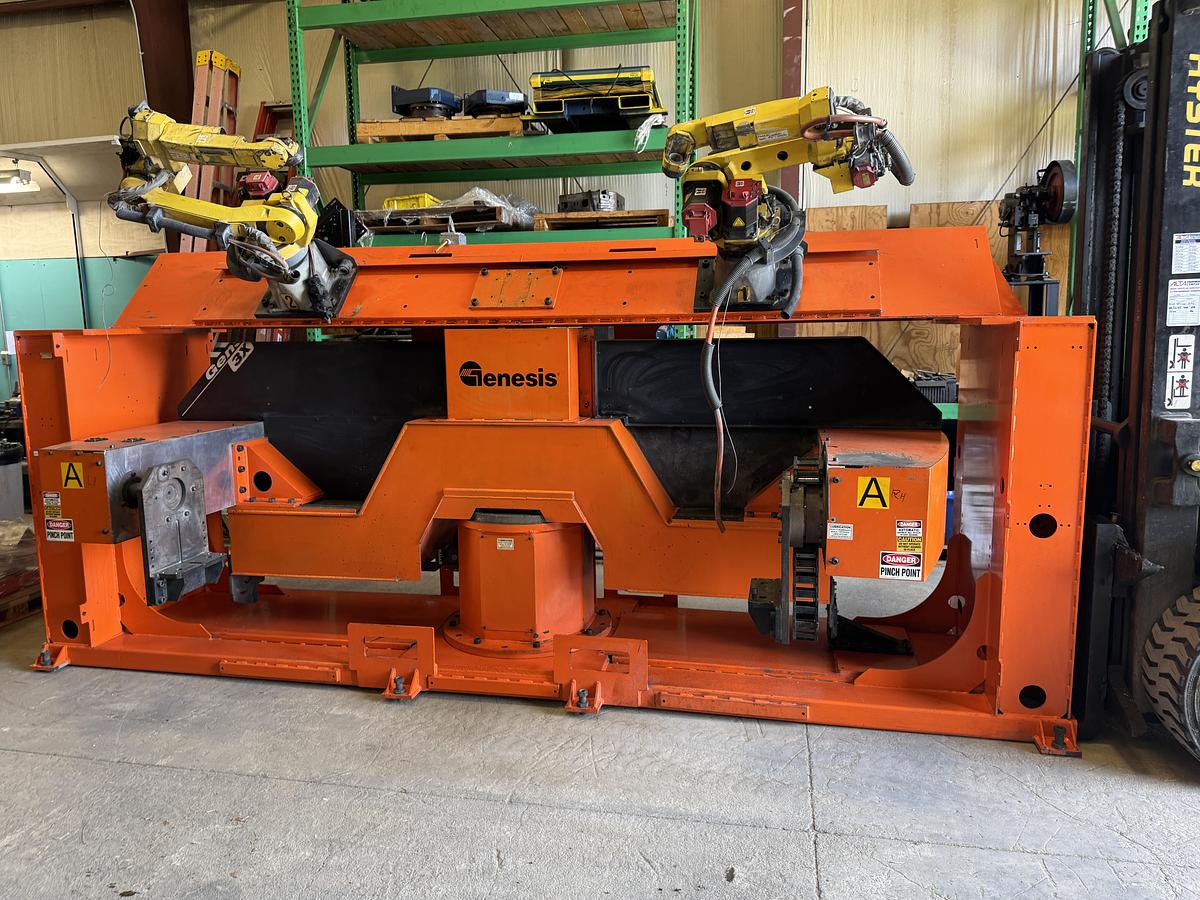

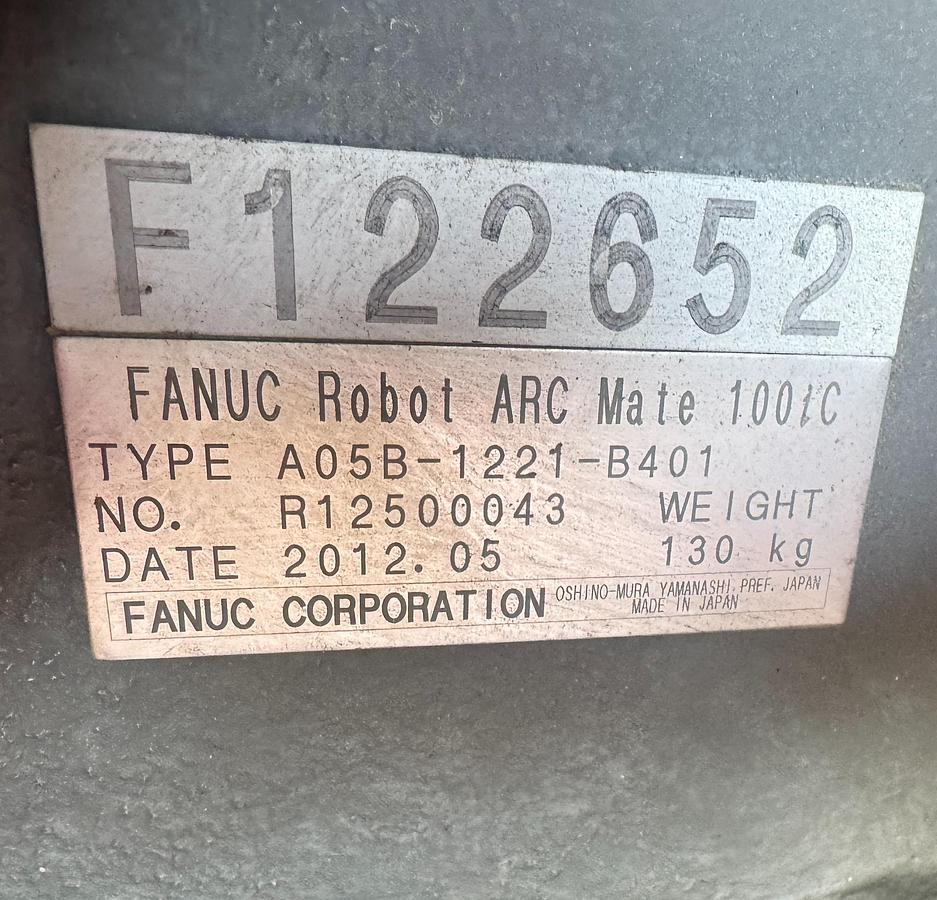

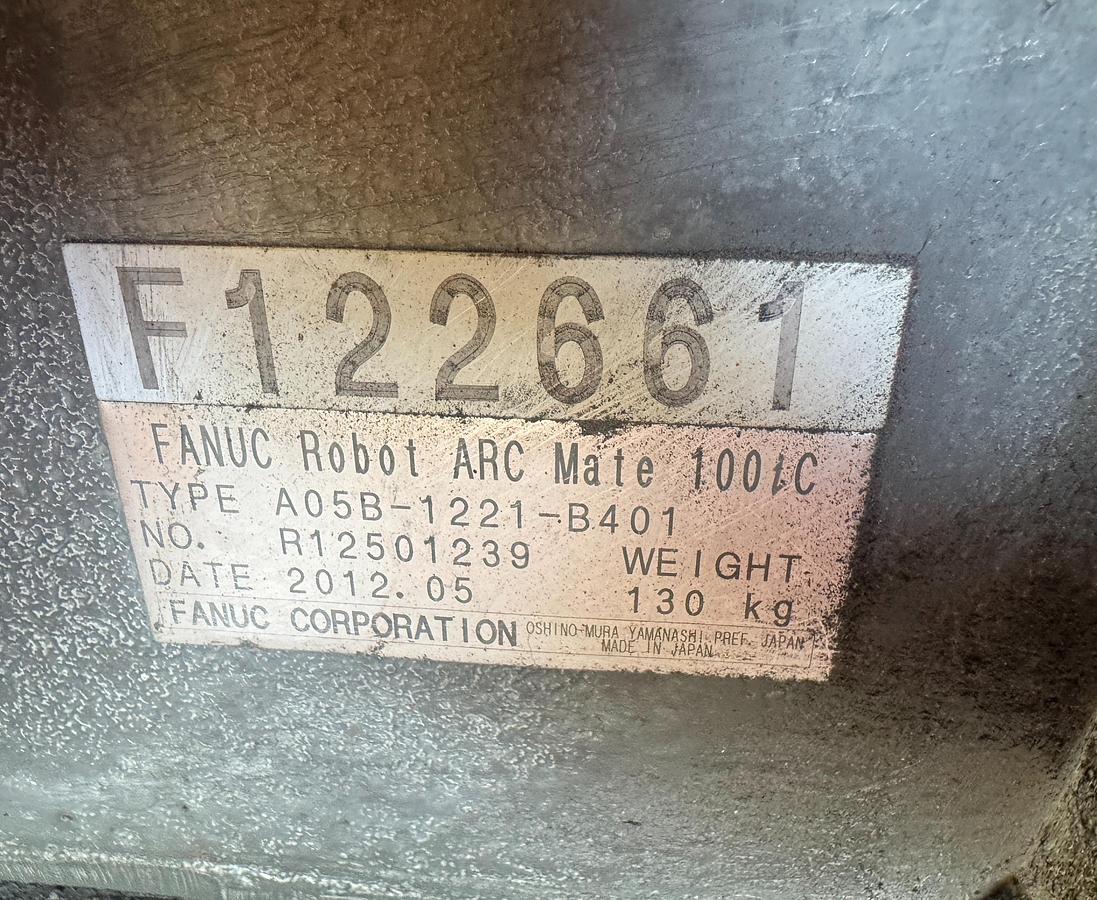

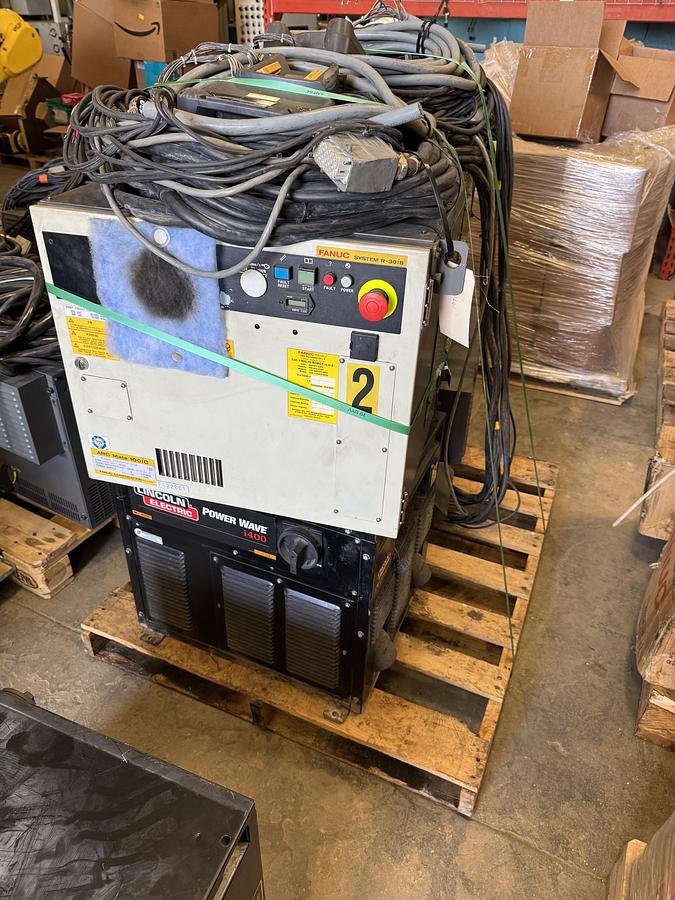

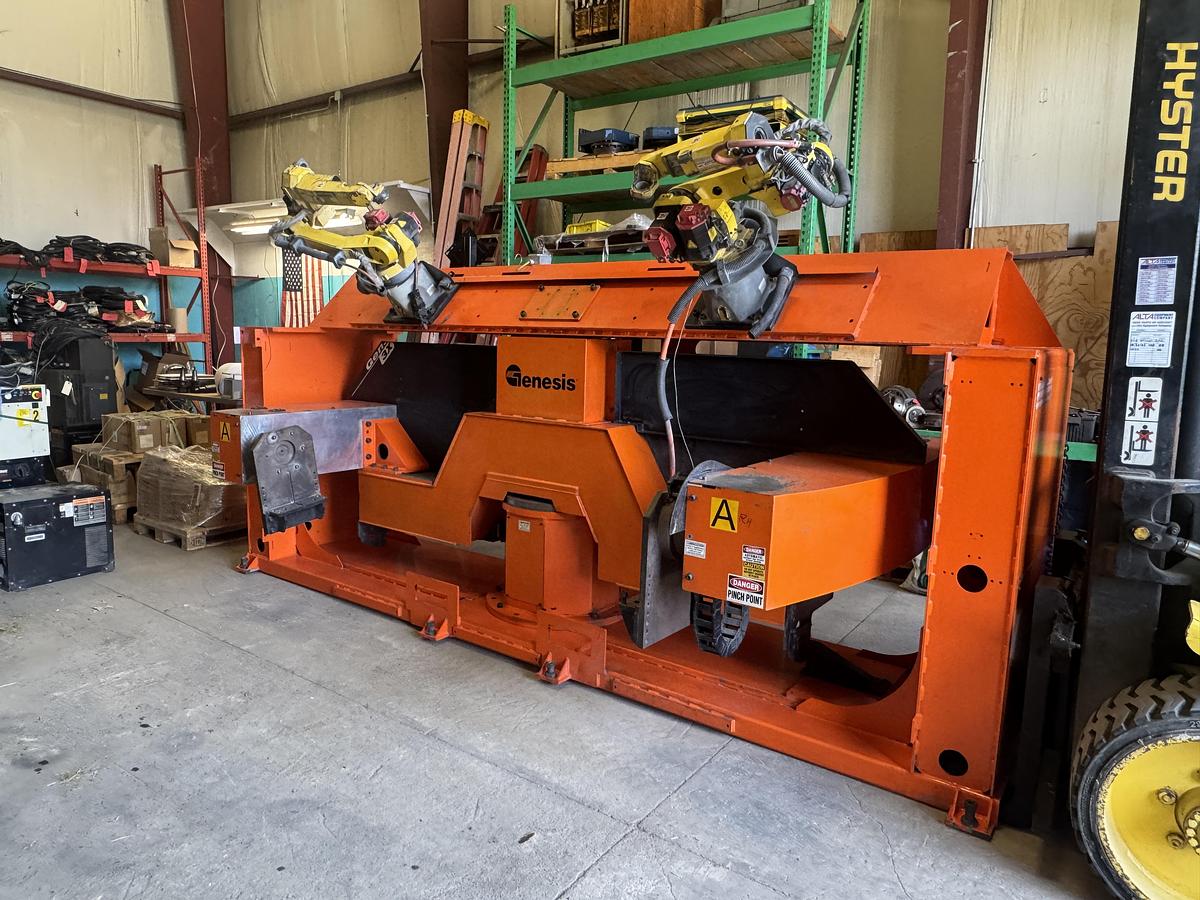

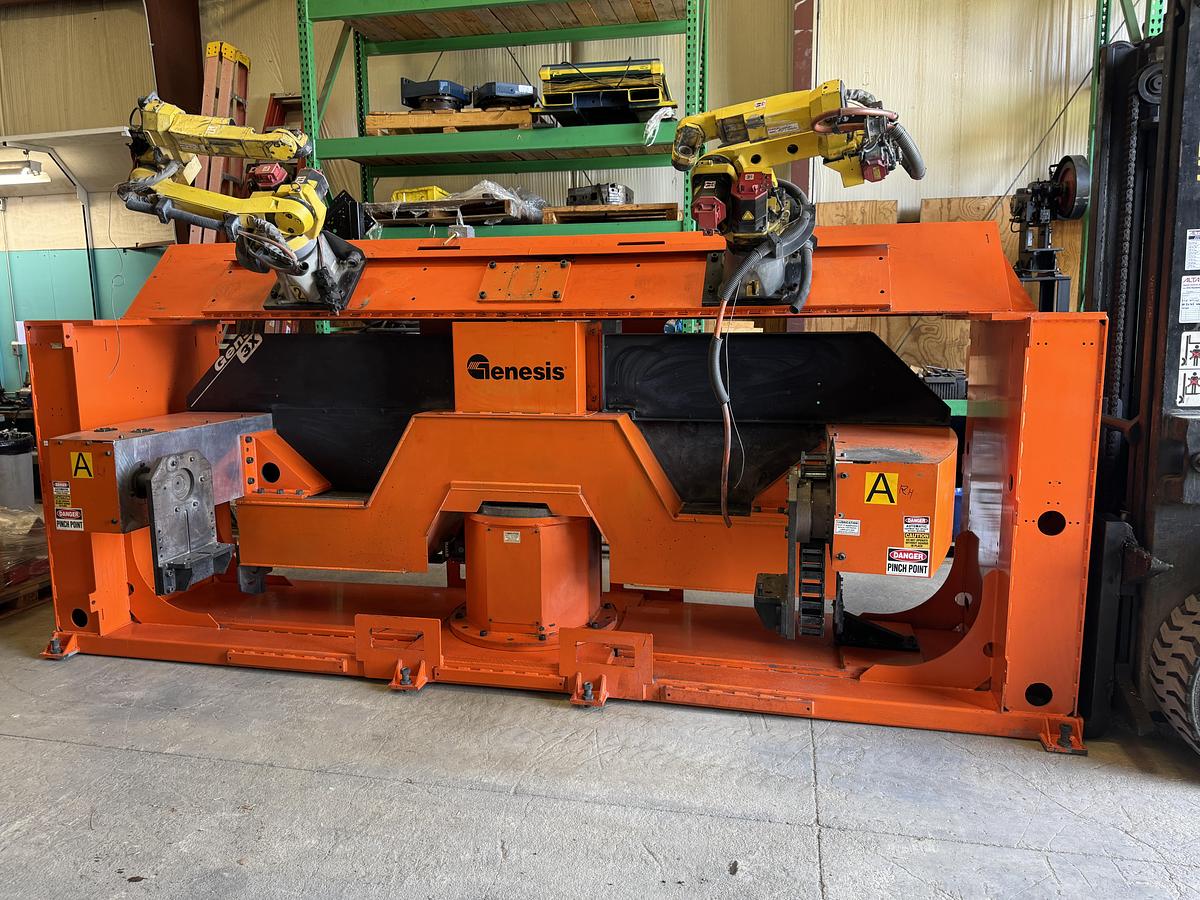

This used Genesis System 3X (2012) is a robot available from R.A.B. Industries. It is equipped with the R-30iB controller.1-USED GENESIS SYSTEM 3X DUAL TRUNION MIG WELDING CELL WITH2 FANUC ARC MATE 100iC ROBOTS RUNNING ON R-30iB CONTROLLERS,PENDANTS, CABLES, ADJUSTABLE BETWEEN-CENTER TRUNION DISTANCESROBOT SERIAL NUMBERS F122661 & F122652DATE OF MFG. 2012STK#105295=================================SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMEDRELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICEAND TO VERIFICATION BY BUYER:THE GENESIS SYSTEM 3X DUAL TRUNNION WELDING CELL IS BUILTON EASILY MOVEABLE FABRICATED BASE. THE ROBOTS SIT ABOVETHE DUAL TRUNNION ASSEMBLY FACING ONE SIDE OF THE SYSTEM.THE DUAL TRUNNIONS ARE BUILT ON AN INDEXING CENTER COLUMNAND ROTATE 180 DEGREES UNDER THE ROBOTS TO ALLOW FORWORK LOAD AND UNLOAD ON YOUR FIXTURE ON ONE SIDE WHILEWELDING IS PERFORMED ON THE WORK SIDE OF THE SYSTEM.THE SYSTEM IS HIGHLY FLEXIBLE WITHIN IT'S WORKING RANGEAS THE BOTH THE AC MOTOR DRIVEN SIDE AND THE FREE TURNINGBEARING SIDE (TAILSTOCK SIDE) OF THE TRUNNION ARE ADJUSTABLEIN LENGTH. ALLOWING FOR BOTH THE HEADSTOCK AND TAILSTOCKTO BE ADJUSTED APPROX. 1' TO OR FROM THE CENTER LINE OF THETRUNNION. IN ADDITION ON THE ROBOT TOP MOUNTING PLATE THEREARE PRE-DRILLED AND TAPPED HOLES ALLOWING THE ROBOTS TO BEREPOSITIONED BASED ON THE LENGTH SET FOR THE TRUNNIONS.THE MAX. CENTER DISTANCE FOR THE TRUNNIONS CAN BE SET TO APPROX. 8'THE MIN. CENTER DISTANCE FOR THE TRUNNIONS CAN BE SET TO APPROX 6'THEY CAN ALSO BE ADJUSTED ANY WHERE IN BETWEEN IN APPOX. 2" INCREMENTS.APPROX. SWING 49"MAIN SWEEP INDEX TIME 4.5 TO 5 SECONDSAPPROX. WEIGHT CAPACITY PER STATION 2,204 LBS (OPTIONAL 3,009 LBS)NOT SURE HOW THIS CELL WAS BUILT.THE ROBOTS IN THIS CELL AS EQUIPPED:The Fanuc Arc Mate100iC robot creates a large work area and maintains high speeds throughout, conquering up to 10 kg of payload, all the while using a slim wrist enabling entry into small openings in the work space. In addition, this robot arm moves 15% faster than the other robots in its class and can process large parts and use complex tooling without compromising productivity. The FANUC ARC Mate 100iC is compatible with all major brands of welding equipment and can be interfaced with most types of servo-driven or indexing positioners. The Robot is Compatible with Fanuc RJ3iC or R30iA Controller.Robot Specifications:Axes: 6Payload: 10kgH-Reach: 1420mmRepeatability: 0.08mmRobot Mass: 130kgStructure: ArticulatedMounting: Floor, Inverted, AngleRobot Motion Speed:J1 210 /s (3.67 rad/s)J2 190 /s (3.32 rad/s)J3 210 /s (3.67 rad/s)J4 400 /s (6.98 rad/s)J5 400 /s (6.98 rad/s)J6 600 /s (10.47 rad/s)Robot Motion Range:J1 360J2 250J3 447J4 380J5 +380 - 280J6 +720 - 540Applications:Arc Welding RobotsLaser Welding RobotsMAG Welding RobotsMIG Welding RobotsOrbital Welding RobotsOxyacetylene Welding RobotsPlasma Cutting RobotsPlasma Welding RobotsSubmerged Arc Welding RobotsTIG Welding RobotsCELL EQUIPPED WITH:GENESIS SYSTEM 3X DUAL TRUNNION INDEXING WELDING FIXTURE2 FANUC ARC MATE 100iC ROBOTS2 FANUC R-30iB CONTROLLERS2 SETS FANUC ROBOT CONNECTION CABLES2 FANUC COLOR TEACH PENDANTS2 LINCOLN I-400 WELDING POWER SUPPLIES1 TORCH TIP CLEANER2 LINCOLN 4R220 WIRE FEEDERS (NOT PICTURED)2 WELDING TORCHES (NOT PICTURED)Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.[See Our Arc Mate Stock as well as other Robots that lend themselves to Mig Welding Applications](https://www.rabindustries.com/listings?q=FANUC+Arc+Mate).
