General Electric Fanuc (Fanuc Ltd) CNC Control Panel A02B-0309-B522 24V DC

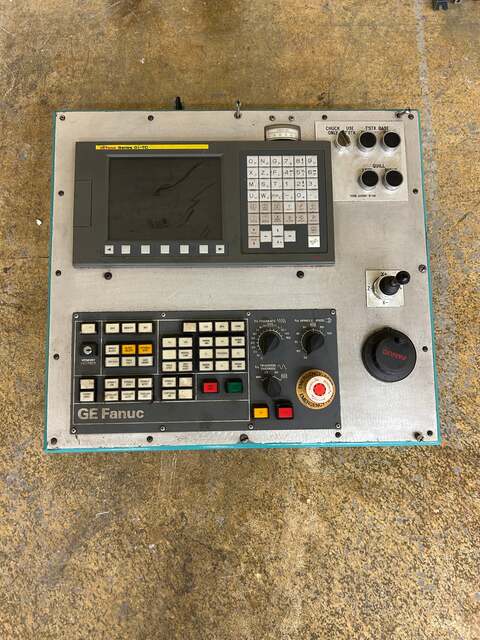

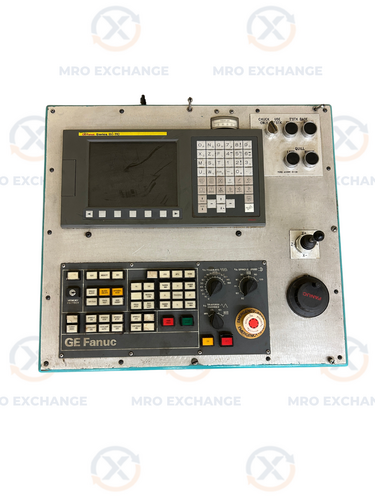

Used in CNC turning centers and lathes, this is a complete GE Fanuc Series 0i-TC operator panel assembly comprising the Fanuc CNC control unit, 8.4-inch LCD display, MDI keyboard, and a full lathe machine panel with operator controls. The CNC control unit carries type number A02B-0309-B522, manufactured by Fanuc Ltd in Japan in July 2007 with serial number E077B5038. A GE Fanuc CNC Express reconfiguration label identifies the unit as 0iTC-MCU63285-001R00. The panel assembly includes a lathe-specific operator panel with feedrate, spindle speed, and traverse override rotary controls, cycle start and feed hold pushbuttons, an emergency stop button, a Fanuc MPG handwheel, and additional machine-specific selector switches labeled for chuck, quill, and toolstock functions. The MDI keyboard section features the full alphanumeric and function key layout standard to the Fanuc Series 0i-TC turning center control. The display area shows the GE Fanuc Series 0i-TC label on the front bezel. The entire assembly is mounted on a steel plate with a teal green frame and is removed as a complete operator station unit. The Fanuc Series 0i-TC is a turning center variant of the Series 0i control platform, providing up to 4 programmable axes with over 200 standard CNC features including canned cycles, tool life management, and rigid tapping. MPN A02B-0309-B522 is the OEM identifier used in active US market listings for this control unit.

Stock # 0226-644
