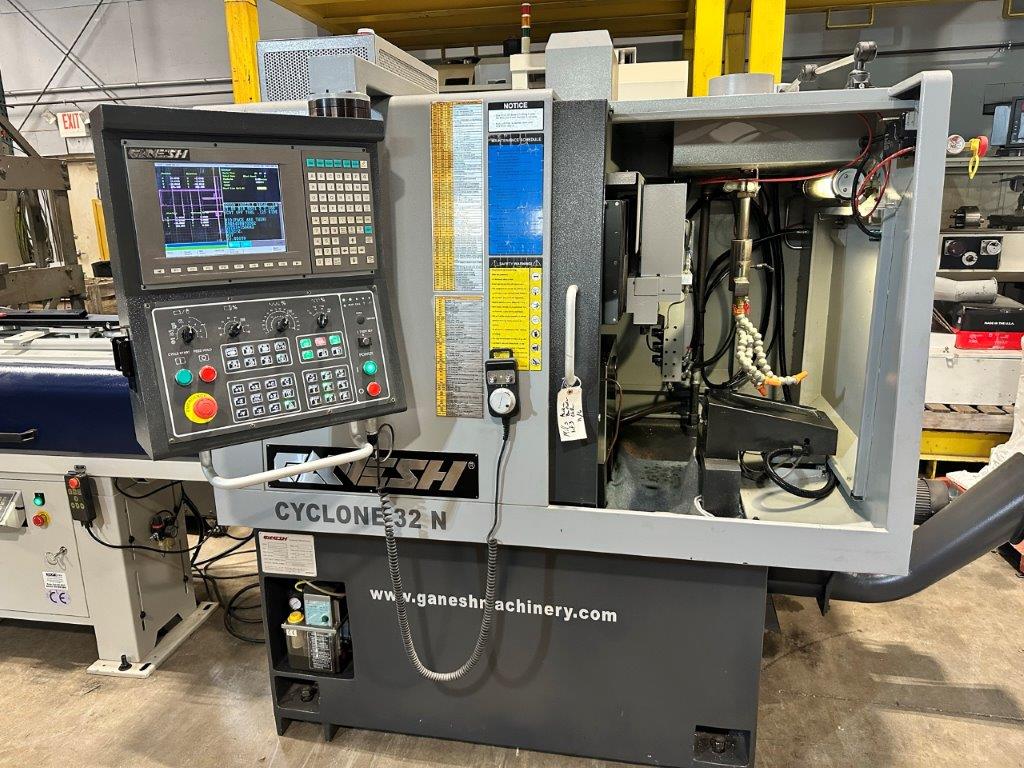

Ganesh #Cyclone-32NCY, CNC turning center, 4-Axis, Mitsubishi Control, Edge Rebel V65 magazine barloader, 2013

GANESH CYCLONE 32NCY CNC TURNING CENTER

SPECIFICATIONS:
AXIS CONTROLS:
CNC CONTROLLED AXIS ………………. 4-Axis(X,Y,Z,C)
X-AXIS TRAVEL (Vertical Tool) ……… 7.5″ Linear Ways
Y-AXIS TRAVEL (Cross Tool) ………… 19.3″ Linear Ways
Z-AXIS TRAVEL (Sliding Headstock)…… 6.5″ Linear Ways
C-AXIS TRAVEL (Rotational Axis) ……. 360 Degrees
SPINDLE:
DRAW TUBE ID …………………….. 1.456″
TRAUB A-32 COLLET CAPACITY ………… 1.25″
SPINDLE SPEED RANGE ………………. 100-6,000 RPM
SPINDLE HORSEPOWER ……………….. 10 HP (7.5kW)
SPINDLE CENTER HEIGHT …………….. 38″
RIGID TAPPING ON MAIN SPINDLE ……… YES
TOOLING SYSTEM:
NUMBER AND SIZE OF TOOLING STATIONS … 6 TOOLS of 1/2″
NUMBER OF INTERNAL STATIC TOOLS ……. 5 ID TOOL STATIONS
ID TOOL BORES (Round Shank) ……….. 25mm Bore for ER-20
DRIVEN TOOL SYSTEM:
NUMBER OF CROSS WORKING DRIVEN TOOLS .. 4-Cross Driven
NUMBER OF END WORKING LIVE TOOLS …… 3-Axial Driven
SIZE OF DRIVEN TOOLS (Round Shank) …. ER-20, 1/16″-1/2″
RIGID TAPPING w/DRIVEN TOOLS ………. Included
DRIVEN TOOL PROGRAMMABLE RANGE …….. 0-4000 RPM
DRIVEN TOOL HP …………………… Radial 2.0HP
AXIS DRIVES
RAPID TRAVERSE RATE X,Y & Z Axis …… 1181 IPM
C-AXIS RESOLUTION ………………… 0.001 Degrees
SYSTEM REQUIREMENTS:
ELECTRICAL REQUIREMENTS …………… 16 KVA – 42 Amps
MACHINE DIMENSIONS:
FLOOR SPACE ……………………… 86″ x 74″ x 76″
MACHINE NET WEIGHT ……………….. 6,175 LBS.

EQUIPPED WITH:
– MITSUBISHI CNC CONTROL
– EDGE REBEL V65 MAGAZINE BARLOADER
– MP 1000 PSI HIGH PRESSURE COOLANT
– PARTS CATCHER
