For Sale by Machinery Resources Intl
Surplus Record Dealer Since 1996
Location: Simi Valley, CA
Contact Sales Dept.
Phone Number: 818...> Show Phone Number 818-514-1254
Let the seller know you found their listing on Surplus Record!
Description
Description:
Specifications:
CNC CONTROLLED AXIS ................... 4-Axis(X,Y,Z,C)
X-AXIS TRAVEL (Vertical Tool) ......... 7.5" Linear Ways
Y-AXIS TRAVEL (Cross Tool) ............ 19.3" Linear Ways
Z-AXIS TRAVEL (Sliding Headstock)...... 6.5" Linear Ways
C-AXIS TRAVEL (Rotational Axis) ....... 360 Degrees
SPINDLE:
DRAW TUBE ID .......................... 1.456"
TRAUB A-32 COLLET CAPACITY ............ 1.25"
SPINDLE SPEED RANGE ................... 100-6,000 RPM
SPINDLE HORSEPOWER .................... 10 HP (7.5kW)
SPINDLE CENTER HEIGHT ................. 38"
RIGID TAPPING ON MAIN SPINDLE ......... YES
TOOLING SYSTEM:
NUMBER AND SIZE OF TOOLING STATIONS ... 6 TOOLS of 1/2"
NUMBER OF INTERNAL STATIC TOOLS ....... 5 ID TOOL STATIONS
ID TOOL BORES (Round Shank) ........... 25mm Bore for ER-20
DRIVEN TOOL SYSTEM:
NUMBER OF CROSS WORKING DRIVEN TOOLS .. 4-Cross Driven
NUMBER OF END WORKING LIVE TOOLS ...... 3-Axial Driven
SIZE OF DRIVEN TOOLS (Round Shank) .... ER-20, 1/16"-1/2"
RIGID TAPPING w/DRIVEN TOOLS .......... Included
DRIVEN TOOL PROGRAMMABLE RANGE ........ 0-4000 RPM
DRIVEN TOOL HP ........................ Radial 2.0HP
AXIS DRIVES
RAPID TRAVERSE RATE X,Y & Z Axis ...... 1181 IPM
C-AXIS RESOLUTION ..................... 0.001 Degrees
SYSTEM REQUIREMENTS:
ELECTRICAL REQUIREMENTS ............... 16 KVA - 42 Amps
MACHINE DIMENSIONS:
FLOOR SPACE ........................... 86" x 74" x 76"
MACHINE NET WEIGHT .................... 6,175 LBS.
Get Your Price from Machinery Resources Intl!
Buyers Who Viewed This Listing Also Viewed:
Ganesh #Cyclone-32NCY, CNC turning center, 4-Axis, Mitsubishi Control, Edge Rebel V65 magazine barloader, 2013
Category: CNC Lathes and Turning Centers
Seller: Premier Equipment Inc
Location: Altamonte Springs, FL
Mfr: Ganesh
Model: CYCLONE-32NCY
Year: 2013
GANESH CYCLONE 32NCY CNC TURNING CENTER, AXIS CONTROLS:, CNC CONTROLLED AXIS ………………. 4-Axis(X,Y,Z,C), X-AXIS TRAVEL (Vertical Tool) ……… 7.5″ Linear Ways, Y-AXIS TRAVEL (Cross Tool) ………… 19.3″ Linear Ways, Z-AXIS TRAVEL (Sliding ...more
JUST ADDED!

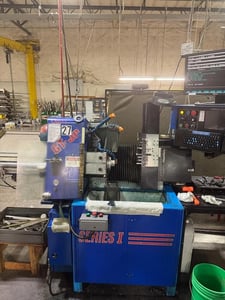

Omniturn #GT-JR, CNC lathe, 1" bar, 6" turning diameter, 4,000 RPM, 5" C collet nose, 12" X, 9" Z, 4.5 HP, 1997
