Franklin Electric 6" Submersible Well Pump Assembly, 7.5 HP

The Brand-New Complete Pump System

​ NEW Franklin Electric 6" Submersible Well Pump Assembly | 7.5 HP Motor & Matching Pump End, 3-Phase, Subtrol

For sale is a complete, high-capacity Franklin Electric 6-Inch Submersible Well Pump System. This listing includes both the 7.5 HP premium 3-Phase motor and the matching heavy-duty 7.5 HP pump end / liquid end. Both components are brand new, completely uninstalled, and ready to go directly into a well casing.

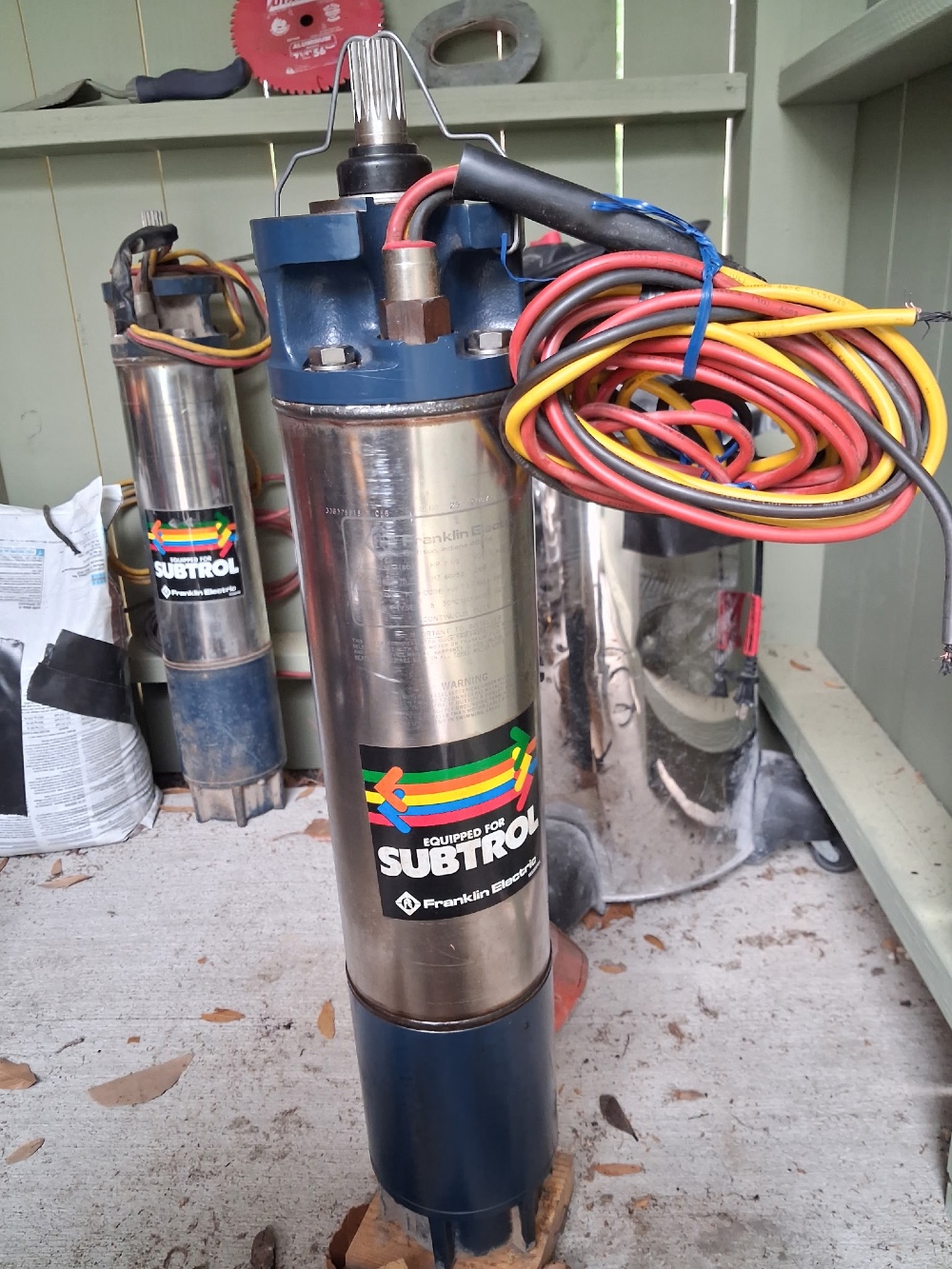

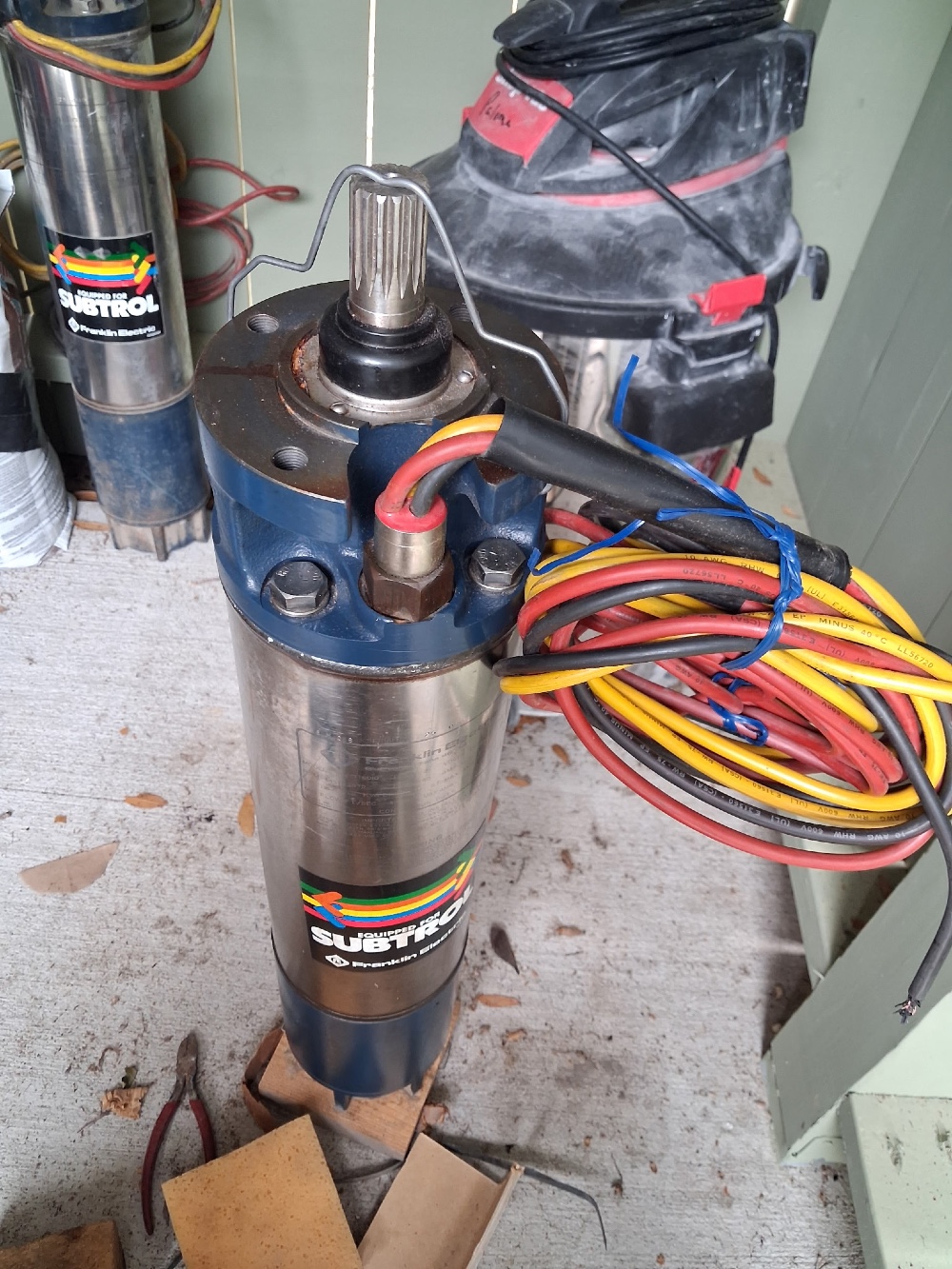

​The motor is model 2366116010 and comes factory-equipped with Subtrol-Plus embedded heat sensor technology for real-time diagnostic reporting and protection. This professional fluid-handling package is ideal for heavy-duty agricultural irrigation, industrial fluid transfer, or municipal water supply systems. Avoid distributor markups and lengthy lead times.

​Technical Specifications:

​Manufacturer: Franklin Electric (Bluffton, IN)

​Motor Model: 2366116010

​System Capacity: 7.5 HP

​Diameter: 6-Inch

* Phase: 3-Phase

​RPM: 3450 RPM (60 Hz)

​Service Factor (SF): 1.15

​Motor Features: Integrated Subtrol sensor, factory leads intact.

​Pump End Features: High-efficiency, multi-stage construction built for deep-well demand and abrasive handling.

​Logistics: > Freight shipping or local pickup available.
Combined weight is approximately ~140 lbs.
Will be securely palletized and strapped for completely safe transit.
