Manufacturer: Fom
Model: ARGO-70
Year: 2022
Longitudinal" X: 261.0
Cross" Y: 43.3
Vertical" Z: 16.7
RPM: 17000
Stock # 3846
1 / 6
Click to zoom in
1 / 6
For Sale by Bridgeline Machinery Corp
Location: Deerfield, IL
Contact Carmine Perrelli
Phone Number: 847...> Show Phone Number 847-372-4138
Let the seller know you found their listing on Surplus Record!
Description
Machine Specifications
X-Axis Travel: 261"
Y-Axis Travel: 43.3"
Z-Axis Travel: 16.7"
Working Capacity (@ 90°): 261" x 21.4" x 11.6"
Spindle Speed: 17,000 RPM

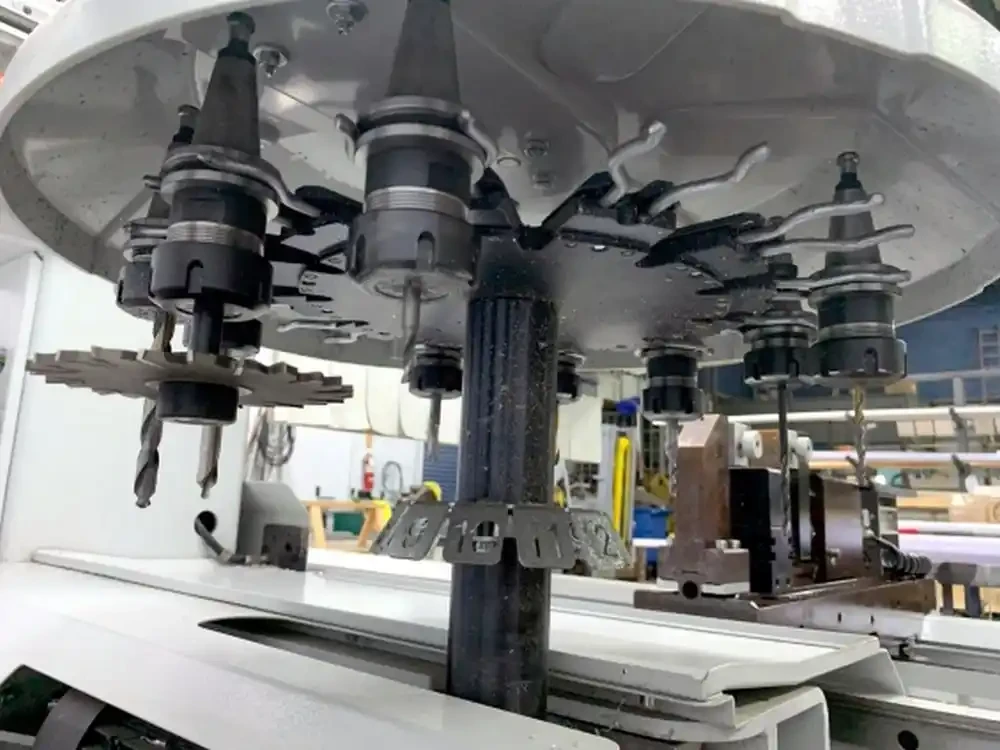

Tooling: (12) ISO 30
Max. Tool Diameter: 0.8"
Max. Tool Length: 5.9"
Max. Tool Blade Diameter: 8.7"
Equipped With

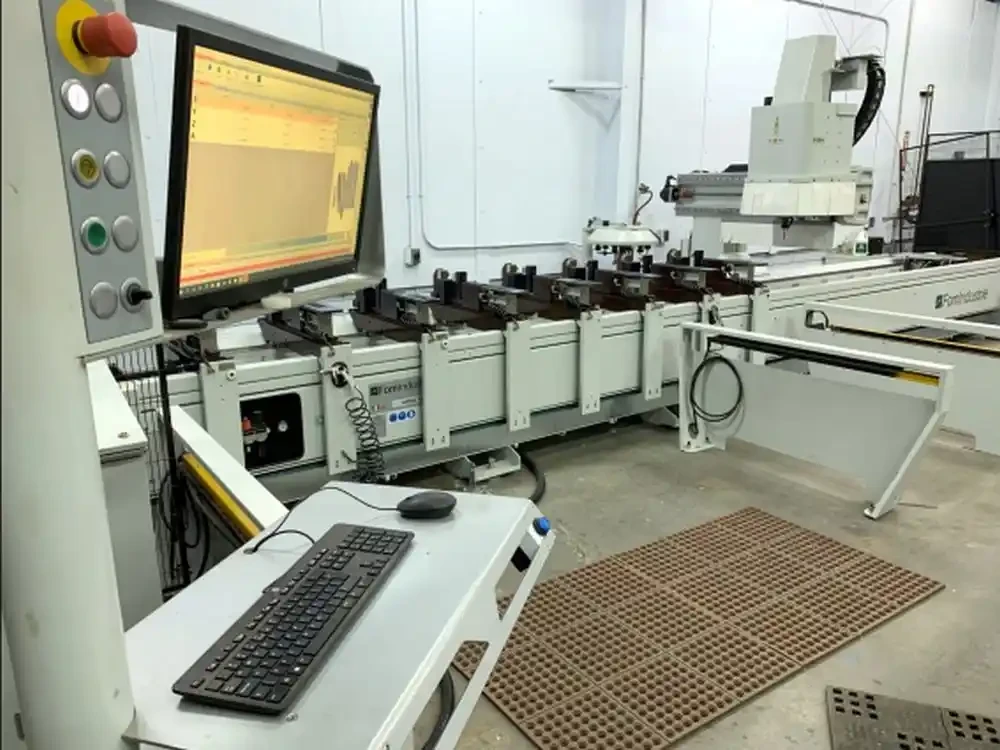

23" Touchscreen OMEGA 200 CNC Control

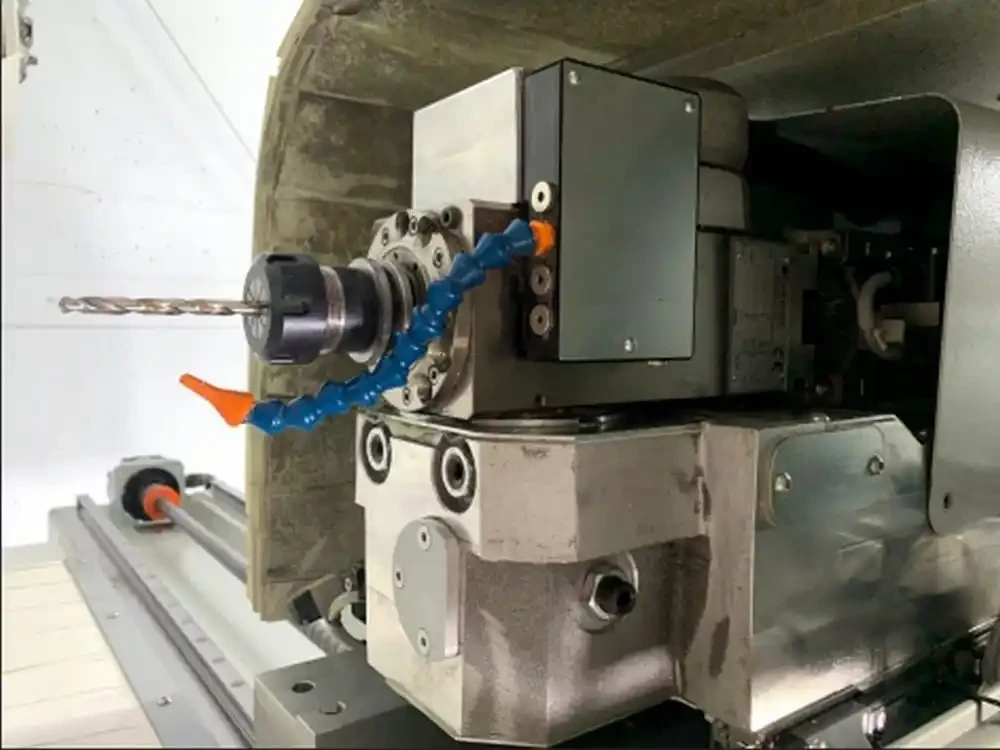

Electrospindle Positioning (0°/90°/180°)
FOMCAM Software

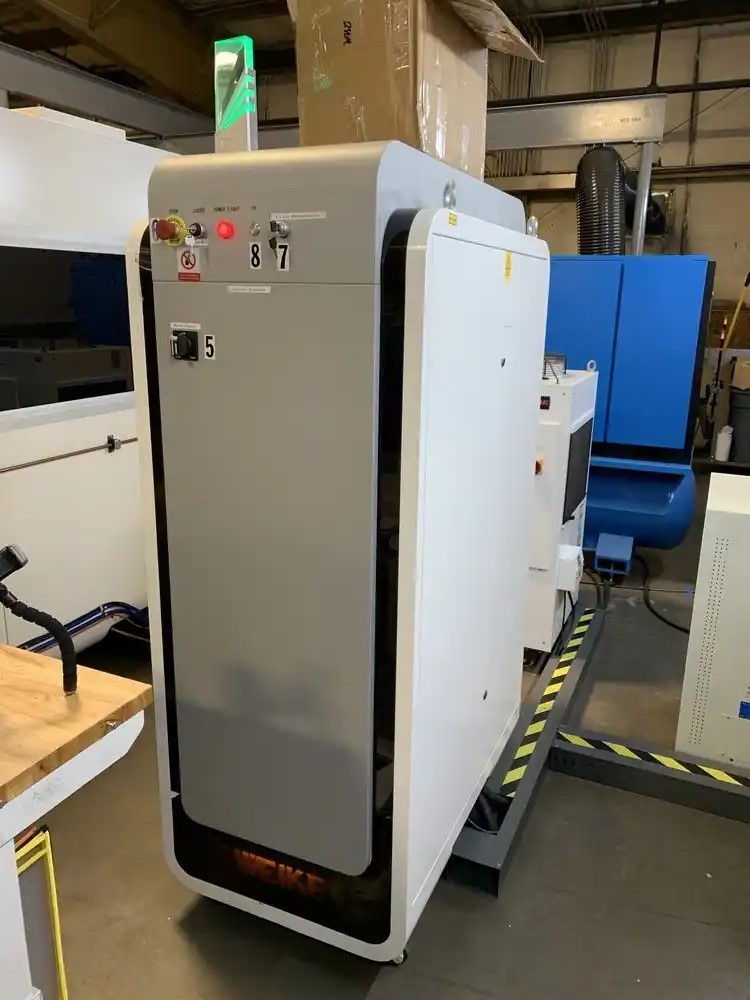

Electric Cabinet Cooling
Flow Drilling Kit
Lubrication System Kit
Chip Conveyor

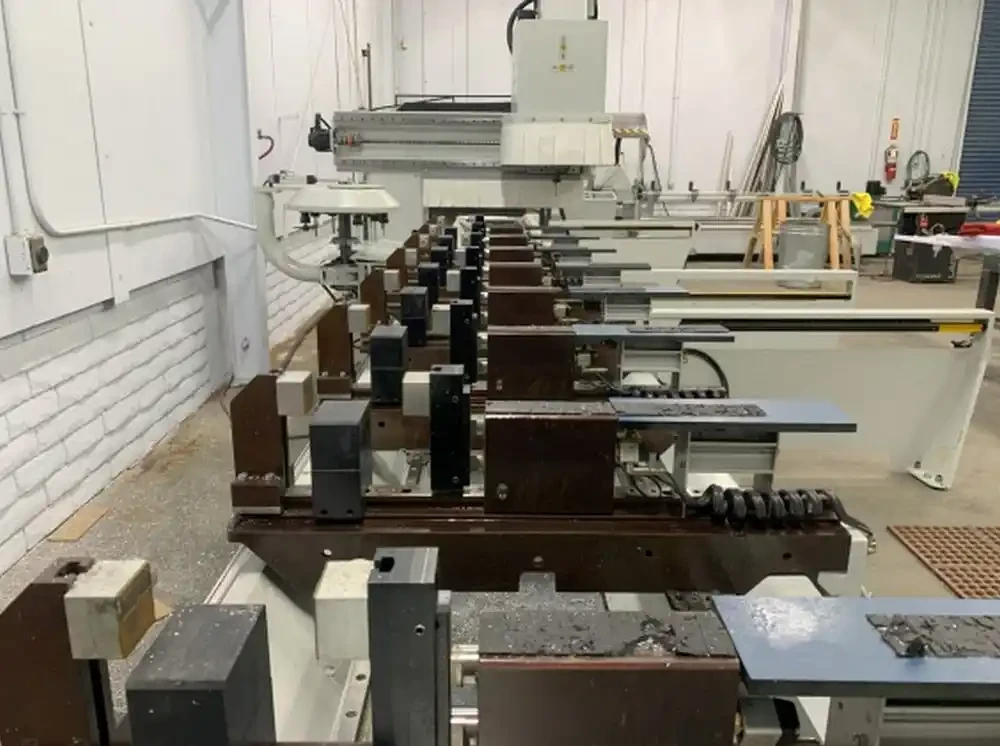

Retractable Pneumatic Stop
More Info

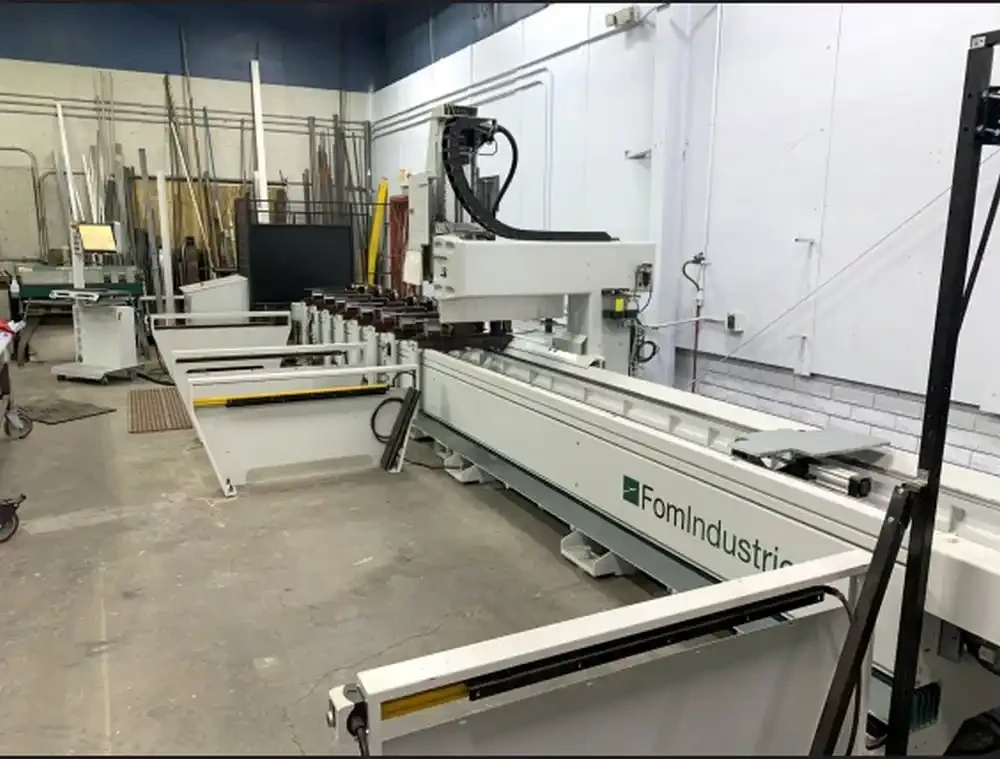

This FOM Industrie ARGO 70 is a 2022 CNC profile machining center engineered for fast, high-accuracy processing of long aluminum or composite extrusions. With an exceptional 261″ X-axis travel, 43.3″ Y and 16.7″ Z, a 17,000 RPM ISO 30 electro-spindle, and a 12-position tool changer, it excels at machining door and window frames, curtain-wall mullions, trailer rails, lighting housings, and other extended-length profiles. The machine is equipped with an OMEGA 200 touchscreen CNC, FOMCAM software, electro-spindle indexing (0°/90°/180°) for multi-side operations, a flow-drilling kit for threaded inserts, chip conveyor, and automatic lubrication—delivering precise, burr-free results in a single setup.
X-Axis Travel: 261"
Y-Axis Travel: 43.3"
Z-Axis Travel: 16.7"
Working Capacity (@ 90°): 261" x 21.4" x 11.6"
Spindle Speed: 17,000 RPM
Tooling: (12) ISO 30
Max. Tool Diameter: 0.8"
Max. Tool Length: 5.9"
Max. Tool Blade Diameter: 8.7"
Equipped With
23" Touchscreen OMEGA 200 CNC Control
Electrospindle Positioning (0°/90°/180°)
FOMCAM Software
Electric Cabinet Cooling
Flow Drilling Kit
Lubrication System Kit
Chip Conveyor
Retractable Pneumatic Stop
More Info
This FOM Industrie ARGO 70 is a 2022 CNC profile machining center engineered for fast, high-accuracy processing of long aluminum or composite extrusions. With an exceptional 261″ X-axis travel, 43.3″ Y and 16.7″ Z, a 17,000 RPM ISO 30 electro-spindle, and a 12-position tool changer, it excels at machining door and window frames, curtain-wall mullions, trailer rails, lighting housings, and other extended-length profiles. The machine is equipped with an OMEGA 200 touchscreen CNC, FOMCAM software, electro-spindle indexing (0°/90°/180°) for multi-side operations, a flow-drilling kit for threaded inserts, chip conveyor, and automatic lubrication—delivering precise, burr-free results in a single setup.
Disclaimer
Preliminary specifications are provided for general guidance only and may change without notice. They are believed to be accurate but are not guaranteed. All specifications, dimensions, capacities, weights, and performance figures should be independently verified by the buyer prior to purchase or use. Bridgeline Machinery Corp. makes no representations or warranties, express or implied, regarding the completeness, accuracy, or suitability of any machine specifications, and shall not be liable for any errors or omissions.
