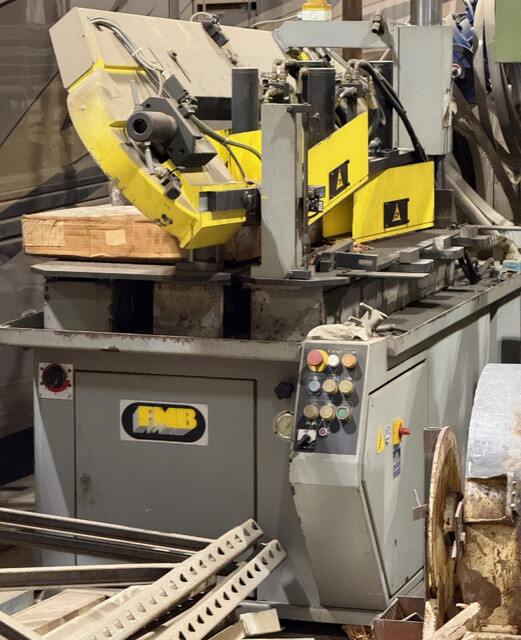

7-7/8" x 48" FMB #Pluton, bar grating horizontal saw

• All gear saw drive with infinity variable
speeds via Inverter Drive

• Precision carbide blade guides
with roller guides

• Heavy duty machine base with
locking cabinet

• Saw drive via gearbox reductor with case
hardened and ground helical gears

• Top Hydraulic Clamps

• Micro drip blade lubrication

• Positive hydraulic down feed of
the saw blade

• 24 volt control voltage

• Semi automatic operation

• Fast Approach

• Automatic return height adjustment
of saw head

• Voltage 220/3/60

• Mechanical blade tension with
built in indicator

• One FMB cobalt bandsaw blade
and operating manual

TECHNICAL DATA

TECHNICAL DATA

Cutting Capacity

7-7/8" (200mm) High X 48" (1200mm) Wide

• Blade Size: 18'4" x 1-1/4" x .042"

• Coolant Motor: 1/8 HP

• Blade Speeds: Variable 62 to 310 FPM

• Floor Space: 98" x 42"

• Saw Motor: 4 HP

• Machine Weight: 2685 lbs.

• Hydraulic Motor: 1.5 HP
