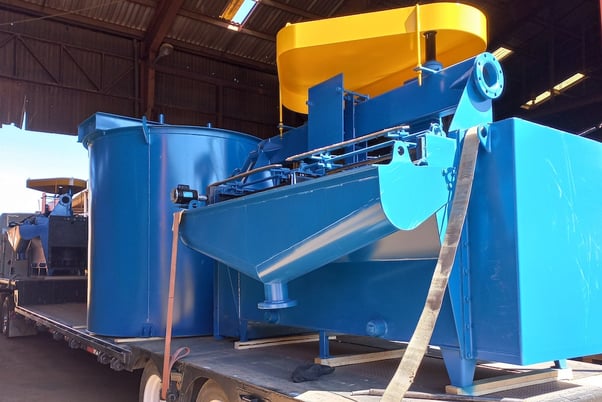

Flotation circuit suitable for 300 - 500 TPD of throughput, All new equipment

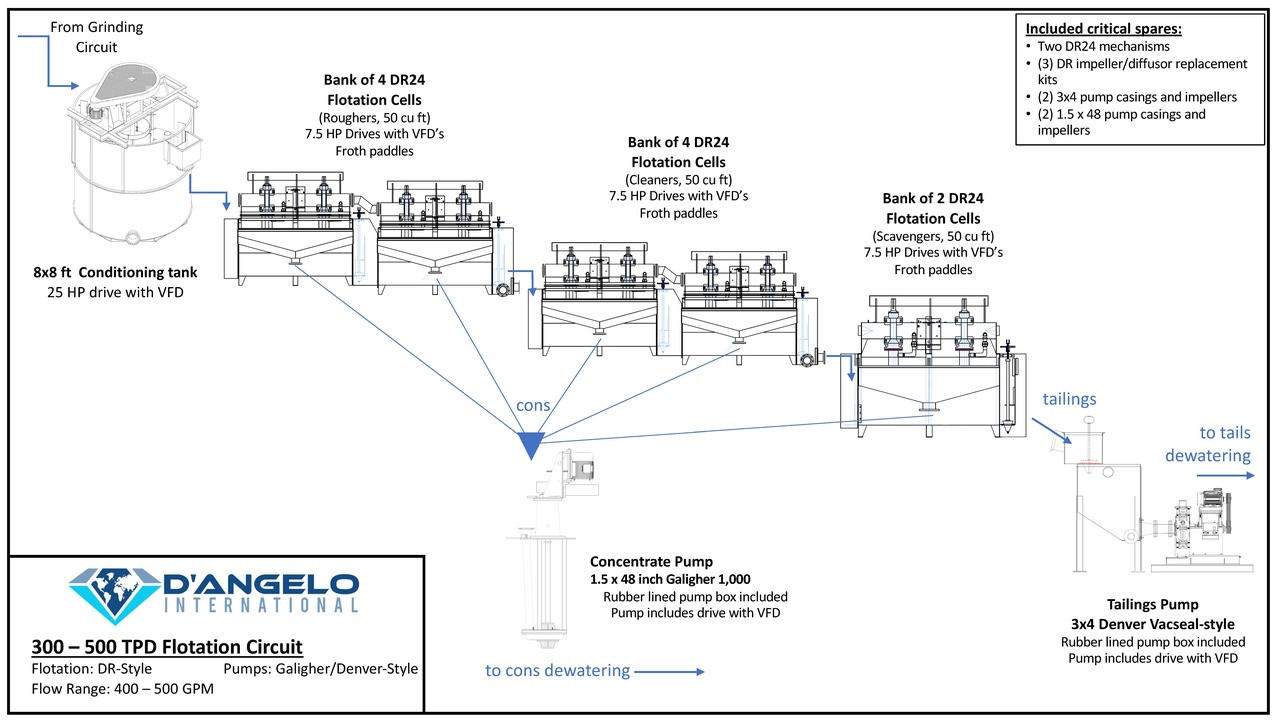

New manufacture flotation circuit suitable for 300 - 500 TPD of throughput- All new equipment- Made in North America- 17 week typical delivery time- Point of delivery: Douglas, Arizona- Exact rate of production depends on material handled and specifications of site- GPM range of circuit: 400 - 500

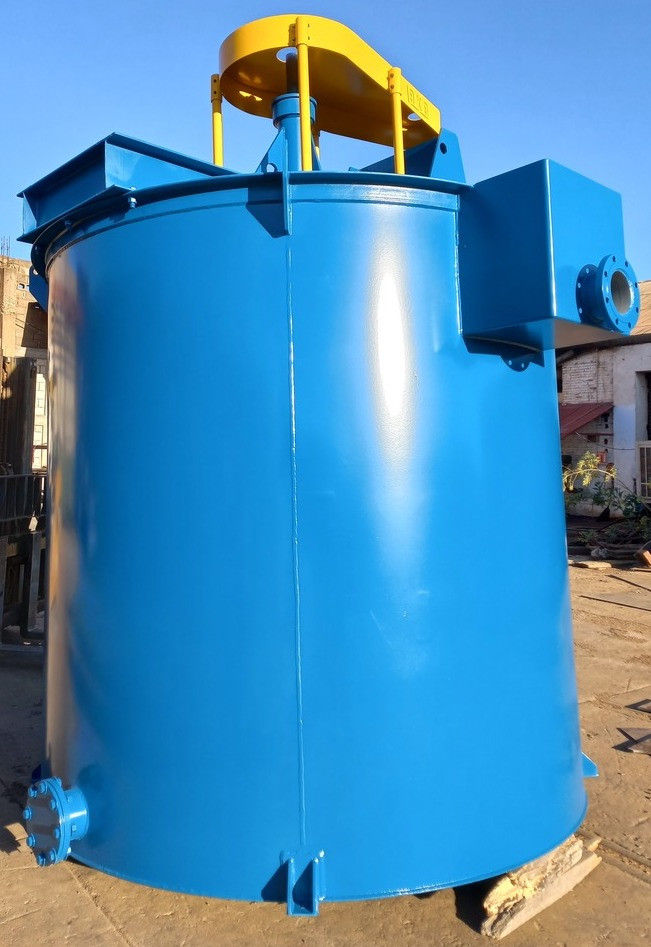

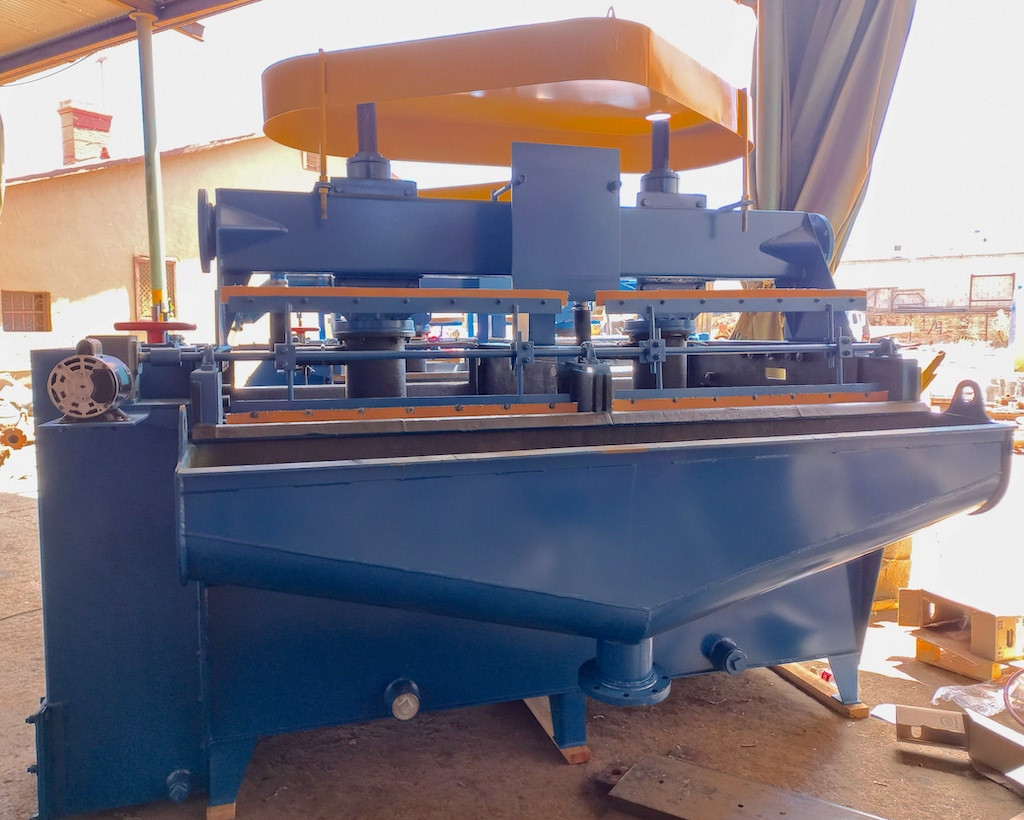

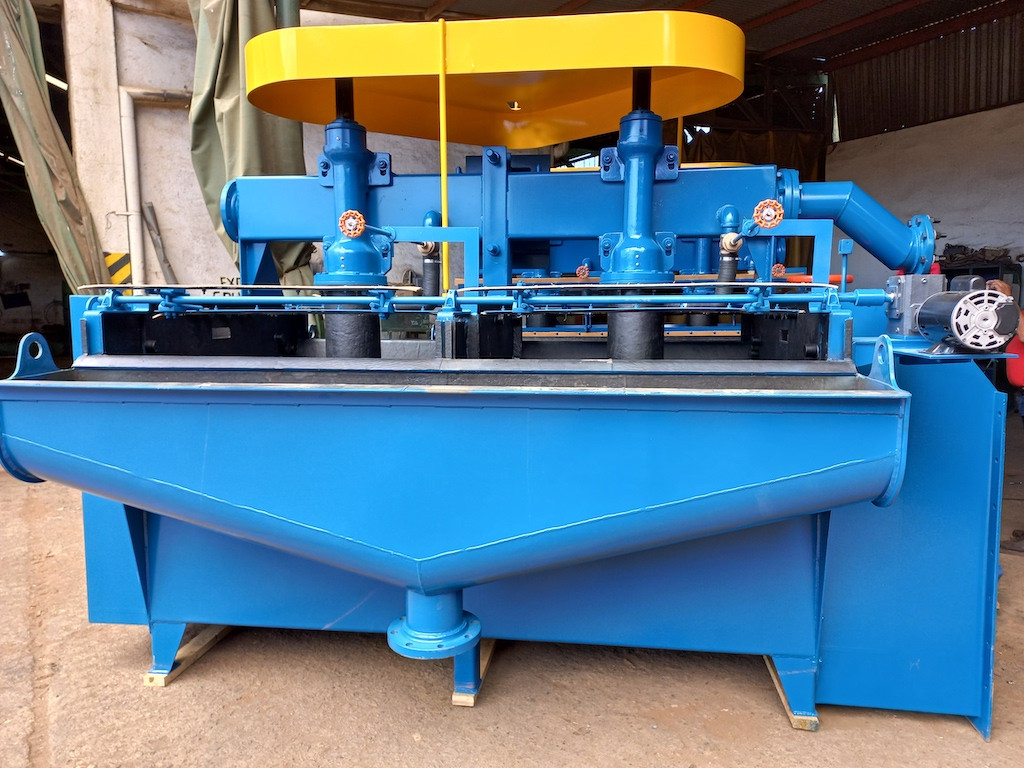

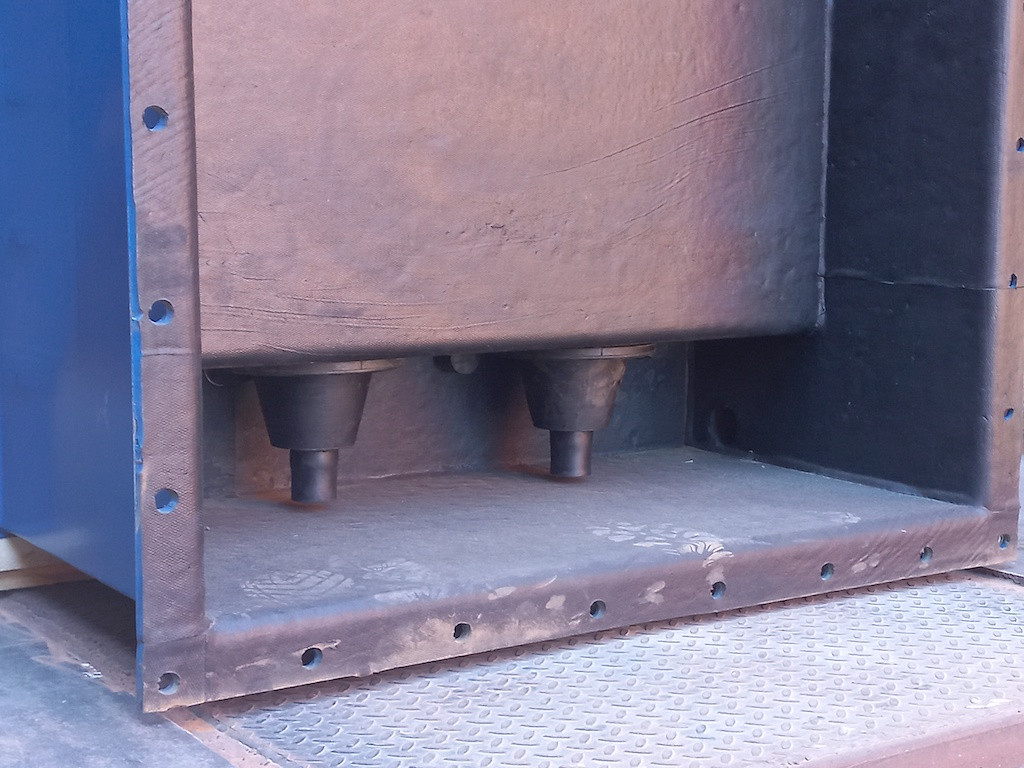

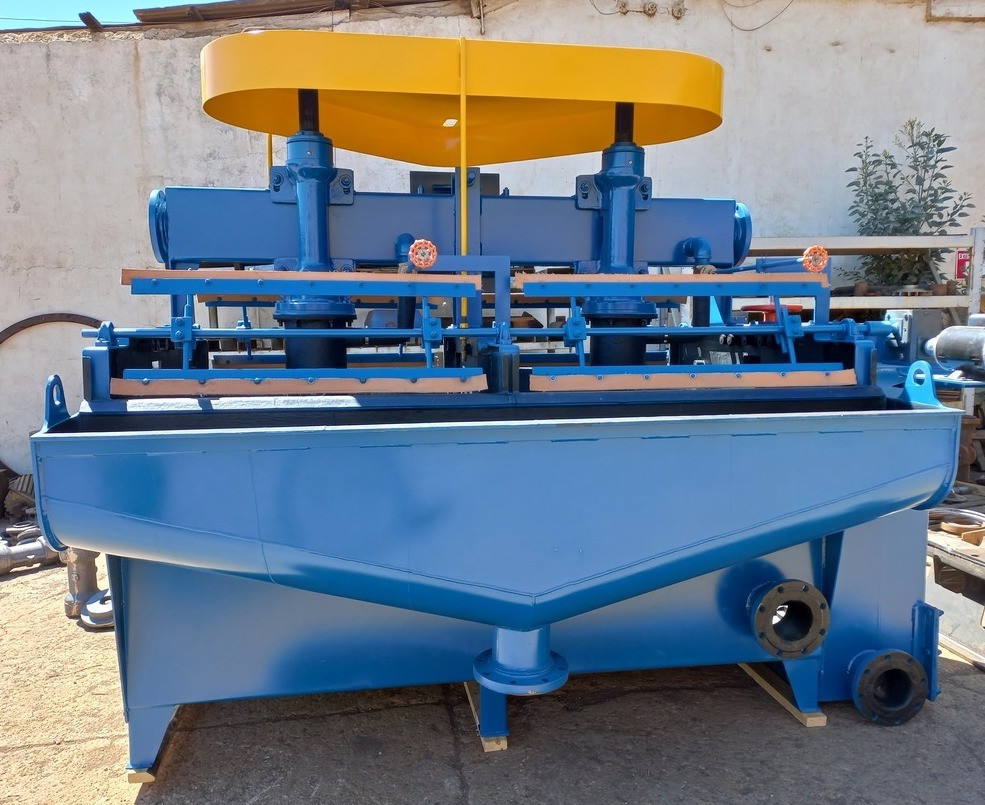

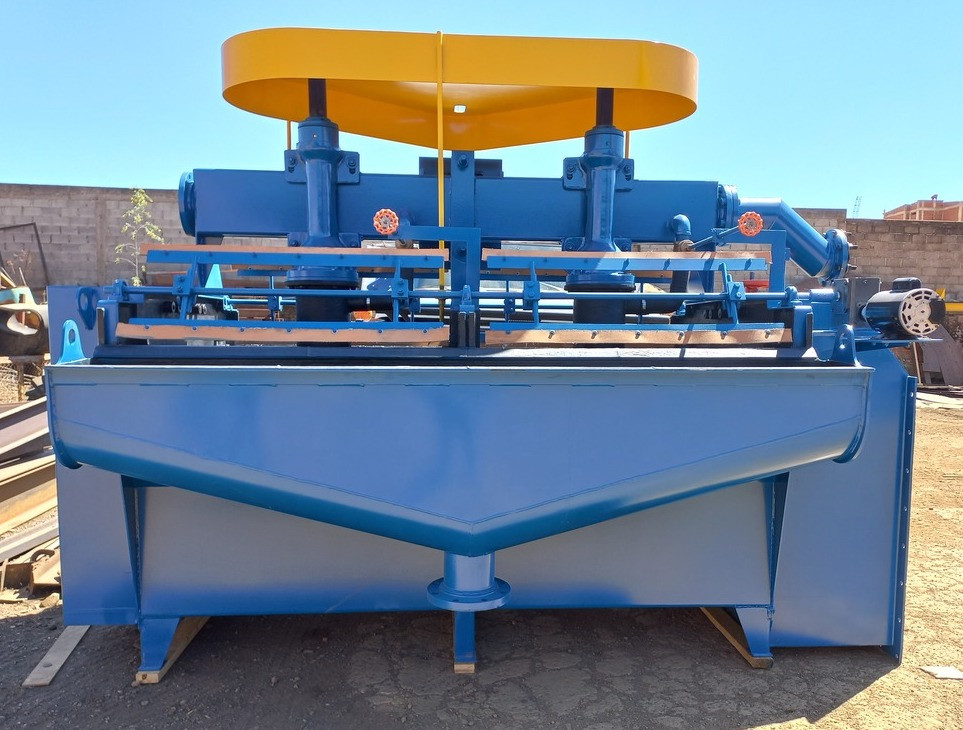

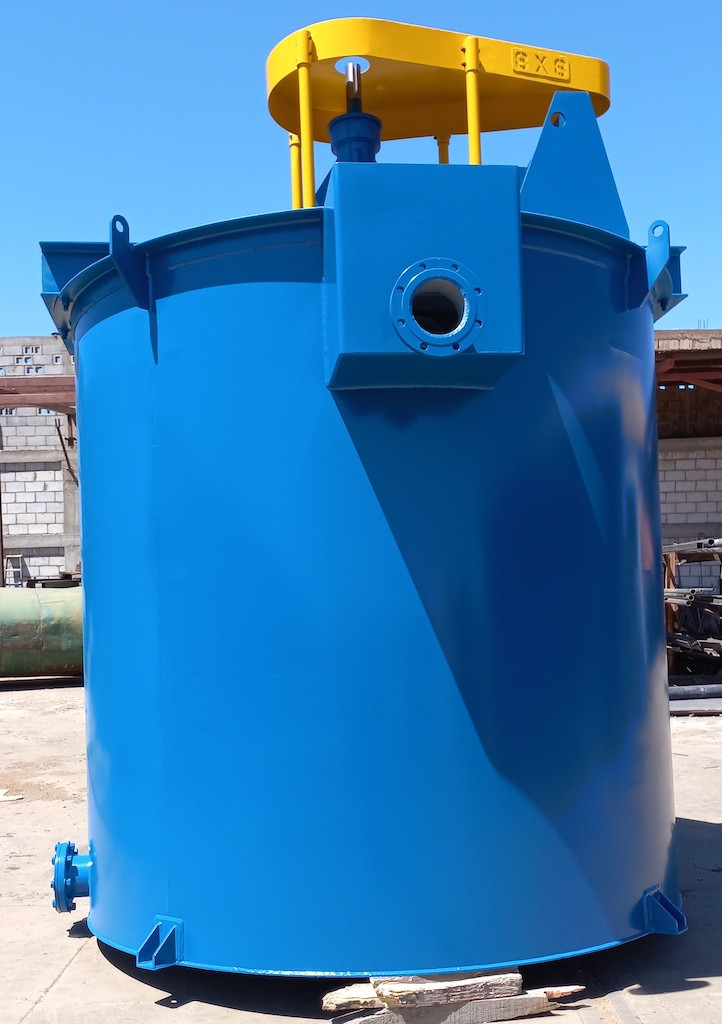

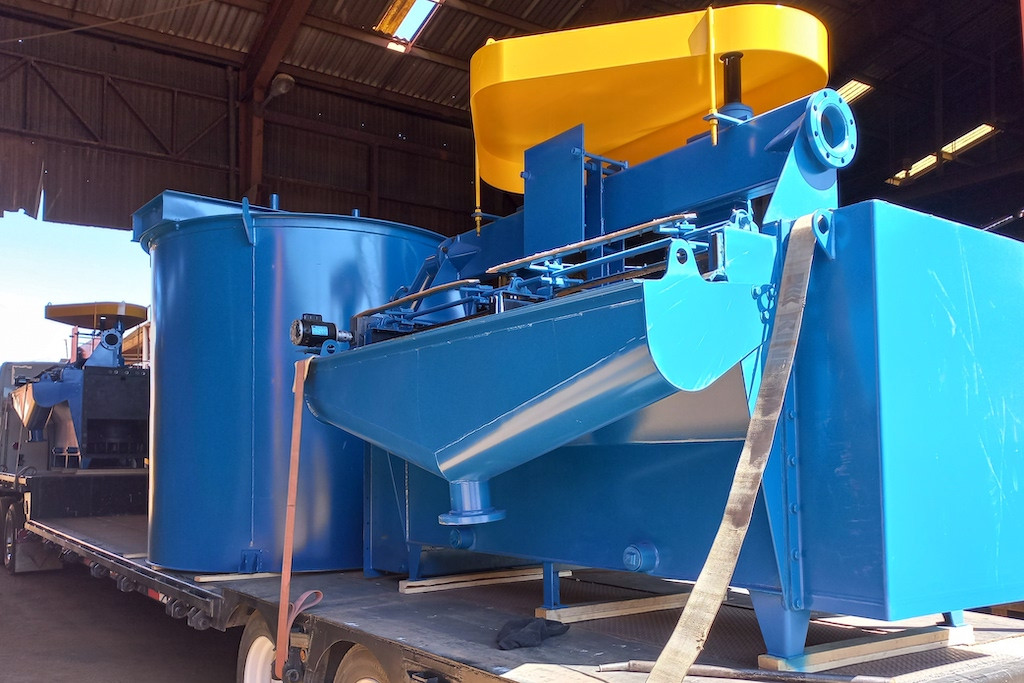

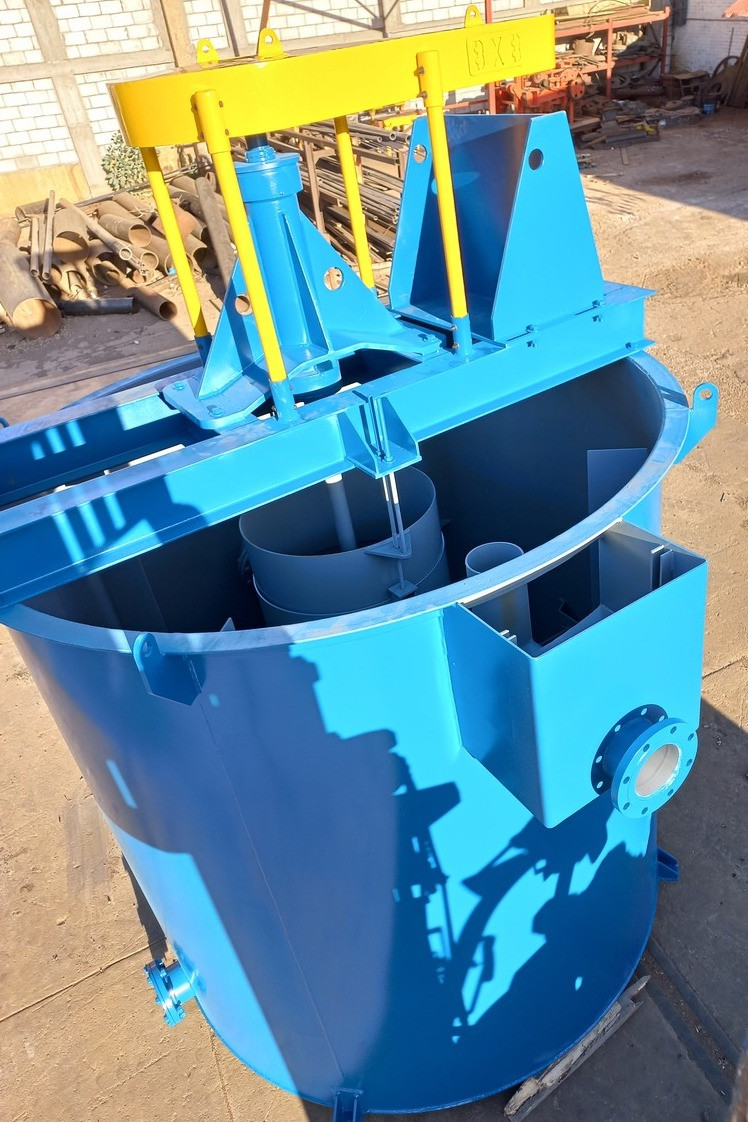

- Idealy for processing metals, indsutrial minerals, lithium, coal, and other floatable materials Package includes the following:FLOTATION CONDITIONING TANK- To homogenize flotation feed - 8ft diameter x 8 ft height- Agitated tank with overflow launder- Includes bridge, mechanism, and tank- Tank made from A36 steel- Rubber tank lining and wear parts - Suggested drive: 25 HP belt drive- Suggested feed style to flotation cells: Gravity- Receives discharge from grinding circuitFLOTATION CELLS:- Denver-style DR24 50 cubic foot cells- Completely interchangeable with original Denver cells - Rubber wear parts and tank lining- Rubber coated feed, discharge, and launder boxes- Mechanism with belt guard - Froth paddles available at additional cost- Suggested drives: 7.5 HP motor per 2 cells (5 total)- Roughers: 1 bank of 4 cells with union box- Cleaners: 1 bank of 4 cells with union box- Scavengers: 1 bank of 2 cells- 10 cells total, 50 cubic foot volume ea (500 cu ft total vol)- Discharge boxes have 2 dart valves each- Air compressor/blower available separately- Suggested feed style between banks: gravityFLOTATION TAILINGS PUMP:- Denver Vacseal-style pump- 3x4 inch- 14 inch impeller- HP range: ~5-25 depending on site layout- Receives tailings from cleaner discharge boxFLOTATION CONCENTRATE PUMP: - Galigher-style vertical pump - Rubber wear parts - Series 1,000 - 1.5 x 48 inch pump rated for up to 300 GPM- Motor: up to 30 HP- Pump box with rubber lining- Belt driveCRITICAL SPARES (Included)- 2 DR24 flotation cell mechanisms- 3 ea: DR24 Impeller and Diffusor kits- 2 ea: Galigher-style pump impeller and casing- 2 ea: Denver-style pump impeller and casing- Additional spares available upon request
