Description

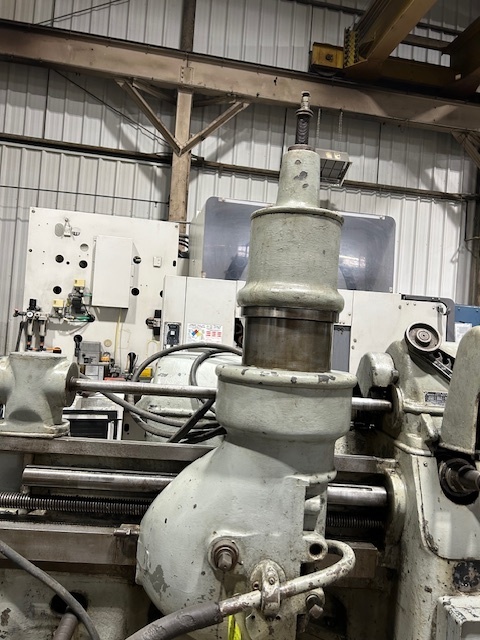

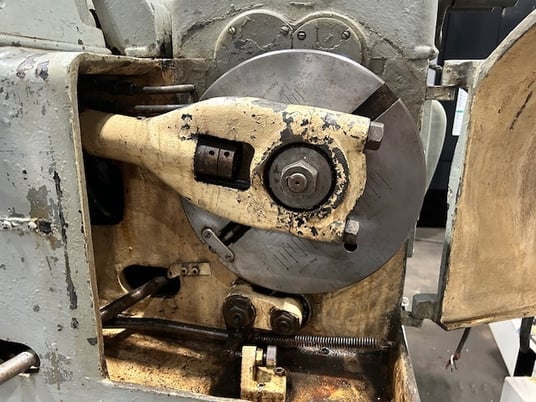

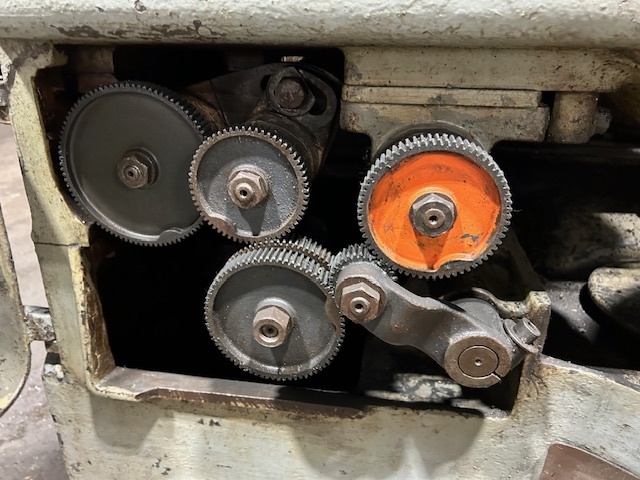

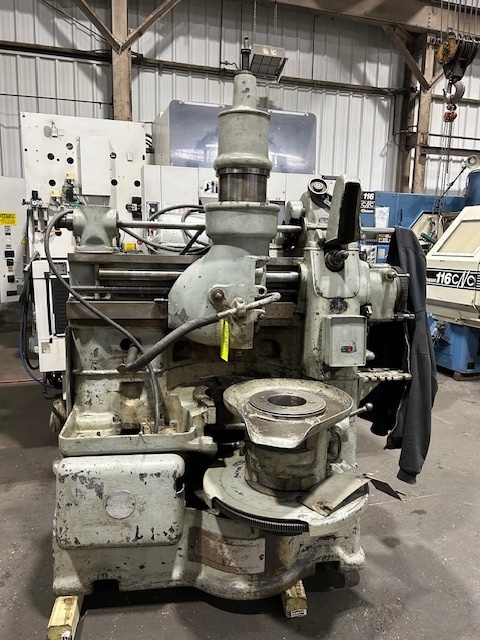

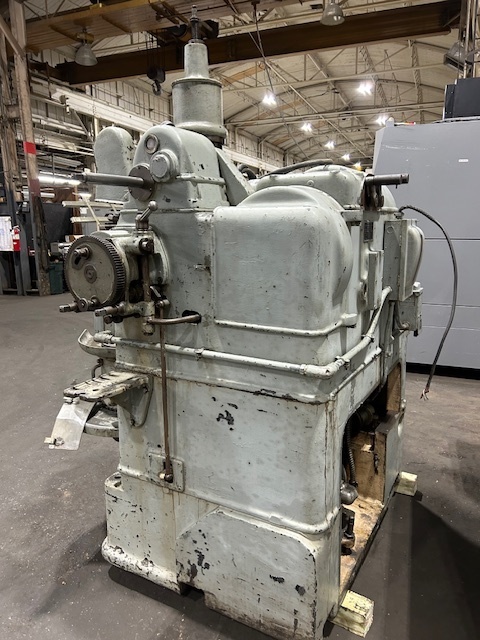

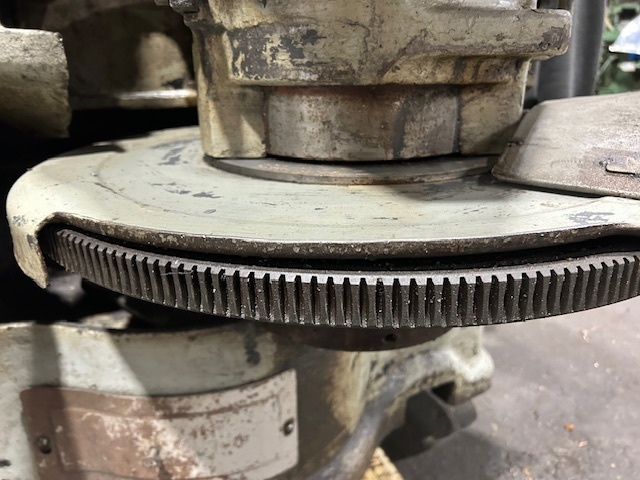

The FELLOWS 645A gear shaper is a machine used for cutting gears. It can handle both external and internal gears with a maximum pitch diameter of 18 inches and a maximum face width of 5 inches. The machine is capable of shaping both spur and helical gears, with maximum diametrical pitches of 4 DP and 6 DP, respectively.
Specifications:

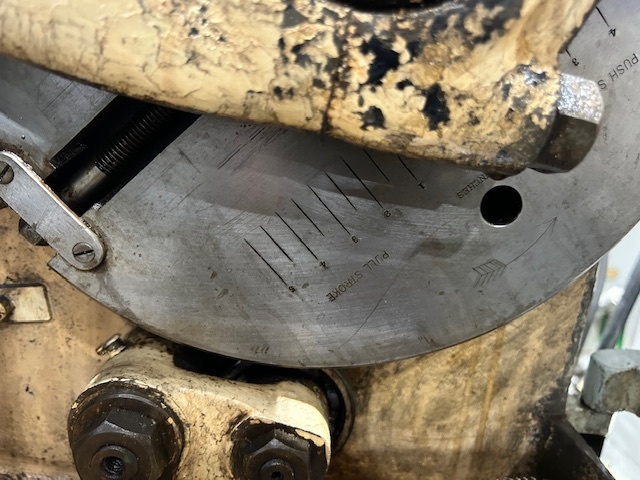

Stroke: 5"
Maximum Pitch Diameter (External): 18"
Maximum Pitch Diameter (Internal): 18"
Maximum Face Width, External & Internal: 5"
Maximum Diametrical Pitch Spur: 4 DP
Maximum Diametral Pitch Helical: 6 DP

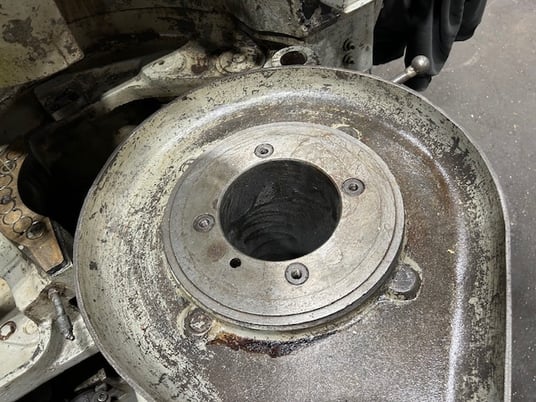

Bore Through Work Spindle: 5 7/8"
Maximum Clearance Height: 16"
Cutter Spindle Diameter: 2.875"
Maximum Helix Angle With Proper Guide: 30 degrees
Stroking Speeds: 50-300 SPM
Dimensions (L x H x W): 63" x 90" x 48"
Machine Net Weight, Approximate: 7,500#
Specifications:
Stroke: 5"
Maximum Pitch Diameter (External): 18"
Maximum Pitch Diameter (Internal): 18"
Maximum Face Width, External & Internal: 5"
Maximum Diametrical Pitch Spur: 4 DP
Maximum Diametral Pitch Helical: 6 DP
Bore Through Work Spindle: 5 7/8"
Maximum Clearance Height: 16"
Cutter Spindle Diameter: 2.875"
Maximum Helix Angle With Proper Guide: 30 degrees
Stroking Speeds: 50-300 SPM
Dimensions (L x H x W): 63" x 90" x 48"
Machine Net Weight, Approximate: 7,500#
Get Your Price from Gibbs Machinery Co!
Buyers Who Viewed This Listing Also Viewed …

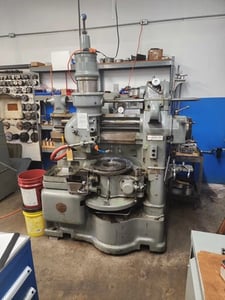

Fellows #645A, gear shaper, 18" dia., 5" stroke, riser assembly, excellent condition
Category: Gear Shapers
Seller: Piselli Enterprises
Location: Statesville, NC
Mfr: Fellows
Model: 645A
Fellows model 645a, 18" diameter 5" stroke, large hole in table, excellent condition, 0" riser assembly.

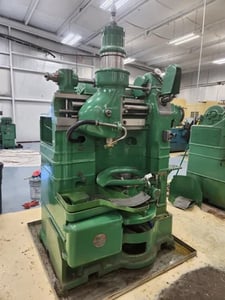

Fellows #645A, gear shaper, 18" max.diameter, 5" stroke, 10" riser, s/n 32997-461, remanufactured
