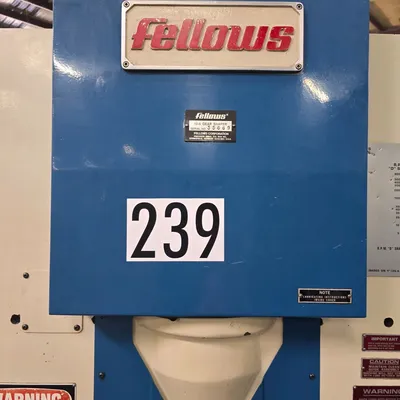

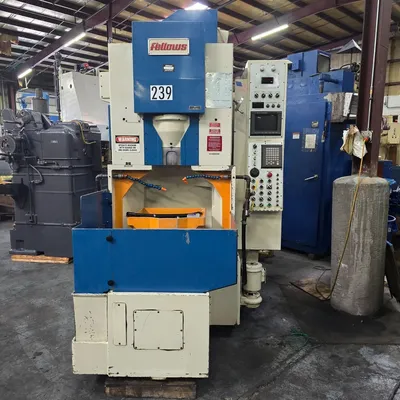

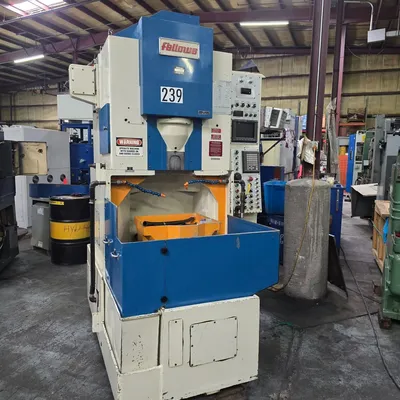

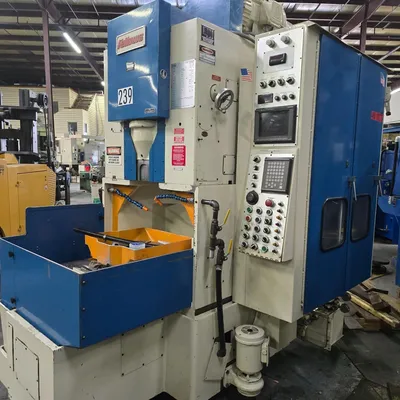

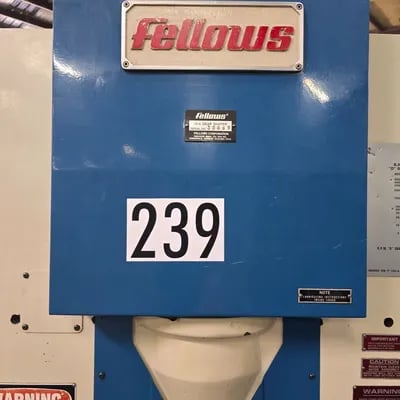

Fellows #10-4, 2-Axis CNC gear shaper, 6" riser, 10" pitch diameter, retrofitted & rebuilt in mid 2000' s

Description
Fellows Model 10-4 Single axis CNC Gear shaper 6" Riser Machine was retrotifitted and rebuilt w/ GE/Fanuc Powermate iD mid 2002's w/ cutter elevation, clamping , etc., inquire s/n 35669
Specifications
Fellows CNC Gear shaping machine
Model 10-4 remanufactured in 2000
W/ Single Axis cnc controls

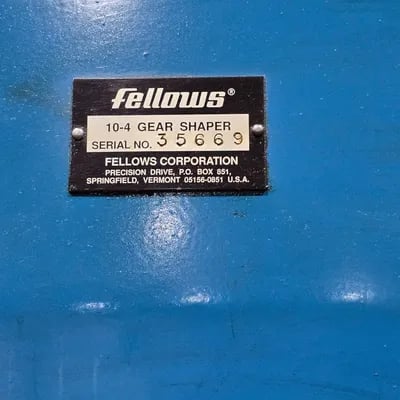

s/n 35669
Remanufactured in 2002
Machine was remanufactured in 2002 with Fanuc Powermate controls. By New England Gear. The Single-axis control allows full sizing control of infeed and size positioning . Change gears are still utilized in this machine configuration.
Machine specifications are as follows:
Machine Specifications:
Max pitch diameter (External) 10"++
Max pitch diameter (Internal) 10"
Max face width, external & internal 4"
Spindle Positioning Axis 0-3''
Max diametrical pitch spur 4 DP
Max diametrical pitch helical 5 DP

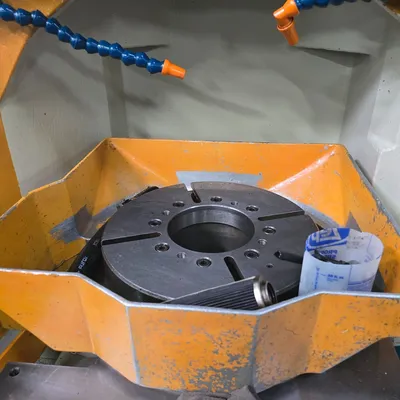

Bore through work spindle 5.875"
Cutter spindle diameter 3.543"
Max helix angle with special guides 45 deg.
Distance between table & cutter (w/no riser) 10"
Max. OD of fixture 19"
Dimensions (L x W x H) 91" x 72" x 108"
Machine net weight, approx 13,000 lbs.
Machines are equipped with :

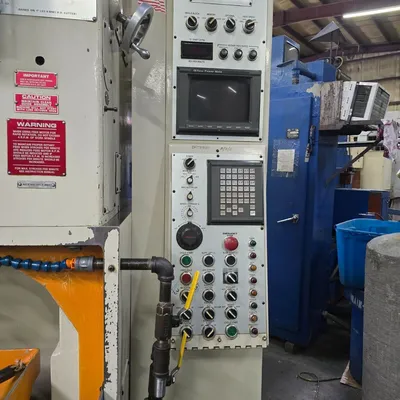

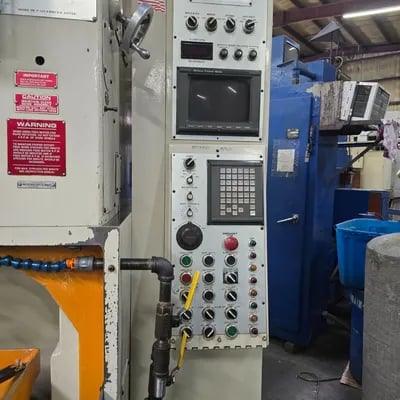

GE/Fanuc Powermate ID CNC controls for single axis (infeed)
main Spindle Motor 15HP 460/volt. 20 amps , 900 rpm

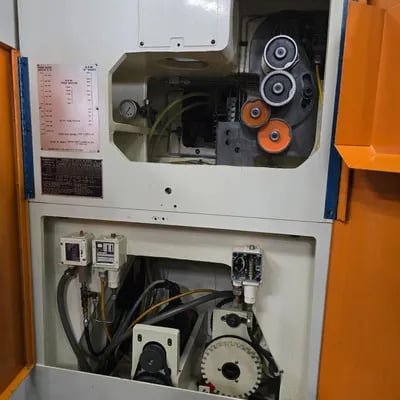

Misc change gears
cutter adaptor
Machine can be inspected under power in our Statesville, NC plant with proper notice!! visit WWW.PiselliEnt.com . Visit our website to view the machine as well as our vast inventory of other CNC Gear shapers and hobbers. Im sure your'll find our inventory worth viewing!!
Thank you
Richard Piselli
