600 Amps, Federal Pioneer #30H-3, draw-out air circuit breaker, 600A frame, 3-pole, 600 Volts, 30 kA, electrically operated 120 VAC, LSI trip unit

Federal Pioneer Type 30H-3 Draw-Out Air Circuit Breaker
600A Frame – 3-Pole – 600V – 30 kA – Electrically Operated – LSI Trip Unit

>> Qty 1 In Stock <<

>> $2,500 USD / $3,500 CAD or Best Offer – FOB Pickering, Ontario <<

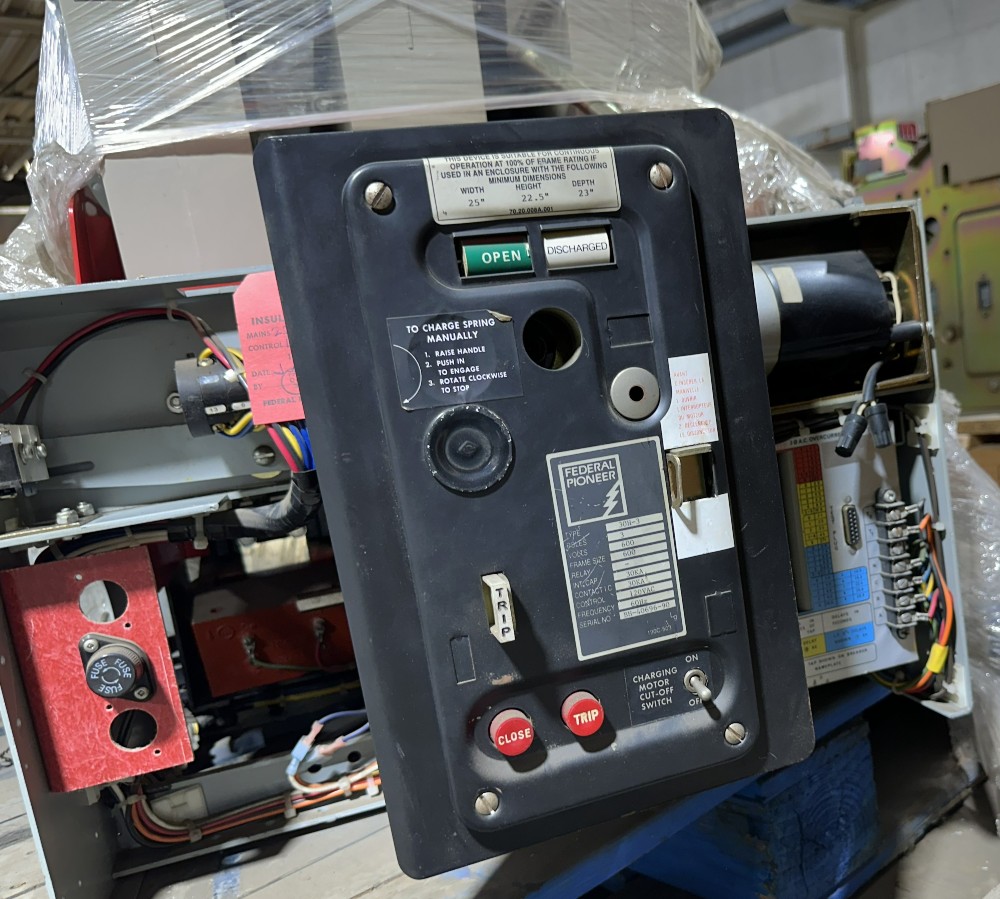

Federal Pioneer Type 30H-3 low voltage power air circuit breaker. Draw-out construction with 120VAC electrically operated stored-energy spring mechanism and FPL 3-phase AC overcurrent relay trip unit with field-adjustable Long Time, Short Time and Instantaneous (LSI) protection. Replacement for existing Federal Pioneer H-3 switchgear.

SPECIFICATIONS

Manufacturer: Federal Pioneer
Type: 30H-3
Breaker Type: Low Voltage Power Air Circuit Breaker
Frame Size: 600A
Poles: 3
Max Voltage: 600VAC
Frequency: 60 Hz
Interrupting Capacity: 30 kA
Contact Interrupting Capacity: 30 kA
Mounting: Draw-Out

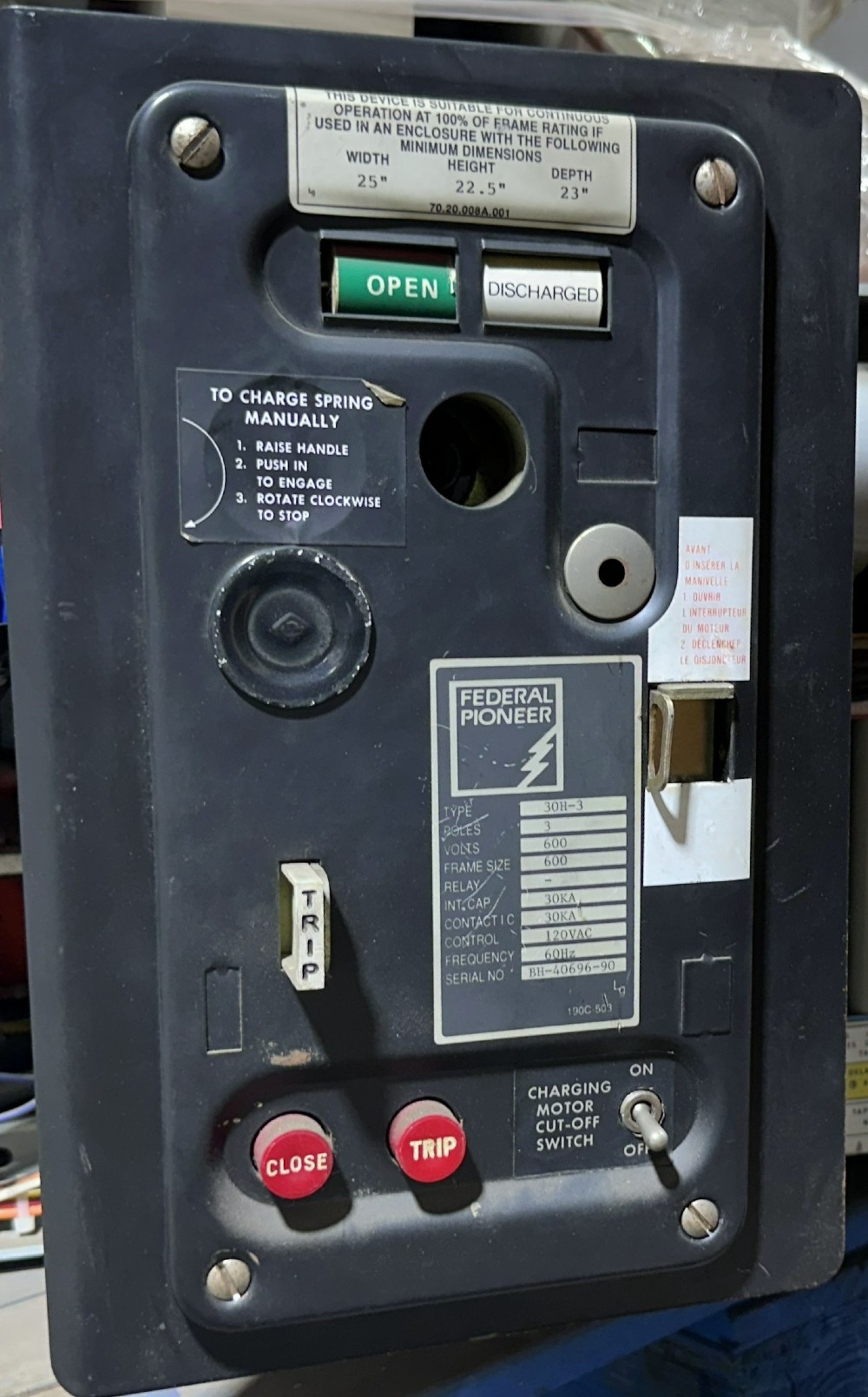

Operation: Electrically Operated (spring-charging motor with cut-off switch, Close/Trip pushbuttons, manual charging provision)
Control Voltage: 120VAC

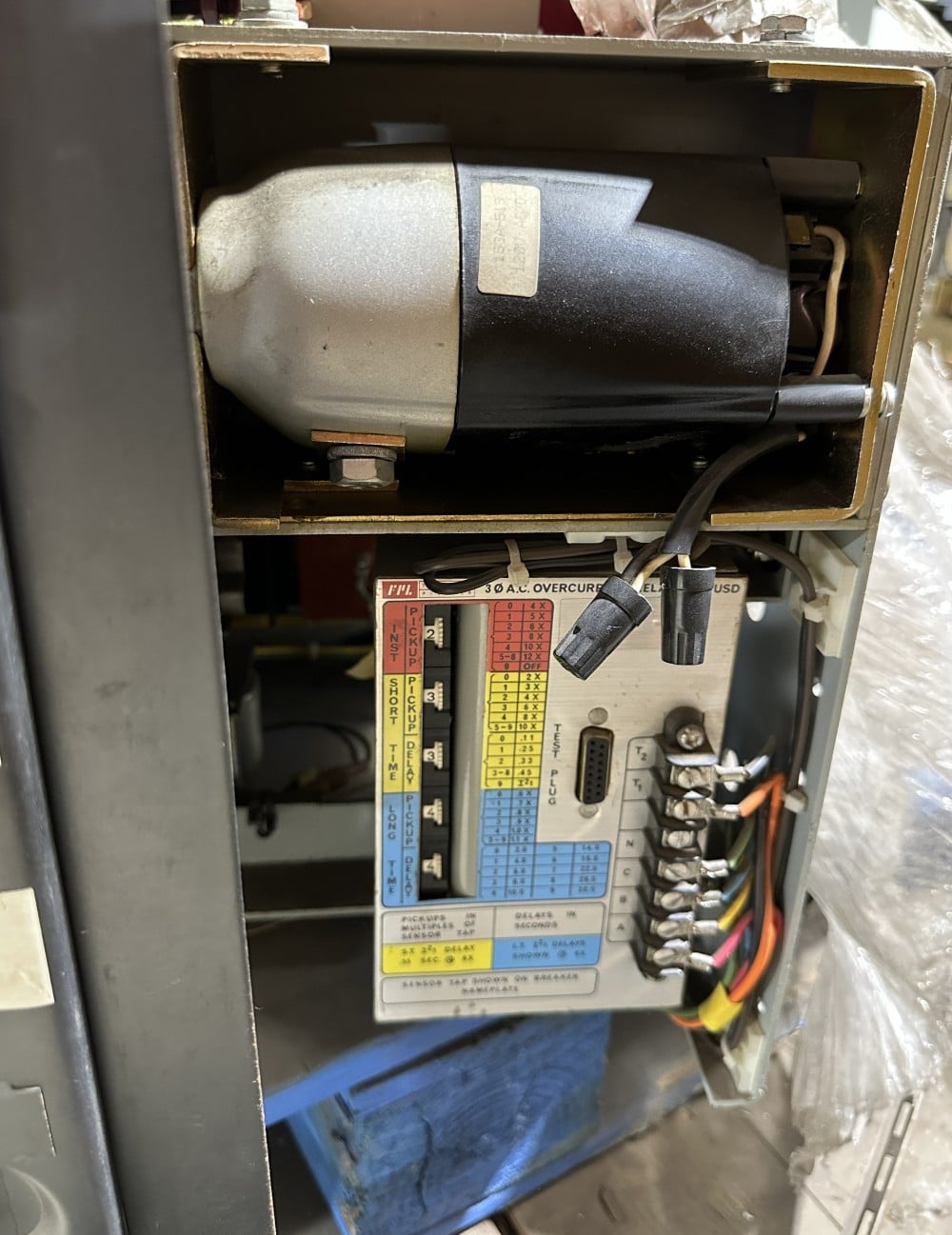

Trip Unit: FPL 3-Phase AC Overcurrent Relay
Trip Functions: LSI (Long Time, Short Time, Instantaneous)
Instantaneous Pickup: 4X to 12X sensor tap, or OFF
Short Time Pickup: 2X to 10X sensor tap
Short Time Delay: 0.11 to 0.45 sec, or I²t
Long Time Pickup: 0.6X to 1.1X sensor tap
Long Time Delay: 2 to 30 sec
Trip Adjustment: Field-adjustable via dial taps, test plug port
100% Rating: When installed in enclosure min. 25" W x 22.5" H x 23" D
Serial No.: BH-40696-90
Cat. Tag No.: 190C-503

CONDITION

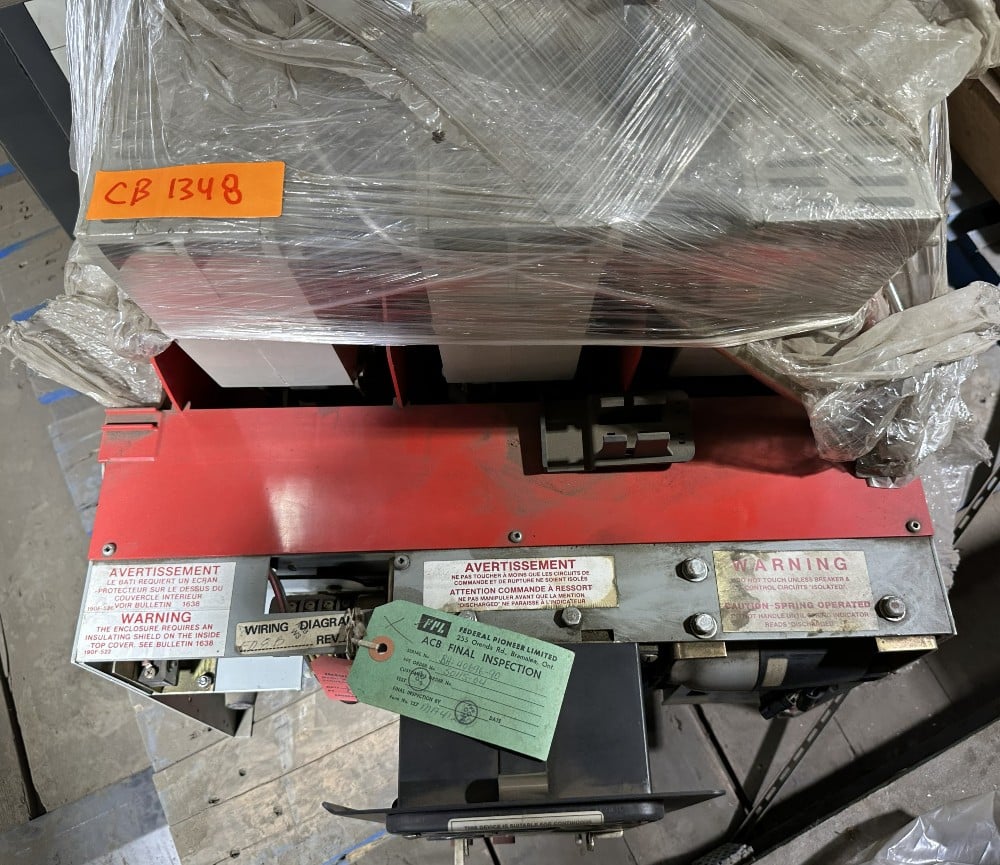

Condition: Used – Original factory inspection and insulation test tags attached

TERMS

Price: $2,500 USD / $3,500 CAD or Best Offer
Shipping: FOB Pickering, Ontario. Buyer pays all shipping, brokerage and duties.
Freight: Ships on pallet (LTL)
Stock #: CB-1348
