For Sale by B & B Oilfield Services
Description

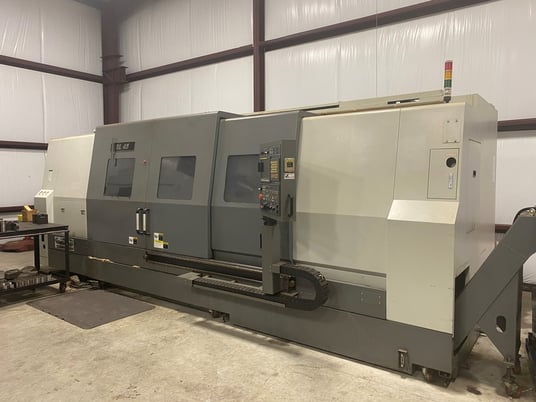

Samsung SL-45A 3000 Lathe 2-axis
Capacity: Swing 29.72”
Swing Over Cross Slide 24.8”
Max Machining Dia 26.7”
Max Length 118.0”
Spindle: Spindle Speed Max 2000
Gear Box 3 speed
Bar Capacity 6.5”
Main Motor 50/40 hp
Turret: No. of positions 12
Tailstock #5 MT Programmable
Chuck Diameter 20” Pneumatic
Hole Thru 6.5”
No. of Jaws 3
Equipped With: Fanuc 0-iTD CNC control
Chip Conveyor
Tool Pre-setter
20” 3-jaw Pneumatic chuck
Dimension: 289” x 85” weight, 35,000 lbs
Misc Boring bar holders
Hard Jaws, Misc Soft Jaws
Box Ways Construction
Inquire Further with B & B Oilfield Services!
