Manufacturer: Takisawa
Model: LS-800C
Year: 2019
Swing: 32.6
Chuck: 24
Bar Capacity: 7.0
Stock # 43793
Click to zoom in
For Sale by Premier Equipment Inc
Surplus Record Dealer Since 2023
Location: Altamonte Springs, FL
Contact Tom Kohm
Phone Number: 407...> Show Phone Number 407-759-4569
Let the seller know you found their listing on Surplus Record!
Description

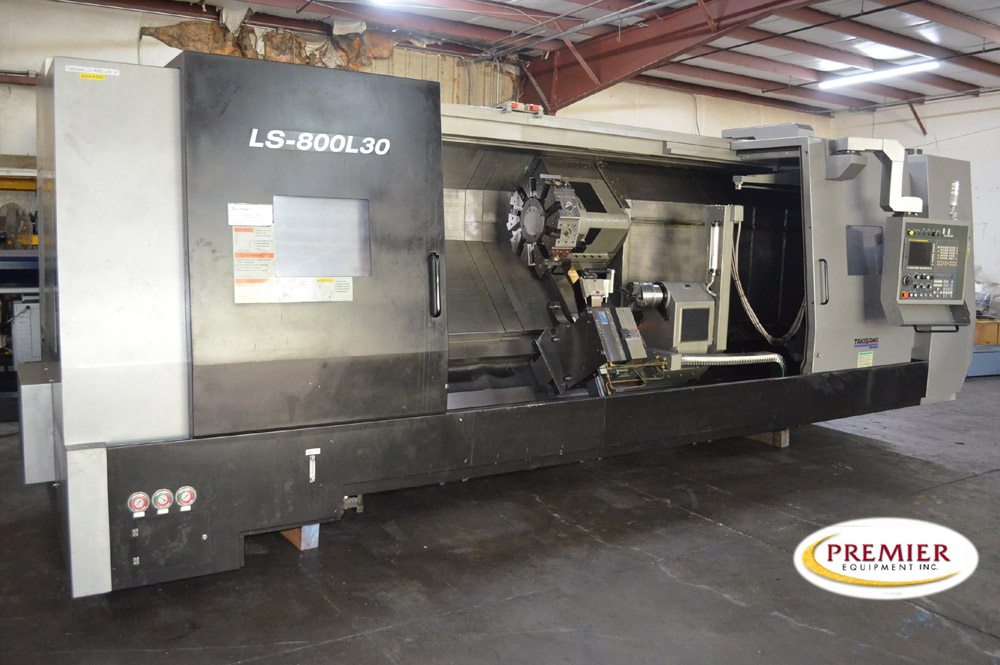

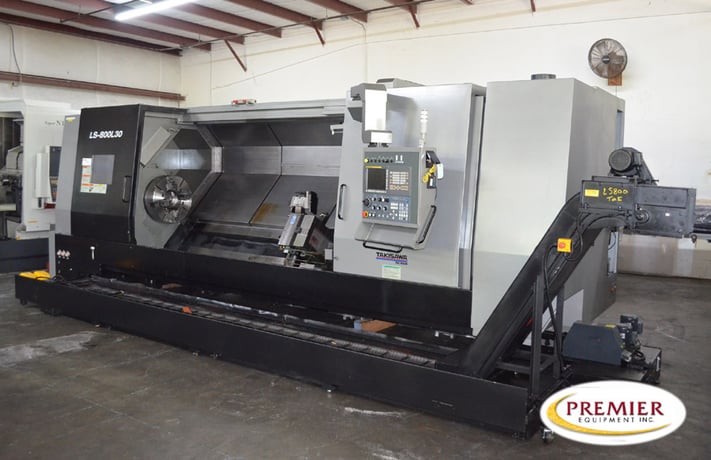

Takisawa LS800L30 Heavy-Duty CNC Lathe
Specifications (subject to buyer verification):
Max. Swing: 32.68”
Swing Over Saddle: 25.59”
Std. Turning Diameter: 12.99”
Max. Turning Diameter: 29.92”
Max. Turning Length: 120”
Max. Bar Work Capacity: 7.09”
X Axis Travel: 15.35”
Z Axis Travel: 124.0”
Spindle Speed: 1200 RPM
Spindle Nose: A2-15
Through Hole Diameter: 8.07”
Number of Tools: 10
Turning Tool Shank 1.25”
Boring Bar Shank Diameter: 50/60mm
Tailstock Travel: 118.1”
Tailstock Spindle Diameter: 4.9”
Taper Hole of Tailstock Spindle: MT5?
Tailstock Spindle Travel: 4.7”
X and Z Axis Rapid Traverse Rate: 472 IPM
Spindle Motor: 40/50 HP
Height: 101”
Width: 270”
Depth: 109”
Weight: 35,500 lbs
Equipped With (subject to buyer verification):
FANUC 0i-TD controller
10 Station Turret
Gear Head Spindle
Programmable Tailstock and Programmable Quill
A2-15 Spindle Nose
45 Deg True Slant Bed Design
7.1” Bar Capacity
116” Turn Length
20.9” Max Turing Diameter
Fanuc a30 Spindle Motor 50/40 HP
Coolant Pump
Custom Macro B
Fanuc Graphic Function
24” Chuck
Prep of Auto Pin Base for Autoblok-SLU Steady Rest
Automatic Steay Rest AUTOBLOK SLU-5.1 (85-350mm) / Max Axial Clearing Diameter 352mm
LS-1000 Turret Upgrade, 10 Station Turret
Manual Lathe Chucks, Chuck Type: Self-Centering; Size 24”, No. of Jaws 4, Through-Hole Diameter: 8.07”
Heavy Duty Side Discharge Chip Conveyor
Get Your Price from Premier Equipment Inc!
