Manufacturer: Fanuc
Model: ROBODRILL-D21MIA5
Year: 2017
Automatic Tool Changer: 21
Longitudinal" X: 19.7
Cross" Y: 15.7
Vertical" Z: 13.0
RPM: 24000
Stock # 46274
Click to zoom in
For Sale by Premier Equipment Inc
Surplus Record Dealer Since 2023
Location: Altamonte Springs, FL
Contact Tom Kohm
Phone Number: 407...> Show Phone Number 407-759-4569
Let the seller know you found their listing on Surplus Record!
Description

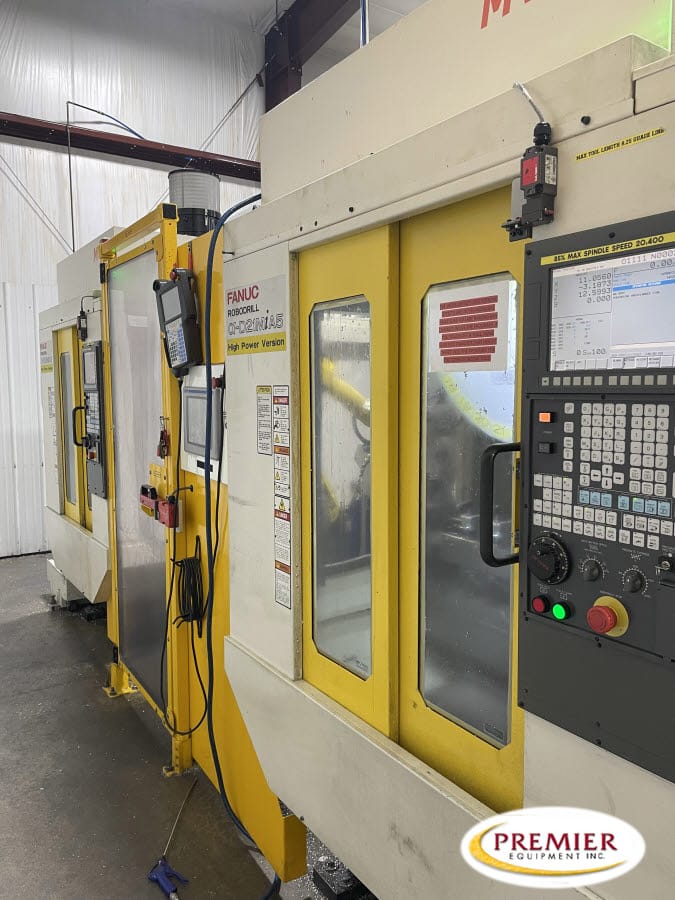

Fanuc Robodrill -D21MiA5 2-Machines & 1-Fanuc M10iA/10M Robot Progressive Machining Cell
Specifications (subject to buyer verification):
Table size 25.6” x 15.7”
Max. table load 660 lbs
Travel X/Y/Z19.7” x 15.7” x 13”
Distance from spindle nose to table 5.9” – 18.9”
Spindle speed 24,000 RPM
Spindle Motor 5.4 HP (cont.)
Rapid traverse in all axes 2125 IPM
Programmable cutting feed 1181 IPM
Acceleration 1.5 G
Number of tools 21 ATC
Spindle Taper BT30
Max. tool length 9.8”
Max. tool diameter 3.14”
Max. tool mass 4.4 lbs
Tool change time (chip to chip) 1.6 sec
Machine Size with Coolant Tank 62” x 94.9” x 88.1”
Machine Weight 4400 lbs
Equipped With (subject to buyer verification):
Fanuc Series 31i-Model B5
Fanuc M10iA/10M Robot
Royal FX900 Mist Collector
Chip Blaster D30-70 High Pressure Unit – 1000 PSI
Parts Rack and Flip Station
Progressive Machining Cell (MV-19 & MV-20)
Cell contains 2 Fanuc Alpha-D21MiA5 RoboDrills , 1 Fanuc M10iA/10M robot (F167515), 2 Royal FX900 mist collectors, 2 ChipBlaster D30-70 High Pressure Units, PLC, HMI, parts rack, and flip station.
Raw Stock is loaded by an operator on the infeed gravity conveyors outside of the cell.
The raw stock is picked up by the robot inside the cell, 2 pieces at a time.
Parts are measured for acceptable length and loaded in to machine 1 (MV-19) to machine op10.
Once op10 is completed, parts are removed from machine 1 (MV-19) by the robot and another set of raw stock is loaded by the robot.
The robot sets the op10 parts in the flip station by the robot.
Flip station rotates the parts over so the robot can pick up from the opposite side.
Robot picks up op10 parts from flip station and loads in machine 2 (MV-20) to finish machining.
Once parts are finished in machine 2 (MV-20) they are unloaded by the robot and the next set of op10 parts is loaded.
The finished parts are then set on the finished parts gravity conveyor by the robot.
The parts slide down the conveyor out of the cell for the operator to inspect and unload.
