Description

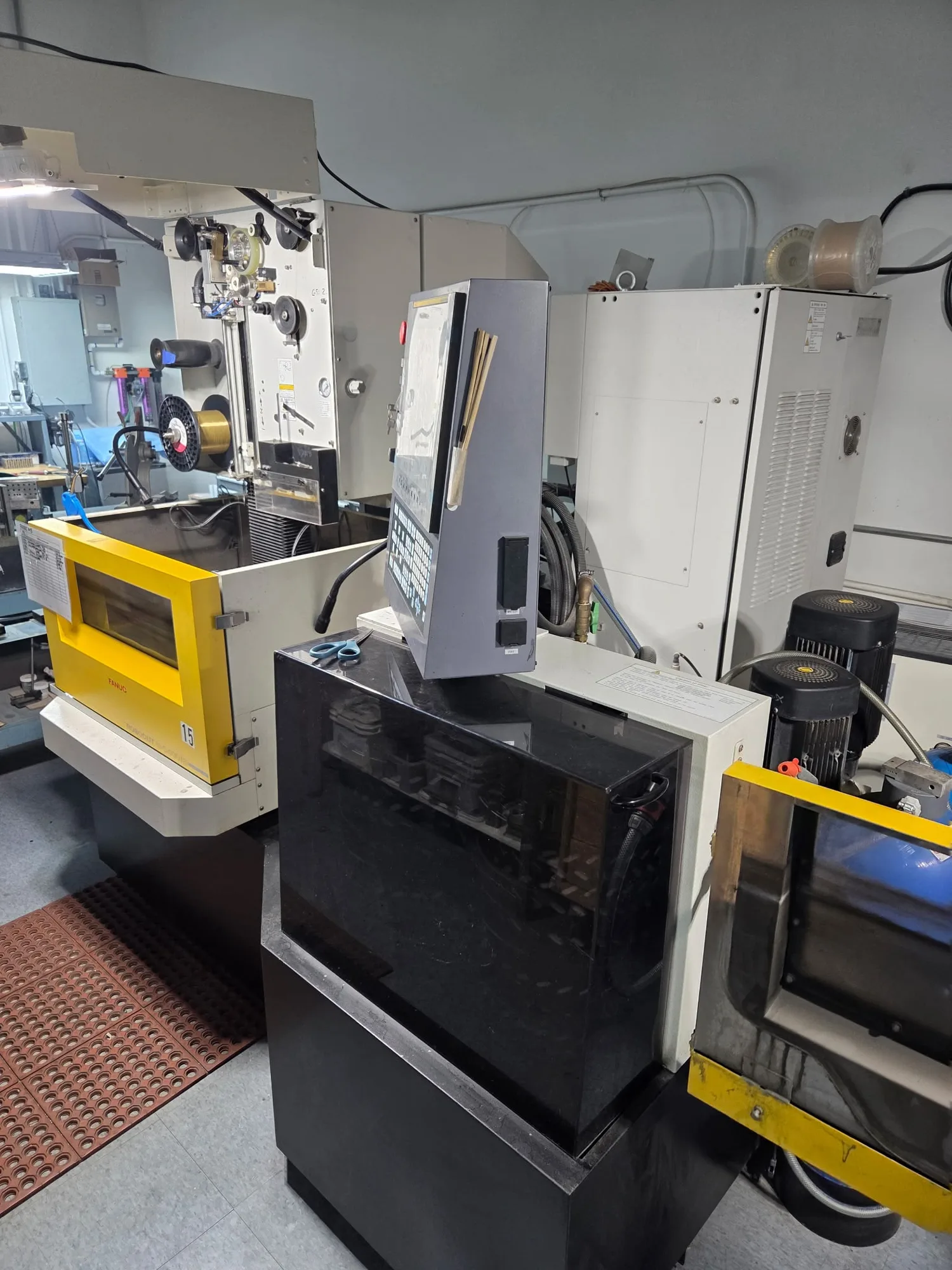

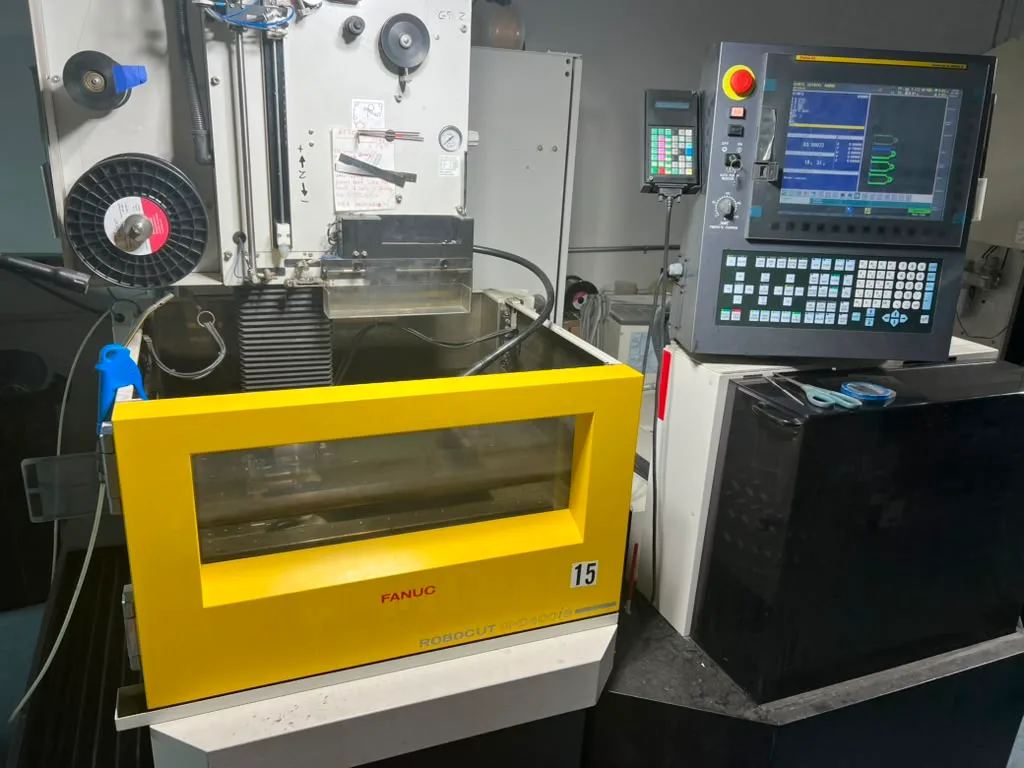

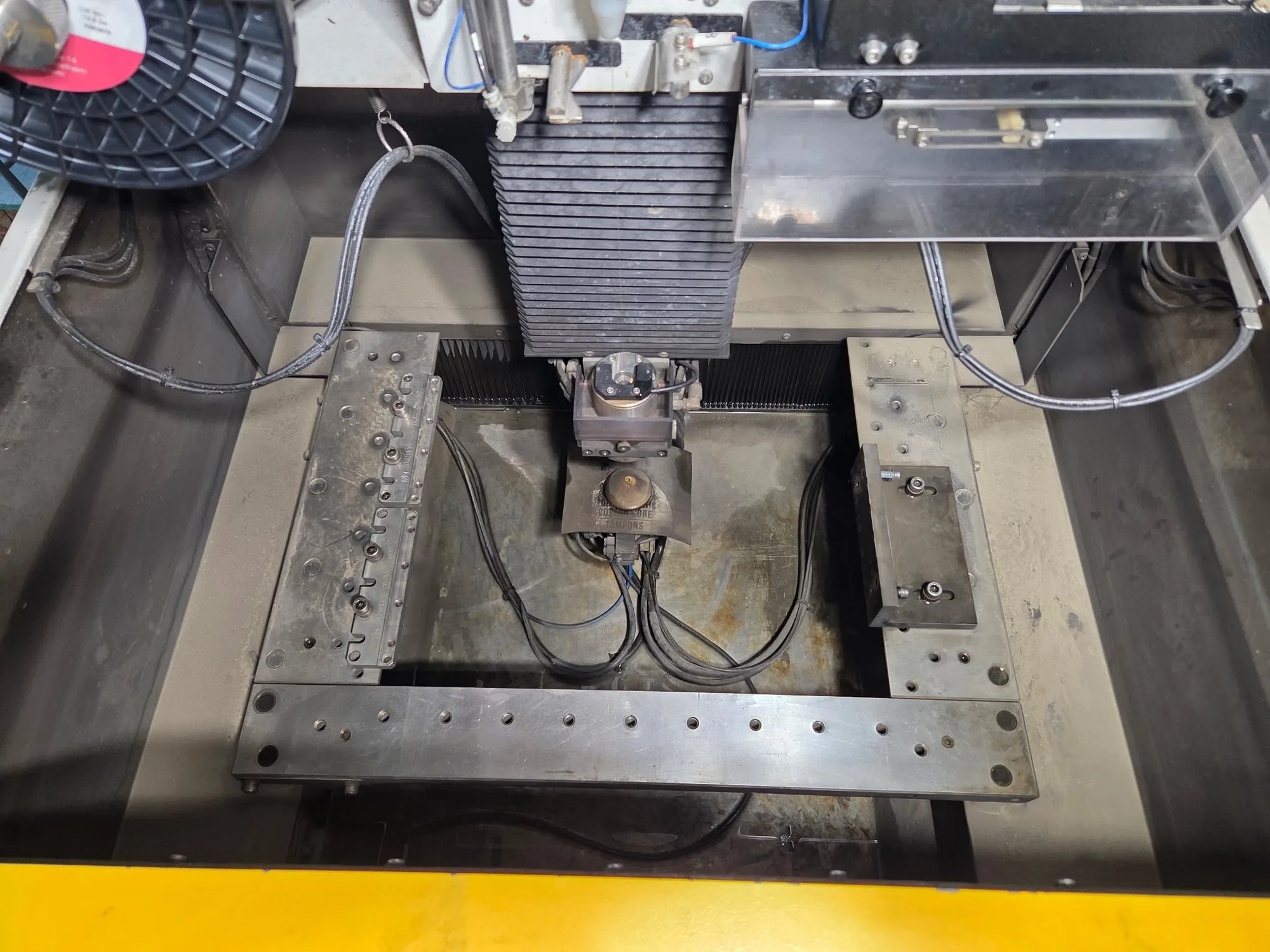

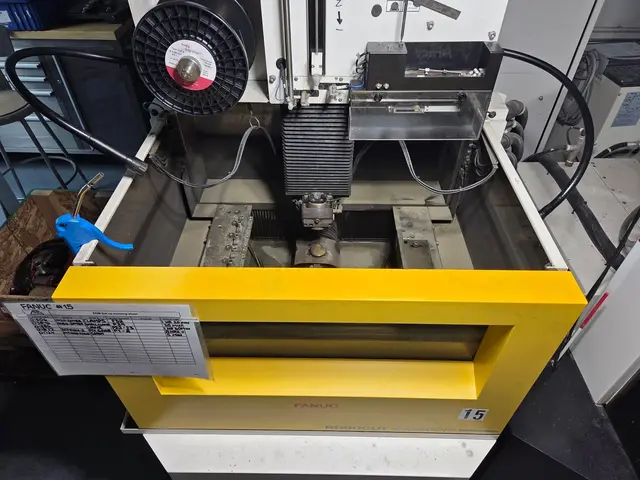

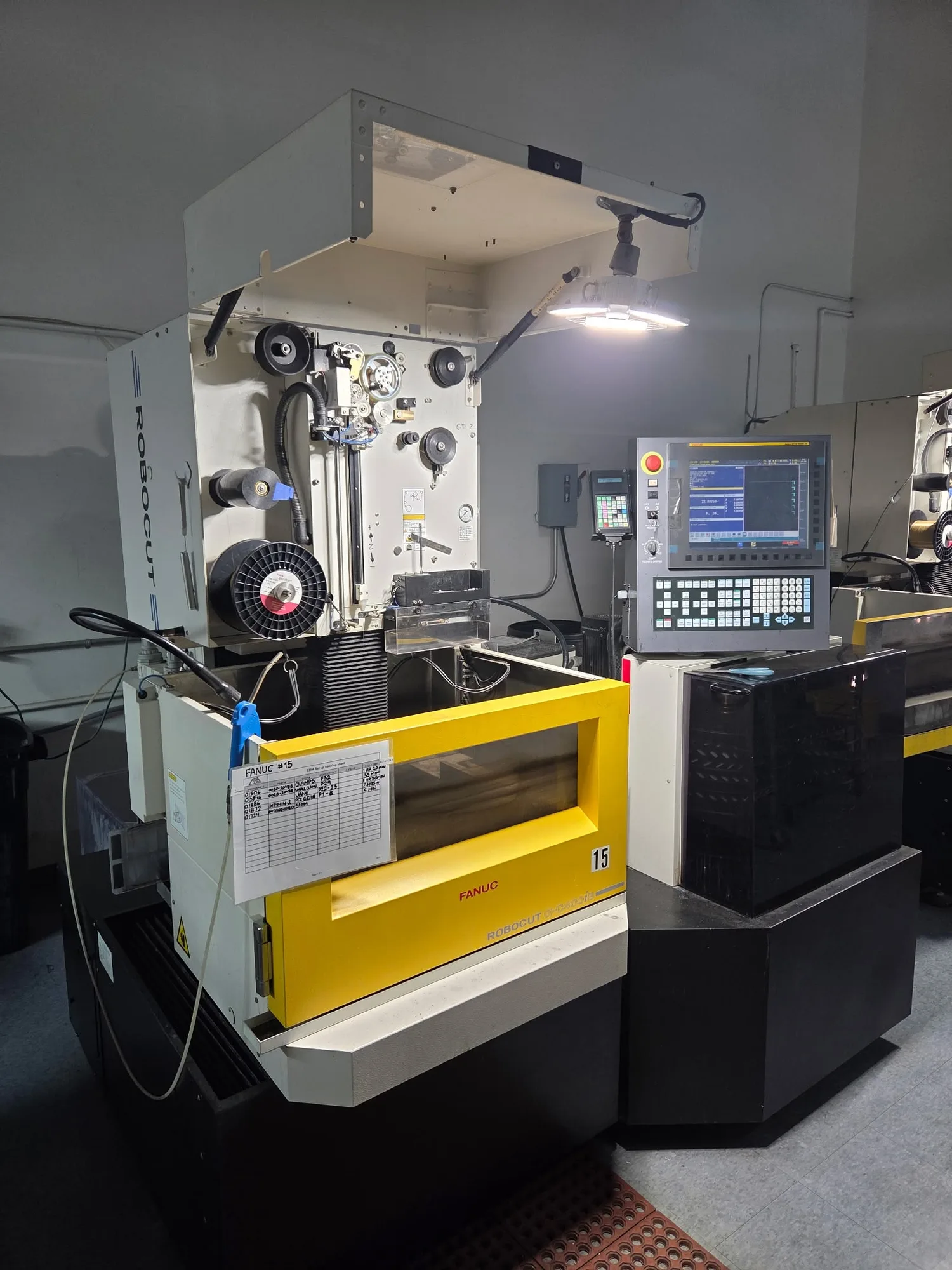

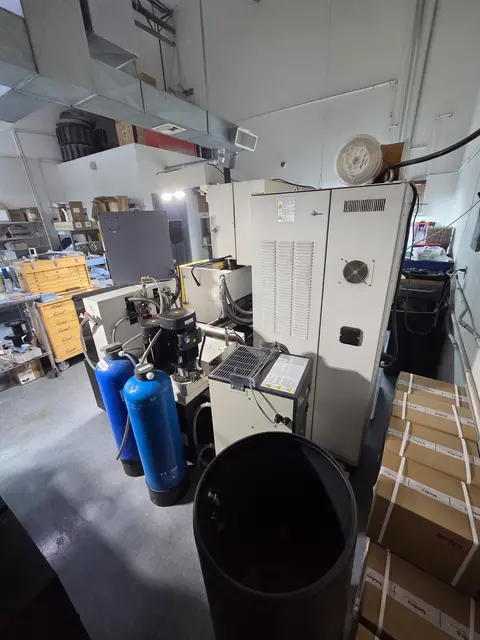

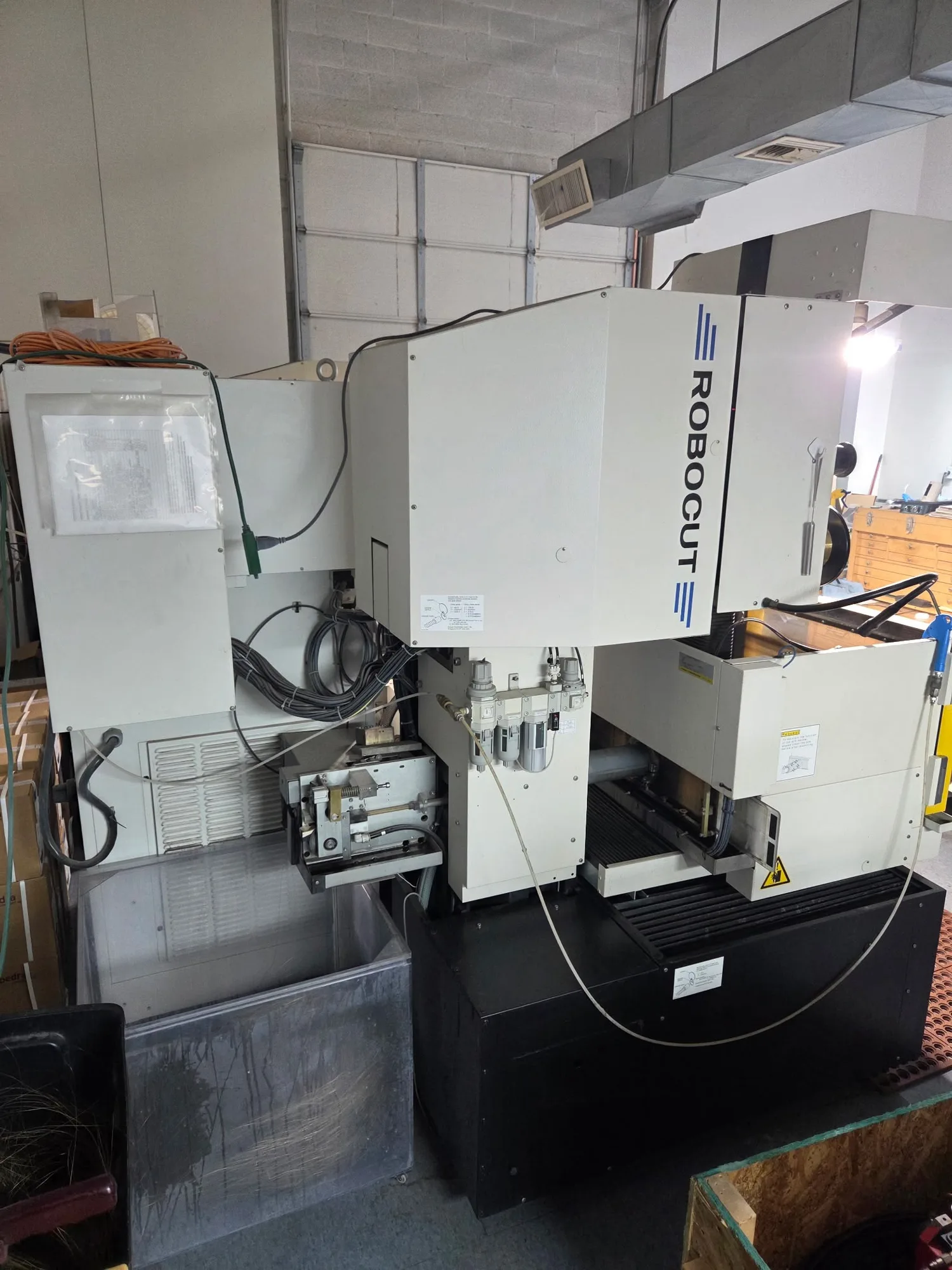

Used Fanuc Robocut a-C400iB (2017) EDM for Sale. This wire EDM offers 15.7″ of X-axis travel, 11.8″ Y, 10.2″ Z, and 2.36″ x 2.36″ U/V travel, with taper cutting to 12 at 10.0″. The work tank measures 28.7″ x 24.8″ x 9.8″ inside, holds 145 gallons, and handles a maximum workpiece weight of 1,102 lbs with submerged cutting to 9.8″. Wire diameter range is 0.004″ to 0.012″. Control is the Fanuc Series 31i-WB with a 15″ color touch screen LCD, Heidenhain linear glass scales on X and Y, auto wire threading, programmable Z axis and flushing, chiller, Ethernet and two USB ports. Requires 200-220 V/3 phase/60 Hz; machine weight 4,000 lbs, floor space 94″ x 105″. Available to see under power for inspection.
| X-Axis Travel | 15.7" |
|---|---|
| Y-Axis Travel | 11.8" |
| Z-Axis Travel | 10.2" |
| U/V Axis Travel | 2.36" x 2.36" |
| Control | Fanuc Series 31i-WB |
| Degree Taper Cutting | 12 @ 10.0" |
| Glass Scale Feedback | X and Y Axis Only |
| Inside Tank Dimensions | 28.7 x 24.8 |
| Wire Diameter | 0.004" To 0.012" |
| Tank Capacity | 145 Gal |
| Internal Work Tank Size | 28.7 x 24.8 x 9.8 |
| Maximum Submerged Cutting Depth | 9.8" |
| Maximum Work Piece Weight | 1,102 Lbs. |

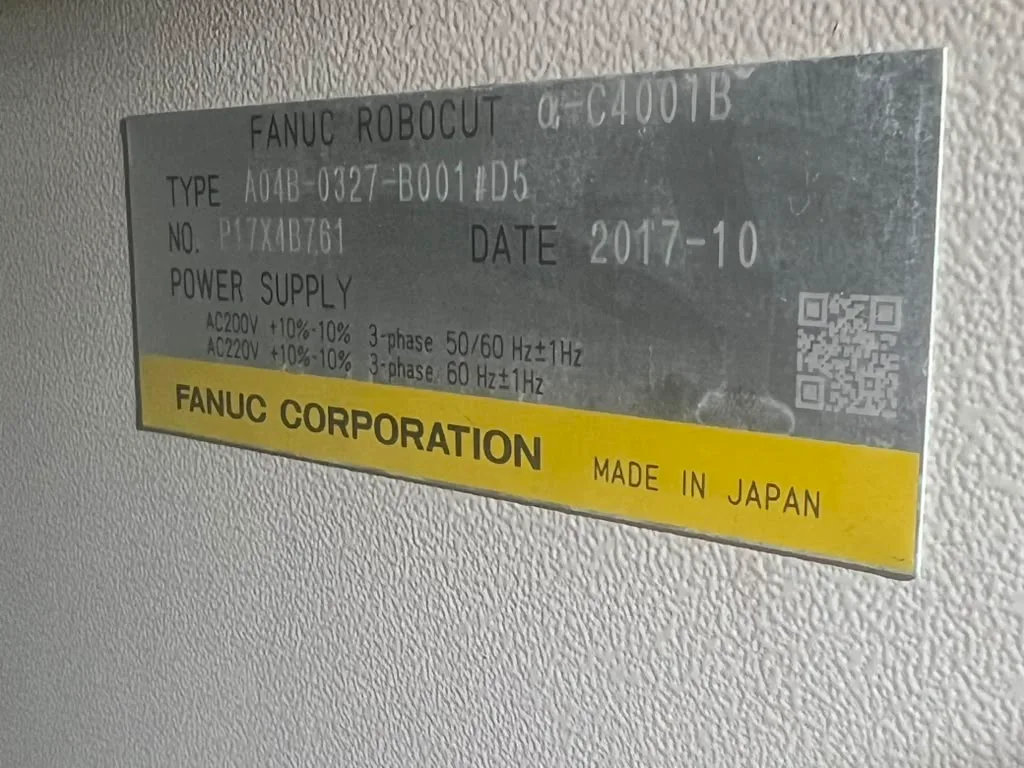

| Power Requirement | 200-220 V/3 Phase/60 Hz |
| Machine Weight | 4,000lbs |
| Floor Space | 94" x 105" |
