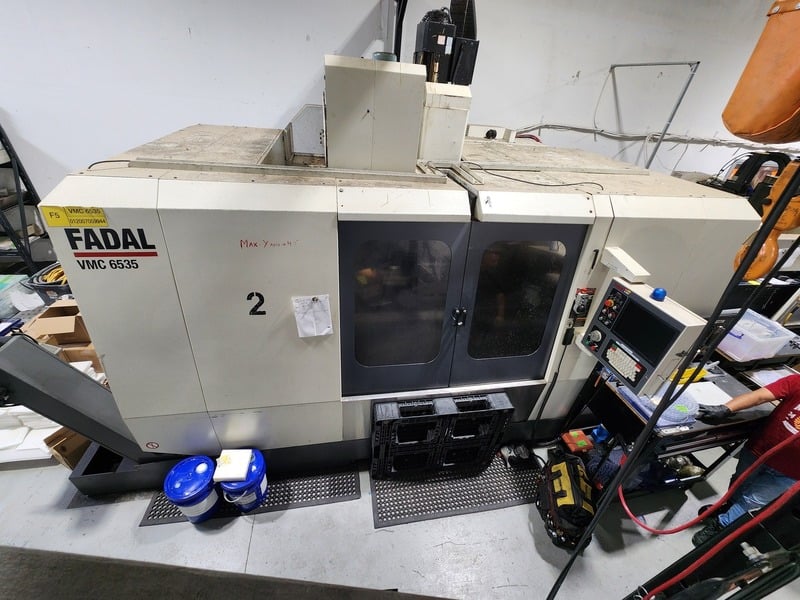

Manufacturer: Fadal
Model: VMC6535
Year: 2007
Automatic Tool Changer: 32
Longitudinal" X: 65.0
Cross" Y: 35.0
Vertical" Z: 34.0
RPM: 7500
Stock # 158303
Price: $22,432 USD
1 / 4
Click to zoom in
1 / 4
For Sale by Lenmark Industries
Surplus Record Dealer Since 2024
Location: Langley, BC Canada
Contact Lenmark Sales
Phone Number: 778...> Show Phone Number 778-653-5801
Let the seller know you found their listing on Surplus Record!
$22,432 USD
Finance for as low as $455/mth
Description
SKU: 158303
Model: VMC6535 50-Taper
Year: 2007
Condition: Used
S/N: 012007059944
General Specifications:
Spindle Taper: 50
Cross Travel (Table): 35" "
Table Size: 74.8" x 26.5"
Speed: 7500 rpm
CNC: Yes
Run Time: 7500 hrs

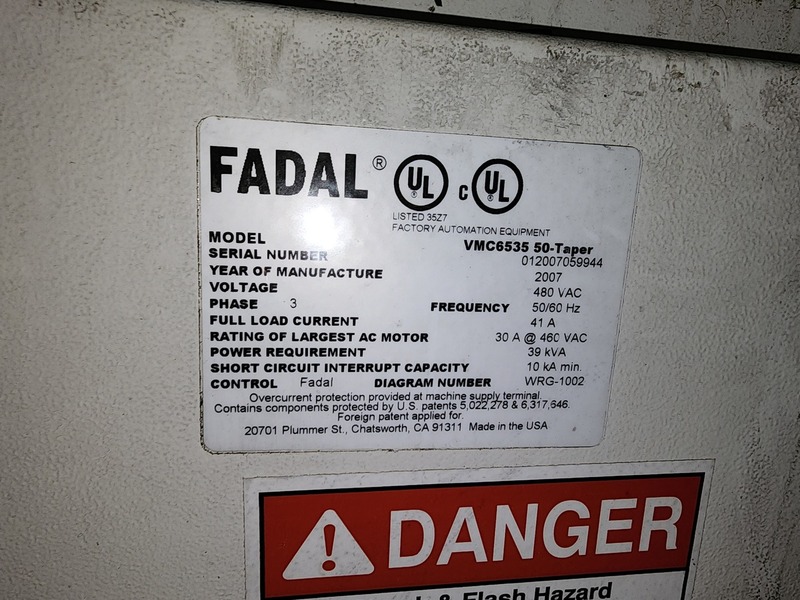

Electrical Specifications:
Voltage: 480 volts
Phase: 3-phase
Made In: UNITED STATES
Additional Description:
Power Requirement: 39 kVA
Full Load Current: 41 A
Rating of Largest AC Motor: 30 A @ 460 VAC
Short Circuit Interrupt Capacity: 10 kA min.
Cutting Feed Rate: 0.01 - 400 ipm (600 ipm @ 150%)
Rapid Feed Rate (X/Y/Z): 900 ipm (X/Y), 700 ipm (Z)
Floor to Table: 40.3"
Max. Weight on Table: 4,250 lbs.
Longitudinal (X Axis): 65"
Cross (Y Axis): 35"
Vertical (Z Axis): 34"
Spindle Nose to Table: 5" - 39"
Spindle Center to Column Ways: 37.4"
ATC, Number of Tools: 32
ATC, Tool Selection: Random, Bi-directional
Machine Width and Depth: 219" W x 130" D
Machine Max. Height: 133"
Machine Weight: 29,000 lbs.
Model: VMC6535 50-Taper
Year: 2007
Condition: Used
S/N: 012007059944
General Specifications:
Spindle Taper: 50
Cross Travel (Table): 35" "
Table Size: 74.8" x 26.5"
Speed: 7500 rpm
CNC: Yes
Run Time: 7500 hrs
Electrical Specifications:
Voltage: 480 volts
Phase: 3-phase
Made In: UNITED STATES
Additional Description:
Power Requirement: 39 kVA
Full Load Current: 41 A
Rating of Largest AC Motor: 30 A @ 460 VAC
Short Circuit Interrupt Capacity: 10 kA min.
Cutting Feed Rate: 0.01 - 400 ipm (600 ipm @ 150%)
Rapid Feed Rate (X/Y/Z): 900 ipm (X/Y), 700 ipm (Z)
Floor to Table: 40.3"
Max. Weight on Table: 4,250 lbs.
Longitudinal (X Axis): 65"
Cross (Y Axis): 35"
Vertical (Z Axis): 34"
Spindle Nose to Table: 5" - 39"
Spindle Center to Column Ways: 37.4"
ATC, Number of Tools: 32
ATC, Tool Selection: Random, Bi-directional
Machine Width and Depth: 219" W x 130" D
Machine Max. Height: 133"
Machine Weight: 29,000 lbs.
Inquire Further with Lenmark Industries!
