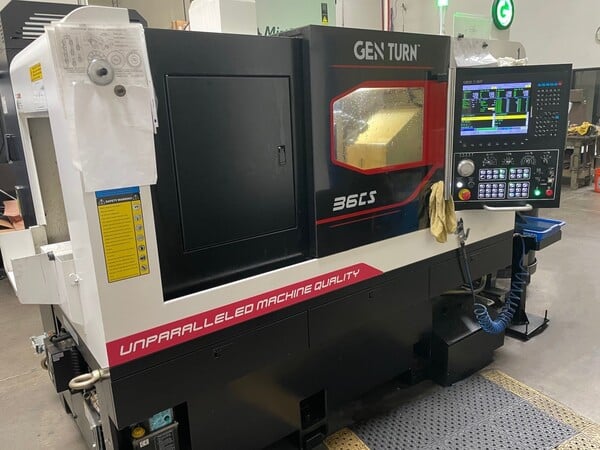

Expand Machinery Gen Turn #36CS, automatic screw machine, 7-Axis, twin spindle, 2021

7 - AxisTWIN-SPINDLE MILL TURN CENTER WITH Y Axis & DUAL C AXIS
Main Spindle:
Maximum RPM / spindle bearing 6,000 RPM / 5-bearing spindle, 3-front, 2-rear
Spindle Motor 10-HP 3,000 rpm spindle motor, 2:1 pulley ratio
Collet Nose Brown & Sharpe #22 or Traub A-32
Drawtube Bore 1.456
Maximum Barstock Diameter 1.25standard 1.375 with adapter
Barstock Preparation Above34mm with 36mm adapter
X-axis Travel 7.28
Y-axis Travel (true Y-axis, not compound Y) 19.29
Z-axis Travel 6.50
Rapid Travel Speed: X, Y, Z 1,181IPM
Minimum input unit 40millionths (0.00004)

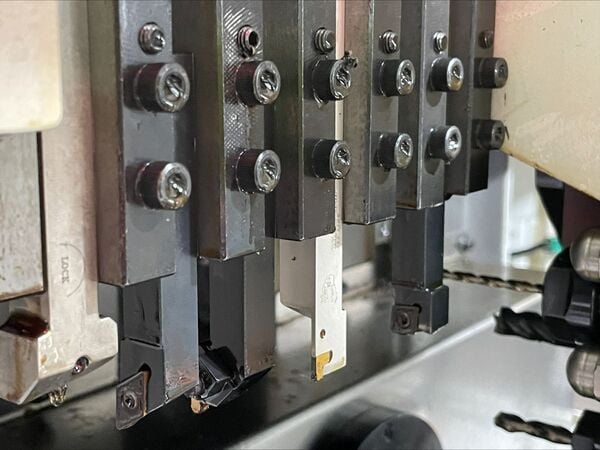

OD Turning Tool Positions 6OD Tools ( ) (5-5/8 tool plate available)
ID Turning Tool Positions 5ID Tools
OD Turning Tool size or 12mm (5/8or Optional)
ID Turning Tool Bore Size 25mm
Spindle Center Height 40
SubSpindle:
Sub spindle RPM / spindle bearing 6,000RPM / 4-bearing Quad-Duplex pair configuration
Sub spindle Motor 5-HP3,000 rpm spindle motor, 2:1 pulley ratio
Collet Nose Brown& Sharpe #22 or Traub A-32
Maximum Barstock Diameter 1.250in collet chuck (1.080 pass thru)
X-axis Travel 11.53
Z-axis Travel 11.61
Minimum input unit 0.0001
ID Turning Tool Bore Size 25mm
Air Blast nozzle Included
Finished Parts Ejector Included,along with parts catcher & parts conveyor belt

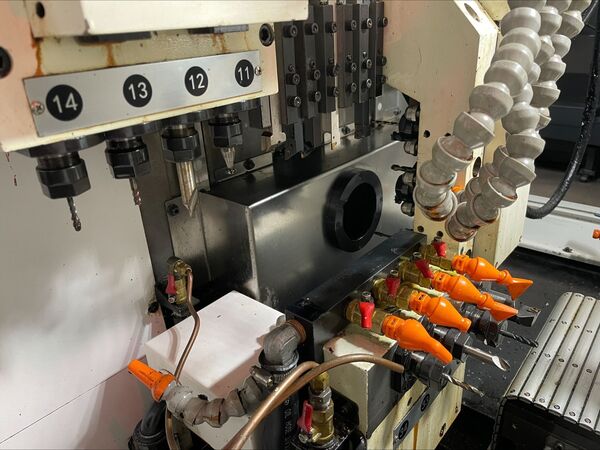

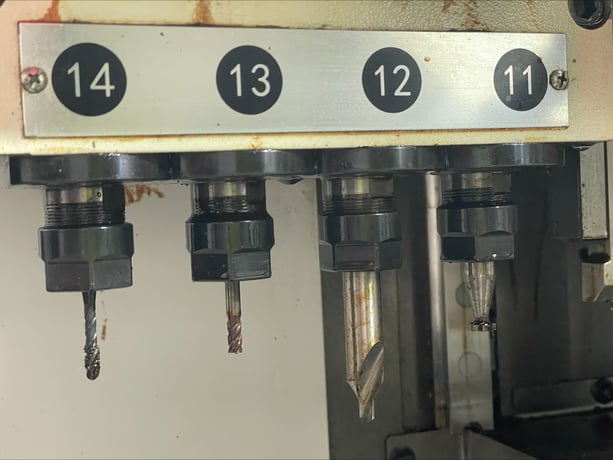

Live Tooling: All live tools are gear driven w/ 42mm bearings no belts!
Cross slide live tools 4-ER-20cross slide live tools, 4,000 rpm, 2.0 HP (1.5kw)
Front slide live tools 3-ER-20front slide live tools, 4,000 rpm, 1.0 HP (0.75kw)
Live tool collet size ER-20collet, 1/2 (0.5-13mm) tool shank capacity
Max RPM for live tools 4,000RPM (1cross live tool can be substituted on subspindle tool block)
Machine Dimensions:
Machine Length 101 * ( * +36 for chip conveyor)
Machine Depth 68
Machine Height 80
Machine Weight 8,000lbs
Coolant Pump Dual50psi 3/4-HP Coolant Pumps for main and subspindle
Coolant Tank Capacity 63-galloncoolant tank, with coolant flow confirmation sensor
Lubrication distribution Waylube distributed at 3-6 cc / 15-minute cycle
Machine Power Requirements 220vac5%, 63-amps, 3-phase, 60Hz
Air Requirements 85-PSIat 10-CFM for parts catcher, parts ejector, & air blast
Machines need stable 220 Volts, 3 Phase Please use appropriate transformers voltage stabilizers
