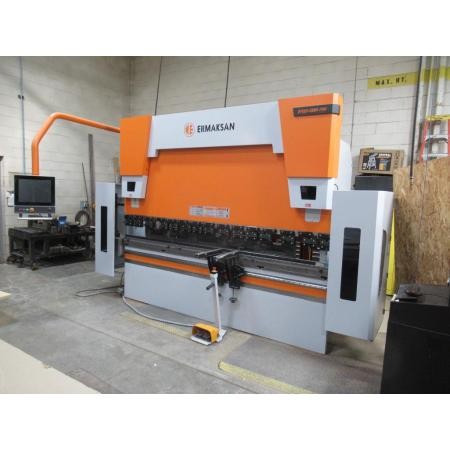

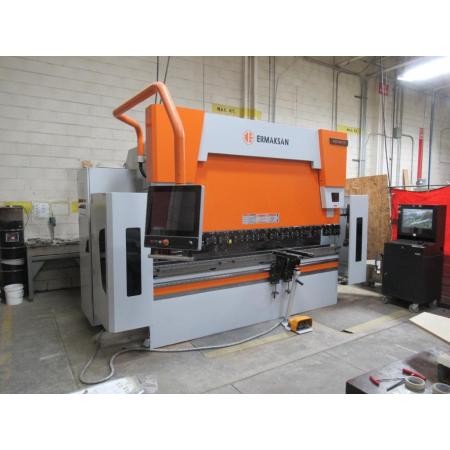

150 Ton, Ermaksan #Speed-Bend-Pro, Press Brake, 10.2'OA, 102.36" between housing, 10.83" stroke, 2024

2024 Speed Bend Pro 10
>
> Technical Specifications
> Tonnage: 150 US Tons
> Bending Length: 122.05" (3100 mm)
> Distance Between Housings: 102.36" (2600 mm)
> Stroke: 10.83" (275 mm)
> Daylight (Open Height): 21.65" (550 mm)
> Throat Depth: 16.14" (410 mm)
> Approach Speed: 472 in/min (200 mm/s)
> Bending Speed: 23.6 in/min (10 mm/s)
> Return Speed: 448 in/min (190 mm/s)
> Backgauge Stroke (X-Axis): 31.5" (800 mm)
> Backgauge Stroke (R-Axis): 9.84" (250 mm)
> Motor Power: 20 HP
> Oil Capacity: 79 Gallons
> Machine Weight: 18,042 lbs
> Overall Dimensions: 167" L x 81" W x 110" H
>
> Delem DA-69T CNC Control: A top-tier, 17" high-resolution 3D touch
> screen
> controller. It features full 3D visualization, automatic bending
> sequence
> calculation, collision detection, and is Industry 4.0 ready with a
> Windows-based platform.

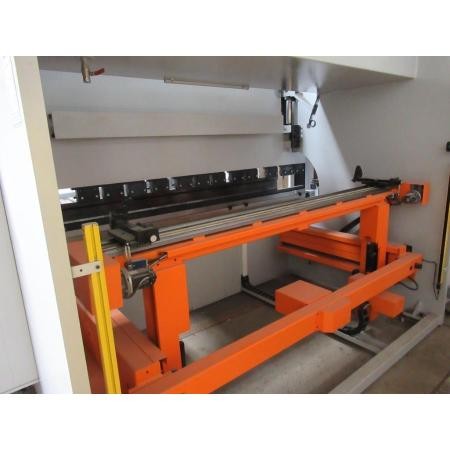

> 6-Axis Backgauge (Y1, Y2, X, R, Z1, Z2): High-speed servo-driven
> system
> that
> allows for independent finger movement, essential for complex,
> asymmetrical
> parts and multi-stage bending.
> CNC Motorized Crowning: Automatically compensates for bed deflection
> to
> ensure a consistent bend angle across the entire 10-foot length of the
> workpiece.
> High-Speed Servo Hydraulics: Utilizes a Hoerbiger hydraulic system for
> "Super Speed" cycle times, significantly reducing the cost-per-part
> compared
> to standard hydraulic brakes.
> Promecam Quick Release Clamping: Allows for fast tool changes from the
>
> front
> of the machine, minimizing downtime between different production runs.
> Safety Systems: Equipped with Leuze MLC510 rear safety light curtains
> and
> side guards with integrated safety switches to ensure CE-compliant
> operation.
> Sliding Front Support Arms: Mounted on a linear rail for easy
> adjustment
> along the length of the bed, featuring metric/inch scales for precise
> part
> positioning
> .Production Capabilities Rigid Monoblock Frame: Constructed from
> high-strength ST44 steel and tension-relieved for long-term accuracy
> and
> structural integrity.
> WIPS Compatibility: The system is designed to integrate with laser
> angle
> measurement systems (like the Data-M or Iris Plus) for real-time angle
> correction.
