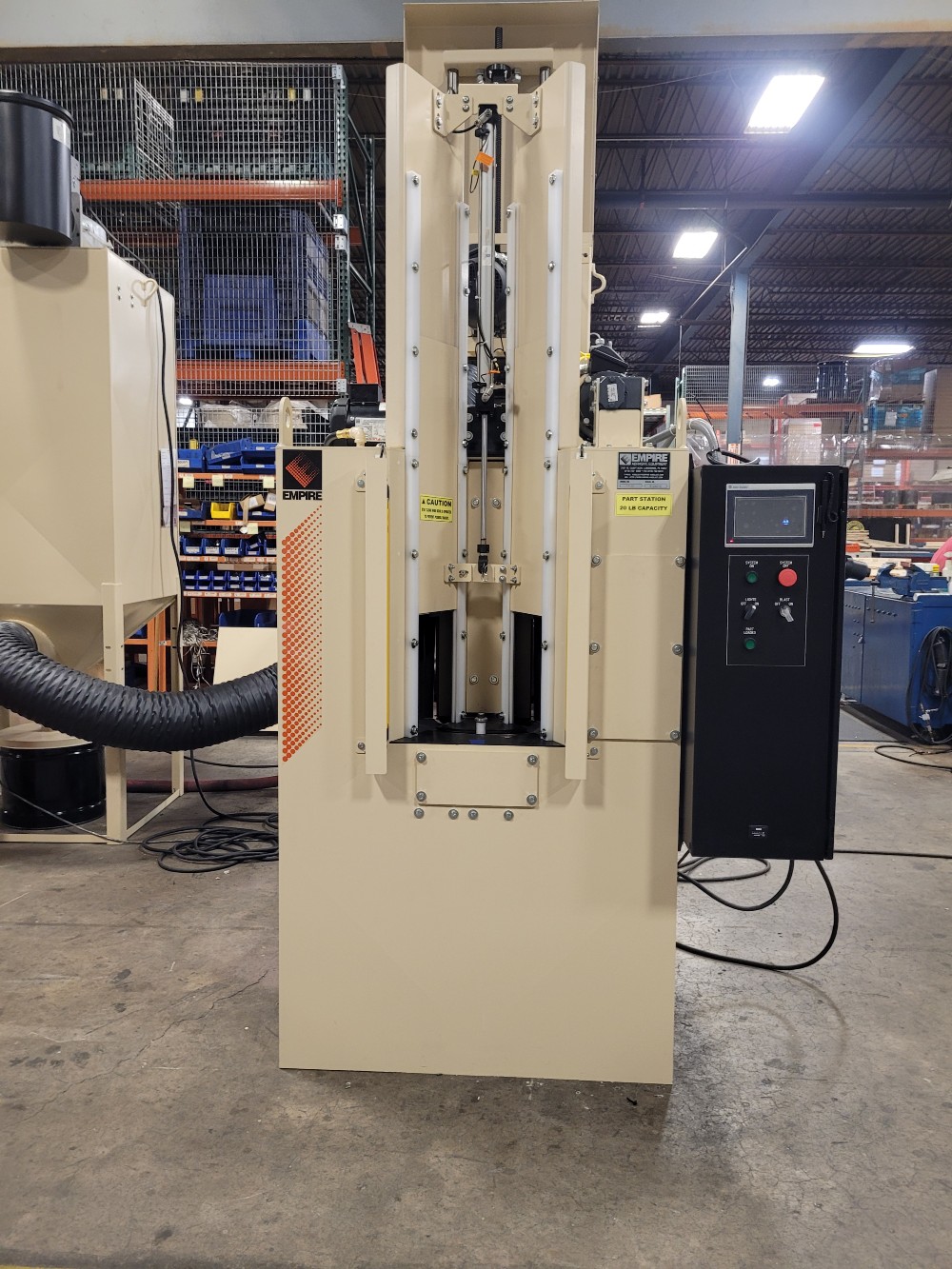

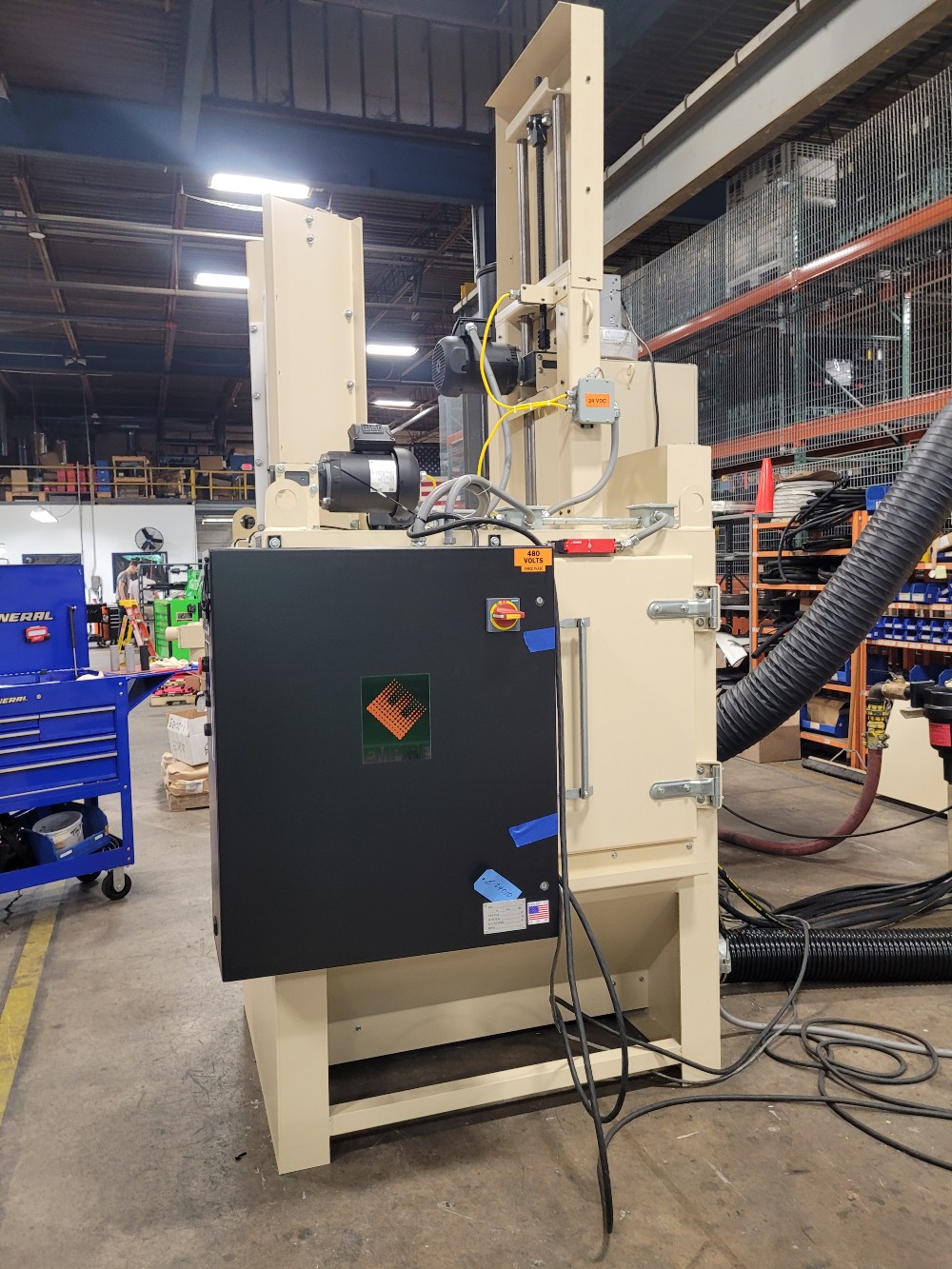

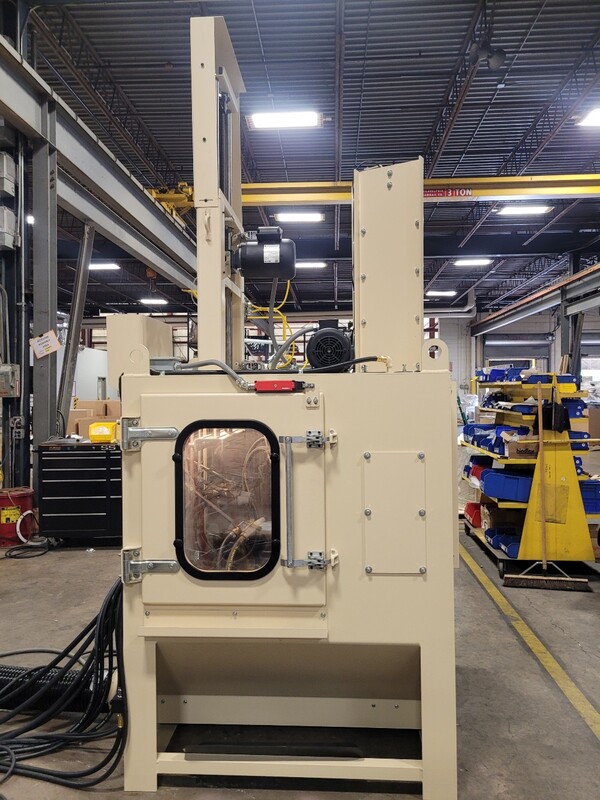

Empire Abrasive Equipment #TT20, Indexing Turntable Blasting Machine, New

The TT-20 was designed with the goal of providing a cleaning or peening solution with all the versatility of an indexing turntable machine, all in a very compact footprint.

The TT-20 is available to you with either four suction or pressure nozzles, as required by your application.

The tenacity of your cleaning application, or the intensity requirements of your shot peening application will determine the choice of media propulsion.

System includes:

• Cabinetwork handling (main table & satellites)

• Media storage hopper

• Media reclaim

• Make up hopper

• Dust collector

Blast capabilities:

• Three (3) blast stations provide excellent coverage

• 4 to 8 suction blast nozzles

• 2 to 6 pressure blast nozzles

• 6 or 12 station satellites

• 1- or 2-part index (depending on part size)

Other features:

• Tight footprint ideally suited to work in a cell

• System's PLC permits versatility of operation

• Vertical sliding work doors seal the blast operation for dust and noise

• Faster cycles due to smaller turntable (quicker index time)

• Ease of accessibility for maintenance

• Urethane ducting (optional item) helps reduce footprint

• Easy part loading and unloading from the front
