For Sale by JPS International Inc
Description

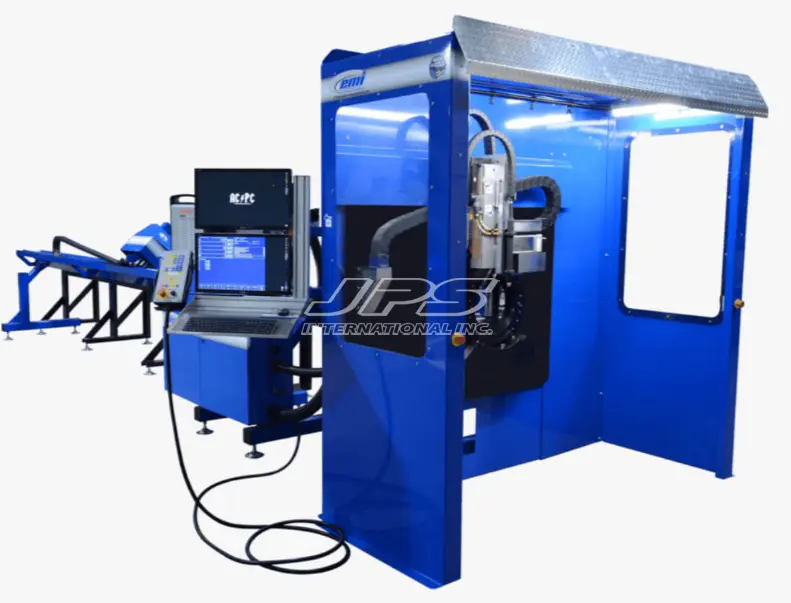

Eliminate Layout Time and Improve Piece Rate. EMI's AC-PC handles angle, c channel, and flat stock and combines fabrication steps into one continuous process, reducing direct labor and floor space requirements while increasing profitability.

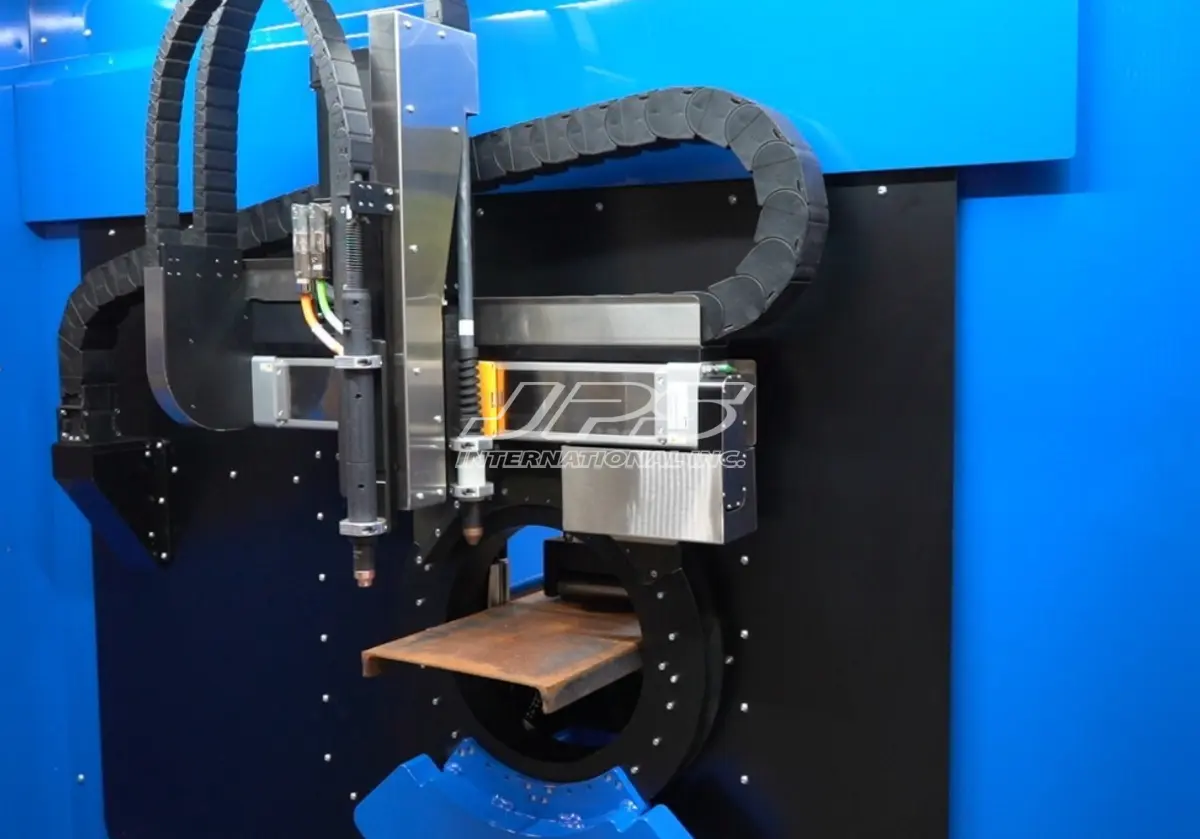

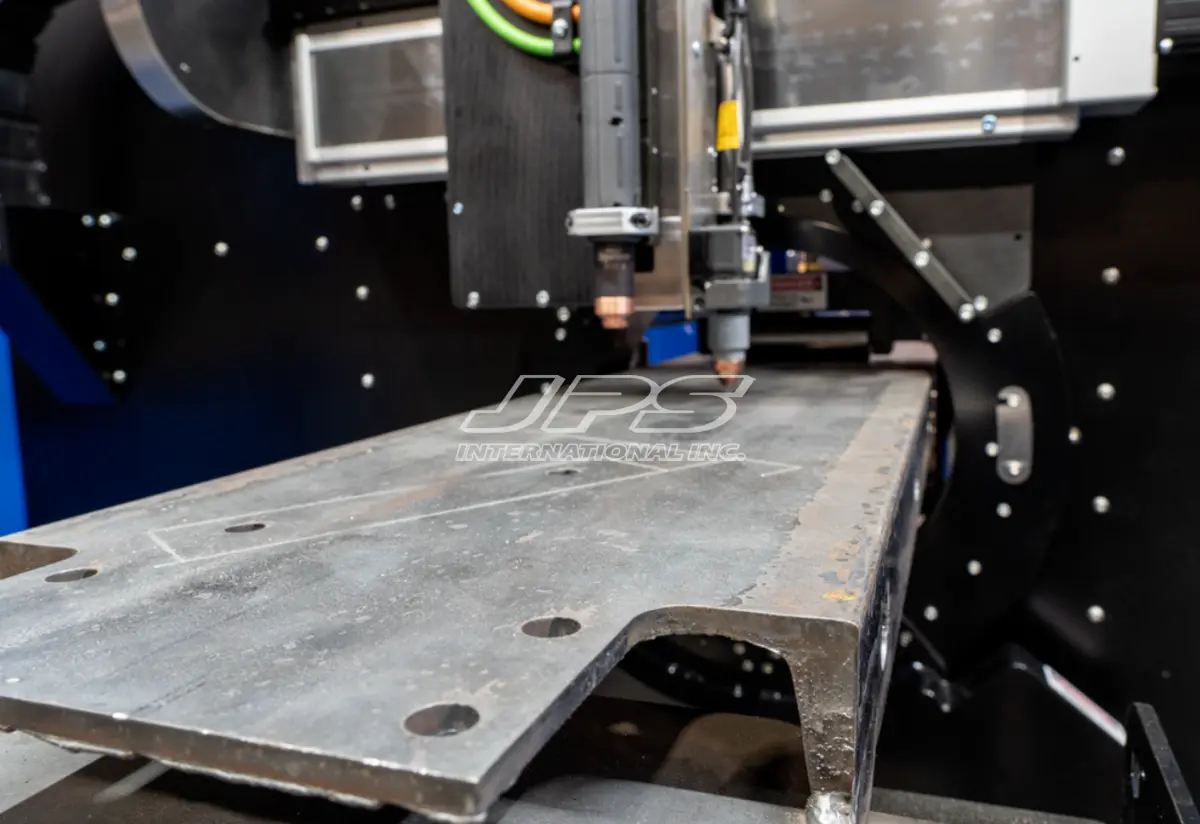

Manufacturing steel stair stringers are made fast and exact this plasma cutter cuts draws layout lines, and burns holes in one smooth operation. Simultaneously cut and burn bolt holes for angle clips, as well as other features.
Material Shape - Angle, C-Channel, Flat Stock, limited handling of square/rectangle
Maximum Work Length - Loading: 24 *with additional roller tables, at least 60 material lengths with total material weight not exceeding 1,000 lbs
Unloading: unlimited offload length *with additional roller tables
Material Diameter - C-Channel: 3 to 12
Flat Bar: 3 up to 12x 34
Angle: 2x 2 up to 8x 8 x 34
Square and rectangle: 2x 2 up to 6x 12x 12
Axis Travel - X lengthwise: 296, Y crosswise: 16, Z up/down: 8, A: 92, W: 5.5
Height of Chuck Center - Roller conveyor height 3614to 39, depending on installation
Maximum Material Thickness Up to 34 recommended, 1 is possible for limited applications
Rapid Travel Speed - X axis: 800/min, Y, Z axis: 300/min, W axis: 50/min, A Axis: 2600/min
Electrical Requirement - Control: 220 VAC, 20 amp 1ph
Torch: as per Hypertherm selection
Air Requirement - Control: 640 SCFH *with chiller
Torch: 460 SCFH *for Hypertherm 105
Installation Dimensions - WxHxL: 12x 8x 48 for 24 stock and a 20 finish workpiece.
*Larger material handling will require additional space.
Machine Unit Dimensions - 27.5x 8x 7'
Machine Unit Weight - 4,400lbs

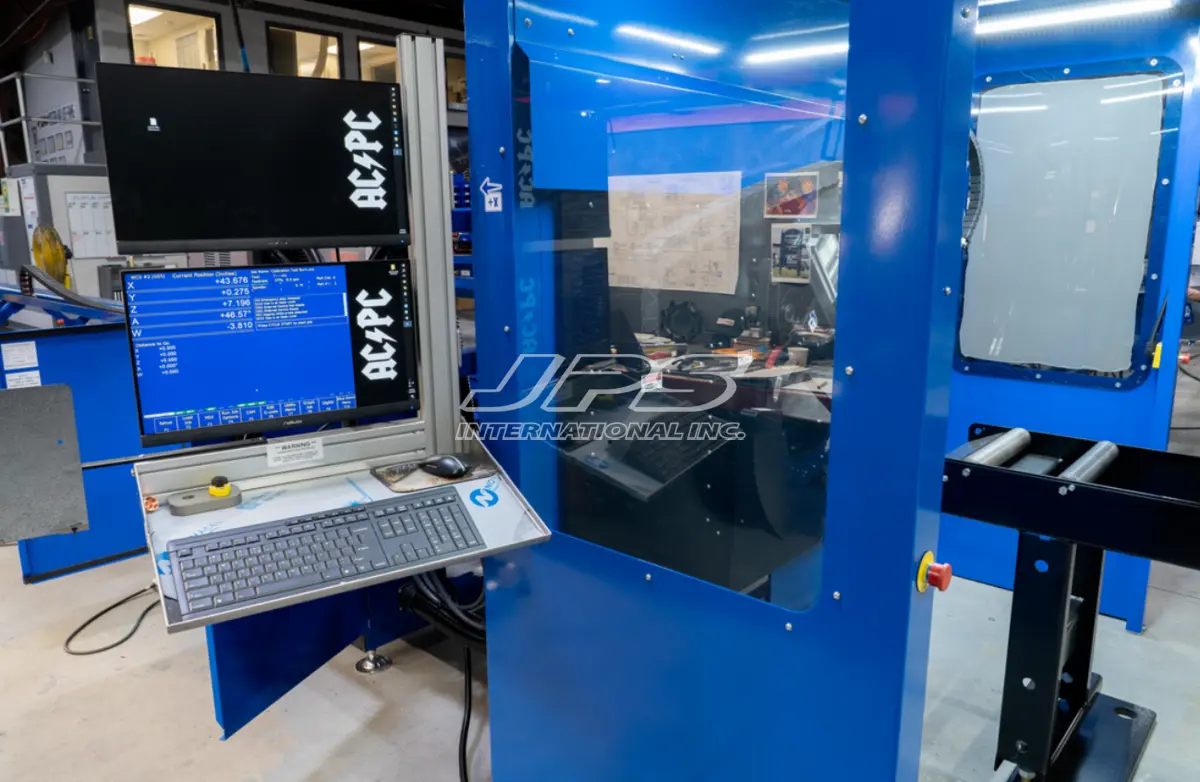

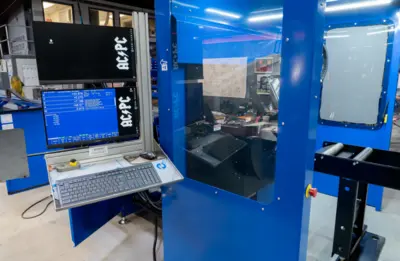

CNC Type - Centroid
CPU - 64 bit
Display Screen - Dual 20 LED
Number of Control Axes - 5
Servo System - Closed Loop Servo
Program Input System - Conversational, G-Code, or CAD-CAM
Hypertherm PowerMax 105amp unit, PieceMaker Angle Edition
and Lantek Flex3D Plus Software* (includes floating license, DSTV Importer
for Lantek Flex3D, AC-PC Postprocessor and 1st year of maintenance,
support and updates). This machine has 258" of stroke and a 28" tail.

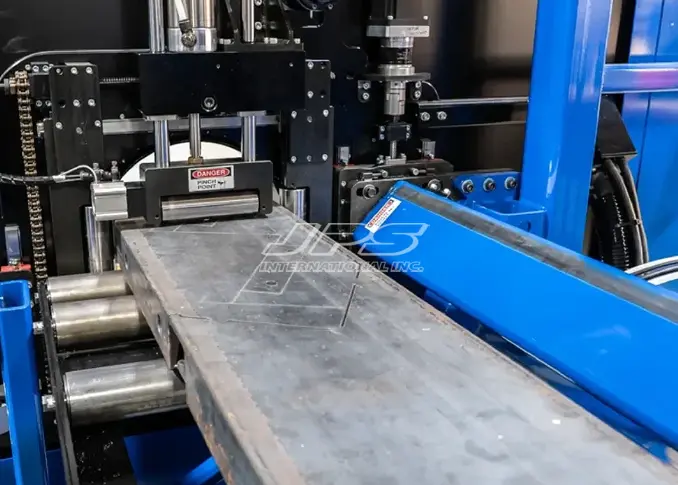

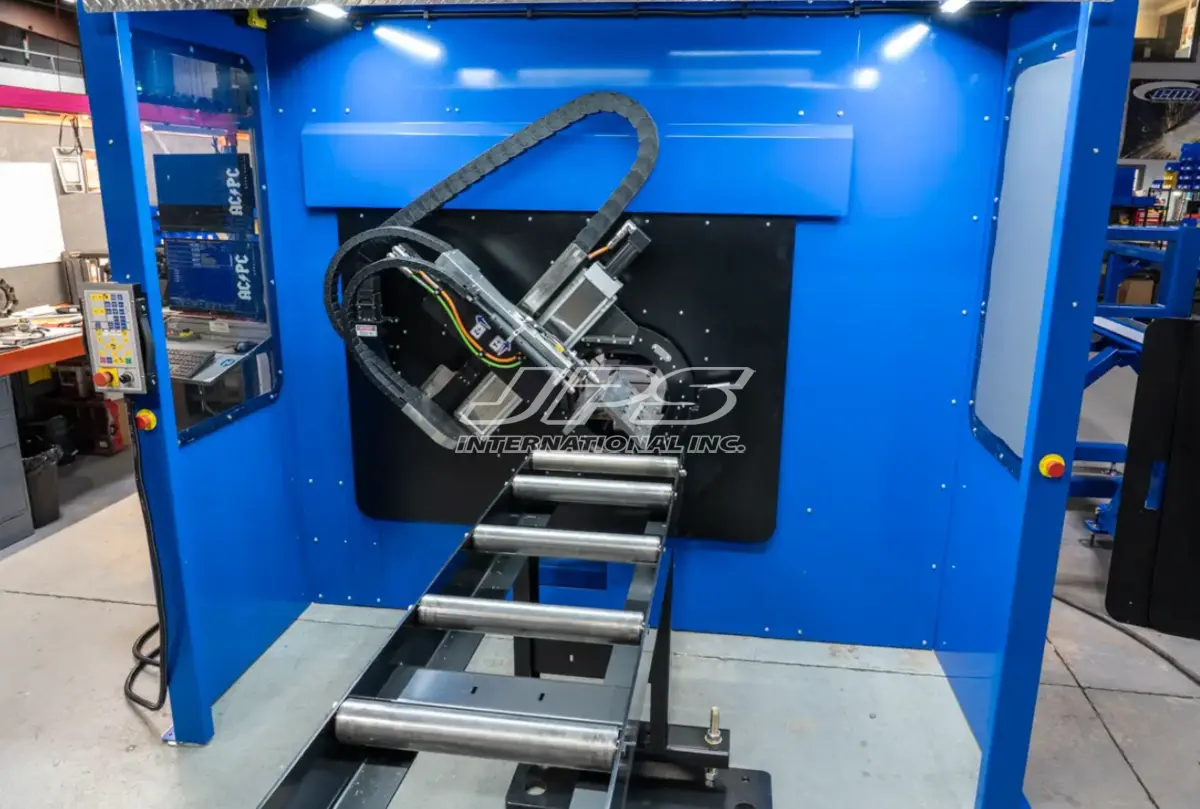

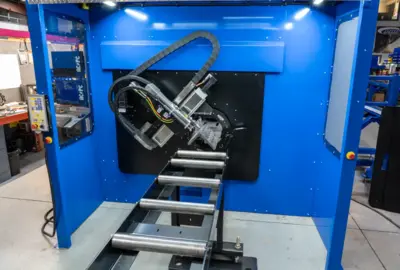

Roller Conveyor Table - 4- 100 inch section (Works with Cross-Feed Installations)
24Vv Uninterruptible Power Supply Option (Pulse Version)
Remote Pedestal Operator Station
Centroid CNC Control
Get Your Price from JPS International Inc!
