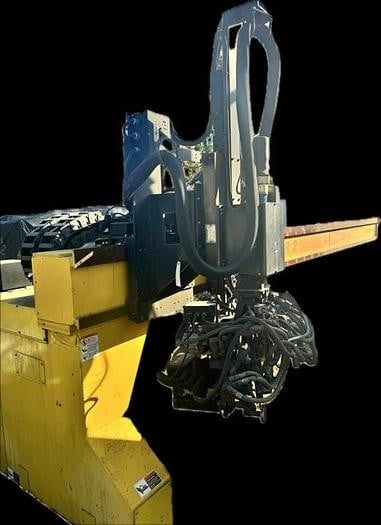

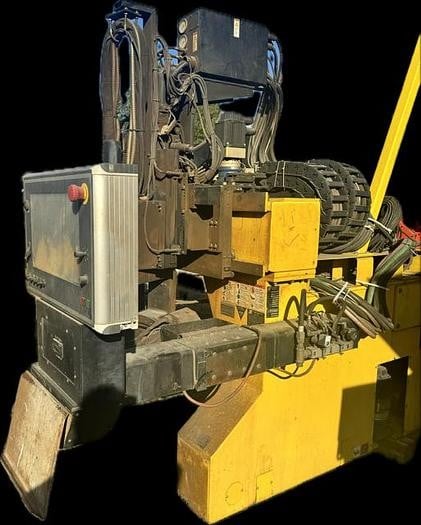

Esab #AVG2-Vis55, 600 amp, updated in 2020 by ESAB, 2007

ESAB Avenger 2

Please Note these are spec. when the machine was New and all spec. should be confirmed and inspected.

Featuring:

- 3 Axis Gantry with Rack-and-Pinion Drives

- 4 Meter Wide Cutting Area (157 inch)

- Heavy-Wall Reinforced Box Beam Design

- Welded, Machined Trucks with long wheel base for added stability

- Machined Mating Surfaces for high stiffness and accuracy

- Digital AC Drive Amplifiers for years of maintenance free

operation

- AC Brushless Motors for smooth, accurate motion

- Precision Planetary Gearboxes for accuracy and long life

- Precision Linear Rail Drive Engagement

- Maximum Machine Speed: 1000 ipm (25400 mm/min)

- Cross Axis Powertrack Hose & Cable Carriers

Note:

The Avenger 2 will maintain a machine positioning accuracy of+/-

0.015" in both the "X" and "Y" axis over a six foot by six foot area. The machine repeatability in this area is+/- 0.005". Each machine's performance is factory verified using a laser interferometer according to ISO 230-2 Test Code for Machine Tools. These tolerances can only be met if the rails are installed and maintained per ESAB specifications.

Includes:

- Heavy-duty, precision machined crane rail system

- Machined top and side surfaces

- Machined rack mounting groove for precise rack alignment

- Precision drive rack mounted directly to machined surface

- Fully adjustable mounting pads for adjusting height,

level, straightness

- Hose and cable input system for basic gantry

Advanced Electronic Gas Control System

- Central oxy-fuel gas control system and manifolds.

- Uses electronic proportional flow control valves for Cutting Oxygen, Preheat Fuel Gas, and Preheat Oxygen pressures.

- Allows setting and adjusting gas pressures from the CNC.

- Includes settings for High and Low Preheat pressures.

- Pressures are adjusted on-screen at the Vision CNC.

- Allows gas pressures to be set automatically by the SOP files.

- Pierce Rate is precisely controlled by the CNC.

- Makes oxy-fuel process setup quick, easy, and repeatable.

Oxyfuel T arch Station with Motorized Lifter

Includes:

- Heavy-Duty Motorized Lift with 7" Travel

- Linear Rail for Accuracy and Rigidity

- Ball Screw Lifting Gear for Long Life

- Individual Torch Station Preheat Solenoid Valves

- Automatic T arch Igniter

- Automatic Cutting Oxygen Solenoid Valve

- Brass Torch Holders For Complete Torch Adjustment

- Oxyweld C-67 Torch Package with Three (3) Cutting Tips

- Lifetime Warranty on C-67 T arch

- Excellent Multi-Torch Balancing

- Cutting Capacity up to 20"

- Cost Saving Low Oxygen Consumption

- Easy to read cutting tips.

- Two piece tips sold as pairs or individually

- Nozzle Nut Threads are Internal To Torch for Protection

- Rugged Torch Body with Heavy Wall Oxygen & Mixer Tubes

Expert Motion Plasma VBA System

Automatic Plasma Bevel System with programmable tilt and

rotation, plus automatic height control. Includes ESAB's exclusive Expert Motion integrated electronic control system with a new

compact, light-weight design.

Simple, reliable protractor design

- Precision tactile sensor for accurate height control while

beveling

- Arc voltage height control for straight cutting

- Exclusive Arc Voltage Sample & Hold feature for bevel cutting intricate patterns

- Breakaway torch protection and non-contact initial

height sensing reduce maintenance and alignment

requirements

- Digital AC amplifier and brushless motor for rotation control

- Split-gear zero backlash feedback system for accurate

rotation control

- Up to 400 Amp Oxygen plasma allows bevel cutting of

Carbon Steel up to 1-1/4" thick to 45 degrees

- +/- 45 degree tilt

- +/- 540 degree rotation

- Heavy Duty Motorized Vertical Lifter with Linear Rails

- For use with up to 400 Amp Plasma Systems

Note:

An appropriate post processor is required to support multi-pass beveling.

ESAB m3 600 Amp Precision Plasma System With PT--36 Torch

- Provides "Precision" cutting from 50 to 260 Amps

- Provides "Production" cutting from 50 to 600 Amps

- Allows Plasma Marking And Cutting With The Same Torch

- Pierce up to 1.5" thick Carbon Steel at 400 Amps Oxygen Plasma

- Cuts up to 2.5" thick Carbon Steel at 400 Amps Oxygen Plasma

- Cuts up to 2" thick Stainless Steel or Aluminum with 600 Amp

Nitrogen Plasma

- Cuts up to 6" thick Stainless Steel or Aluminum with 600 Amp

Argon-Hydrogen (H-35) Plasma
