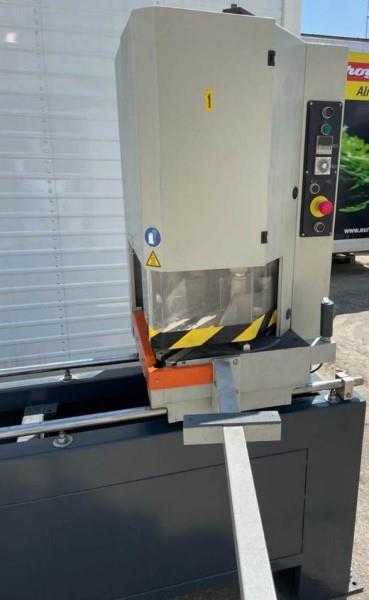

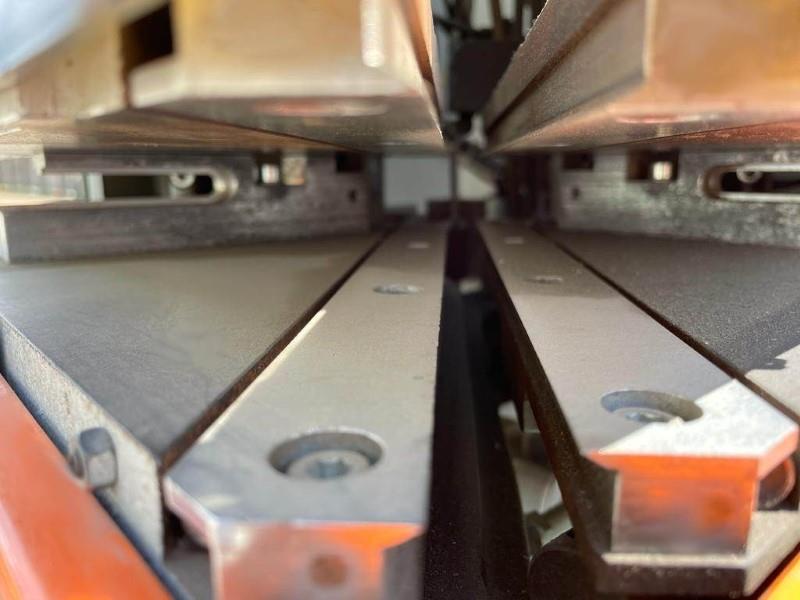

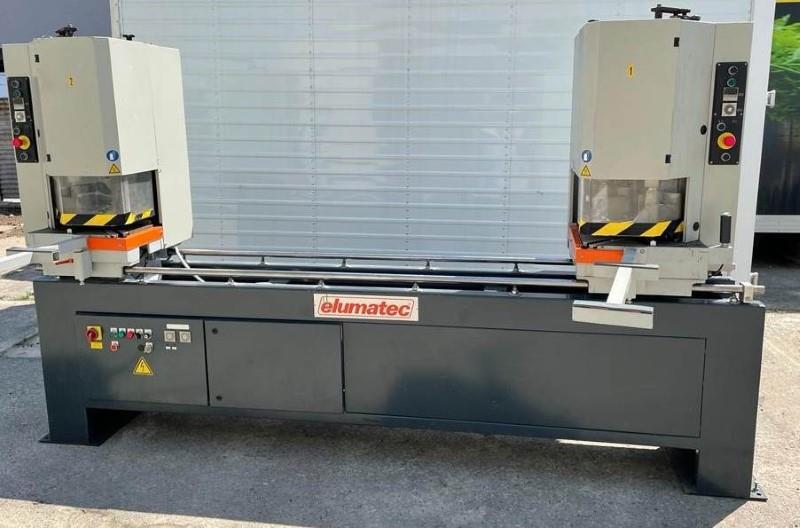

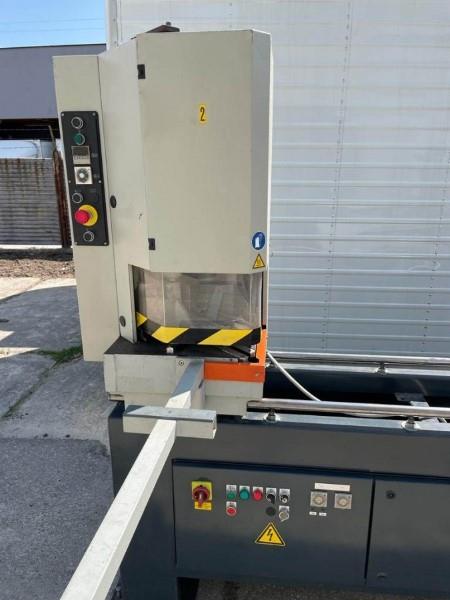

Elumatec ZS-720-LV, Window Line, (2) L-plates, 340 x 300 mm L-plate, 180 x 210 x 2520 mm profile, 480 mm min. frame, 2001

Estimated monthly payment valid upon approved credit.

Request Formal Quote

ELUMATEC ZS 720 LV 2-Head Horizontal Welding MachineGerman engineered 2-Head Horizontal welding machine for PVC window production. Capable of simultaneous welding of two corners at an angle of 90 with parallel welding feed.With (1) Fixed L-head (90) and (1) Variable L-head (30 – 180) equipped with continuously adjustable stops make it possible to weld any angle from 30 – 180. Incorporates a heated welding bead limiting blade, configurable for a welding bead limitation of 0.2 to 2.0 mm, for welding profiles covered with a film or acrylic coatingAlso suitable for welding large-volume profiles (monobloc). Automatic adjustment for different profile cross-sections by means of a sensor-controlled melting timeSpecifications: ● Two L-plates ● Width of L-plate: 340 mm ● Height of L-plate: 300 mm ● Profile width at 90 max.: 180 mm ● Profile width at 180 max.: 220 mm ● Profile height max.: 210 mm ● Profile height min.: 40 mm ● Profile height with special adapter min.: 20 mm ● Profile length max.: 2,520 mm (special lengths optional) ● Smallest frame dimension: 480 mm ● Power output: 5.2 kW ● Compressed air supply: 6 – 8 bar ● Air consumption per weld: 120 l ● Dimensions: 3265 x 750 x 1800 ● Weight: 950 kG (3,300 Lbs)NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
