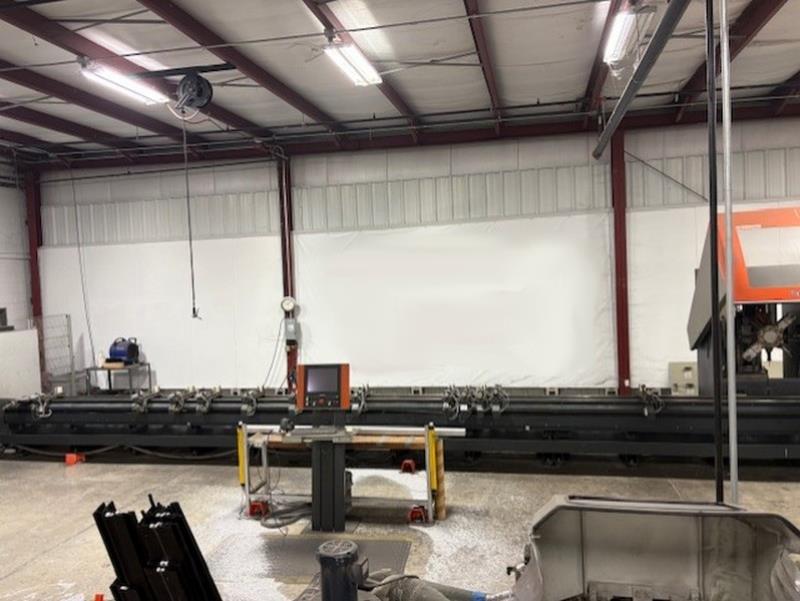

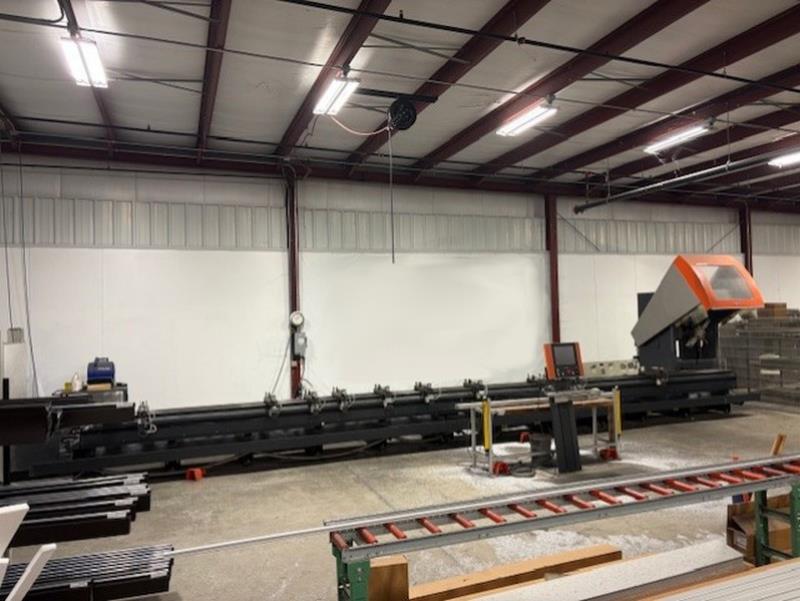

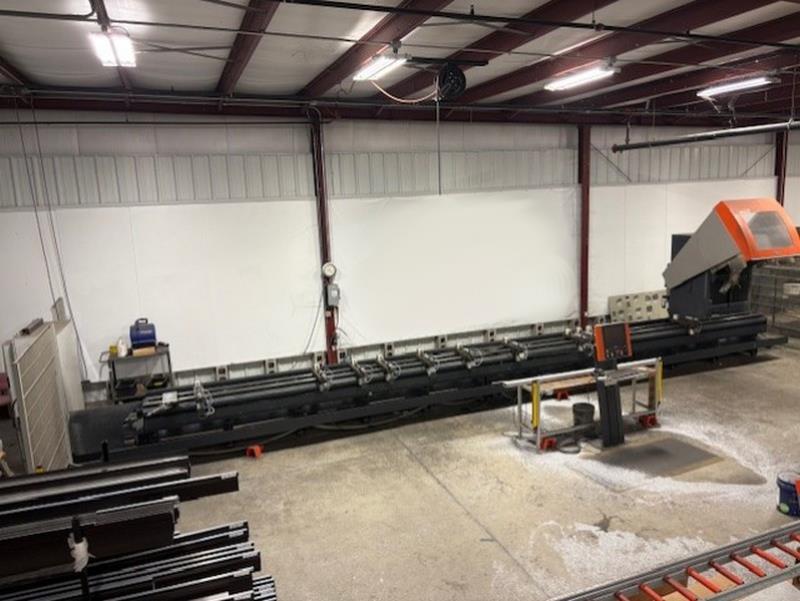

Elumatec #SBZ-130, Aluminum Profile Machining Center, 3-Axis, 402" L Bed, 402" X, 19" Y, 13" Z, 197 FPM X, 98 FPM Y & Z, 6000 RPM, 2013

Estimated monthly payment valid upon approved credit.

Request Formal Quote

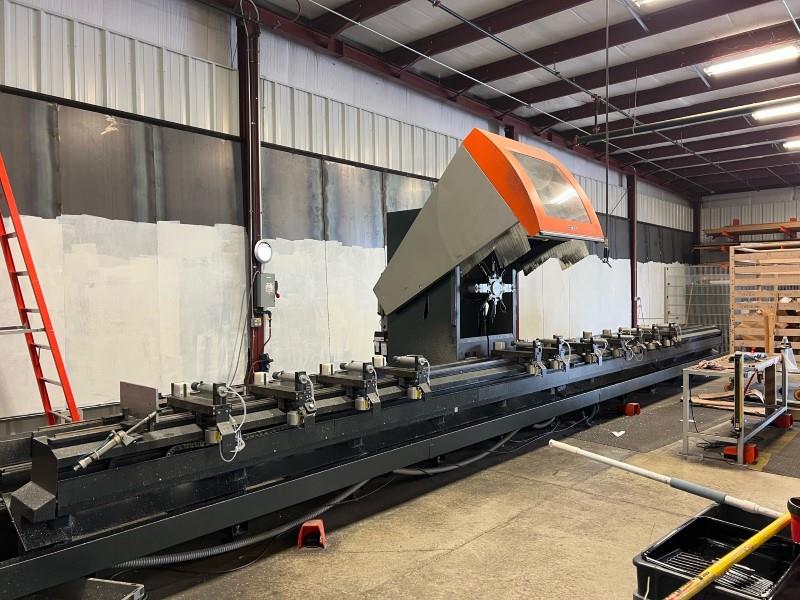

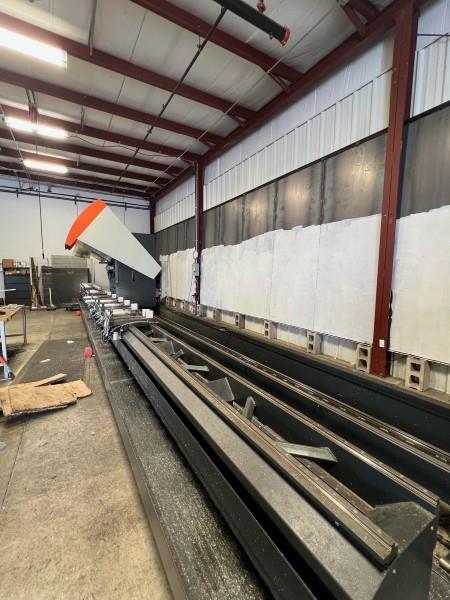

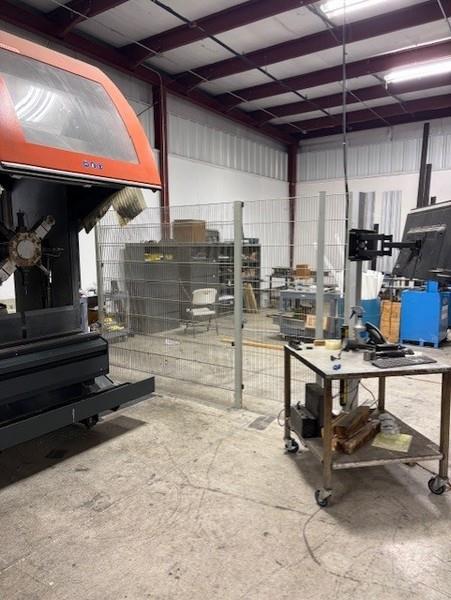

ELUMATEC SBZ-130 CNC Aluminum Profile Machining Center - 10.2 Meter3-Axis CNC profile machining center designed for economical and efficient machining of aluminium, steel and stainless steel profiles. All operations, such as routing, drilling and tapping are performed while the profile bar is stationary to protect the profile surfaces.The on-board turret head ensures that tool changing times are kept very short, thereby optimizing machining cycles. The turret head can be equipped with eight (8) tools or angle routing heads. Automatic clamping adjustment enables the machine to position the material clamps.Specifications: ● Bed length: 10.2 meters (402") ● Max. machining length with profile end machining, 10,080 mm (397") ● Max. machining length without profile end machining, 10,200 mm (402") ● Traverse X-axis: 10,200 mm (402") / V max. 60 m/Min (197 FPM) ● Traverse Y-axis: 485 mm (19") / V max. 30 m/Min (98 FPM).. ● Traverse Z-axis: 340 mm (13") / V max. 30 m/Min (98 FPM). ● Max. spindle speed: 6000 RPM ● Spindle power output 5.5 kWDimensions: 11,540 x 4230 x 3100 mm (454" x 167" x 122")Weight: 7257.5 kG (16,000 lbs)Features: ● Tool changer with (8) tools on turret head ● Rotating angle router head option ● High speed spindle (18,000 RPM) ● Touch Screen Windows XP operating system ● 15" Flat screen display, USB ports and network connection (RJ45 10/100 MBit) ● (12) Horizontal Pneumatic Clamps With Automatic Positioning Recognition System ● (2) Light barrier safety hoods ● 8-Way Pulsed Coolant System ● Automatic clamping device with collision detection ● (2) Front/Back Right Angle Tool Holders ● (4) Straight Tool Holders ● (2) Pneumatic Work Stops ● Foot Pedal Controlled Material Stop ● Cooling system in electrical control cabinet [Air conditioned] ● Includes all chucks & collets ● E550/E555 Hand held remote mobile controller w/start-stop and feed control [DGX Format] ● EluCad software package ● Chip collection tray ● Remote barcode scanner ● Operators and service manuals NOTE: The machine is very good condition and in good operating condition. Ready for immediate shipment.NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; to your Door. …Packaging, Freight, Insurance (door to door), domestic shipping to your Plant Door.
