For Sale by ACT Machinery
Surplus Record Dealer Since 1995
Randy Goodman
714-44...> Show Seller's Phone Number 714-441-1992 Let the seller know you found their listing on Surplus Record!
Description
Specifications:
Bar Capacity
0.196" to 2.000"
Maximum Bar Length
6 feet
Minimum Bar Length
39.4 inches
Magazine Rack Capacity
12 inches
Material Straightness Specifications
.007"TIR/ft of material (V Blocks, 3 points equidistant)
Feed Force (pusher torque)
max 450N, adjustable
Foward Feed Rate
750 inches/min max, adjustable
Return Feed Rate
1000 inches/min max, adjustable
Operating Voltage
230V/60 Hz - 3 phase
Power Consumption
1.5kW
Control Voltage
24V DC
Oil Capacity
15 gallons
Oil Viscosity
ISO 150cST
Compressed Air Supply
90 psi
Compressed Air Consumption
approx. 8 liters/loading cycle
Dimensions
128" x 28" x 49"
Weight
2700 pounds
Equipped with:

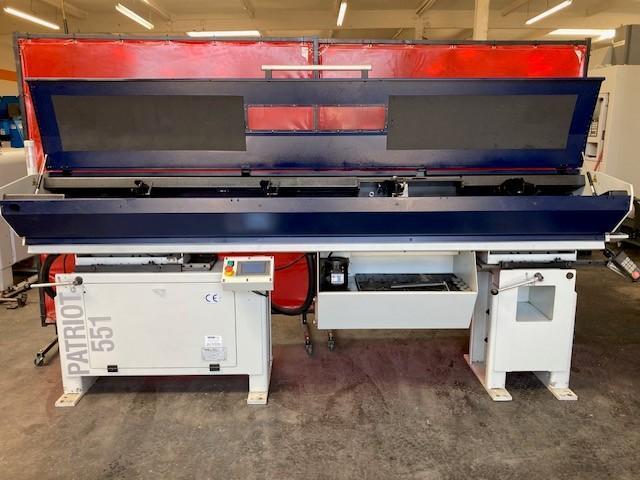

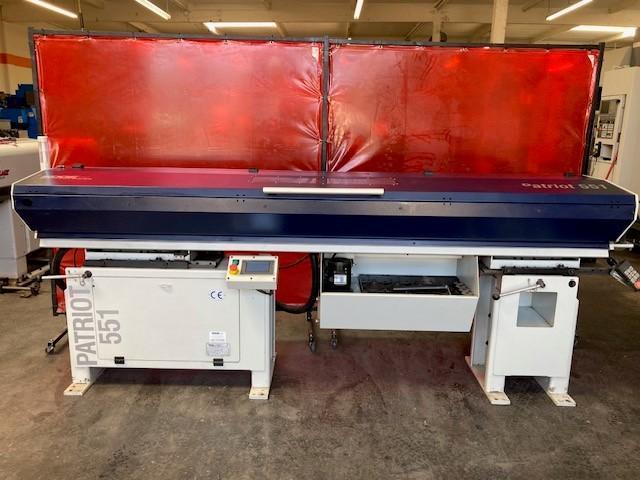

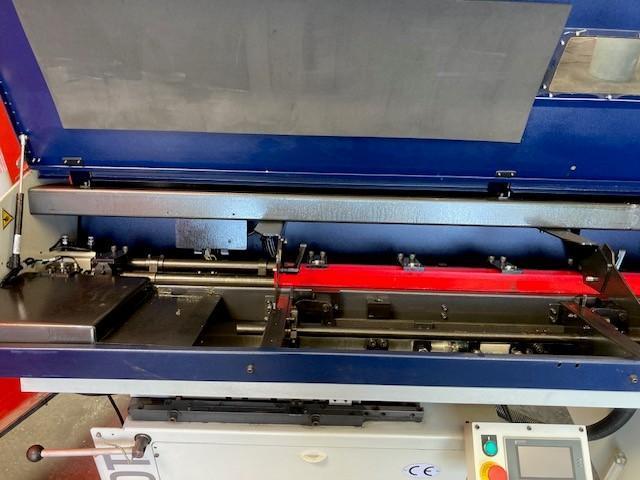

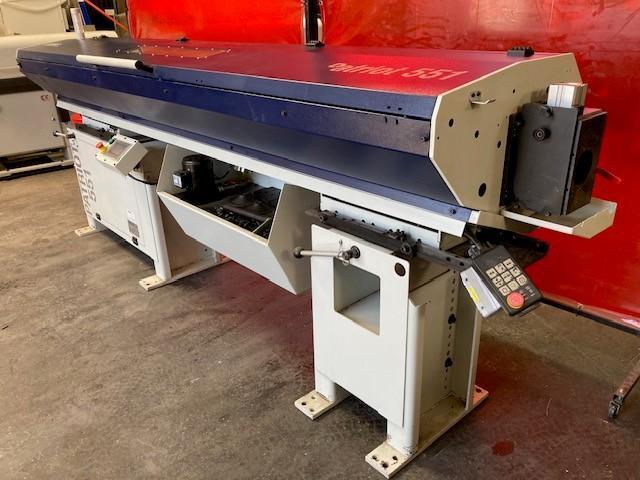

Edge Tech Patriot 551 Barfeed 2019 6' Bar Length 12 linear inches of Rack Capacity
Bar Capacity
0.196" to 2.000"
Maximum Bar Length
6 feet
Minimum Bar Length
39.4 inches
Magazine Rack Capacity
12 inches
Material Straightness Specifications
.007"TIR/ft of material (V Blocks, 3 points equidistant)
Feed Force (pusher torque)
max 450N, adjustable
Foward Feed Rate
750 inches/min max, adjustable
Return Feed Rate
1000 inches/min max, adjustable
Operating Voltage
230V/60 Hz - 3 phase
Power Consumption
1.5kW
Control Voltage
24V DC
Oil Capacity
15 gallons
Oil Viscosity
ISO 150cST
Compressed Air Supply
90 psi
Compressed Air Consumption
approx. 8 liters/loading cycle
Dimensions
128" x 28" x 49"
Weight
2700 pounds
Equipped with:
Edge Tech Patriot 551 Barfeed 2019 6' Bar Length 12 linear inches of Rack Capacity
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
ACT Machinery
2424 Cypress Way
Fullerton, Ca 92831
Financing Available / Se Habla Español
Get Your Price from ACT Machinery!
