For Sale by A Green Co Inc
Surplus Record Dealer Since 2004
Location: Worcester, MA
Contact Harvey Green
Phone Number: 508...> Show Phone Number 508-791-6800
Let the seller know you found their listing on Surplus Record!
Description

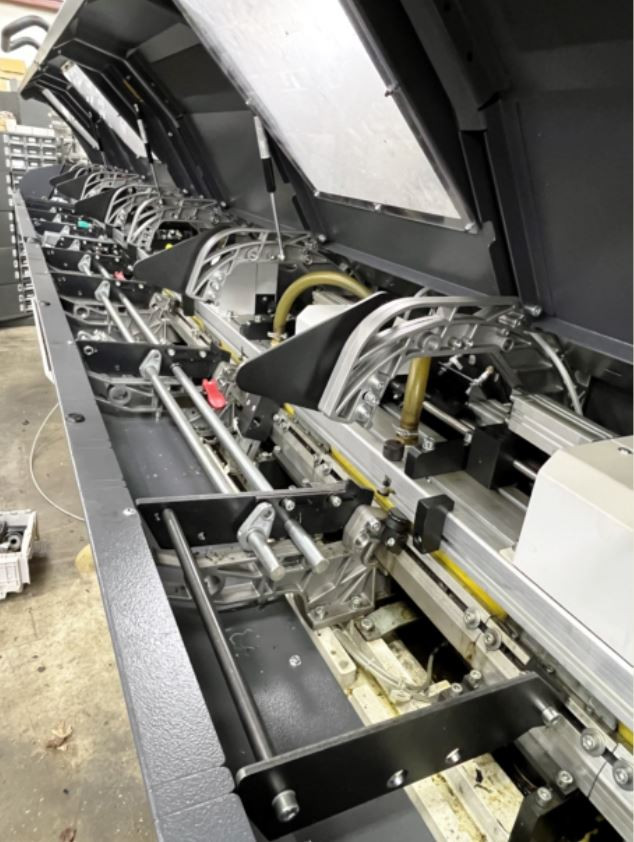

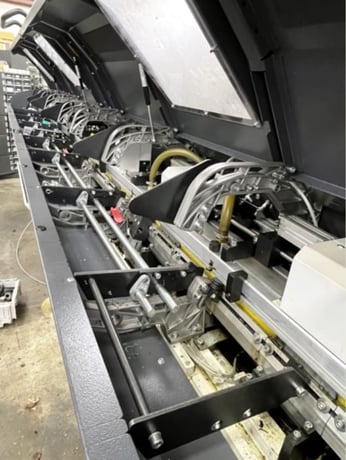

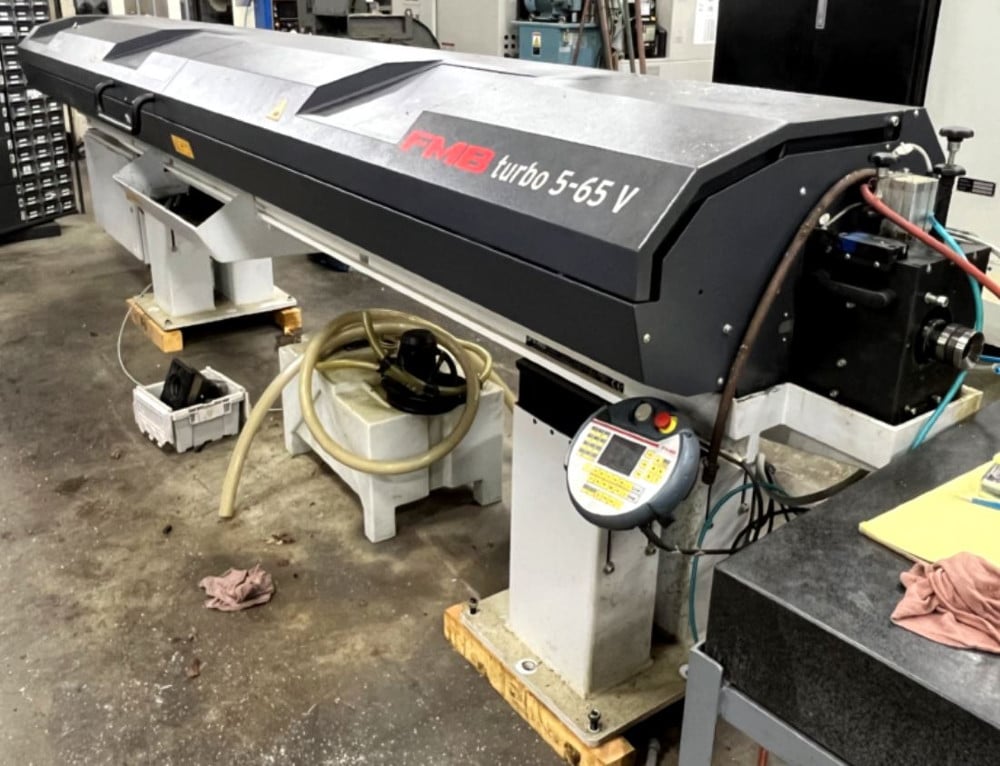

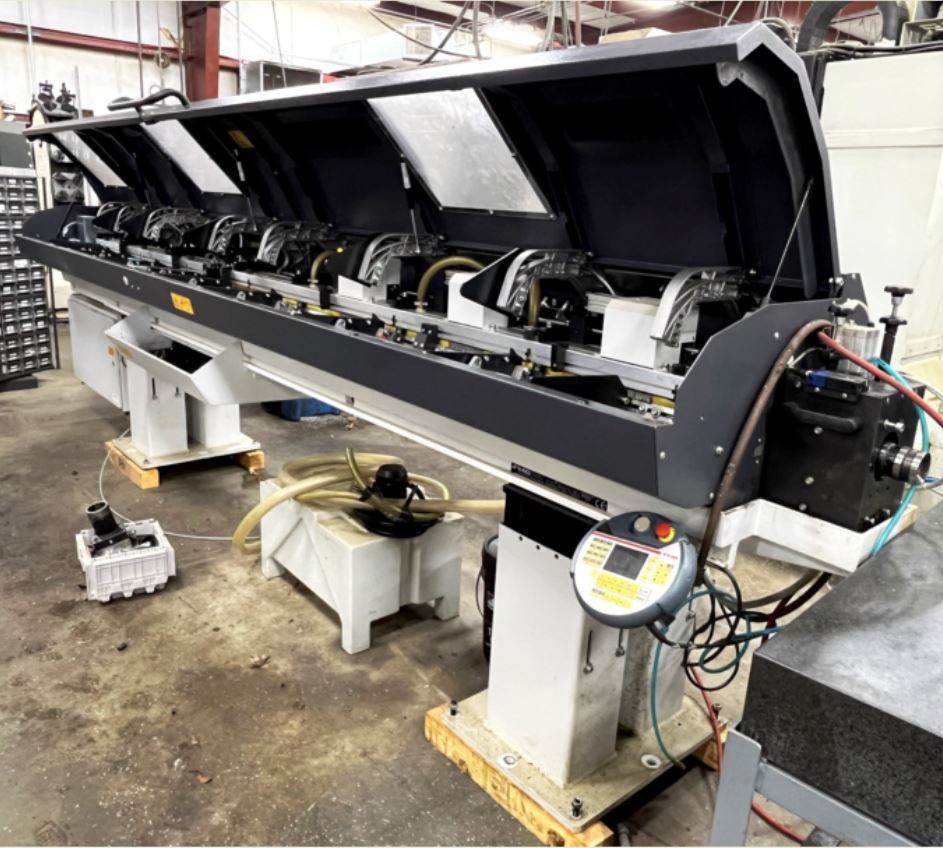

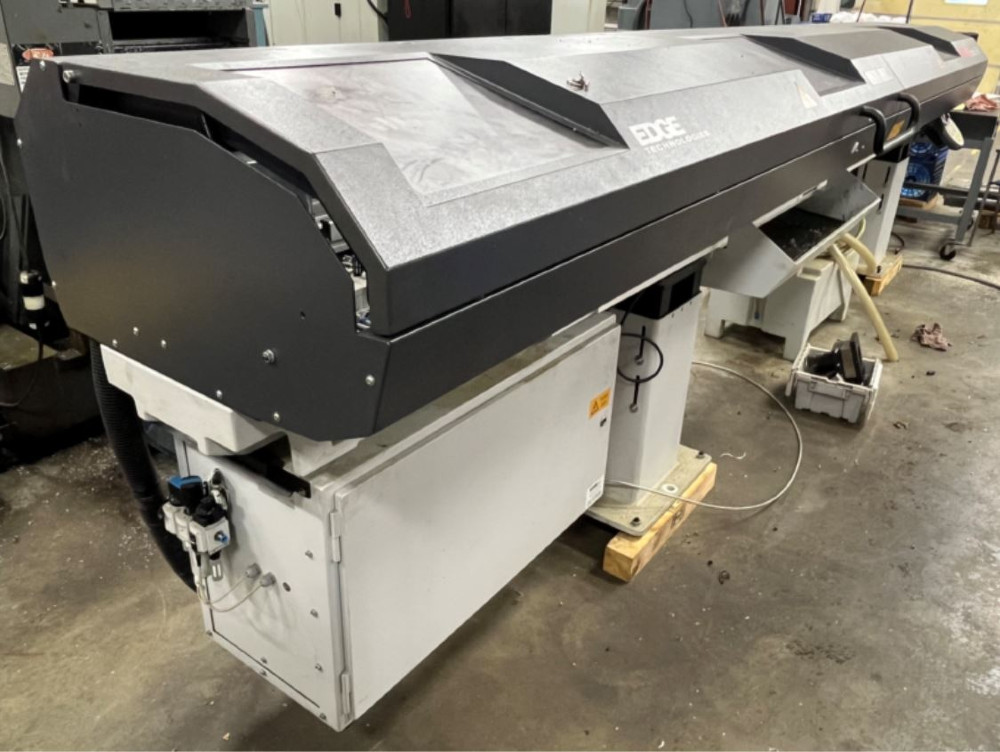

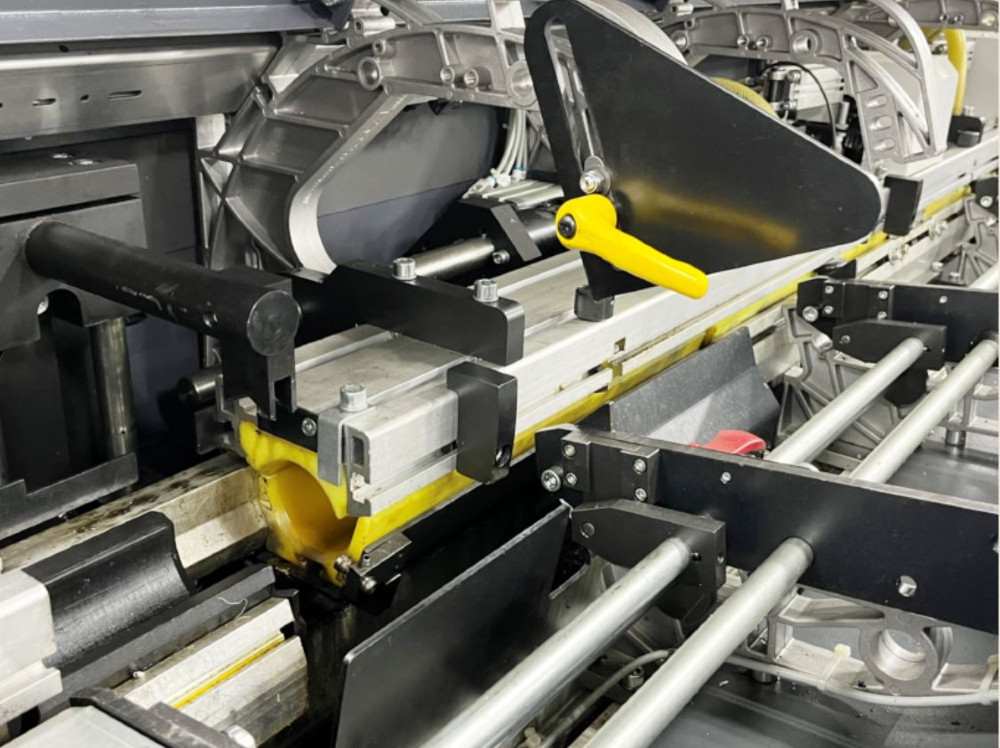

1-(used) Edge/FMB Turbo 5-65V/3800 Magazine-type Automatic Bar Feed, New 2019.
SPECIFICATIONS:
Bar diameter......................................... 5mm to 67mm (0.196” to 2.637”)
Max. bar length............................................................... 3,800mm (150")
Magazine rack capacity.................................................... 279.4 mm (11")
Magazine rack angle (adjustable)................................................ 6° - 20°
Max. remnant length......................................................... 530mm (20.8")
Bar loading cycle time (approx. for 12' bars)................................ 35 sec.
Max. feed force (adjustable)............................................. 750 N (169 lb.)
Oil capacity.................................................................... 80 liters (22 gal.)
Electrics............................................................................... 3/60/230/400
Power consumption...................................................... 2.5kW/3.125 kVA
Control voltage................................................................................... 24V
Compressed air supply........................................................ 6 bar (90 psi)
Compressed air consumption........................ ~10 liters per loading cycle
Dimensions (approx.)................. 187"L x 31"D x 61.5"/51" (open/closed)
Weight (approx. w/o oil)............................................. 2,900 kg (6,380 lb.)
EQUIPPED WITH:

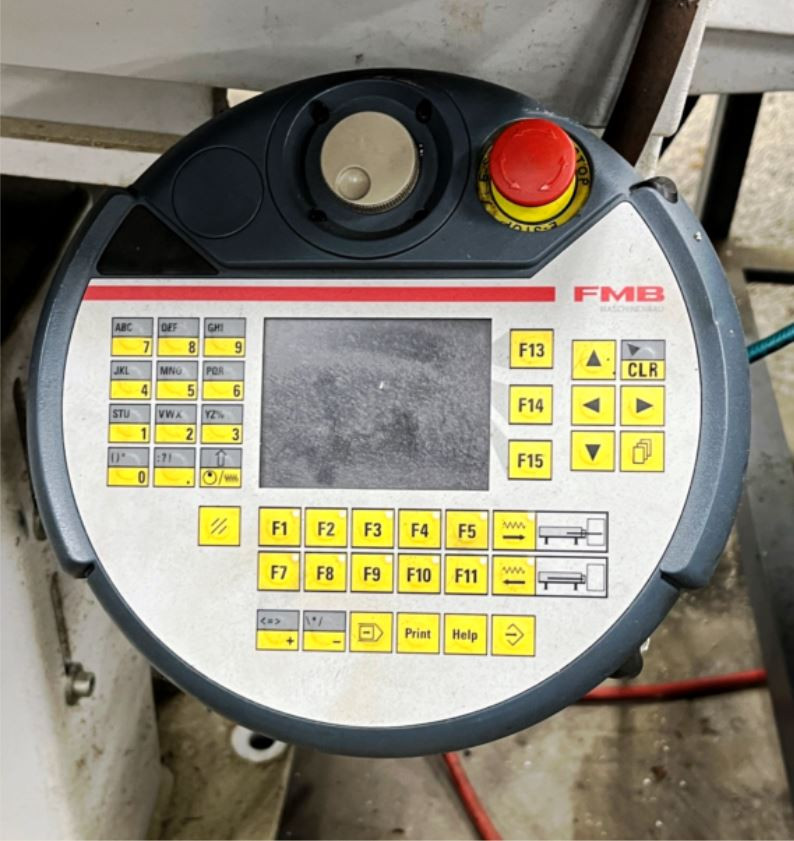

Hand-held electronic control
Left-hand feed
(1) Channel set in machine
Nose piece
Miscellaneous collets
Hydraulic tank & pump
Manual
**LOW USAGE**
SPECIFICATIONS:
Bar diameter......................................... 5mm to 67mm (0.196” to 2.637”)
Max. bar length............................................................... 3,800mm (150")
Magazine rack capacity.................................................... 279.4 mm (11")
Magazine rack angle (adjustable)................................................ 6° - 20°
Max. remnant length......................................................... 530mm (20.8")
Bar loading cycle time (approx. for 12' bars)................................ 35 sec.
Max. feed force (adjustable)............................................. 750 N (169 lb.)
Oil capacity.................................................................... 80 liters (22 gal.)
Electrics............................................................................... 3/60/230/400
Power consumption...................................................... 2.5kW/3.125 kVA
Control voltage................................................................................... 24V
Compressed air supply........................................................ 6 bar (90 psi)
Compressed air consumption........................ ~10 liters per loading cycle
Dimensions (approx.)................. 187"L x 31"D x 61.5"/51" (open/closed)
Weight (approx. w/o oil)............................................. 2,900 kg (6,380 lb.)
EQUIPPED WITH:
Hand-held electronic control
Left-hand feed
(1) Channel set in machine
Nose piece
Miscellaneous collets
Hydraulic tank & pump
Manual
**LOW USAGE**
Get Your Price from A Green Co Inc!
