Eaton HFWMP3100JL Motor Circuit Protector 690V Untested Surplus

Product Specifications

• Manufacturer: Eaton
• MPN / Model: HFWMP3100JL
• Product Type: Solid State Motor Circuit Protector
• Poles: 3
• Current Rating: 100 Amps
• Voltage: 690 VAC
• Frequency: 50/60 Hz
• Trip Class: Adjustable (5, 10, 15, 20)
• Current Setting (FLA): A=80, C=90, E=100
• Magnetic Trip: 15X Ie
• Phase Unbalance Protection: Yes
• Standard: IEC 60947-2, IEC 60947-4
• Interrupting Capacity: 100 kA at 240V, 70 kA at 415V, 40 kA at 500V, 7 kA at 690V
• Series: HFWMP

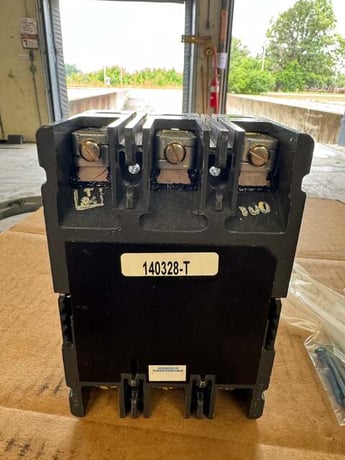

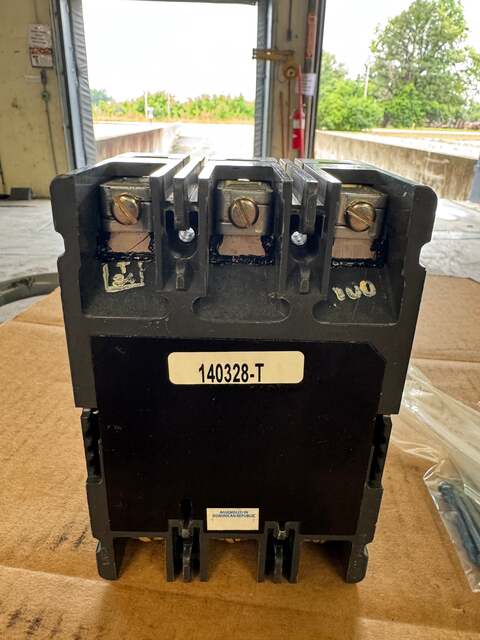

• Country of Assembly: Dominican Republic

Product Description

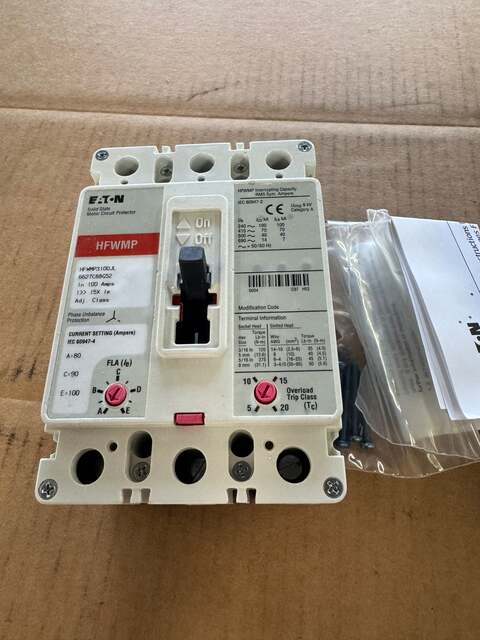

The Eaton HFWMP3100JL is a 3-pole solid state motor circuit protector rated at 100 amps and 690 VAC. It is part of the Eaton HFWMP series and carries catalog number HFWMP3100JL as confirmed on both the unit nameplate and original box label. The unit features a solid state electronic trip unit with adjustable overload trip class (5, 10, 15, or 20), a magnetic instantaneous trip set at 15X Ie, and phase unbalance protection. FLA current settings are selectable at 80A, 90A, or 100A. Interrupting capacity is rated to IEC 60947-2 at 100 kA at 240V, 70 kA at 415V, 40 kA at 500V, and 7 kA at 690V. The device meets IEC 60947-4 requirements for motor protection applications. Assembled in the Dominican Republic. Listed condition is Surplus / Untested.
