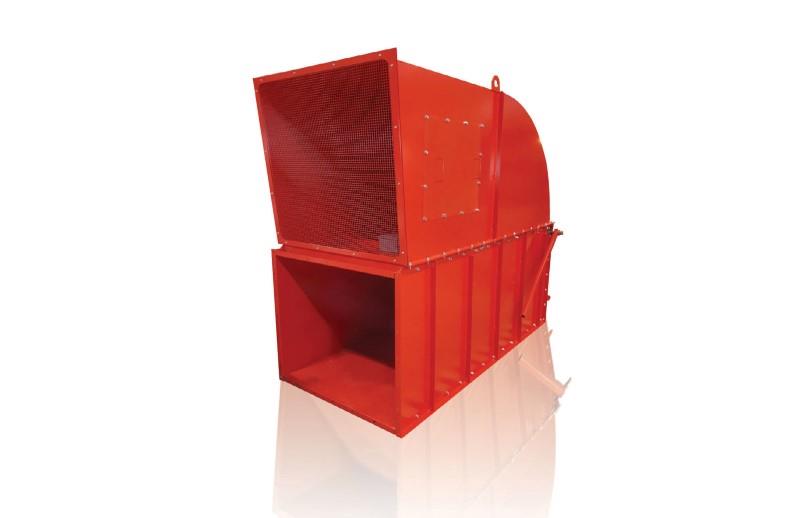

Dust-Ex #AGXX, Abort Gate/Valve, 10" x 10" x 6" NEMA enclosure, 22" x 22" pneumatic enclosure, 2026, new

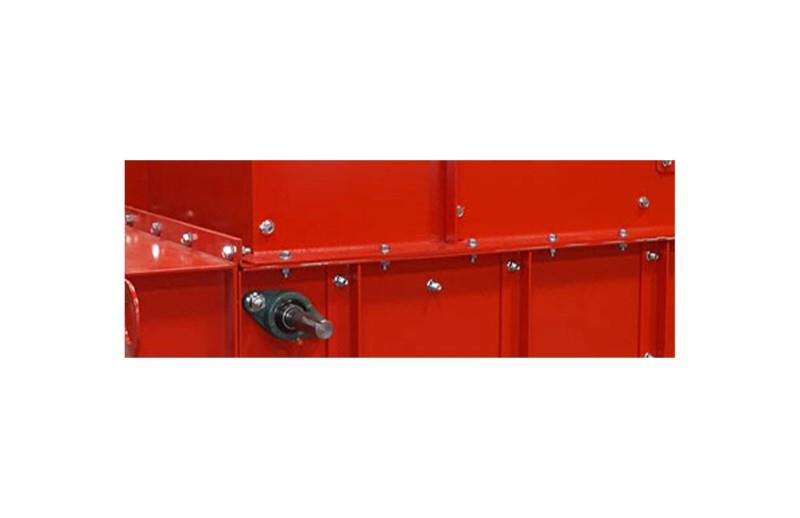

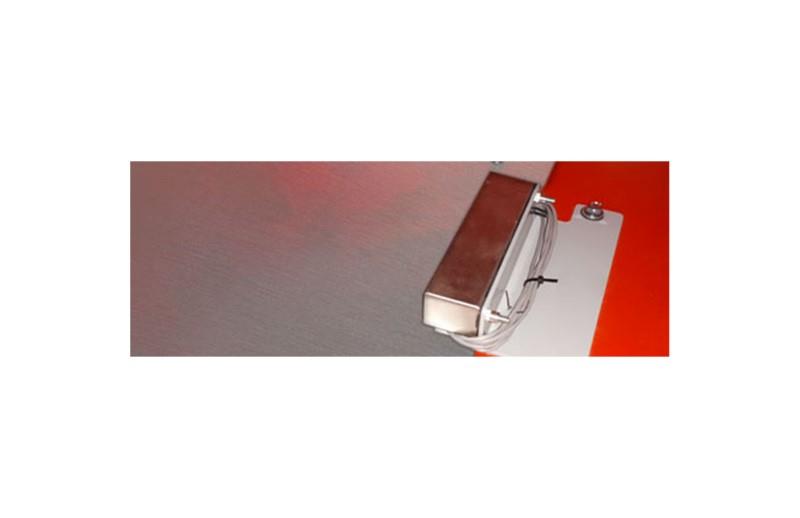

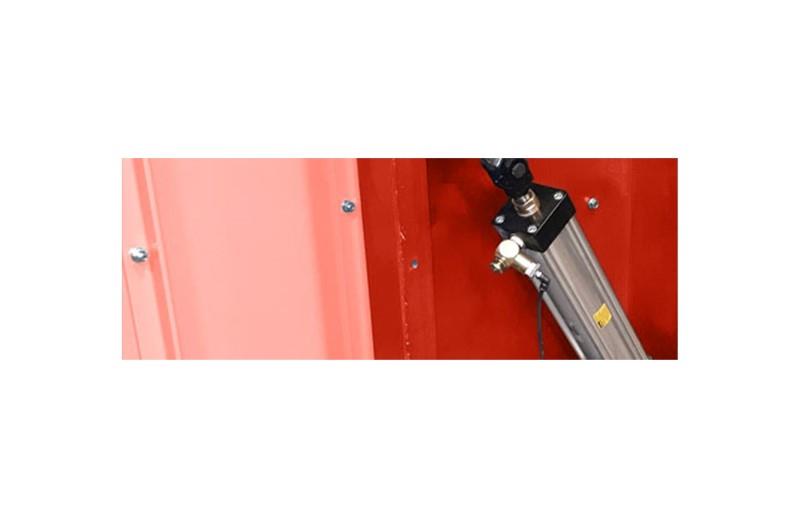

DUST-EX AG22 Abort Gate/Valve.... Automated two-way air stream diverter valve which prevents fires and explosions in dust collection systems and reduces the risk of fire in explosive prone work environments. A "safety measure essential" when clean air is returned to a building. -- Consists of: A lever arm that automatically directs a flapper damper in two different directions. -- Normal Position: The damper stays in a horizontal position (open) allowing the air stream to be directed/returned to the building -- Abort Mode: In the event of a spark originating upstream of an outside dust collector, a Spark Detection Sensor positioned in the air stream inside the building, sends a signal to de-energize an electro-magnetically controlled latch.The flap of the valve is very quickly switched to the abort/second position (closed) thereby diverting the explosion pressure/air stream to the atmosphere. Thus the inside work environment is protected from the explosion. -- Reset Mode: A pneumatically operated system is added to reset the damper position. -- Comes With: NEMA enclosure, 10" x 10" x 6". Enclosure for Pneumatics 22" x 22" -- All (3) flanged connections are 22" x 22'" square. -- Construction: Damper assembly is fully bolted to provide solid, reliable operation. -- The power adapter for the independent power supply is extra. -- Overall dimensions: 60" long x 36" wide x 43" high.MANY SIZES AVAILABLE. PLEASE INQUIRE!Improve the safety of your work environment & help comply with NFPA codes!
