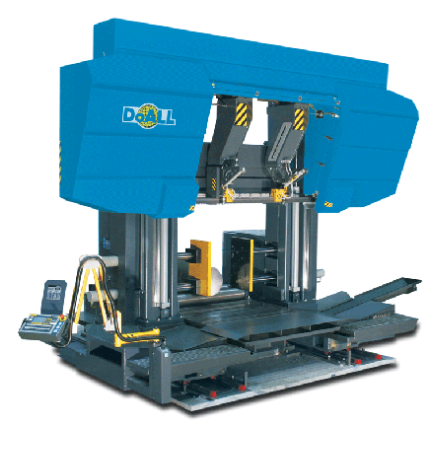

DoALL #DC-1600CNC Hercules, Dual Column Portal Saw, 49.3" x 63", 3-3/20" x 0.063" x 458" blade, 50-262 FPM, 16.75 HP, Chip Conv., parts

49.25” x 63" Portal Saw with Mahler Saw Control Work Light Hydraulic Band Tension Automatic Feed Control with Programmable Feed Rates Power-Driven Band Brush Chain Chip Conveyor with Large Pan Tool Kit Complimentary DoALL Cutting Fluids Package One (1) DoALL Bi-Metal Saw Blade Instruction and Parts Manuals on CD or USB Data Stick.

GENERAL SPECIFICATIONS

• Cutting Capacity Round (Tube or Solid): Round: 49.25"
• Cutting Capacity Rectangle: 49.25 x 63"
• Maximum Nesting Capacity: 39.37 x 24″
• Minimum Nesting Capacity: 4.5"
• Band Saw Blade Width: 3-3/20 x 0.063"
• Maximum Blade Length: 458"
• Band Speed: 50-262 fpm
• Band Drive Motor: 16.75 hp
• Material Pass Line Height: 31-1/2"
• Machine Weight: 88185 lbs.
• Dimensions W x L x H: 205” x 138” x 162"
• Maximum Weight of Raw Material: No limit - Saw Traverses Material as it Remains on the Floor or Base Surface

INCLUDES: Work Light, Hydraulic Band Tension, Automatic Feed Control with Programmable Feed Rates, Power-Driven Band Brush, Chain Chip Conveyor with Large Pan, Tool Kit, Complimentary DoALL Cutting Fluids Package, One (1) DoALL Bi-Metal Saw Blade, Instruction and Parts Manuals on CD or USB Data Stick.

***All Price, Location and Specifications Subject to Change without Notice***
