Manufacturer: Dn Solutions
Model: LYNX-2100LSYB
Year: 2023
Swing: 23.6
Chuck: 8
Bar Capacity: 2.6
Stock # 197972502026627
1 / 5
Click to zoom in
1 / 5
For Sale by Tight Tolerance Machinery
Surplus Record Dealer Since 2018
Location: Peoria, AZ
Contact John Molander
Phone Number: 623...> Show Phone Number 623-440-7850
Let the seller know you found their listing on Surplus Record!
Description

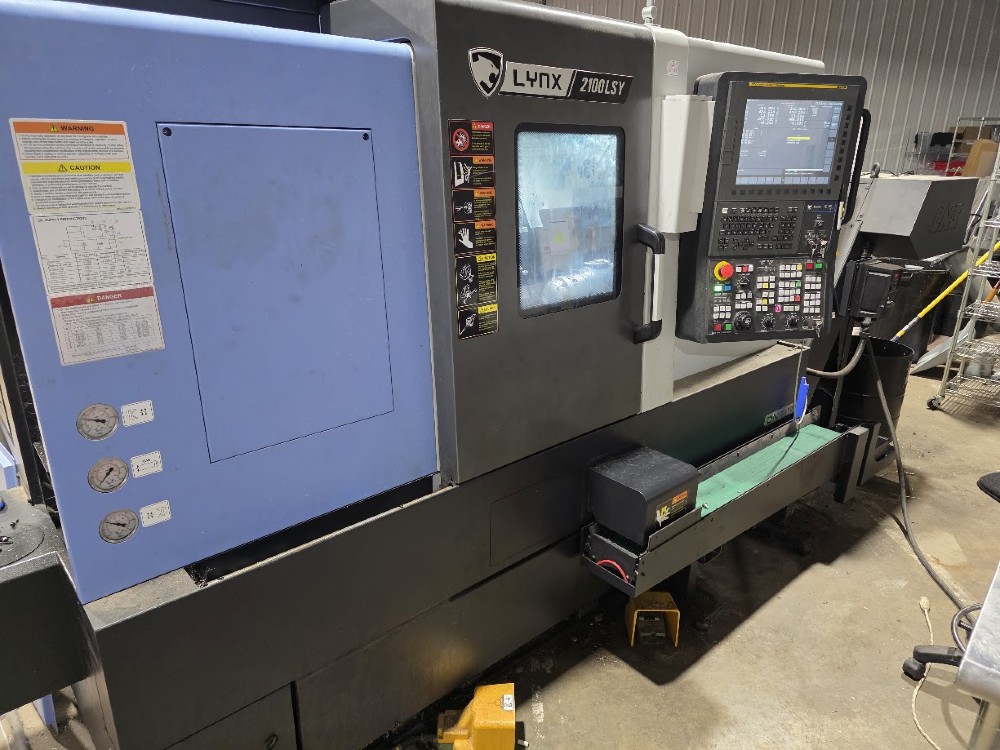

DN Solutions (Doosan) Lynx 2100LSYB
NEW: 2023
SPECIFICATIONS:
Max Swing...............................23.6"
Max Turning Diameter....................11.8"
Max Turning Length......................20"
Bar Capacity............................2.6"
X-Axis Travel...........................8.07"
Z-Axis Travel...........................22"
Spindle Motor...........................20 HP
Spindle Speed...........................4,500 RPM
Rapid Rate Z Axis.......................1,417 IPM
Rapid Rate X Axis.......................1,417 IPM
C-AXIS:
Minimum programmable angle (degrees)....0.001
Rapid traverse rate (RPM)...............200
C-axis contouring torque (63Nm).........46.4 ft-lbs
C-axis braking torque (511Nm)...........376 ft-lbs
C-axis repeatability....................+/- 0.006 deg.
C-axis positioning accuracy.............0.0167 deg.
ROTATING TOOLS:
Rotating tool RPM.......................6,000 RPM
Rotating tool spindle motor.............(10 min. rating) 5 HP
Rotating tool torque....................(10 min. rating 17.3 lbs.
Rotating tool collet type...............ER 20
Milling collet capacity.................0.78" to .5"
Y-AXIS:
Y-axis travel...........................4.13" (±2.065”)
Y-axis rapid traverse rate..............394 IPM
SUB-SPINDLE:
B axis travel (sub spindle).............22.0”
Sub spindle guideway span...............8.93”
Spindle speed...........................6,000 RPM
Spindle motor (30 min. rating)..........7.3 HP
Maximum torque (30 min. rating).........34 ft-lbs.
Spindle nose............................110mm flat nose
Spindle bore............................1.69"
Draw tube ID............................1.375"
Rapid traverse rate (30 m/min)..........1181 IPM
Minimum programmable angle..............0.001 degree (full C axis)
Dimensions..............................112" x 67" x 81"
Weight..................................8,800 LBS
EQUIPPED WITH:

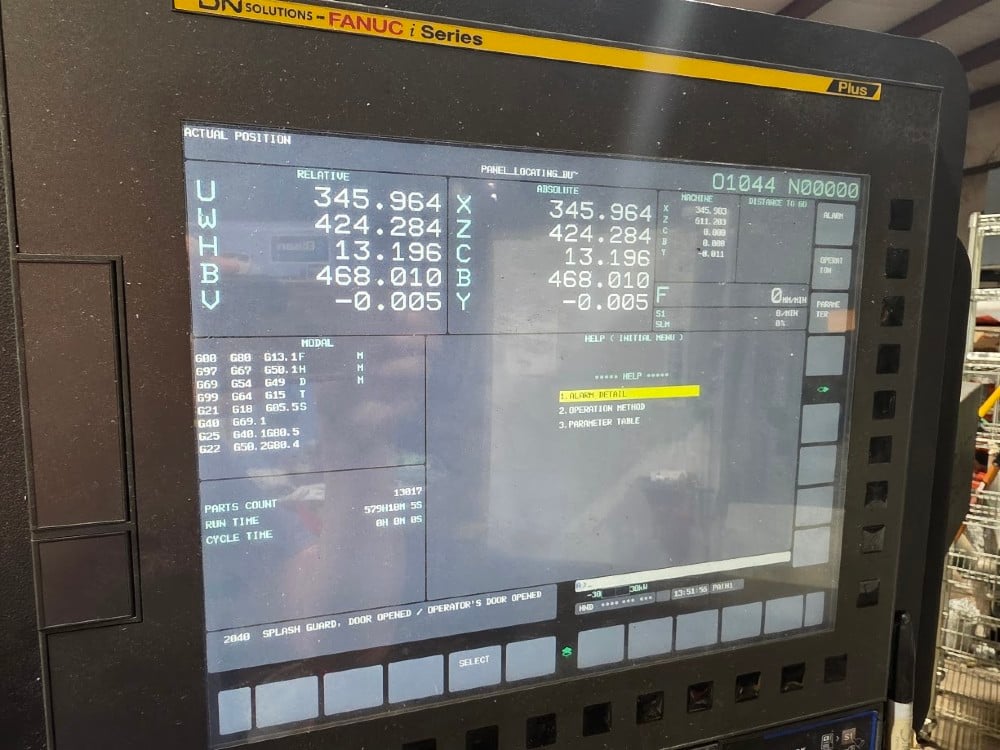

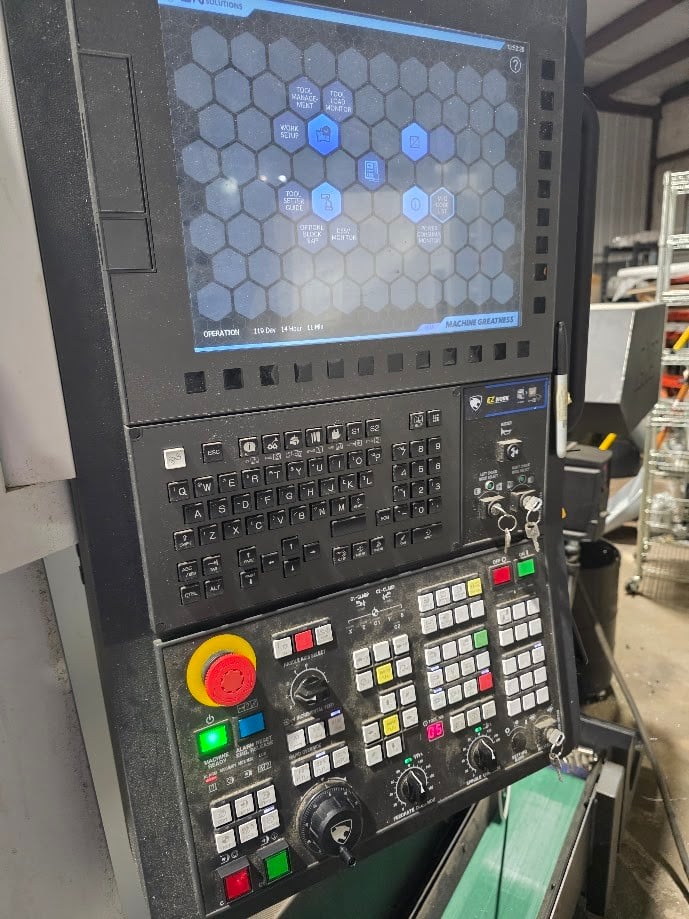

Fanuc Control

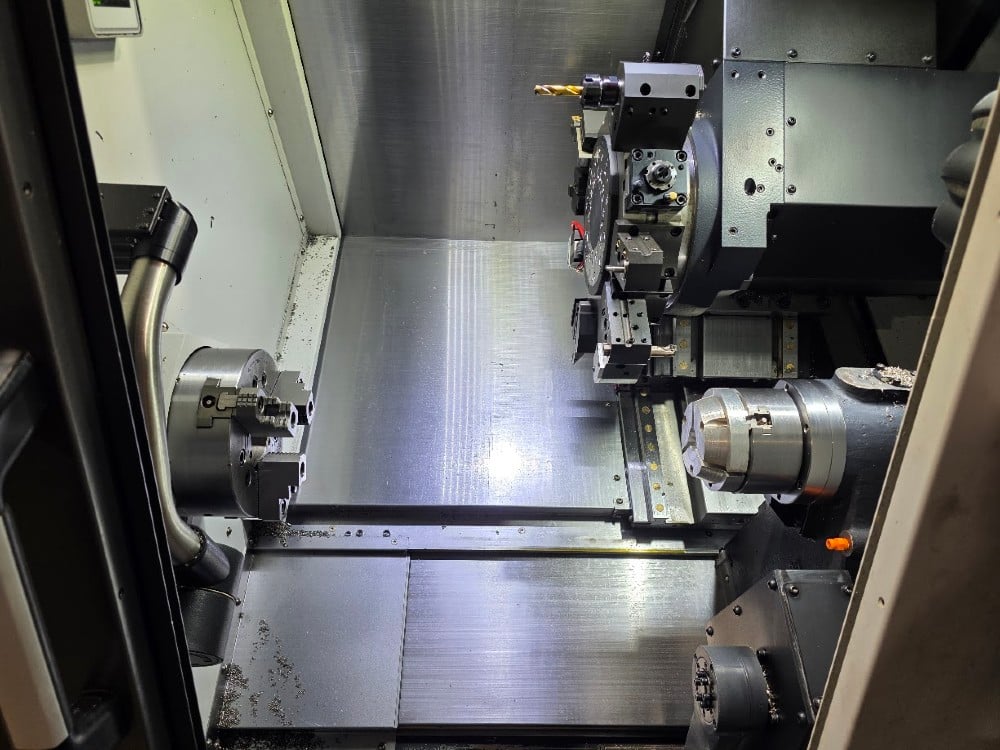

8" & 6" Chucks
Tool Presetter
Live Tooling
Y-Axis
Sub-Spindle
Full C-Axis
Parts Catcher
Parts Conveyor
LNS Chip Conveyor

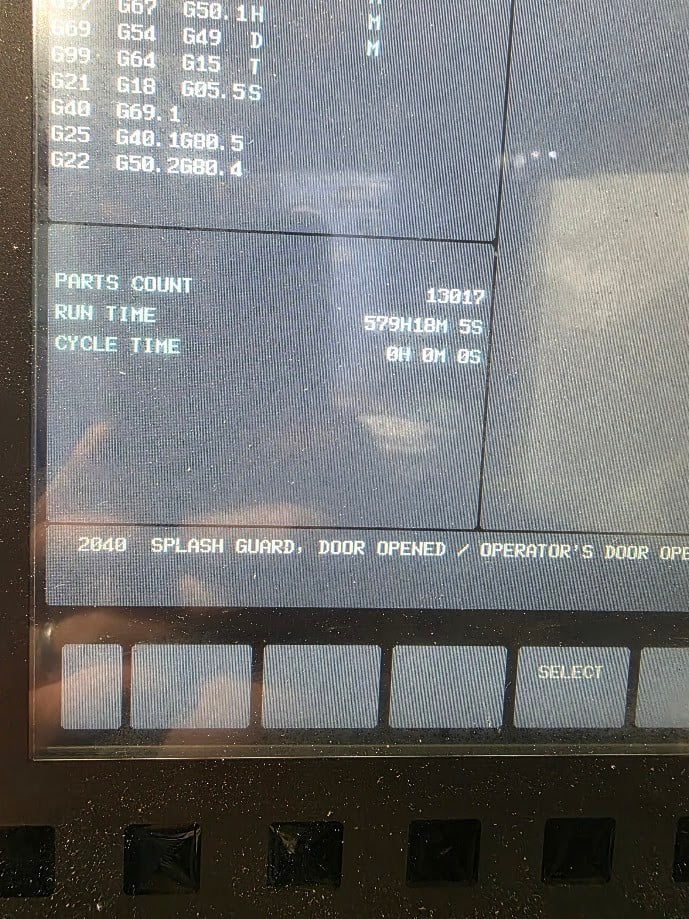

**UNDER 700 HOURS**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
NEW: 2023
SPECIFICATIONS:
Max Swing...............................23.6"
Max Turning Diameter....................11.8"
Max Turning Length......................20"
Bar Capacity............................2.6"
X-Axis Travel...........................8.07"
Z-Axis Travel...........................22"
Spindle Motor...........................20 HP
Spindle Speed...........................4,500 RPM
Rapid Rate Z Axis.......................1,417 IPM
Rapid Rate X Axis.......................1,417 IPM
C-AXIS:
Minimum programmable angle (degrees)....0.001
Rapid traverse rate (RPM)...............200
C-axis contouring torque (63Nm).........46.4 ft-lbs
C-axis braking torque (511Nm)...........376 ft-lbs
C-axis repeatability....................+/- 0.006 deg.
C-axis positioning accuracy.............0.0167 deg.
ROTATING TOOLS:
Rotating tool RPM.......................6,000 RPM
Rotating tool spindle motor.............(10 min. rating) 5 HP
Rotating tool torque....................(10 min. rating 17.3 lbs.
Rotating tool collet type...............ER 20
Milling collet capacity.................0.78" to .5"
Y-AXIS:
Y-axis travel...........................4.13" (±2.065”)
Y-axis rapid traverse rate..............394 IPM
SUB-SPINDLE:
B axis travel (sub spindle).............22.0”
Sub spindle guideway span...............8.93”
Spindle speed...........................6,000 RPM
Spindle motor (30 min. rating)..........7.3 HP
Maximum torque (30 min. rating).........34 ft-lbs.
Spindle nose............................110mm flat nose
Spindle bore............................1.69"
Draw tube ID............................1.375"
Rapid traverse rate (30 m/min)..........1181 IPM
Minimum programmable angle..............0.001 degree (full C axis)
Dimensions..............................112" x 67" x 81"
Weight..................................8,800 LBS
EQUIPPED WITH:
Fanuc Control
8" & 6" Chucks
Tool Presetter
Live Tooling
Y-Axis
Sub-Spindle
Full C-Axis
Parts Catcher
Parts Conveyor
LNS Chip Conveyor
**UNDER 700 HOURS**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
